Product Details
HYDRAULIC CYLINDER, TIE ROD STYLE

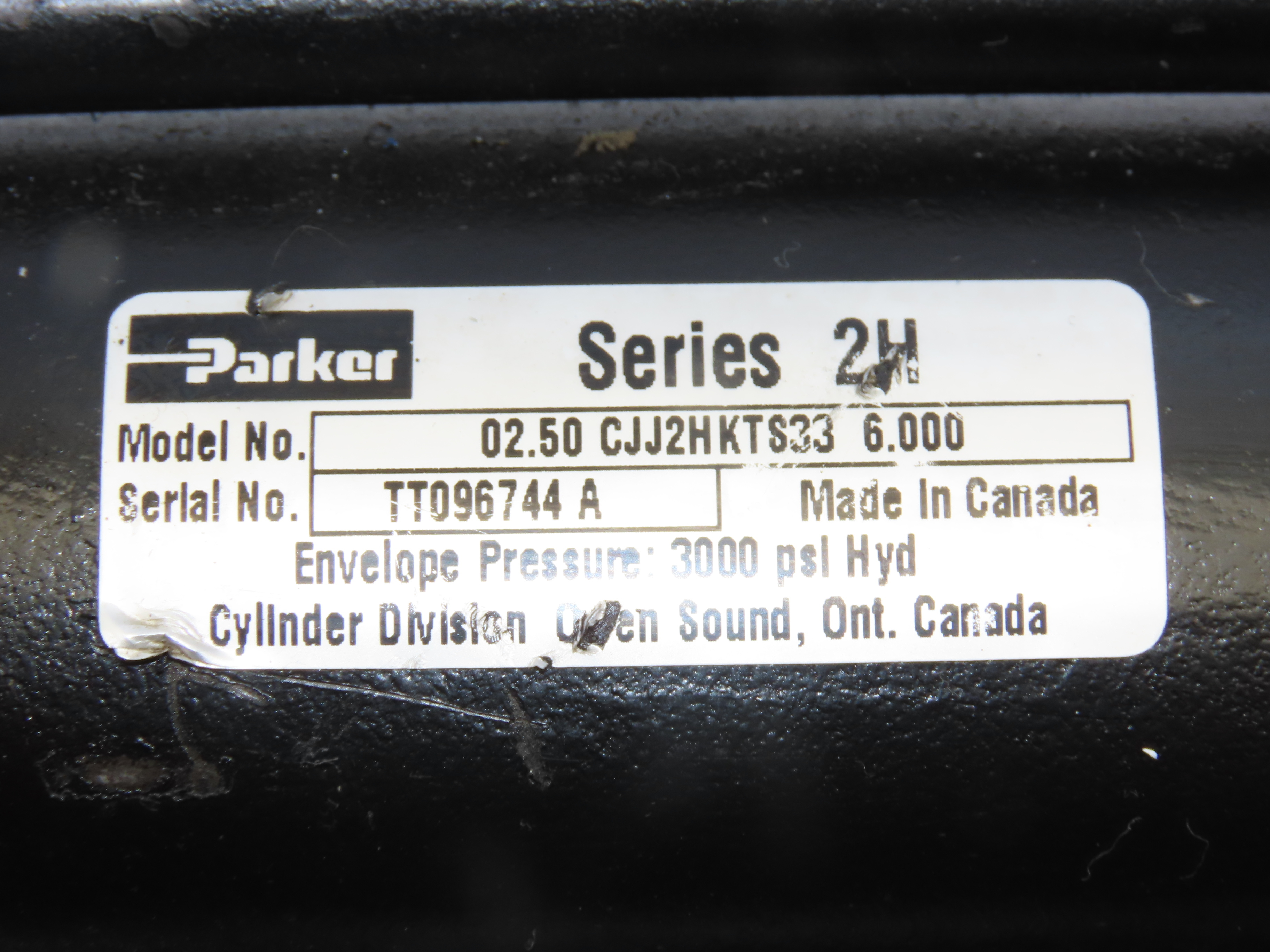

PARKER 02.50 CJJ2HKTS33 6.000
BORE, 2-1/2"
STROKE, 6"
MOUNTING, FRONT BLOCK
ROD DIAMETER, 1-3/8" diameter with special end, the rod protrudes past the end plate 3-1/4" with cylinder fully retracted, then starting 3/8" (the first 3/8 of the rod is 1.318" O.D.)from the end there is a 11/16" wide slot where the rod is reduced to 7/8" diameter.
PORTS, AN-10 ( 1-1/16"-12 SAE )
DOUBLE ACTING
CUSHION ON HEAD END ONLY
MAX. HYDRAULIC PSI, 3000 PSI
CONSTRUCTION IS STEEL
THIS CYLINDER IS NEW OLD STOCK.
This cylinder has some nicks in the end cap from improper handling, but I don't see any otherwise. These should not effect performance.
