3HP 6.3-38.36 RPM 44.32:1 Ratio Gear Motor W/Brake Inverter VFD MM22D-503-00
3HP 6.3-38.36 RPM 44.32:1 Ratio Gear Motor W/Brake Inverter VFD MM22D-503-003HP 6.3-38.36 RPM 44.32:1 Ratio Gear Motor W/Brake Inverter VFD MM22D-503-003HP 6.3-38.36 RPM 44.32:1 Ratio Gear Motor W/Brake Inverter VFD MM22D-503-003HP 6.3-38.36 RPM 44.32:1 Ratio Gear Motor W/Brake Inverter VFD MM22D-503-003HP 6.3-38.36 RPM 44.32:1 Ratio Gear Motor W/Brake Inverter VFD MM22D-503-003HP 6.3-38.36 RPM 44.32:1 Ratio Gear Motor W/Brake Inverter VFD MM22D-503-003HP 6.3-38.36 RPM 44.32:1 Ratio Gear Motor W/Brake Inverter VFD MM22D-503-003HP 6.3-38.36 RPM 44.32:1 Ratio Gear Motor W/Brake Inverter VFD MM22D-503-003HP 6.3-38.36 RPM 44.32:1 Ratio Gear Motor W/Brake Inverter VFD MM22D-503-003HP 6.3-38.36 RPM 44.32:1 Ratio Gear Motor W/Brake Inverter VFD MM22D-503-003HP 6.3-38.36 RPM 44.32:1 Ratio Gear Motor W/Brake Inverter VFD MM22D-503-003HP 6.3-38.36 RPM 44.32:1 Ratio Gear Motor W/Brake Inverter VFD MM22D-503-003HP 6.3-38.36 RPM 44.32:1 Ratio Gear Motor W/Brake Inverter VFD MM22D-503-003HP 6.3-38.36 RPM 44.32:1 Ratio Gear Motor W/Brake Inverter VFD MM22D-503-003HP 6.3-38.36 RPM 44.32:1 Ratio Gear Motor W/Brake Inverter VFD MM22D-503-00

3HP 6.3-38.36 RPM 44.32:1 Ratio Gear Motor W/Brake Inverter VFD MM22D-503-00

Current Price: $1,139.99

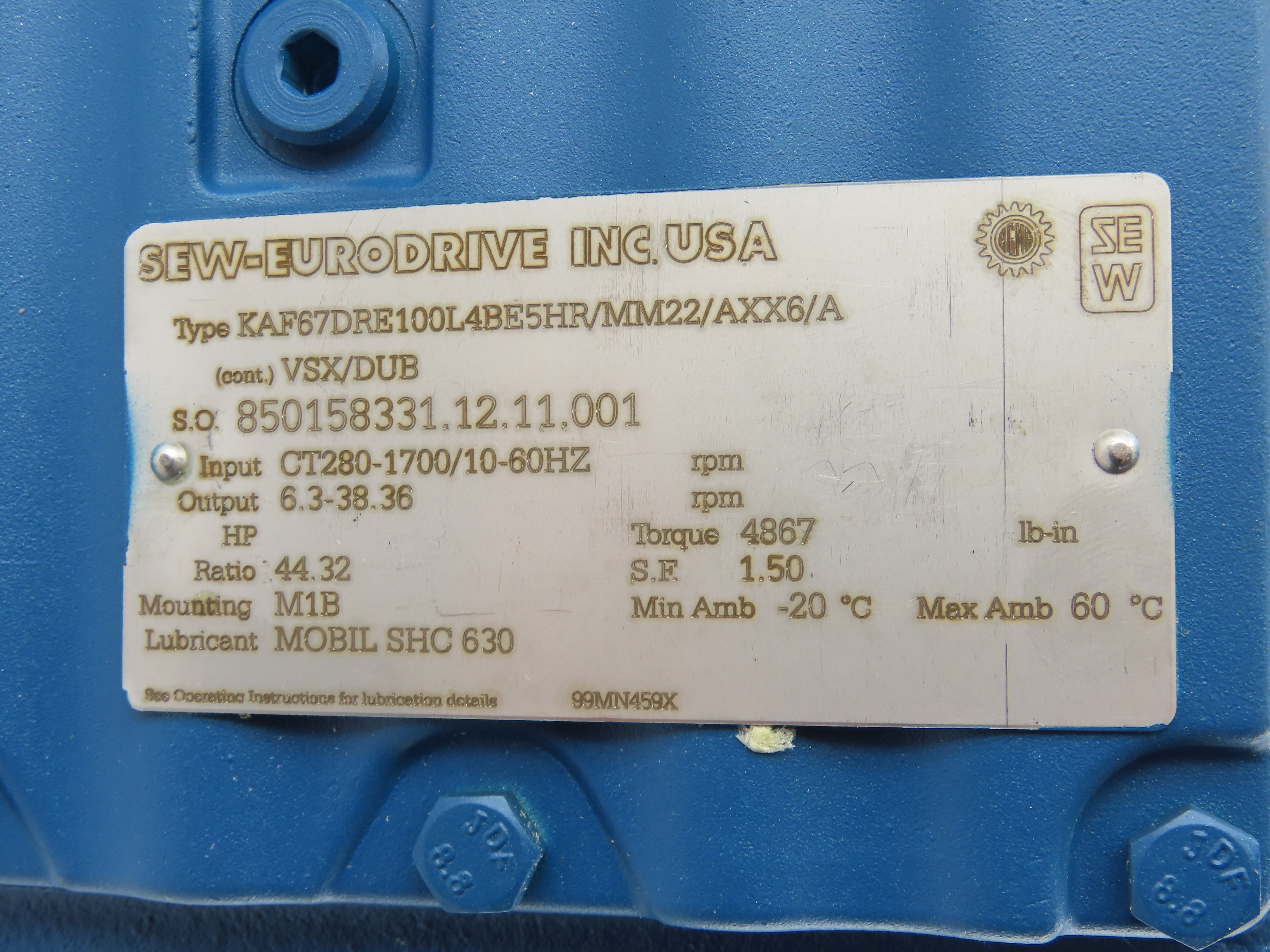

  • Gear Ratio: 44.32:1
  • Output Speed: 6.3-38.36
  • Shaft Diameter: Hollow for 40mm Shaft
  • Flange Diameter: Raised Pilot on flange is 180 mm O.D, (4) holes at 215mm B.C.
  • Output Torque (lbs-in): 4867

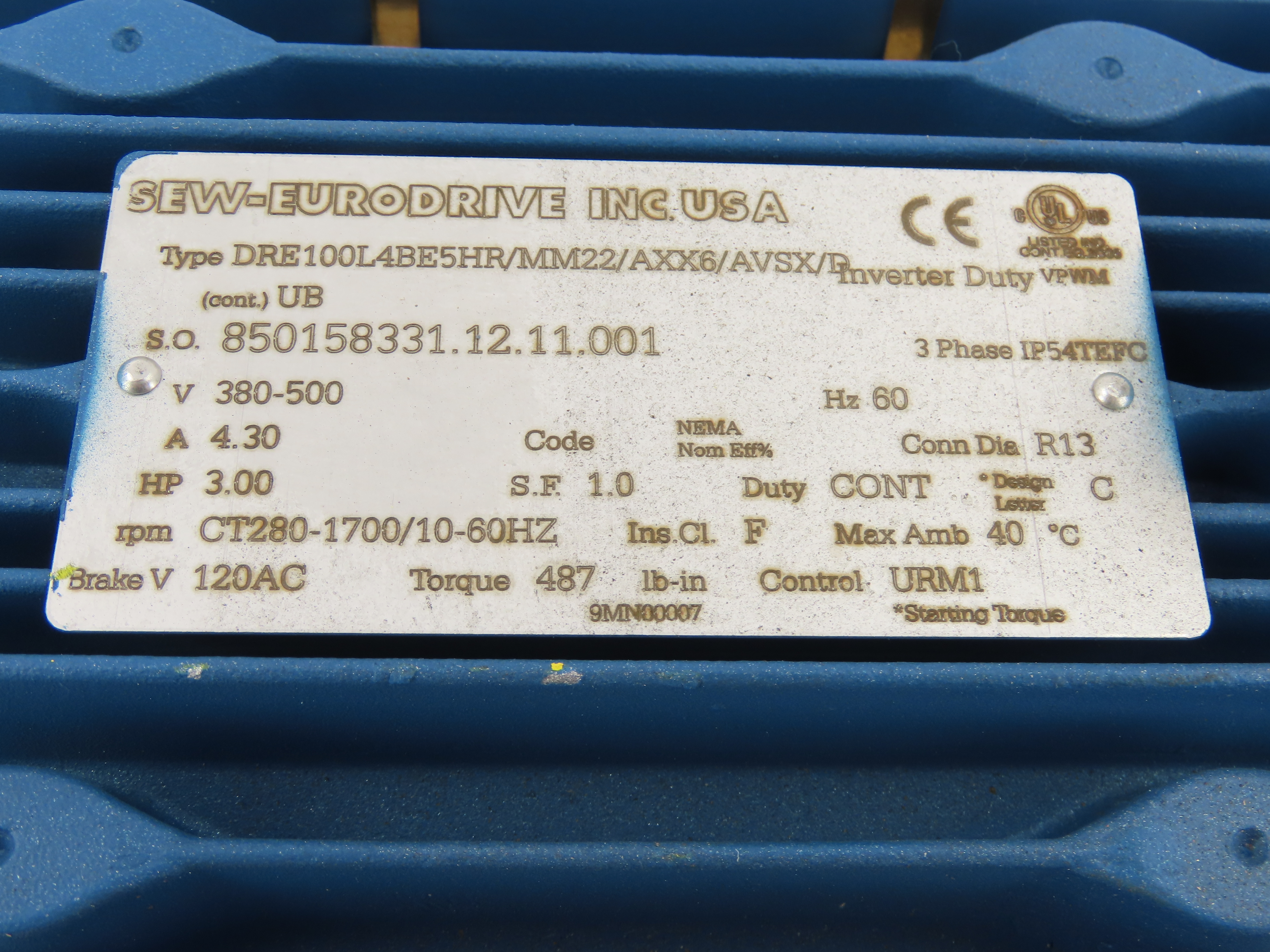

  • Motor Brand: SEW-EURODRIVE
  • Motor HP: 3
  • Motor Phase: 3
  • Motor Voltage: 380-500 v
  • Motor Frequency: 60
  • Motor Amps: 4.3
  • Insulation Class: F
  • Brake Voltage: 120AC
  • Brake Torque (in/lbs): 487
  • This is a new gearmotor.

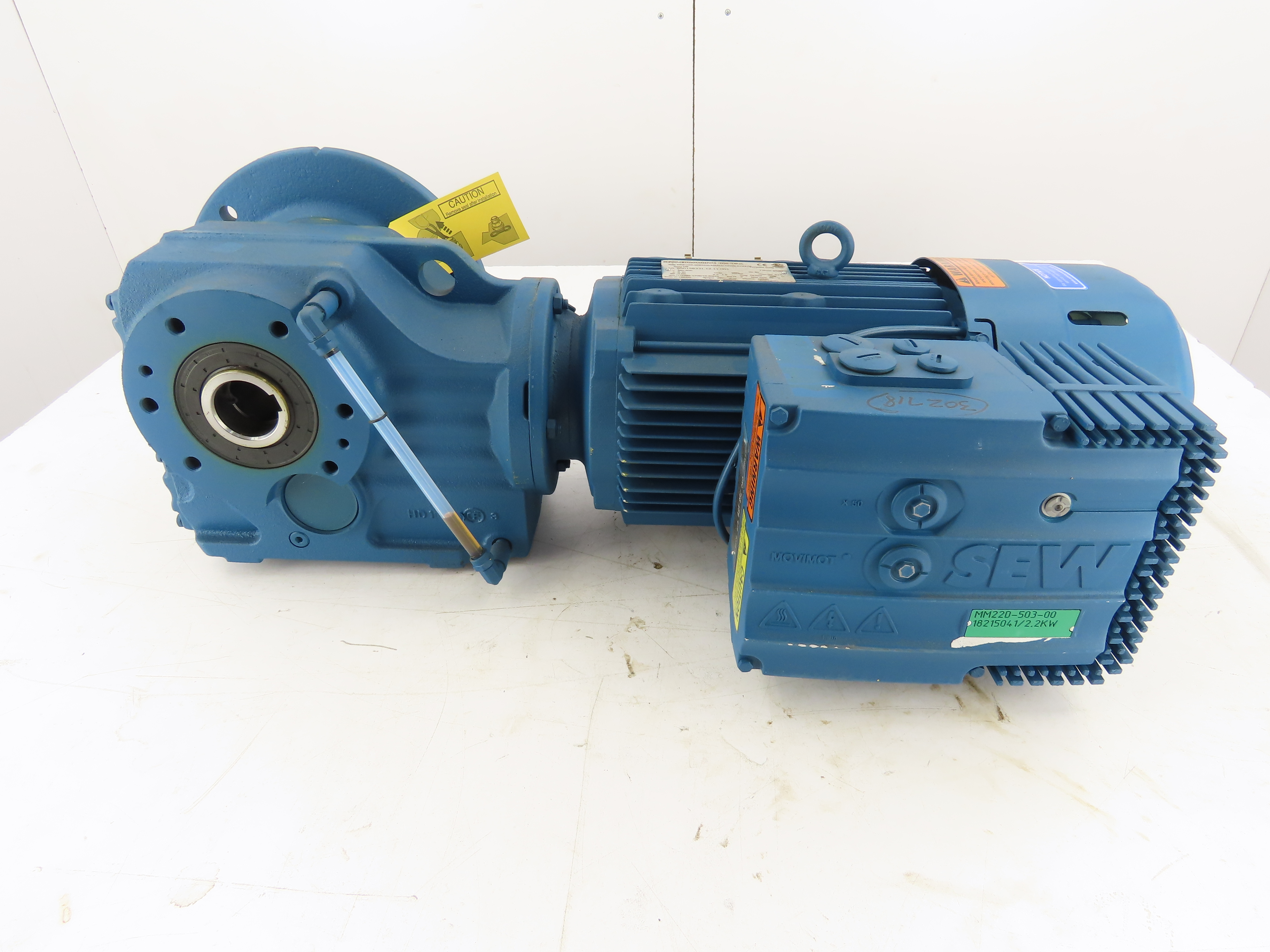

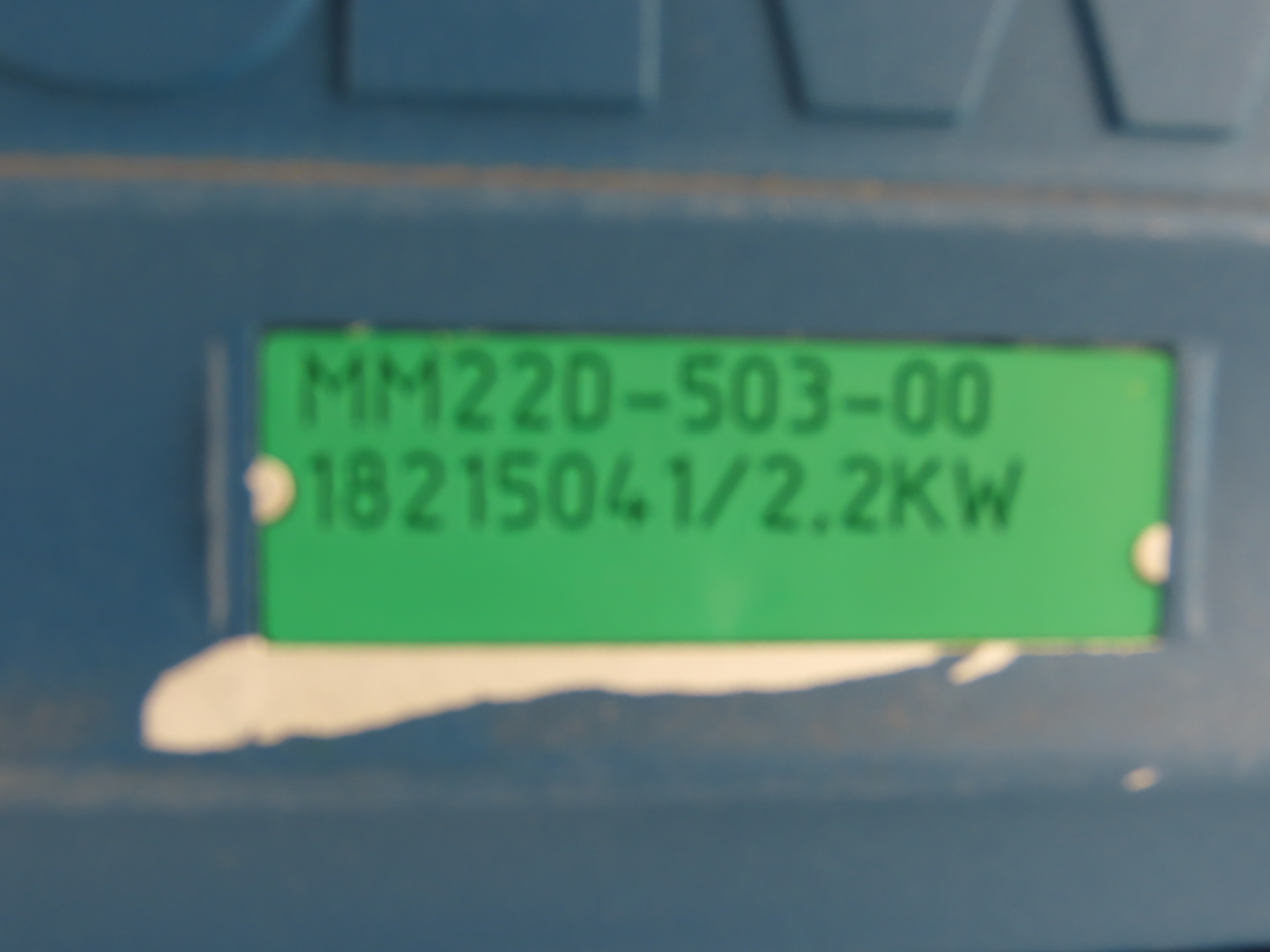

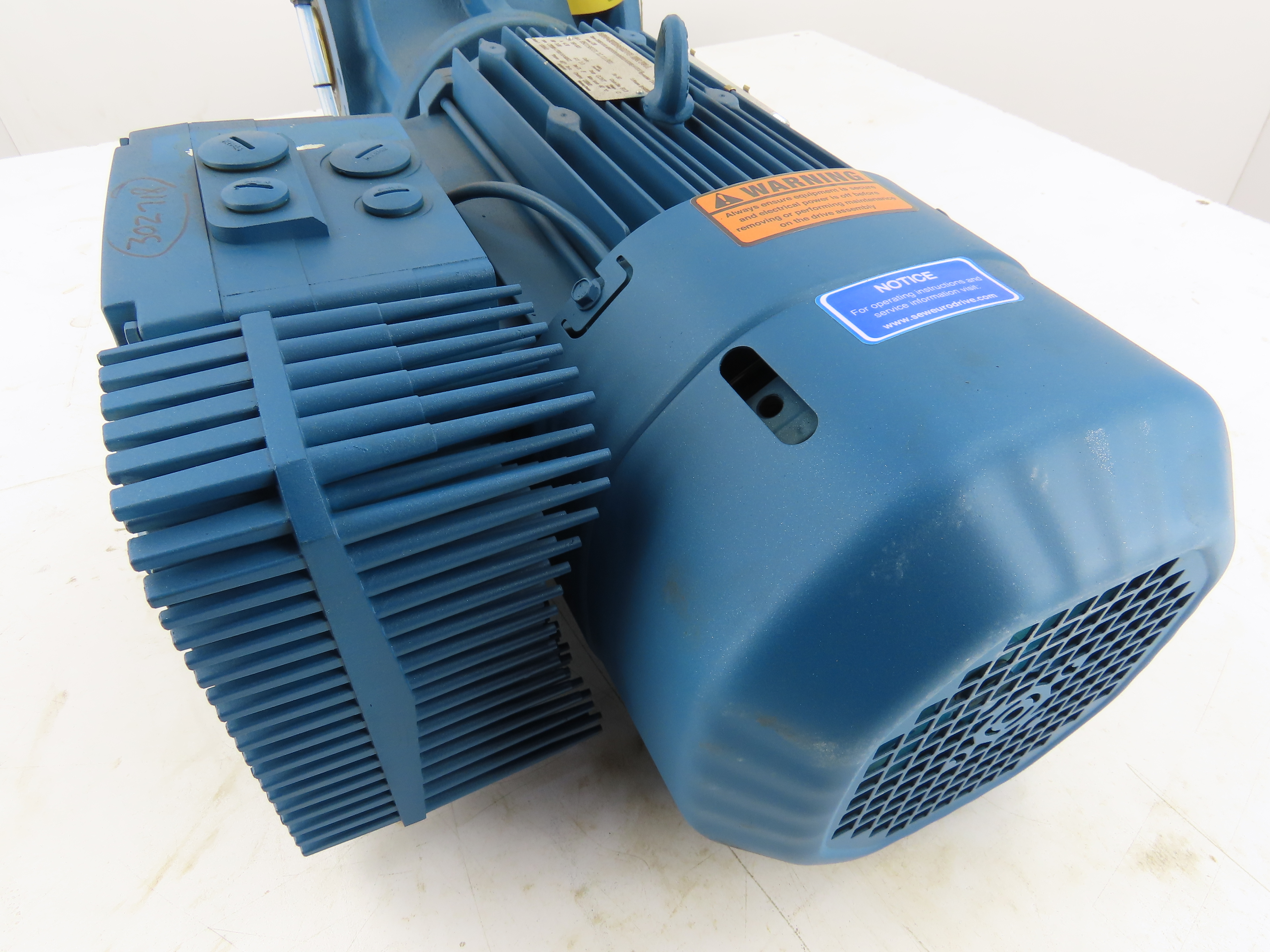

  • This gearmotor comes with an attached MM22D-503-00 VFD Invertor
  • S.O. No. 850158331.12.11.001
  • Smart Number Q350260

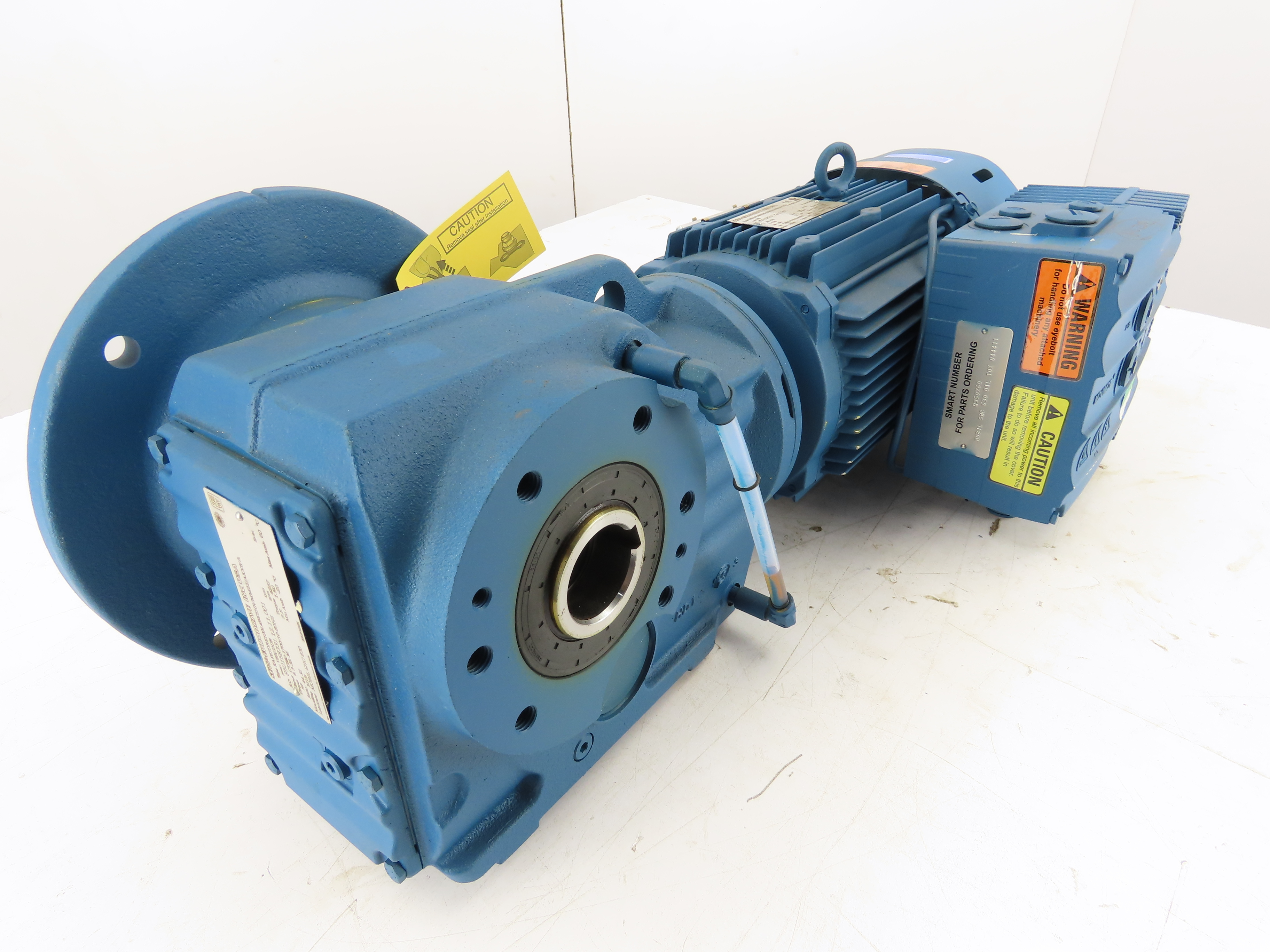

  • This is a Right angle hollow/female shaft gearmotor.

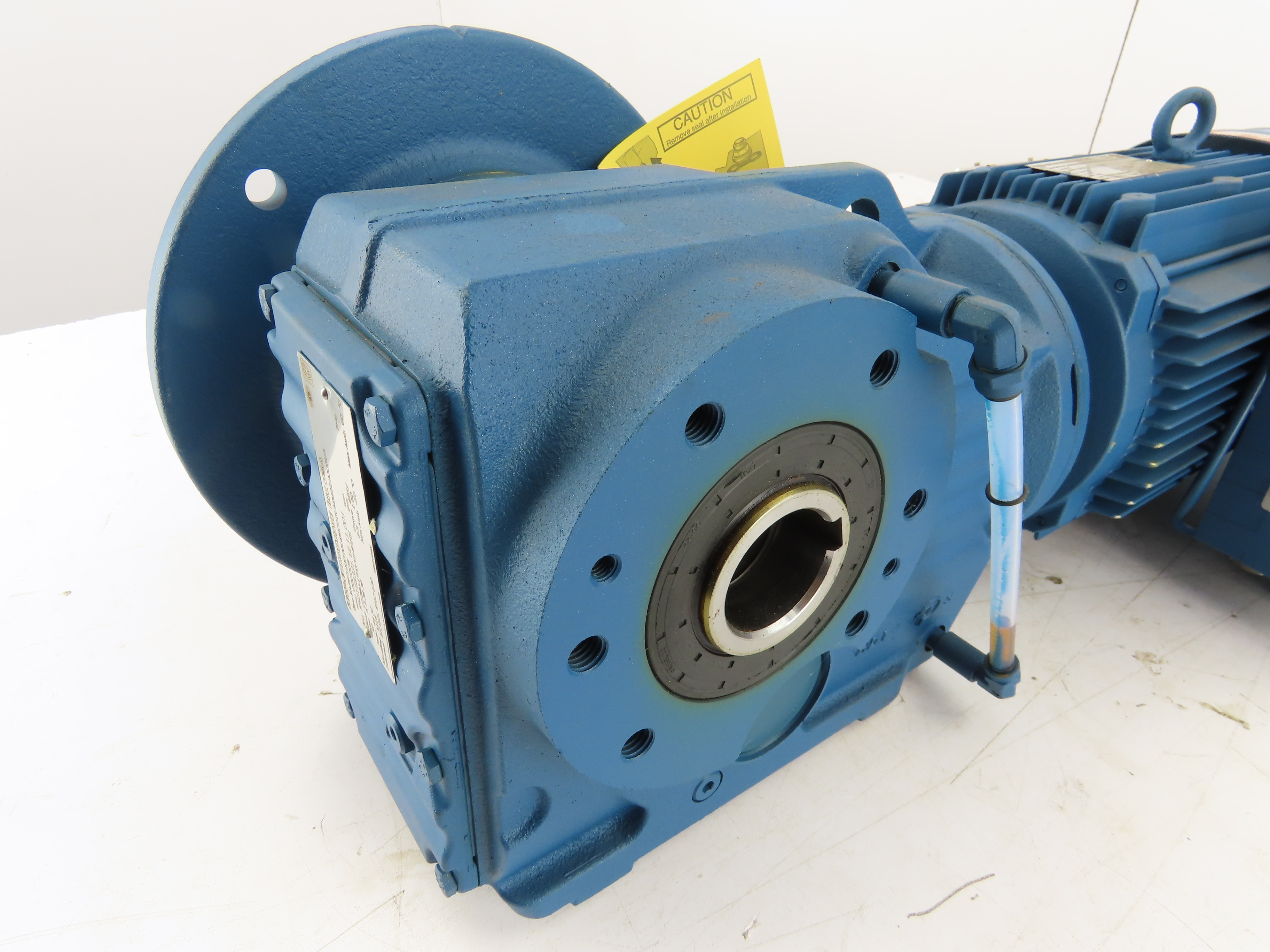

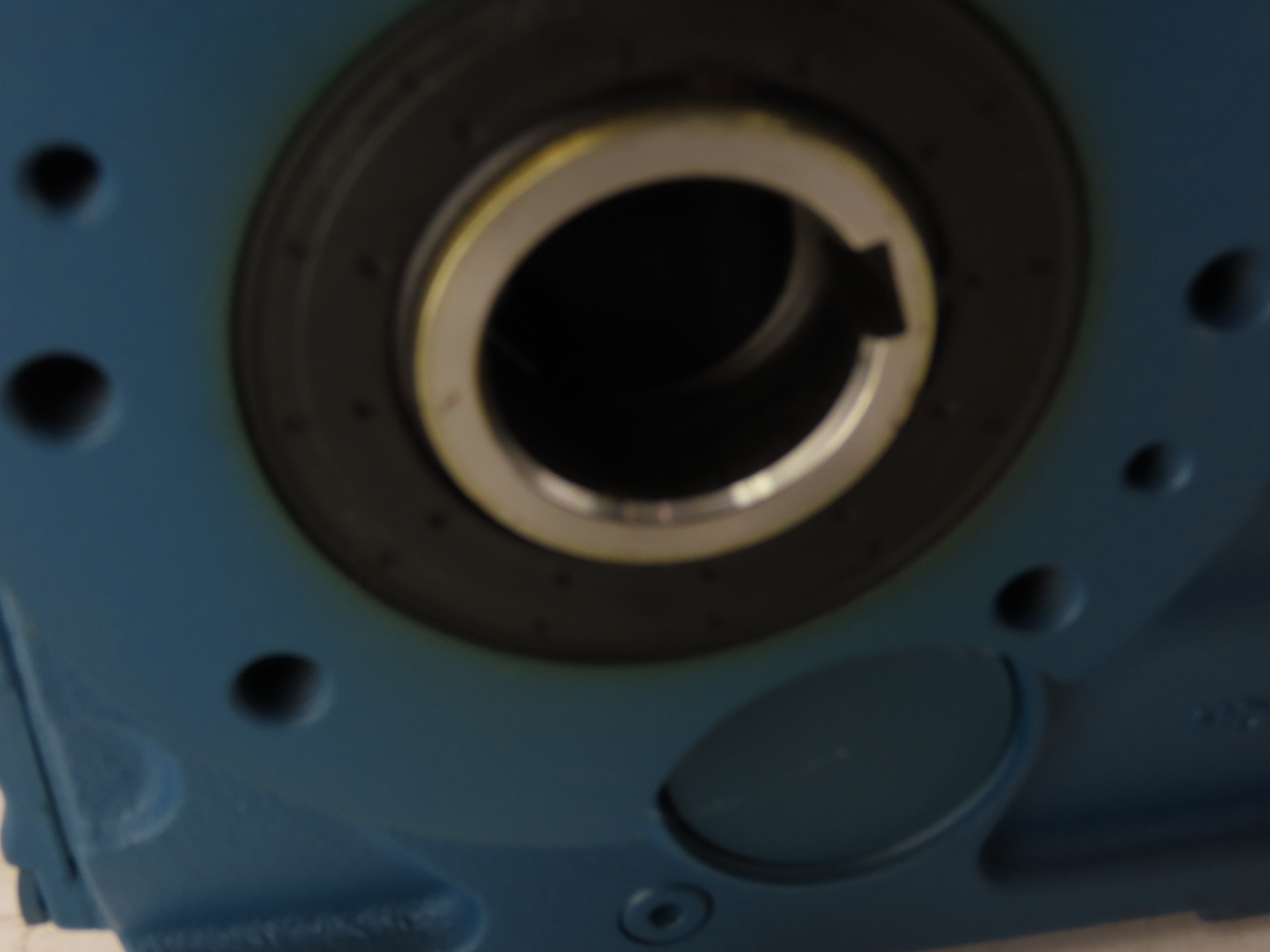

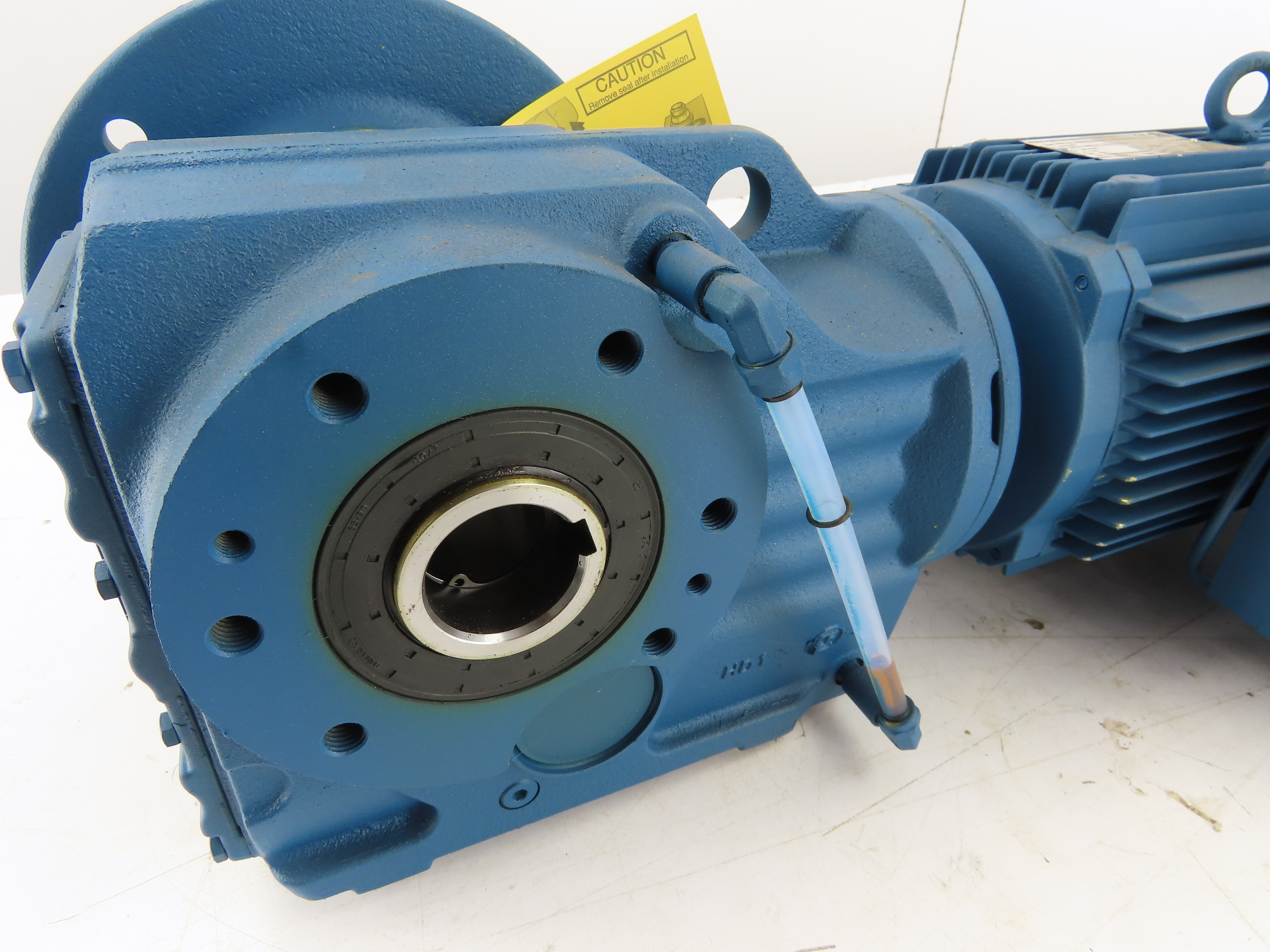

  • Output is 40mm I.D. with a 12mm key slot
  • Brake Voltage 120 AC

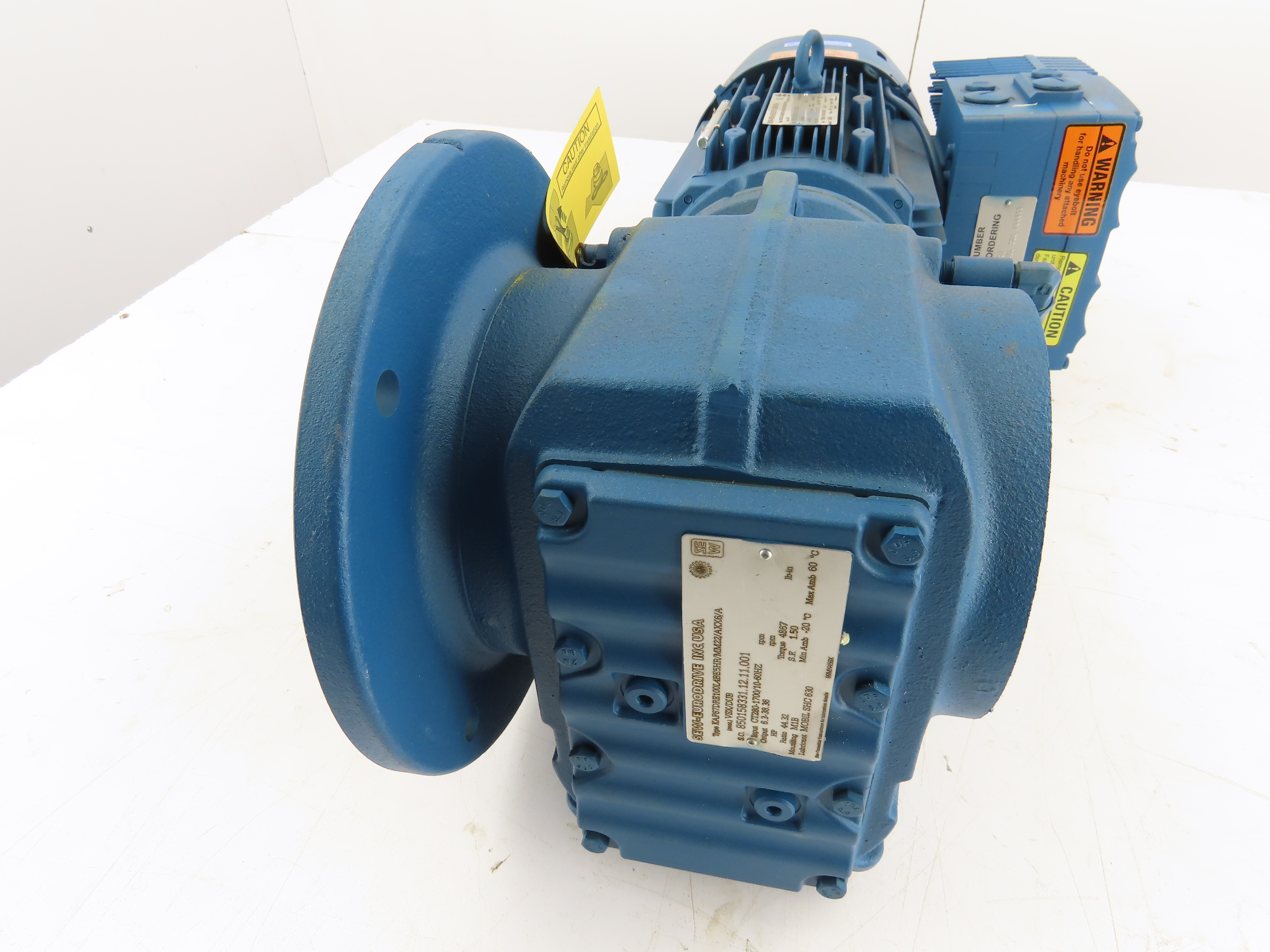

  • Piloted Flange Mount Gear Reducer
  • Piloted flange gear units are mounted /designed with an integrated pilot register that ensures precise centering and alignment during installation. The pilot fits into a corresponding bore or mounting surface, reducing misalignment and improving overall system stability. These units provide reliable shaft support and are commonly used in conveyors, industrial machinery, and heavy-duty mechanical systems where accurate positioning is essential. Available in multiple bore sizes, piloted flange gear reducer units offer dependable performance in demanding applications.

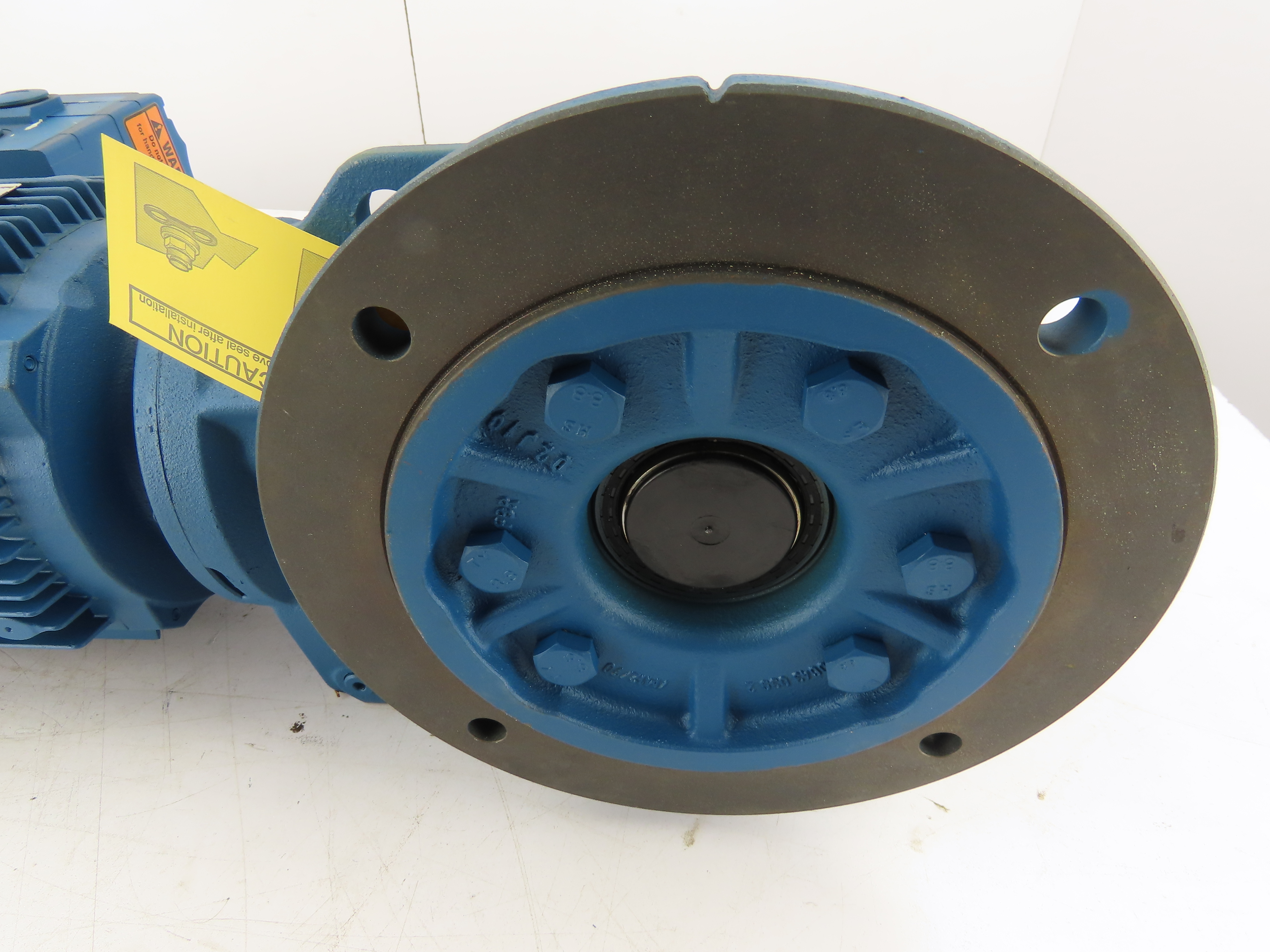

  • The diameter of the Pilot on the mounting flange is 180 mm O.D. With 4 holes on a 215MM diameter pattern
Details
  • Brand: SEW-EURODRIVE
  • Condition: New Other
  • SKU: 214735
  • Consigner: J
  • Warehouse Storage Location: pulled
  • Shipping Weight (lbs, oz): 164,
  • Lister: jw
  • Country of Manufacture: United States
  • Items in Lot: 1
  • Gear Ratio: 44.32:1
  • Output Speed: 6.3-38.36
  • Shaft Diameter: Hollow for 40mm Shaft
  • Flange Diameter: Raised Pilot on flange is 180 mm O.D, (4) holes at 215mm B.C.
  • Output Torque (lbs-in): 4867
  • Motor Brand: SEW-EURODRIVE
  • Motor HP: 3
  • Motor Phase: 3
  • Motor Voltage: 380-500 v
  • Motor Frequency: 60
  • Motor Amps: 4.3
  • Insulation Class: F
  • Brake Voltage: 120AC
  • Brake Torque (in/lbs): 487
  • This is a new gearmotor.
  • This gearmotor comes with an attached MM22D-503-00 VFD Invertor
  • S.O. No. 850158331.12.11.001
  • Smart Number Q350260
  • This is a Right angle hollow/female shaft gearmotor.
  • Output is 40mm I.D. with a 12mm key slot
  • Brake Voltage 120 AC
  • Piloted Flange Mount Gear Reducer
  • Piloted flange gear units are mounted /designed with an integrated pilot register that ensures precise centering and alignment during installation. The pilot fits into a corresponding bore or mounting surface, reducing misalignment and improving overall system stability. These units provide reliable shaft support and are commonly used in conveyors, industrial machinery, and heavy-duty mechanical systems where accurate positioning is essential. Available in multiple bore sizes, piloted flange gear reducer units offer dependable performance in demanding applications.
  • The diameter of the Pilot on the mounting flange is 180 mm O.D. With 4 holes on a 215MM diameter pattern
