Table Type: Electric over Hydraulic Scissor Lift Table
Load Capacity (lbs): 1000
Table Length: 48
Table Width: 27
Table Maximum Height: 37-1/2
Table Minimum Height: 6-1/4
Table Power Source: Electric Over Hydraulic
Motor HP: 1
Volts: 575
Phase: 3
Control Type: Hand Pendent 13' Cord
Power Cord Length: 9'
This lift has been load tested (to capacity) and works as it should.
Wth 1 hp and a 1000 lb capacity this lift raises to full height in 7 seconds.

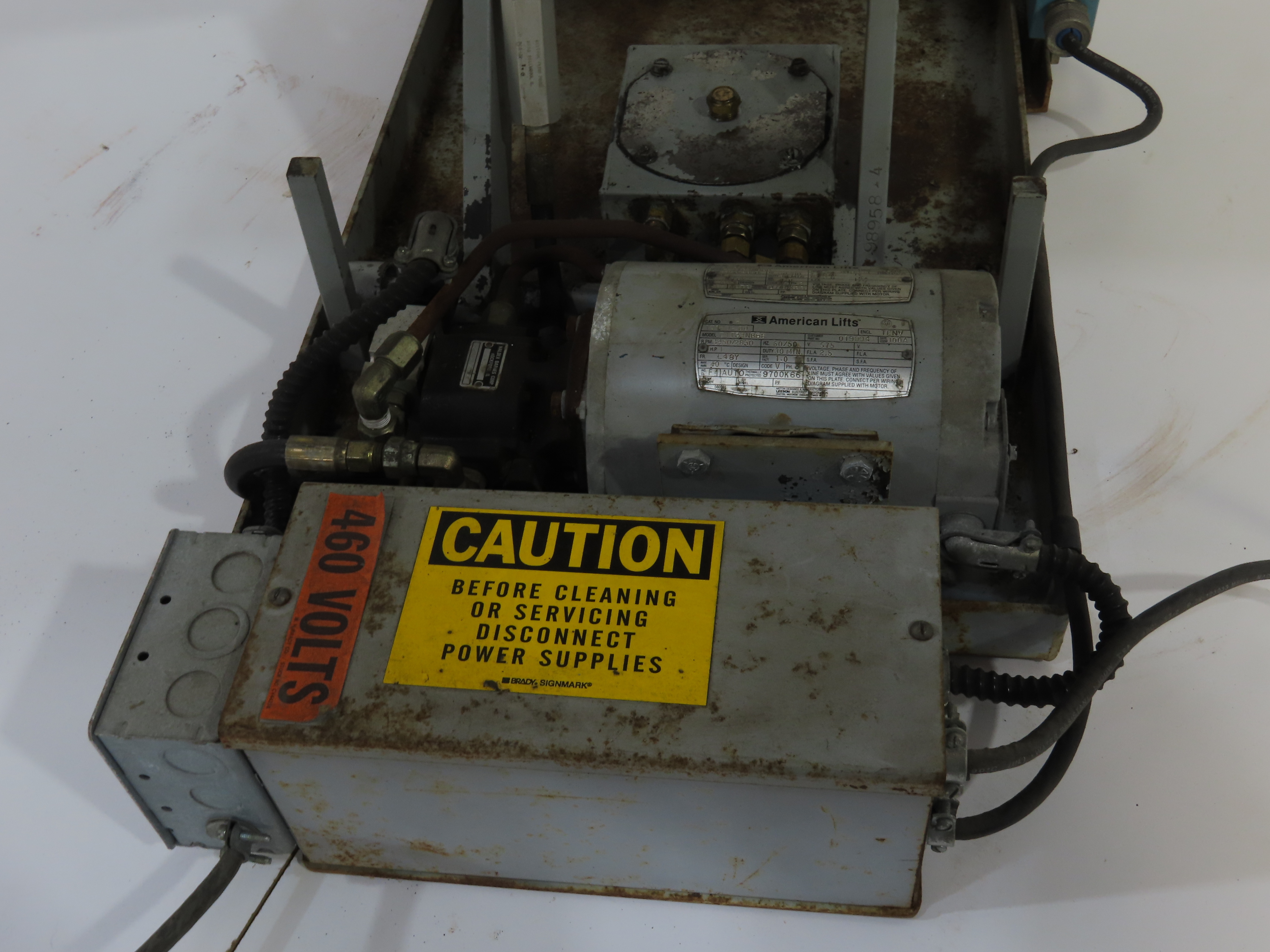

This unit has a motor nameplate voltage of 575 volts but was used on 460v 3 phase up to this point and we also load tested it (with 1080pounds) on 460 volt and it worked fine.
Features of this lift are as follows.
All scissors rollers are captured within structural steel channels to provide excellent load stability.
High impact, spiral wound bearings at every pivot point provide maintenance-free, rugged resistance to abrasion, impact, and uneven loads.
Structural cross-members at every pinned joint in the scissors assembly minimizes leg deflection.
All hydraulic cylinders contain two-piece, self-aligning piston rods that transmit minimal side forces to the cylinder hinges/pins.
Structural steel channels in all top and lower frames provide additional rigidity and resistance to twisting/bending of the lift under load.
Solid steel legs and added stiffeners provide overall stability and straight, repeatable roller tracking as the lift raises and lowers.
Joints feature chrome-plated, 100,000 psi, ultimate-strength pins for premium load strength and long life.
