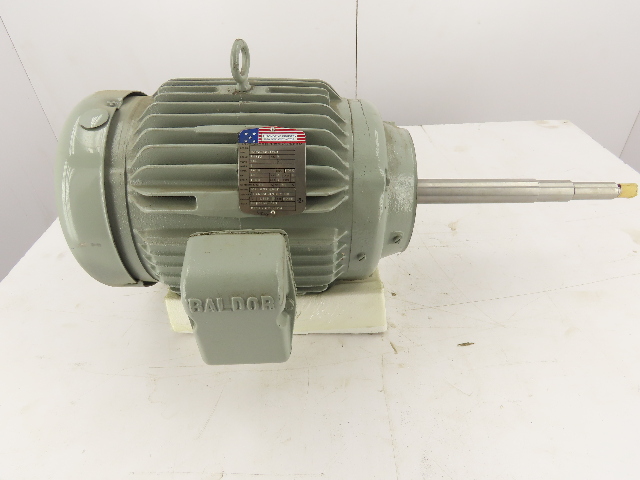

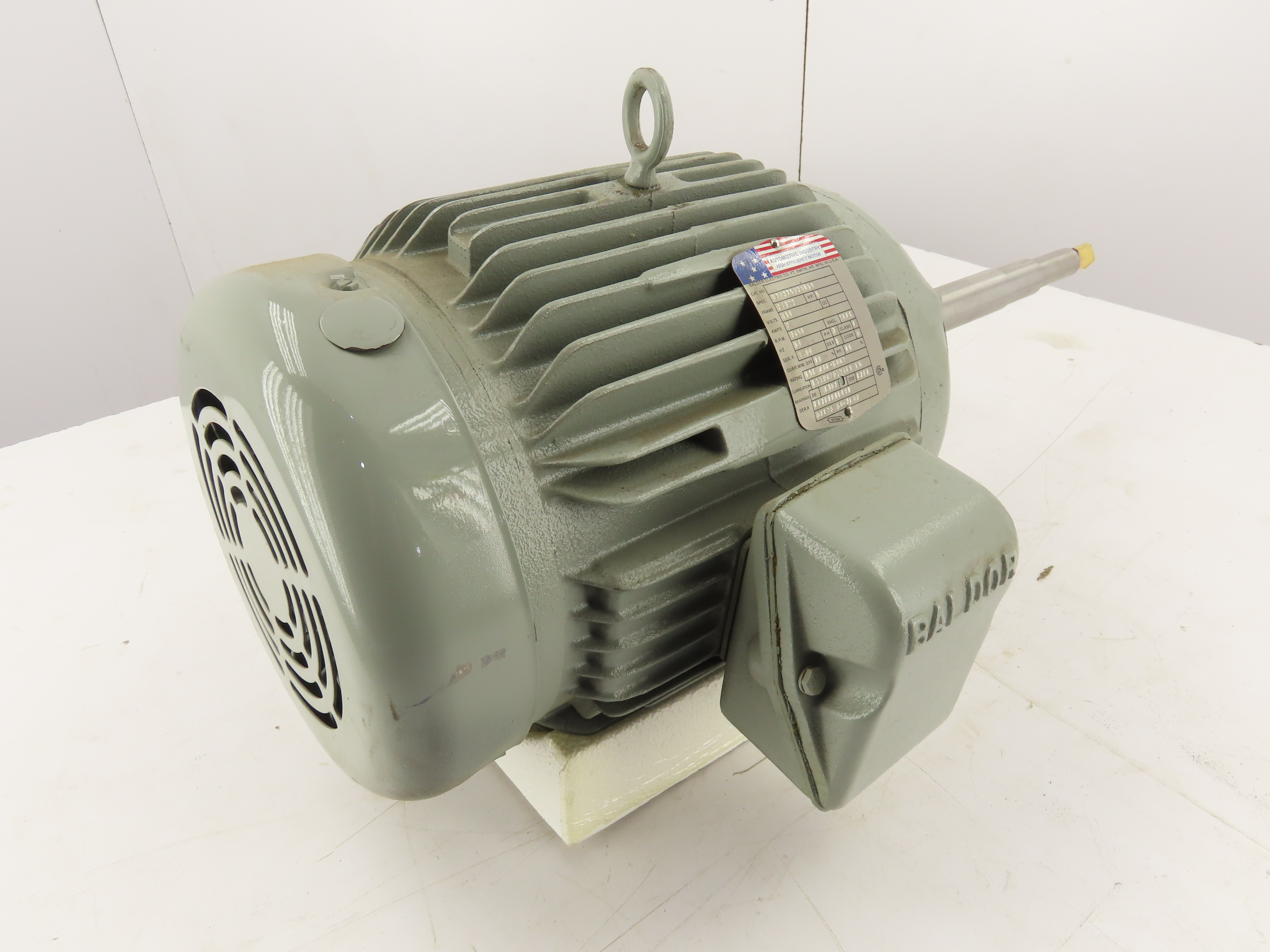

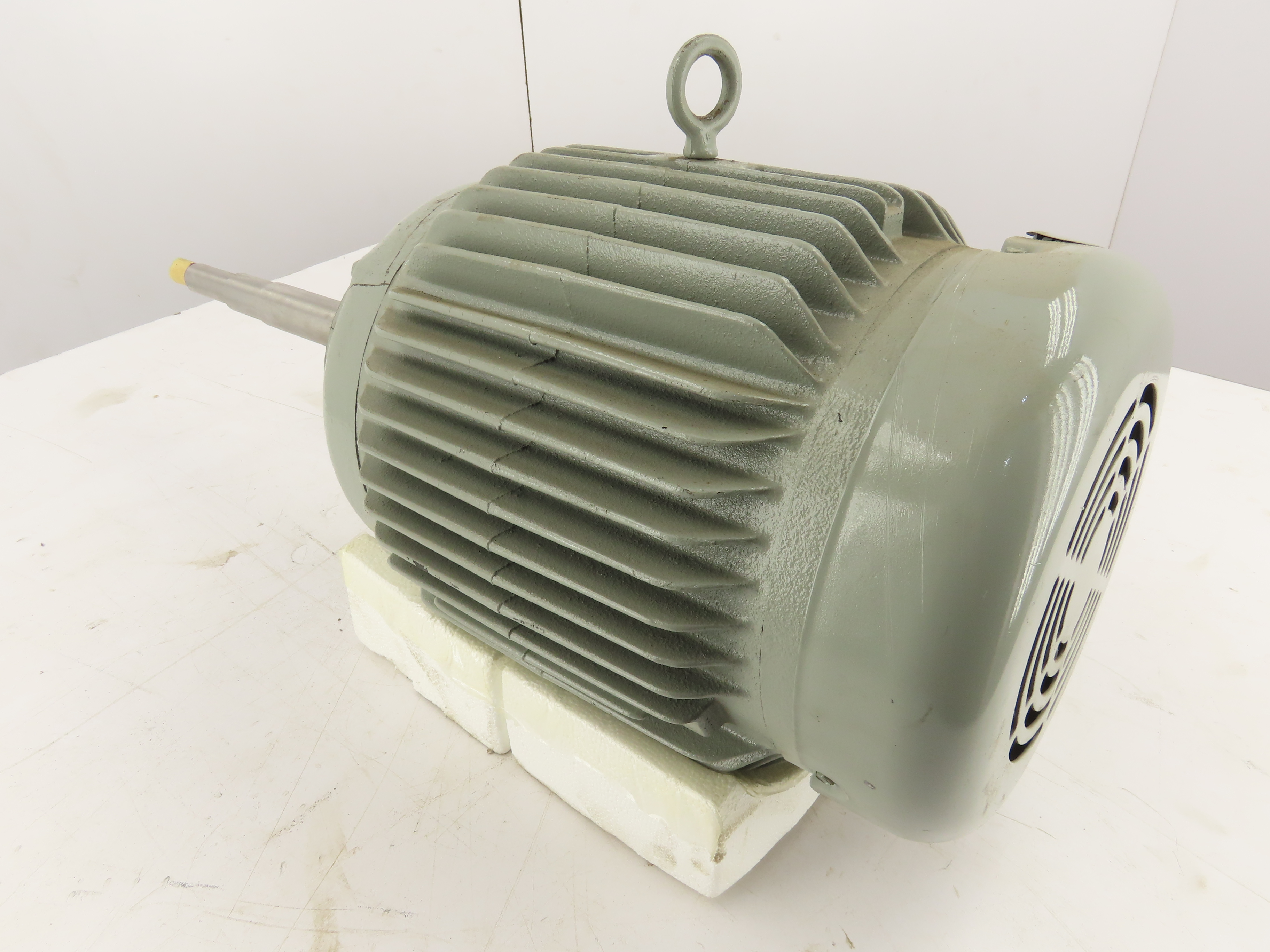

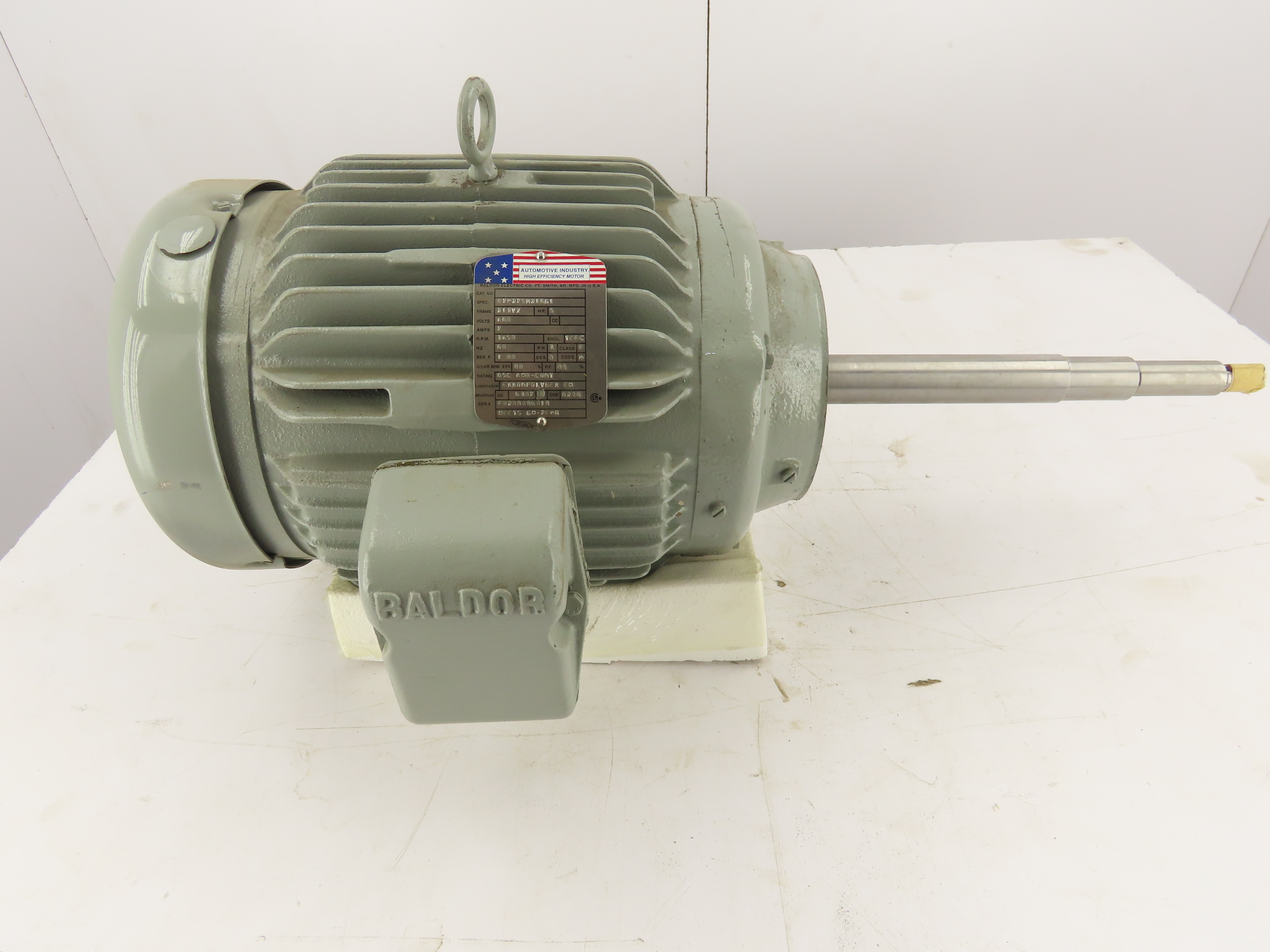

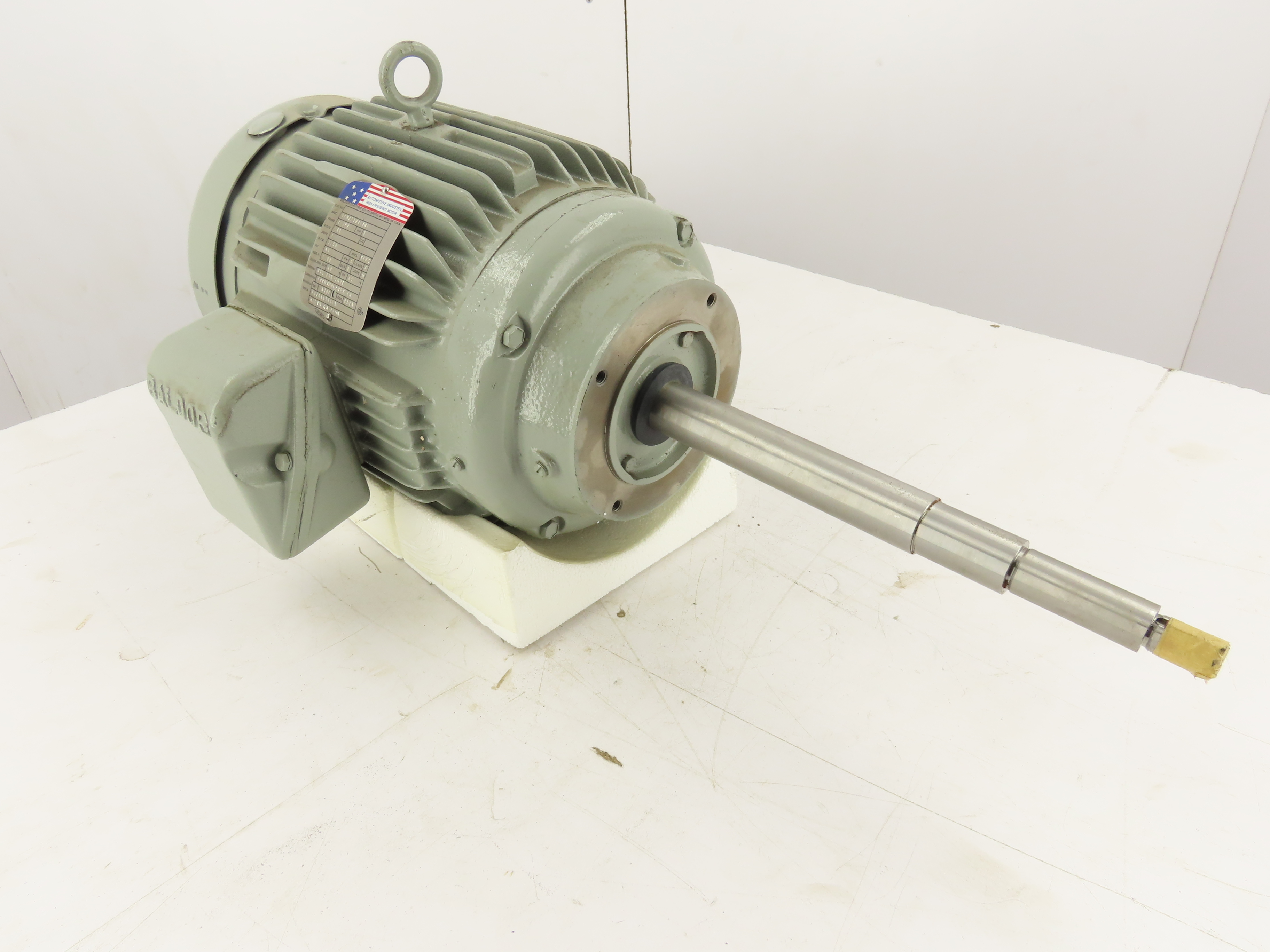

Baldor 07H275W216G1 5HP 3450RPM 213YZ 460v 3ph Motor OEM for Gusher Pump
Baldor 07H275W216G1 5HP 3450RPM 213YZ 460v 3ph Motor OEM for Gusher PumpBaldor 07H275W216G1 5HP 3450RPM 213YZ 460v 3ph Motor OEM for Gusher PumpBaldor 07H275W216G1 5HP 3450RPM 213YZ 460v 3ph Motor OEM for Gusher PumpBaldor 07H275W216G1 5HP 3450RPM 213YZ 460v 3ph Motor OEM for Gusher PumpBaldor 07H275W216G1 5HP 3450RPM 213YZ 460v 3ph Motor OEM for Gusher PumpBaldor 07H275W216G1 5HP 3450RPM 213YZ 460v 3ph Motor OEM for Gusher PumpBaldor 07H275W216G1 5HP 3450RPM 213YZ 460v 3ph Motor OEM for Gusher Pump

Baldor 07H275W216G1 5HP 3450RPM 213YZ 460v 3ph Motor OEM for Gusher Pump

Current Price: $474.99

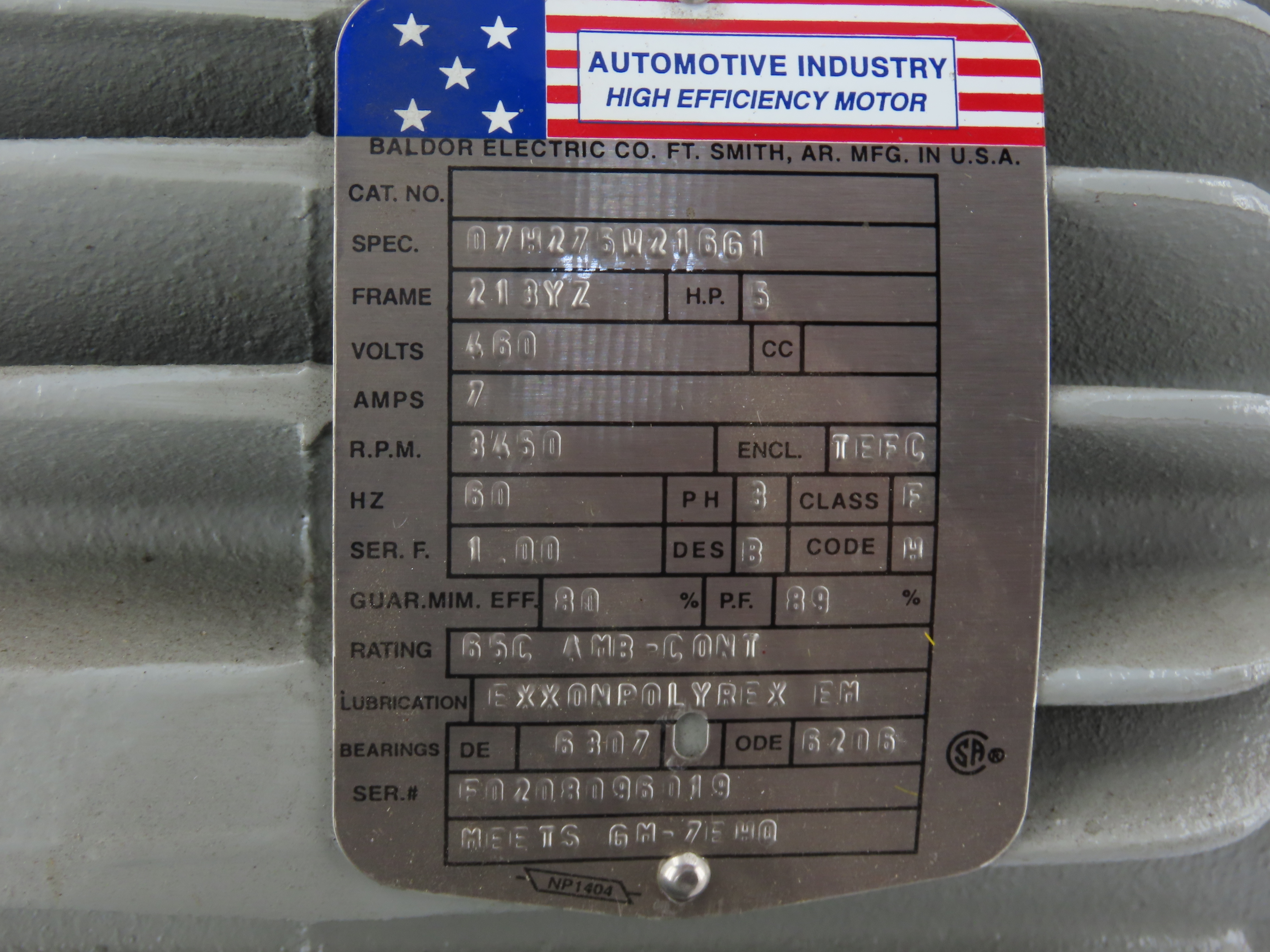

  • Horse Power: 5
  • RPM: 3450
  • Phase: 3
  • Voltage: 460
  • Amps: 7
  • Hertz: 60
  • Nema Frame: 213YZ
  • Output Shaft Size: 3/4"
  • Enclosure: TEFC
  • Service Factor: 1
  • Rating: 33C - Cont
  • Amb. Temp(Degree C): 40C
  • Nema Nom Eff:: 85
  • Power Factor Eff:: 90
•New Baldor AC Motor produced for Gusher Pump

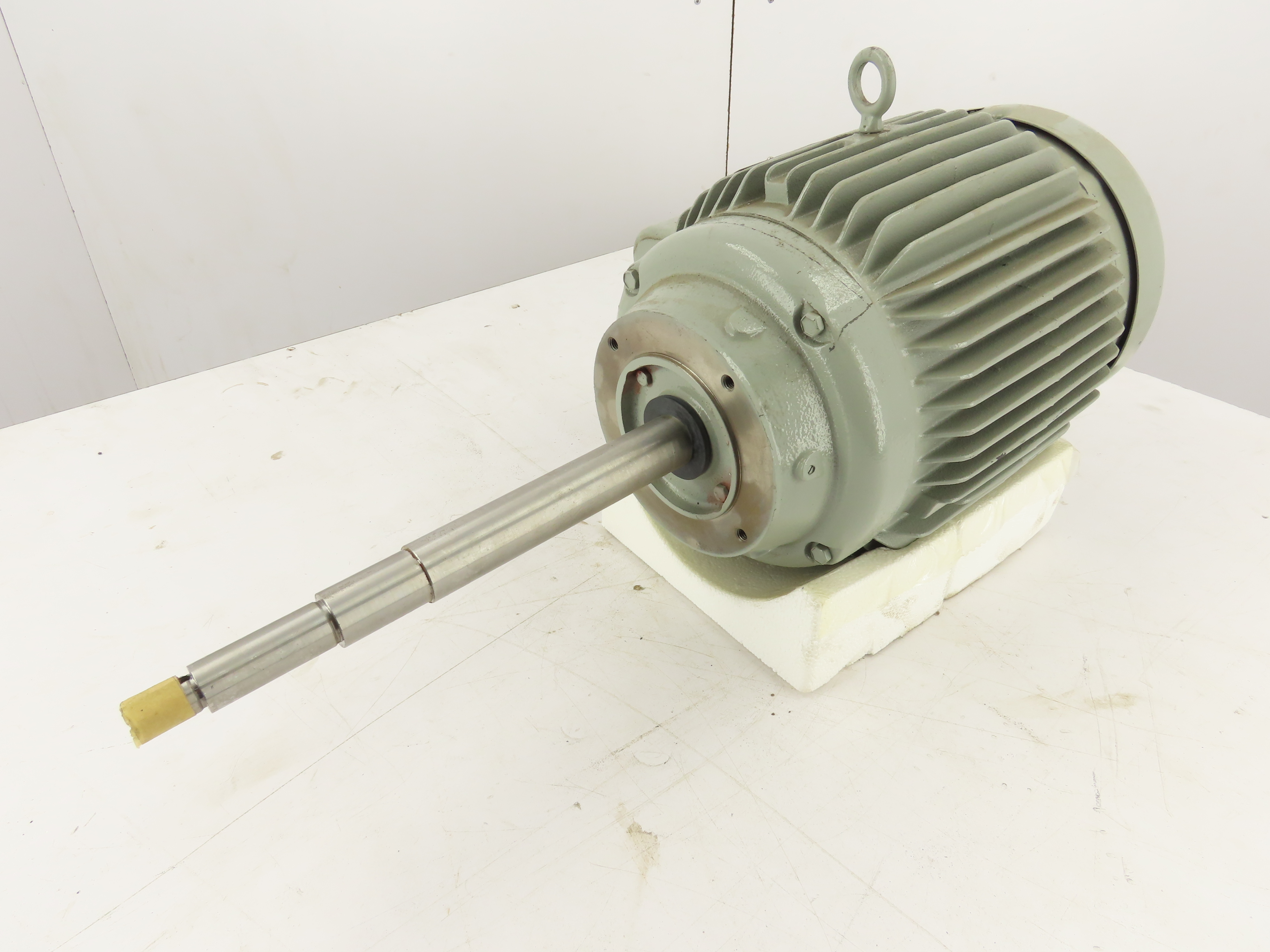

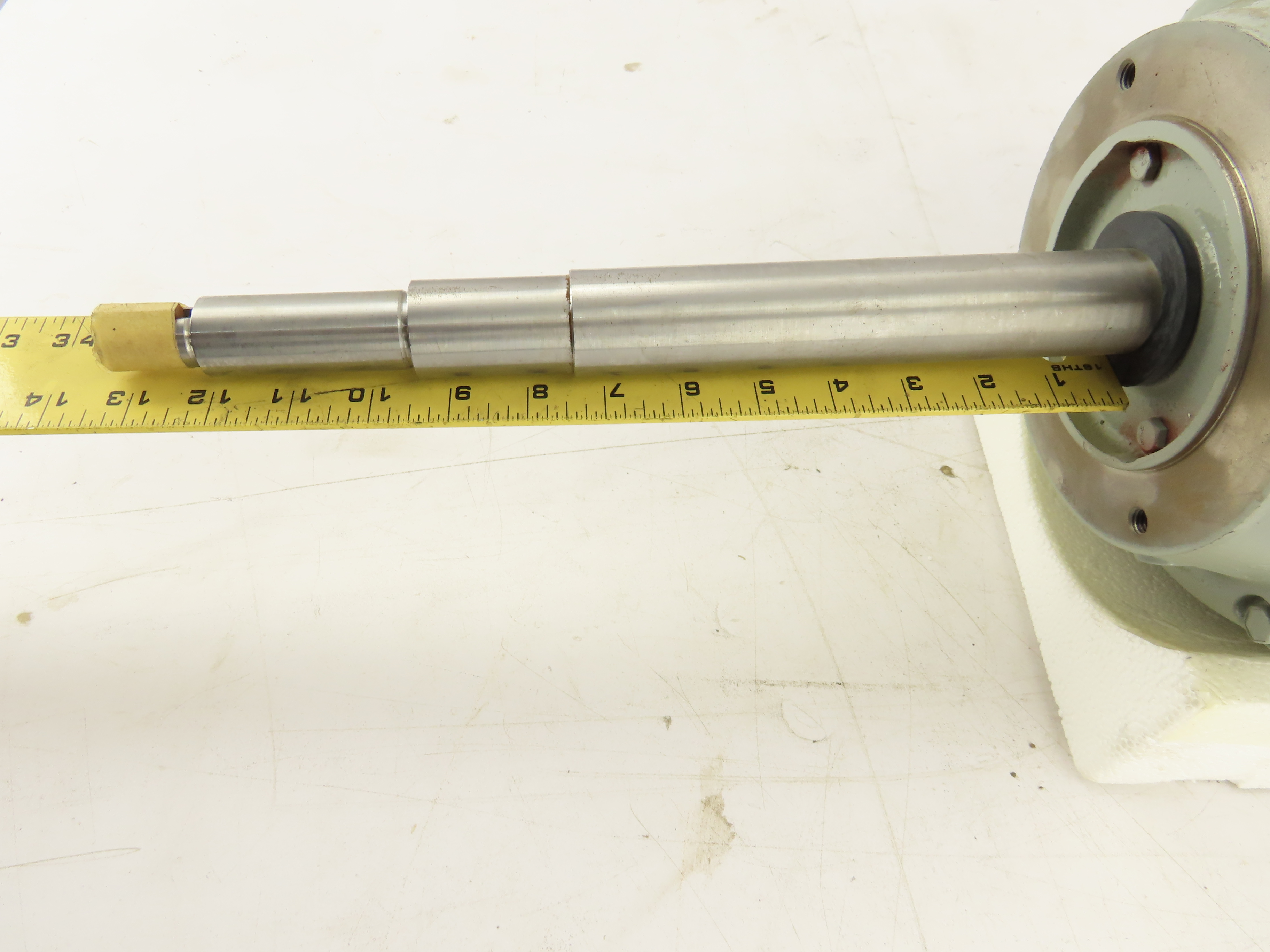

  • The output shaft is 1.372" diameter for the first 7-3/8" measuring from the flat part of the C-Face, (not the raised flange). Then it steps down to 1.240" for the next 2". Then it steps down to 1.0035" for the next 2-5/8". The final 1-3/16" long section of the shaft is 0.750" diameter with a 3/16" wide key slot
  • Total length of shaft is 13-3/16"
Details
  • Brand: Baldor
  • Size: Length: 26 in. Width: 10 in. Height: 7 in.
  • Condition: New Other
  • SKU: 214630
  • Consigner: J
  • Warehouse Storage Location: AC-09-03
  • Shipping Weight (lbs, oz): 134,
  • Lister: jw
  • Country of Manufacture: United States
  • Items in Lot: 1
  • Horse Power: 5
  • RPM: 3450
  • Phase: 3
  • Voltage: 460
  • Amps: 7
  • Hertz: 60
  • Nema Frame: 213YZ
  • Output Shaft Size: 3/4"
  • Enclosure: TEFC
  • Service Factor: 1
  • Rating: 33C - Cont
  • Amb. Temp(Degree C): 40C
  • Nema Nom Eff:: 85
  • Power Factor Eff:: 90
•New Baldor AC Motor produced for Gusher Pump
  • The output shaft is 1.372" diameter for the first 7-3/8" measuring from the flat part of the C-Face, (not the raised flange). Then it steps down to 1.240" for the next 2". Then it steps down to 1.0035" for the next 2-5/8". The final 1-3/16" long section of the shaft is 0.750" diameter with a 3/16" wide key slot
  • Total length of shaft is 13-3/16"
