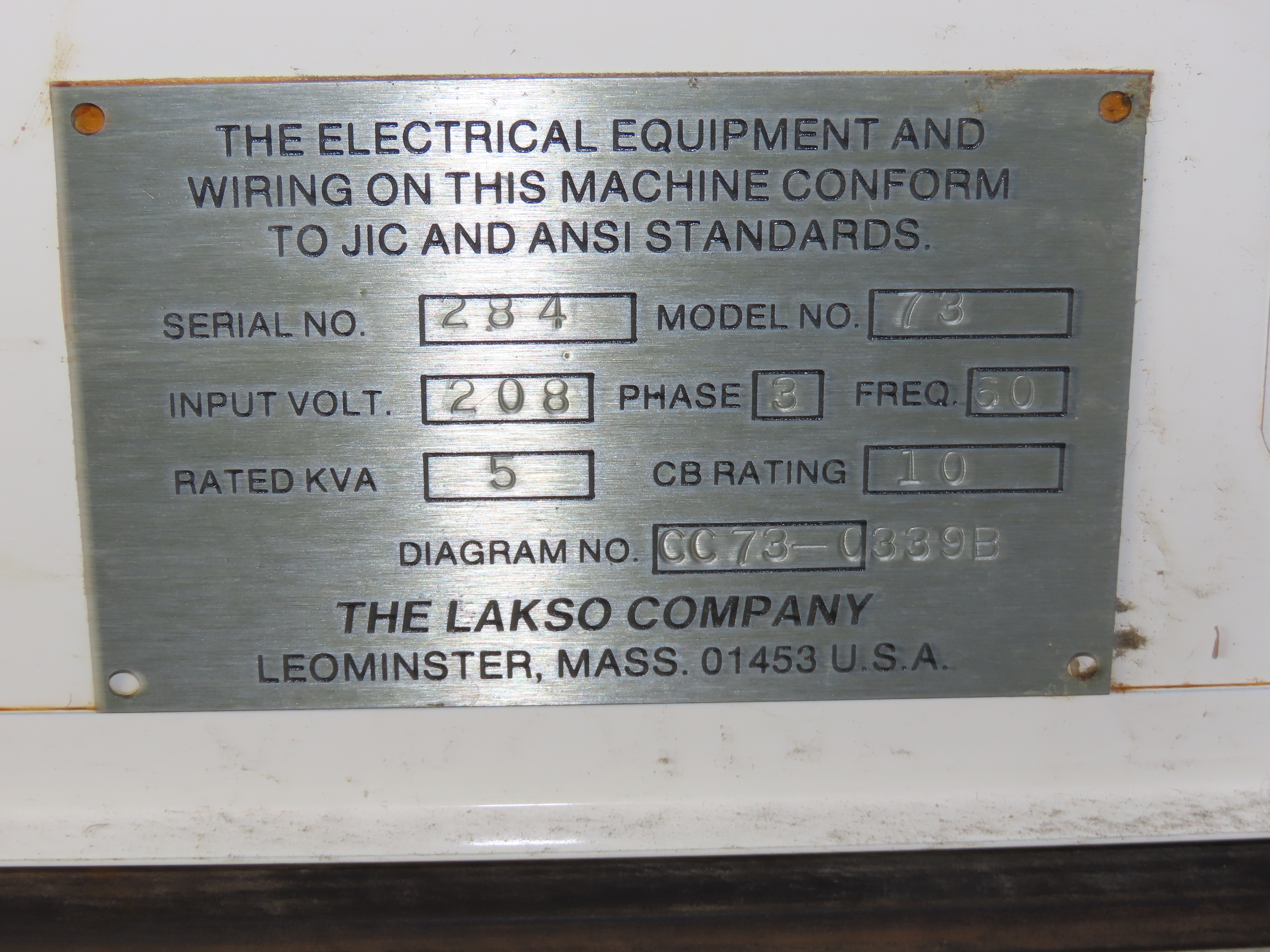

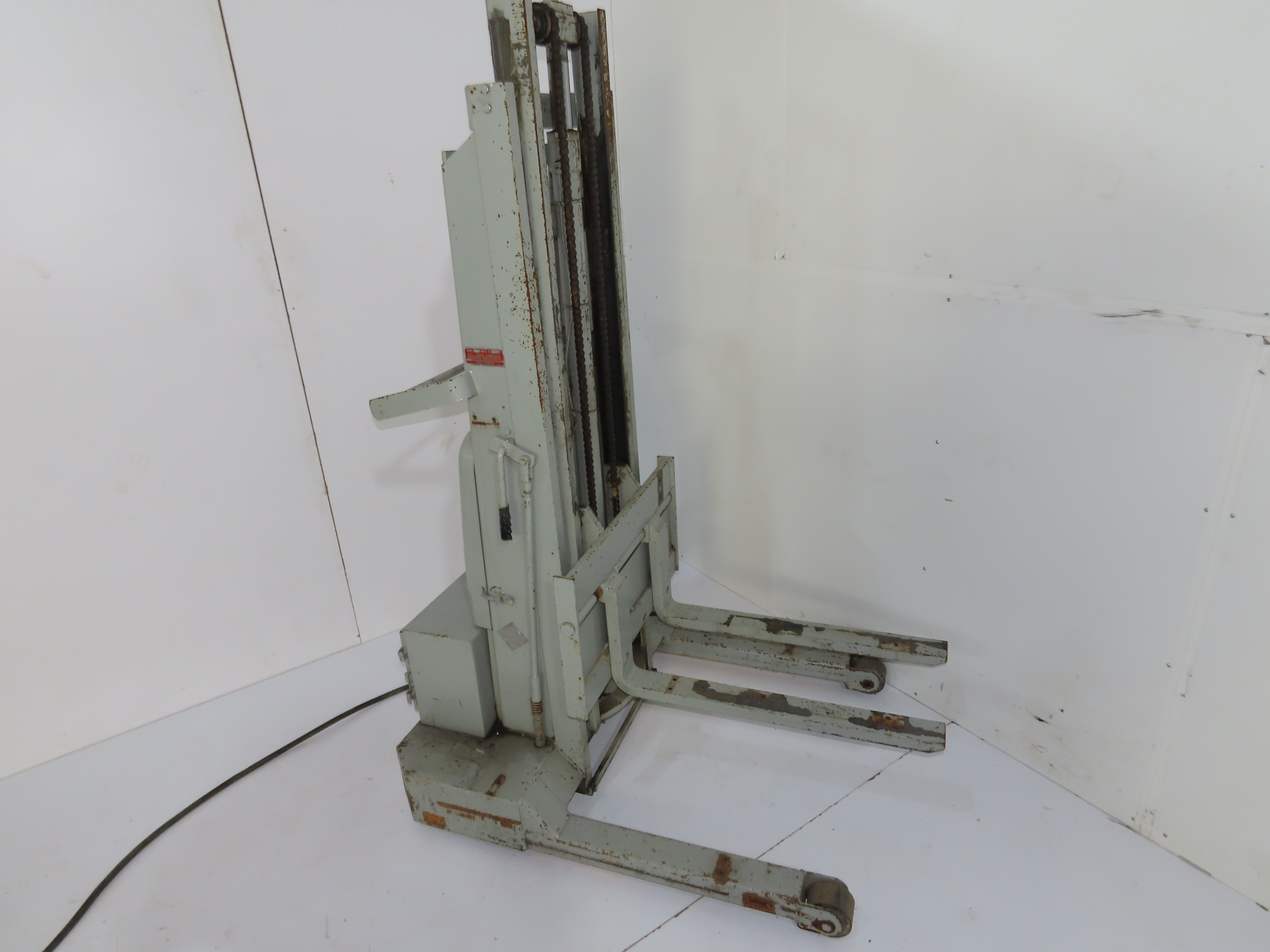

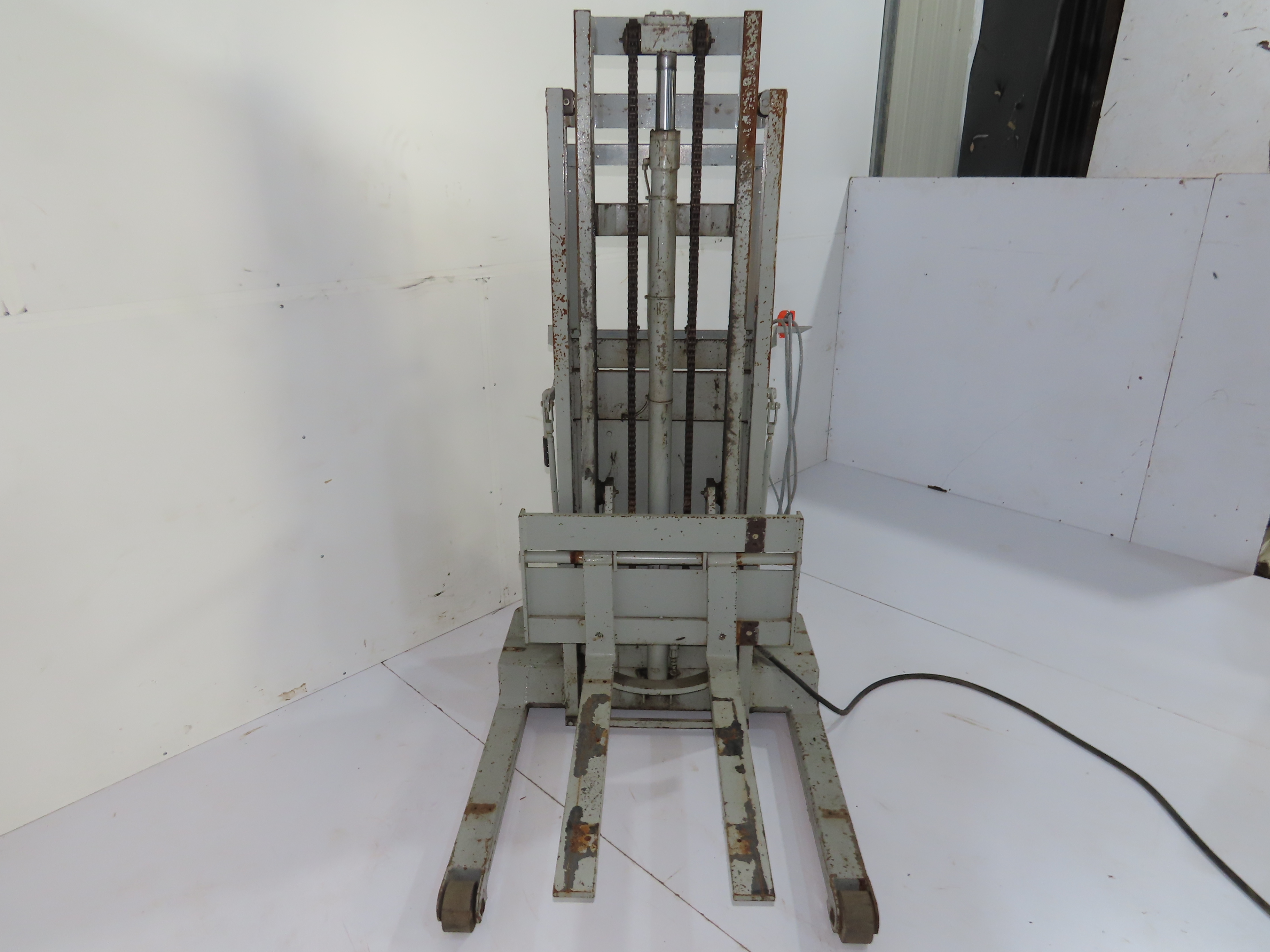

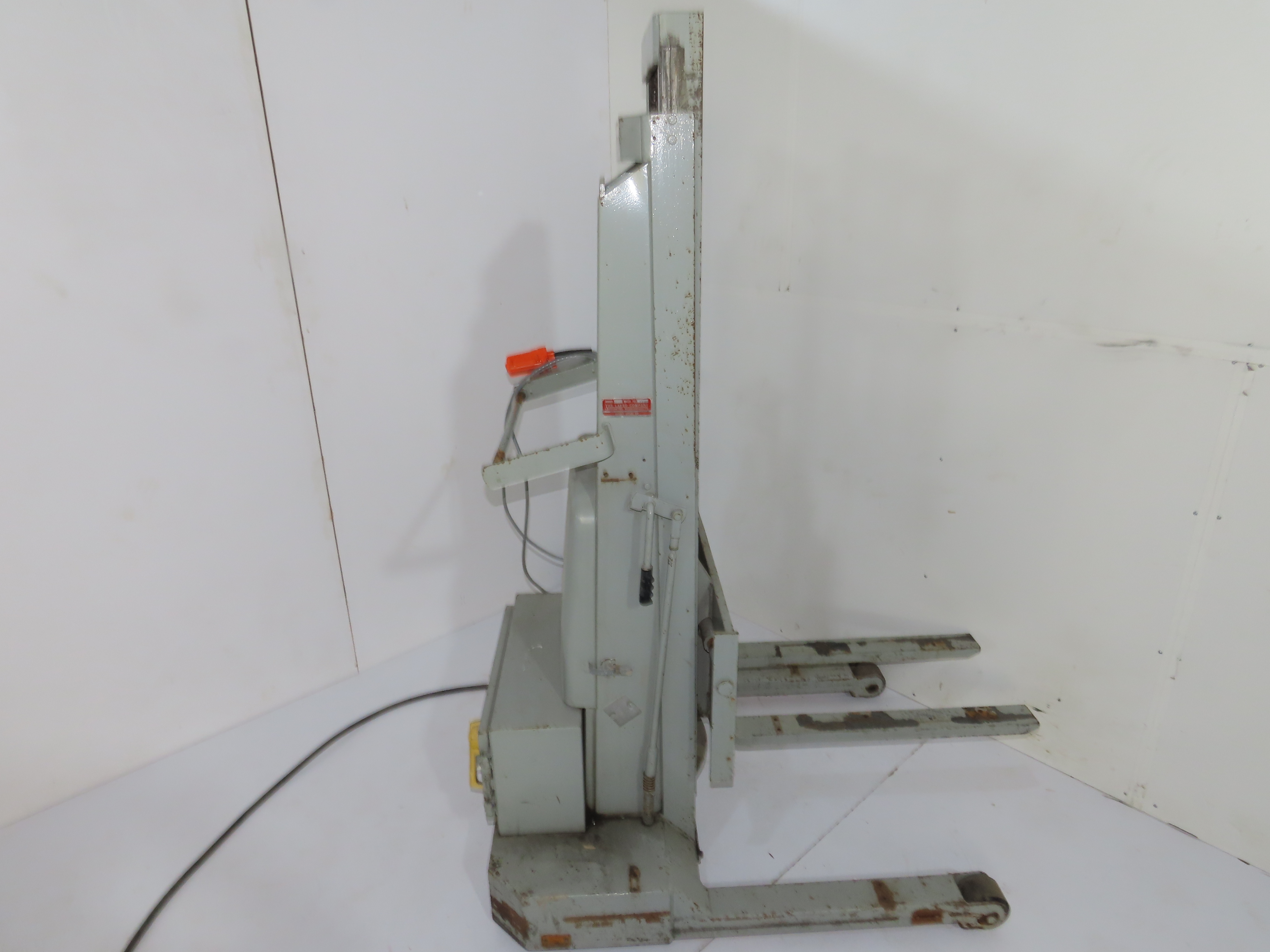

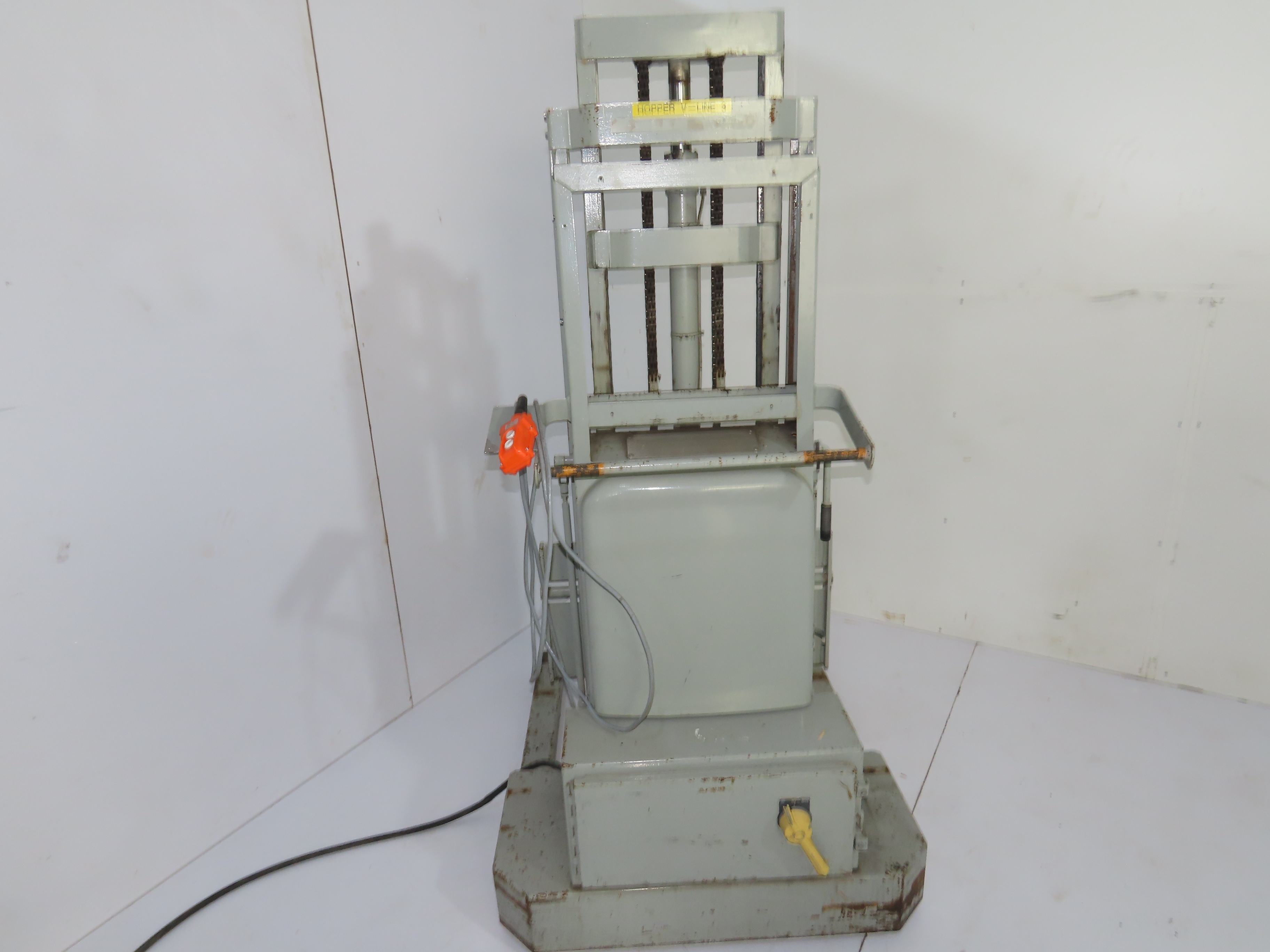

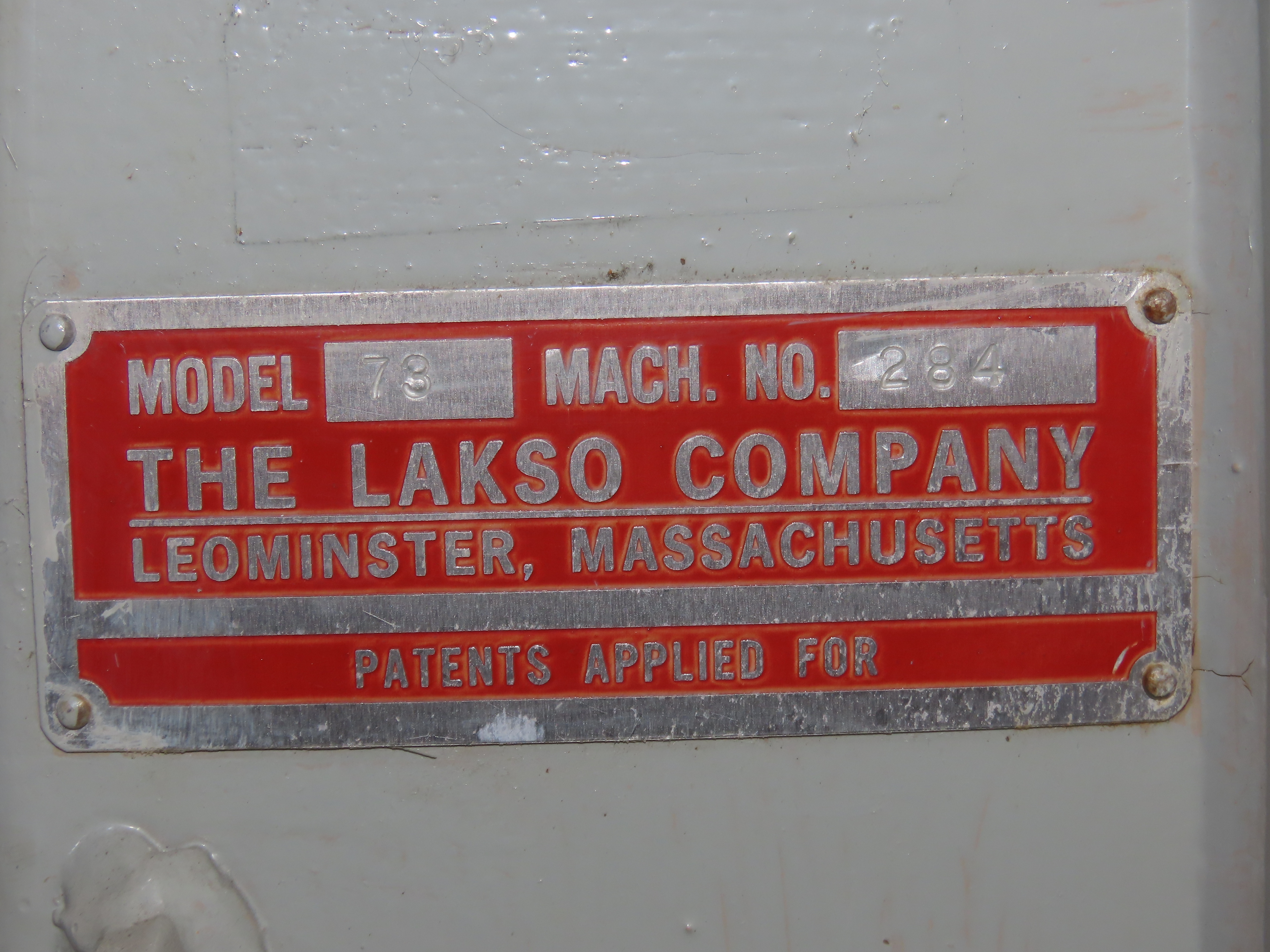

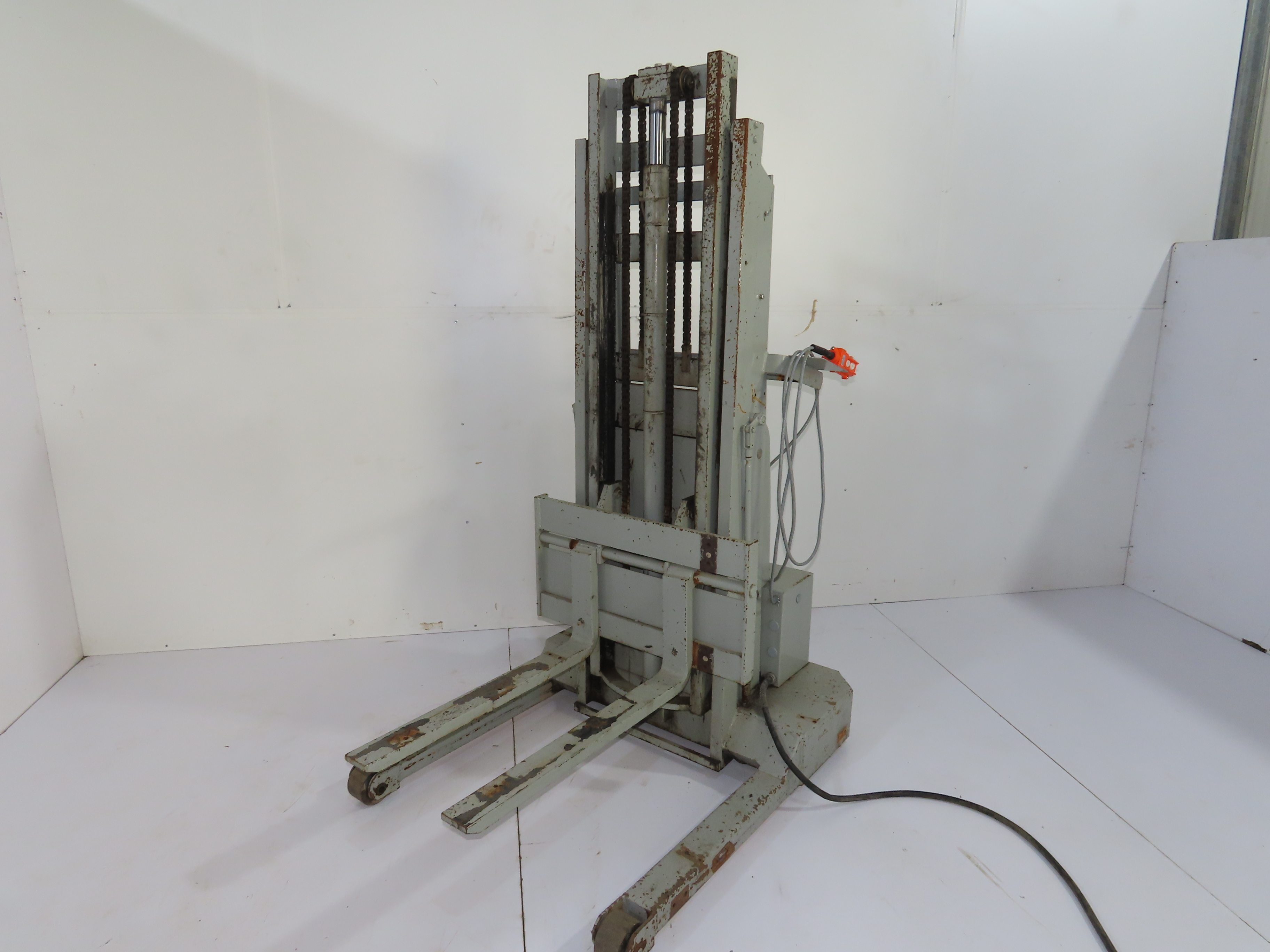

This is a Big Joe lift that was custom made with three phase electrical instead of battery power. This is a used lift, we tested it and it works like it should. This lift was custom made for The Lasko Company, they are a company that makes pill handling equipment for the pharmaceutical companies. When new this lift had a large hopper on the forks that dispensed pills into a bottling machine. This would be a great fit for an application that needs more lift height than a scissor lift. Also with this three phase pump, the duty cycle will be 100%.
PRODUCT DESCRIPTION
Capacity: 1500 lbs. (We load tested it to capacity).
Lift speed is 24 feet per minute.
Load center: 18"

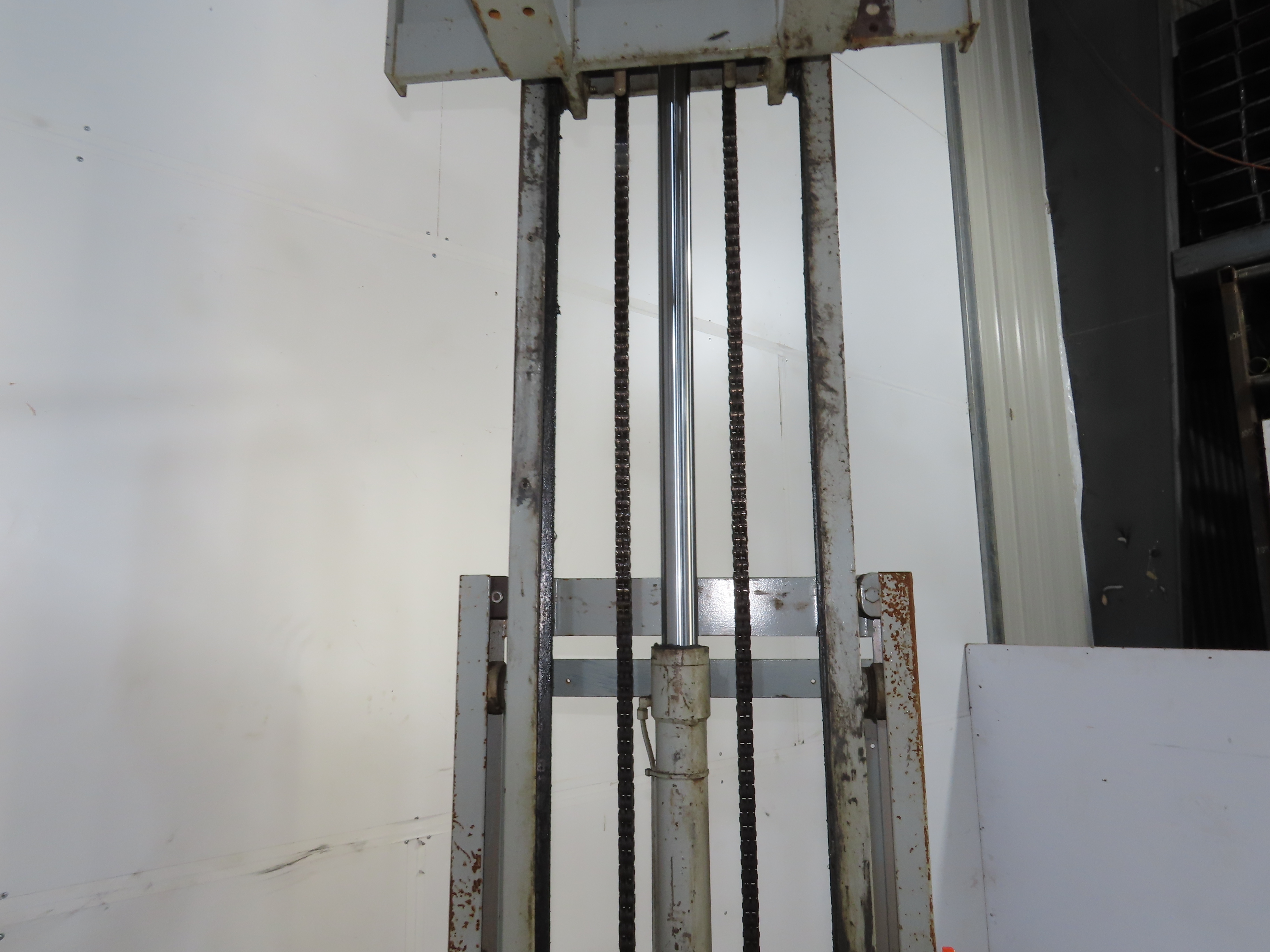

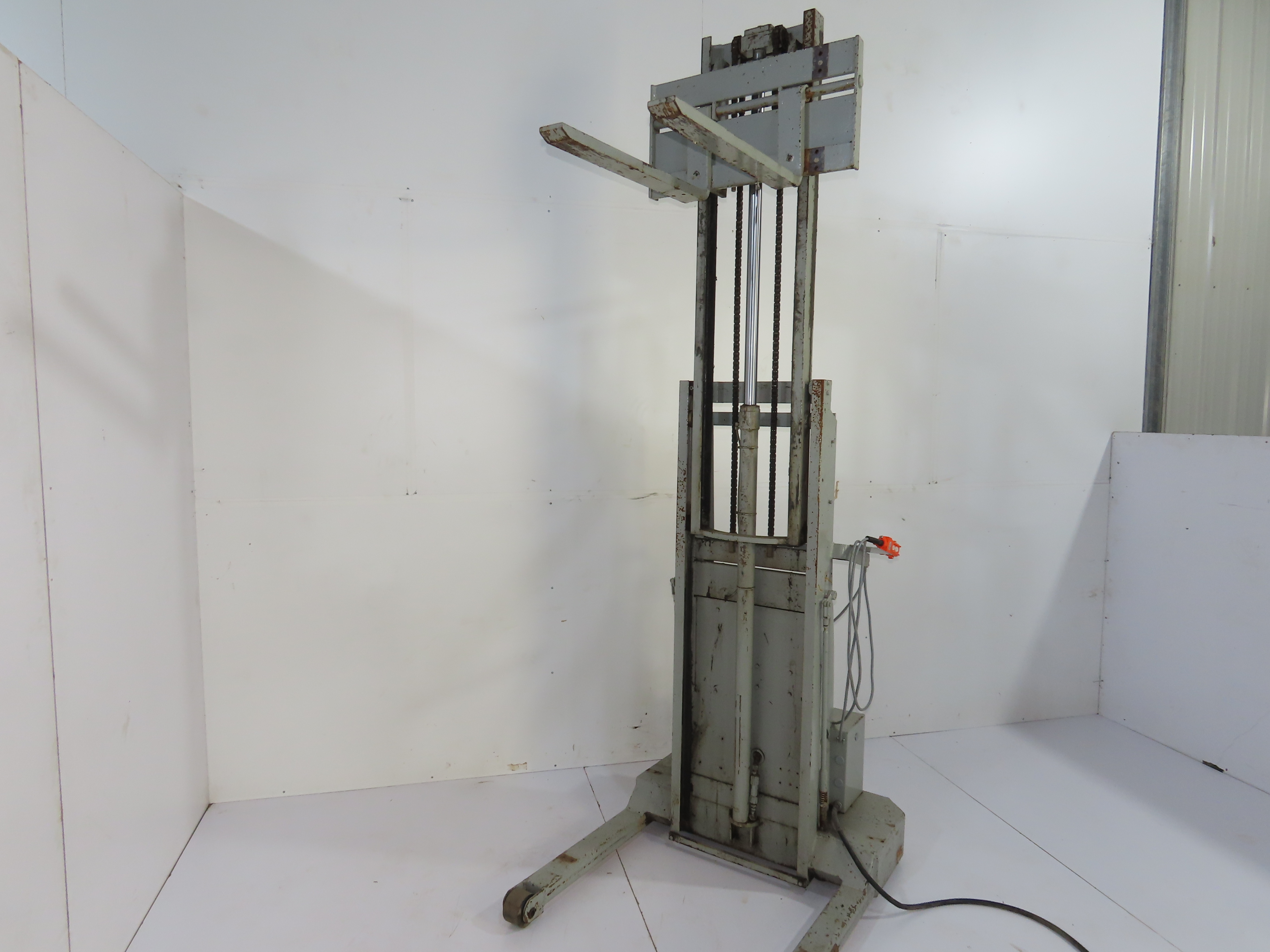

Lift height: 96" (95-1/2" is actual max fork height).

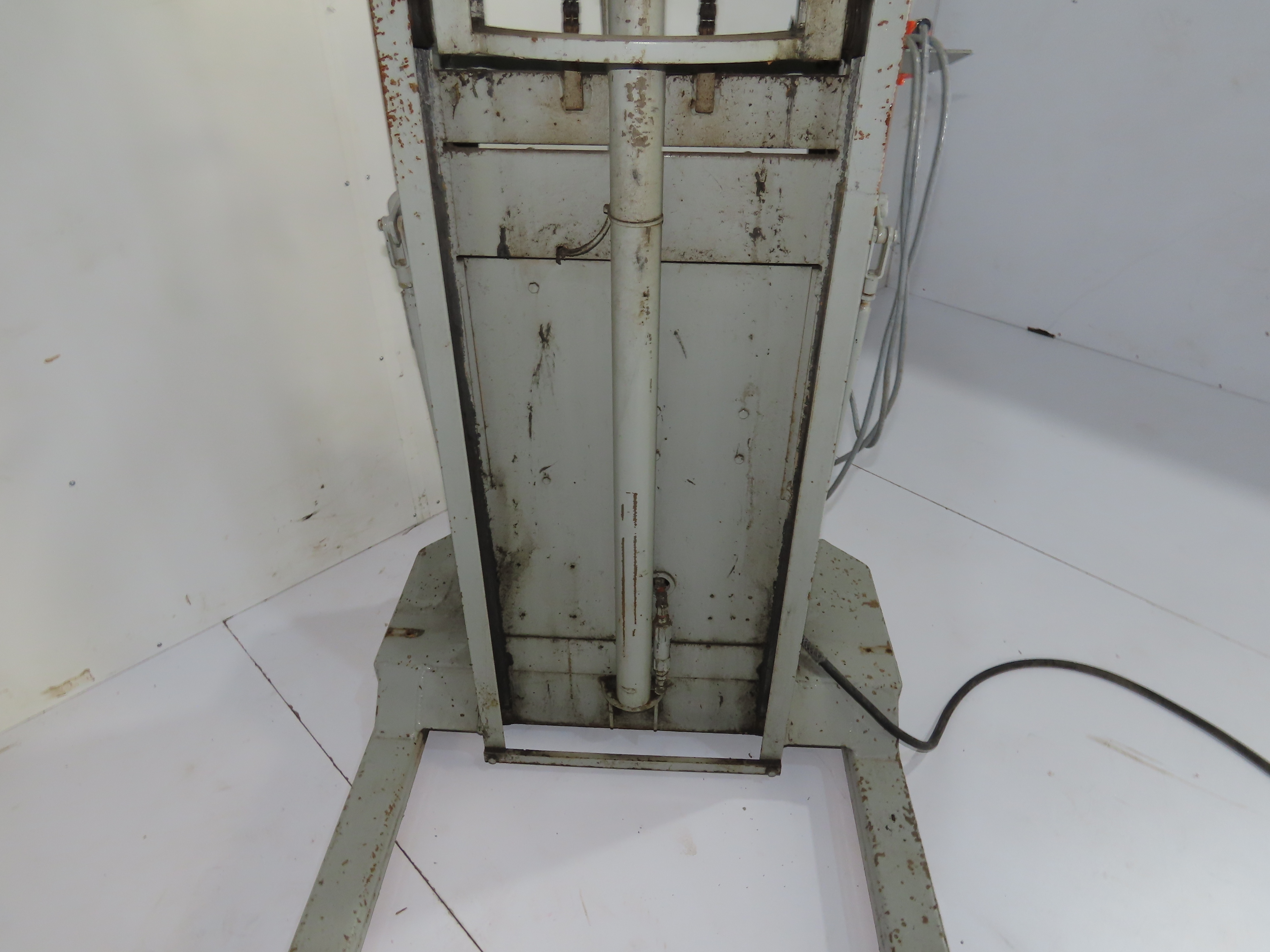

Mast lower height: 70"

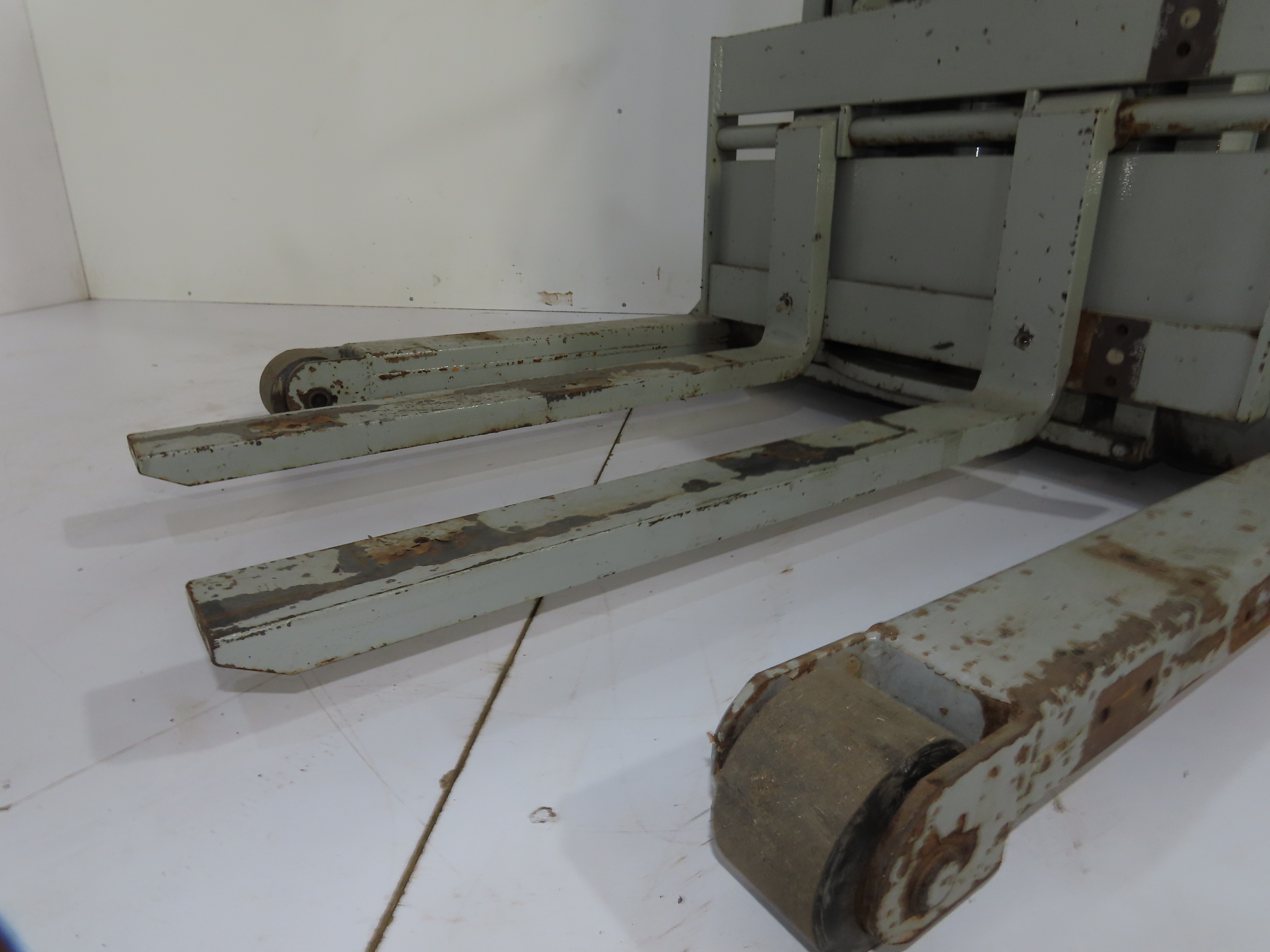

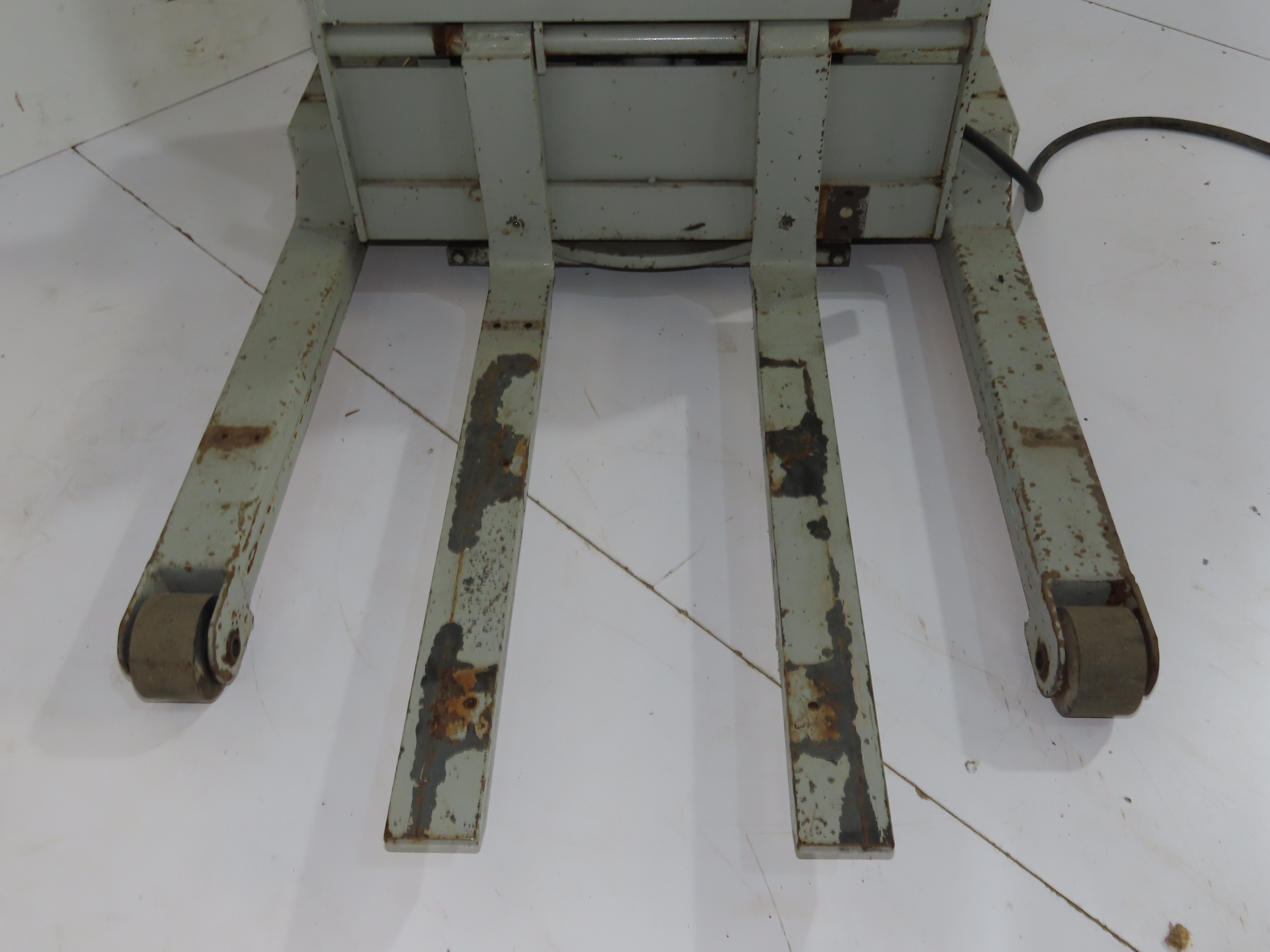

Forks are 3" wide 1-1/4" thick and 30" long
Forks adjust/slide from 13" on center to 25" on center when completely spread.
Fixed Straddle legs inside width 30"
Fixed Straddle legs outside width 38"
FEATURES

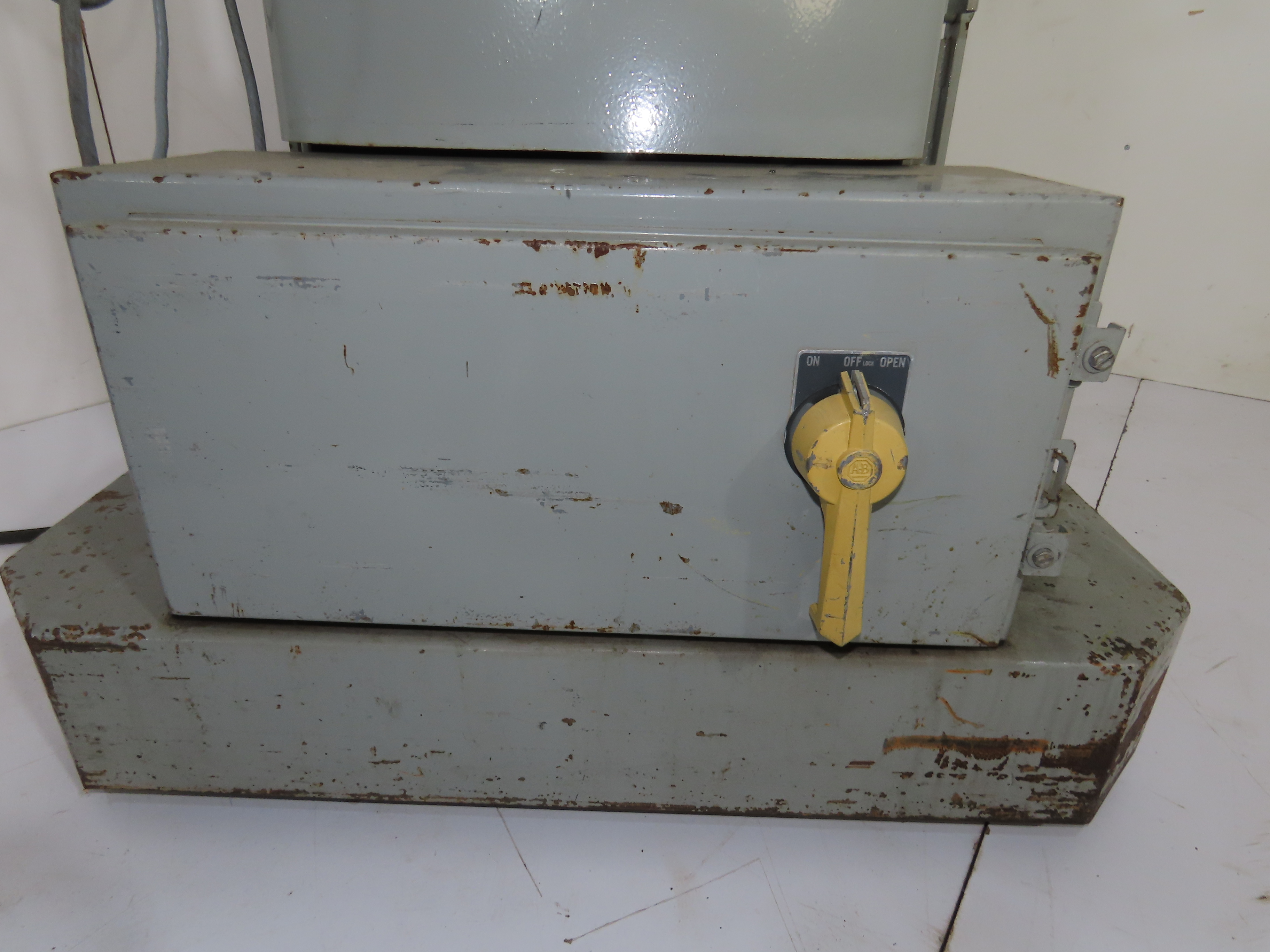

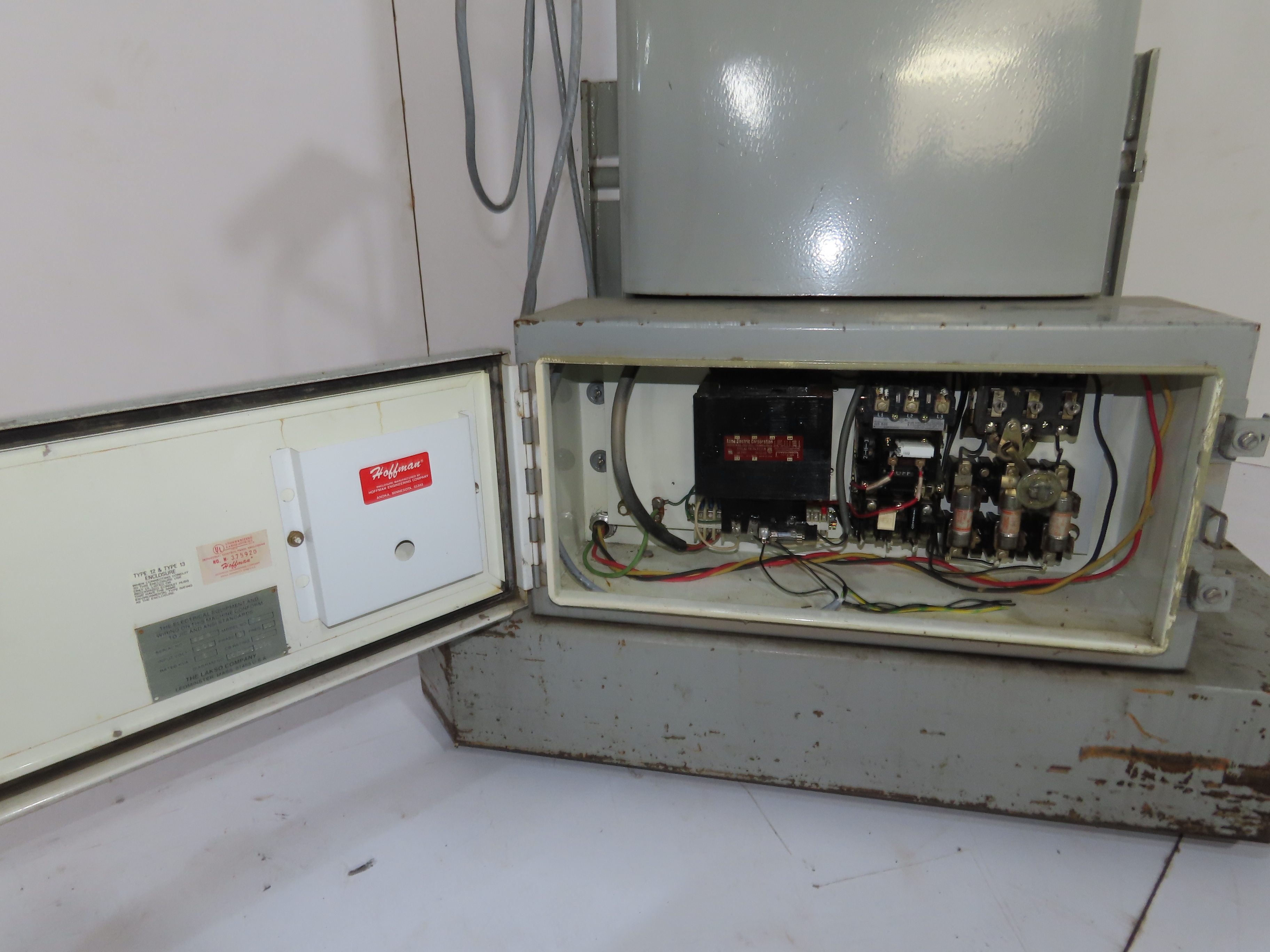

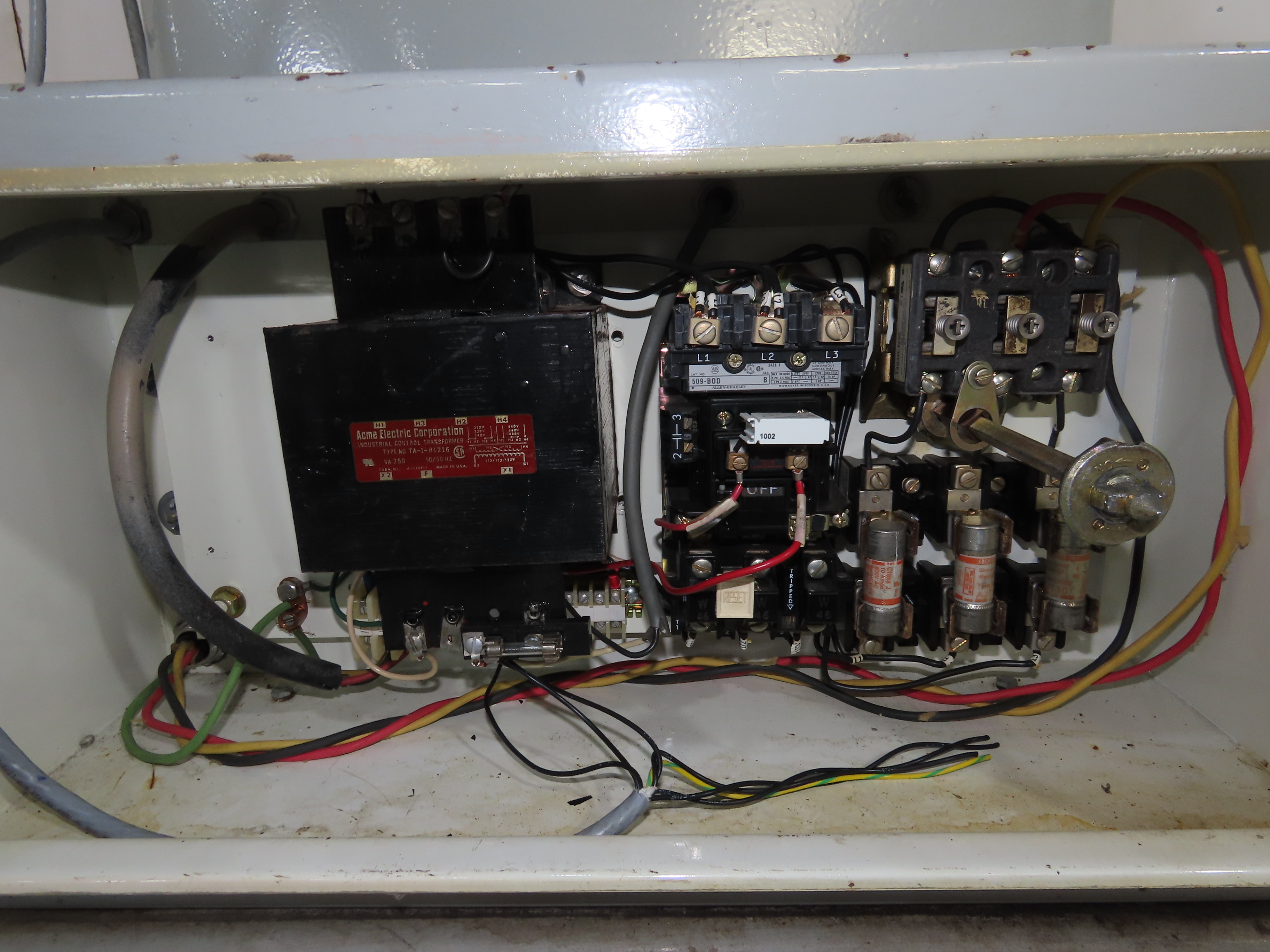

208/230 Volt Electrical System that is reconnectable to 480V

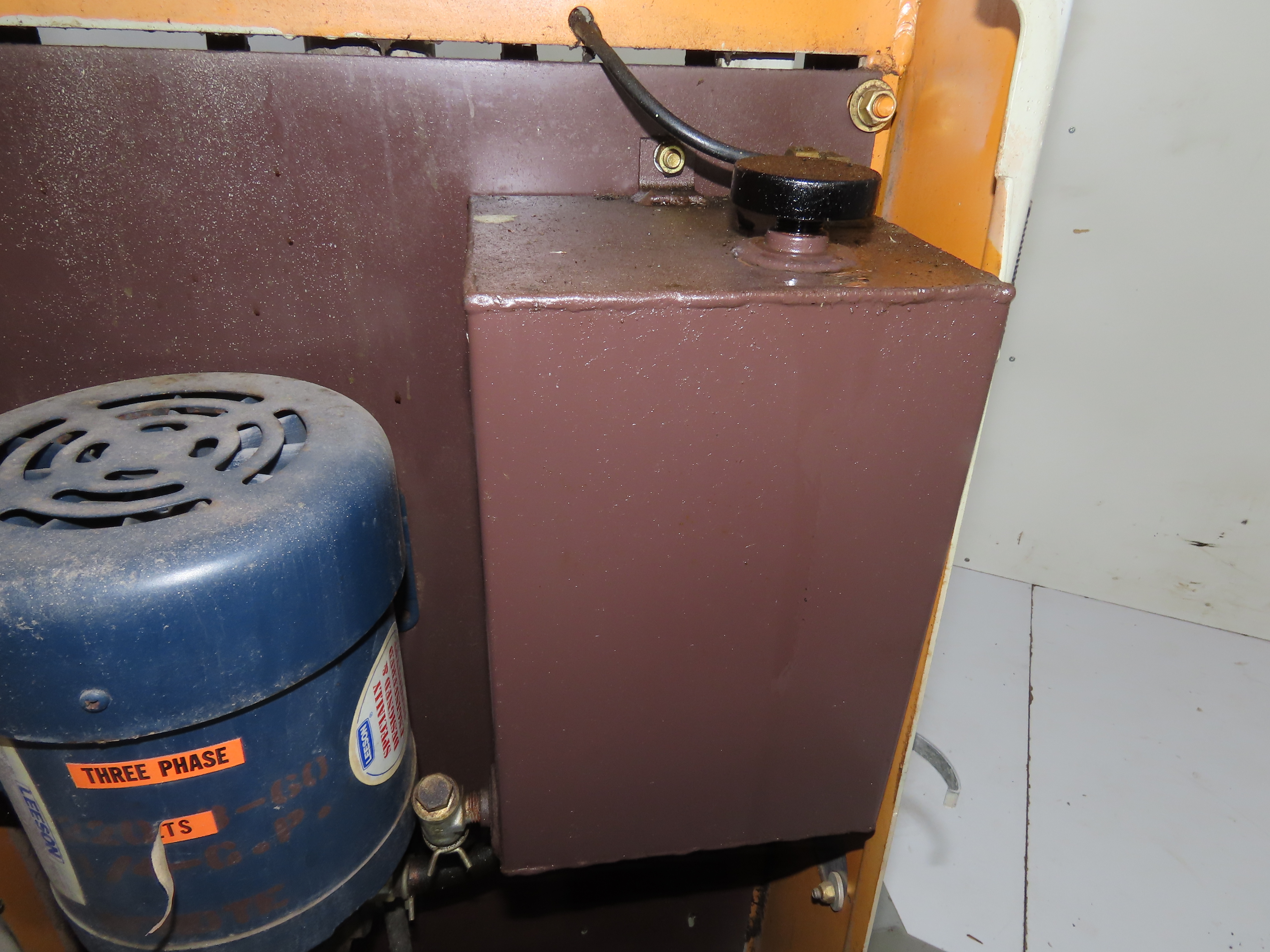

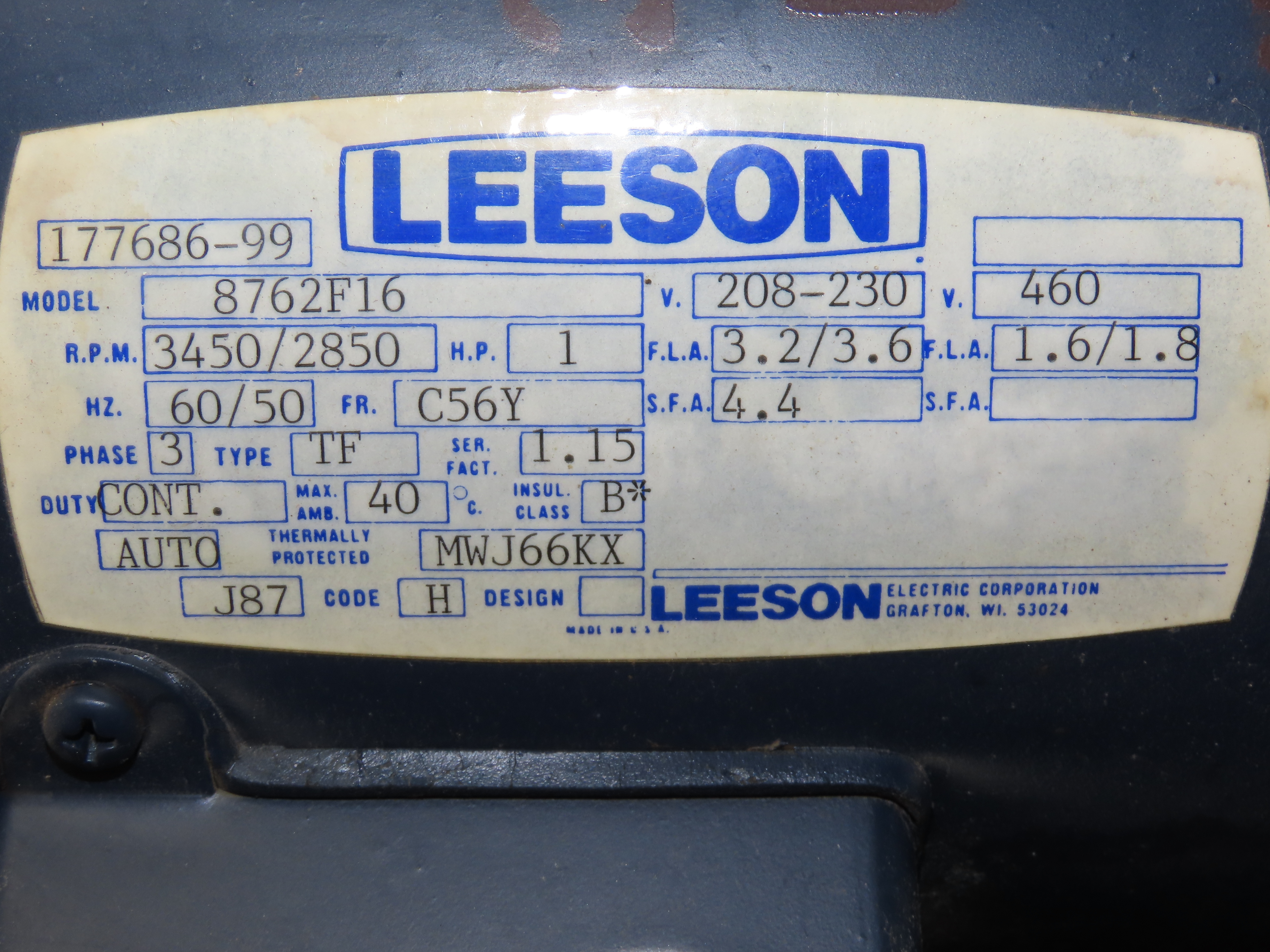

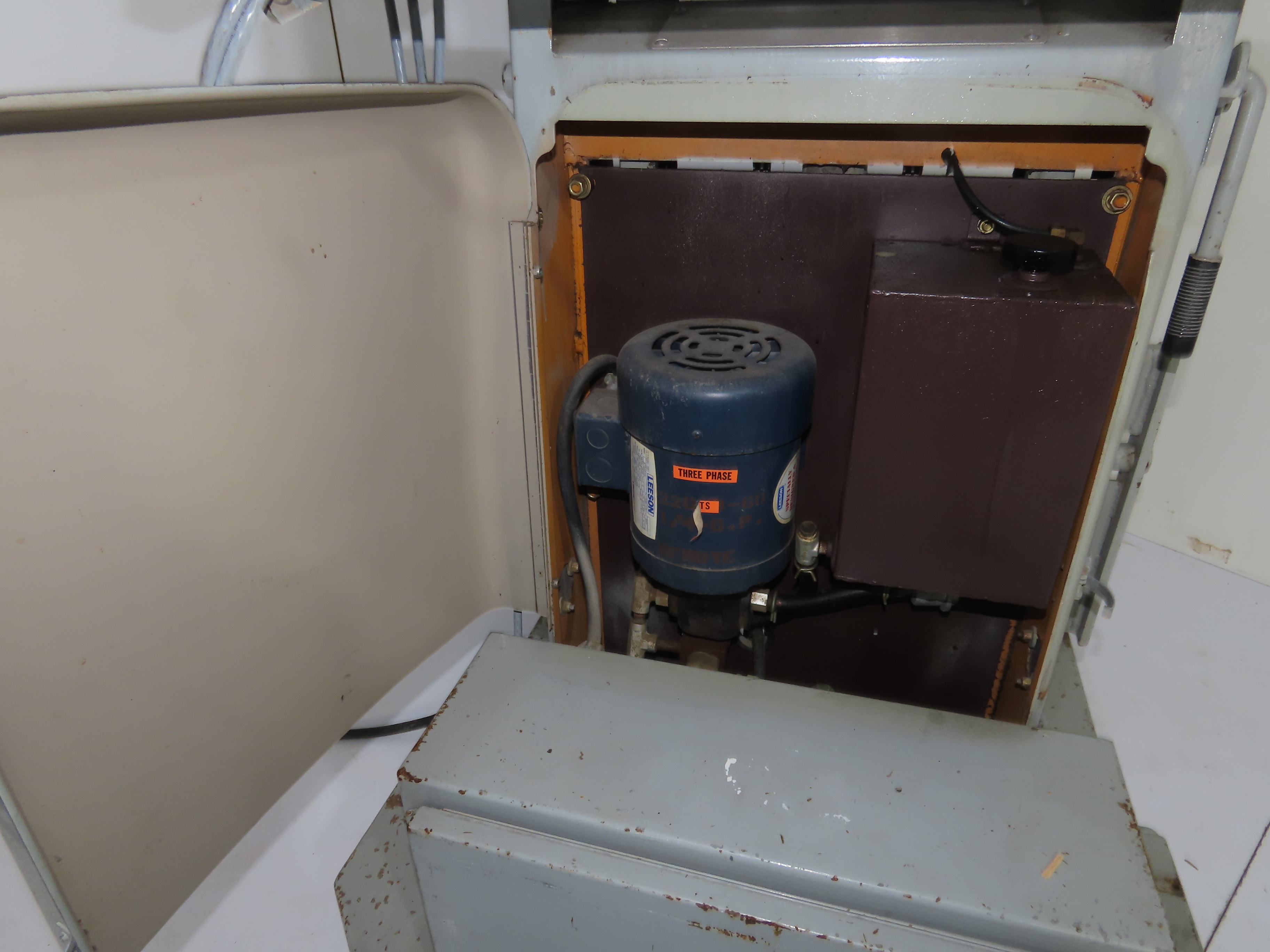

1 HP Lift Motor
(2) 6" Steel Caster Wheels
(2) 4" Steel Load Wheels
Dual Floor Lock, Adjustable & Slip Resistant

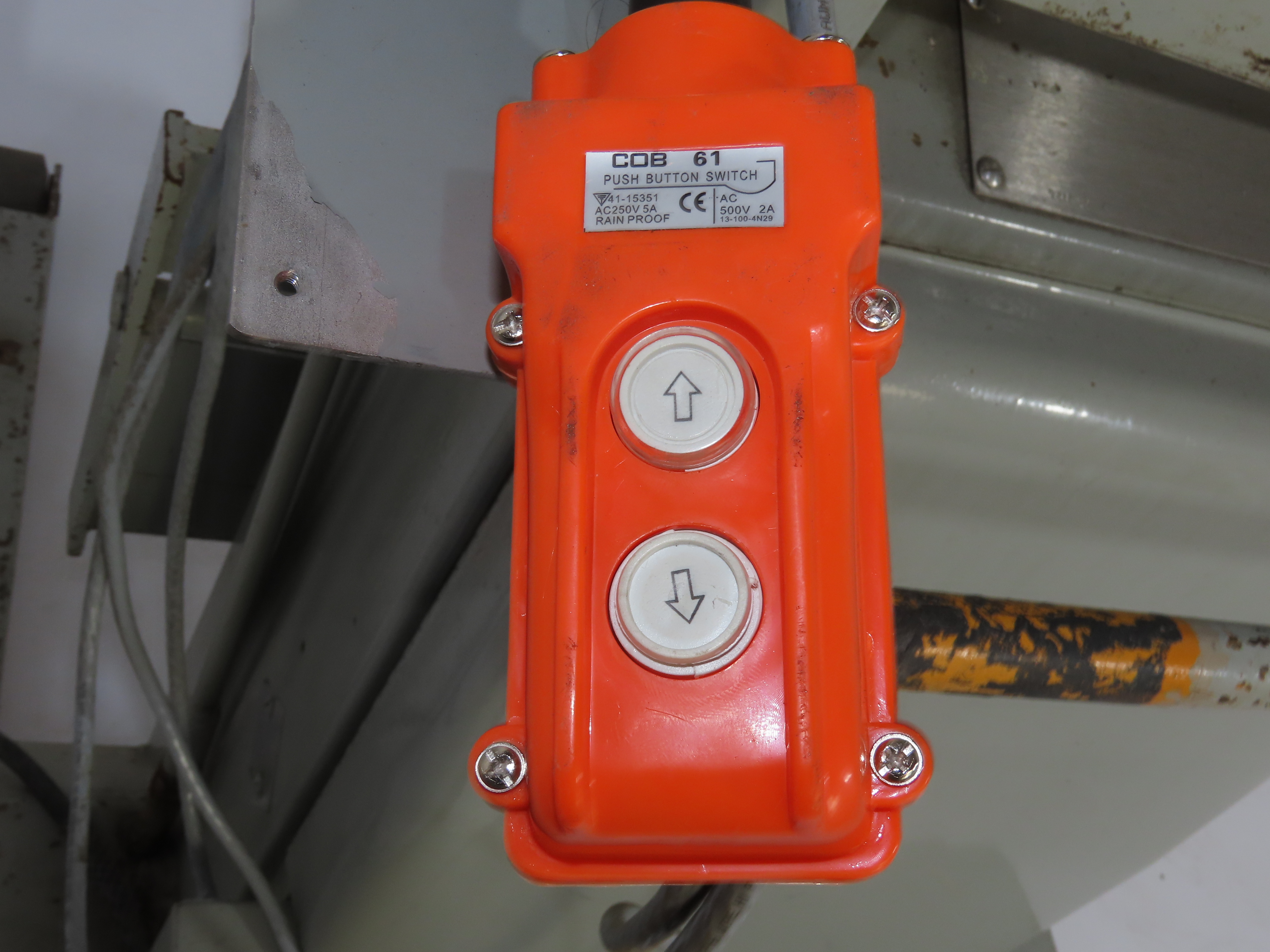

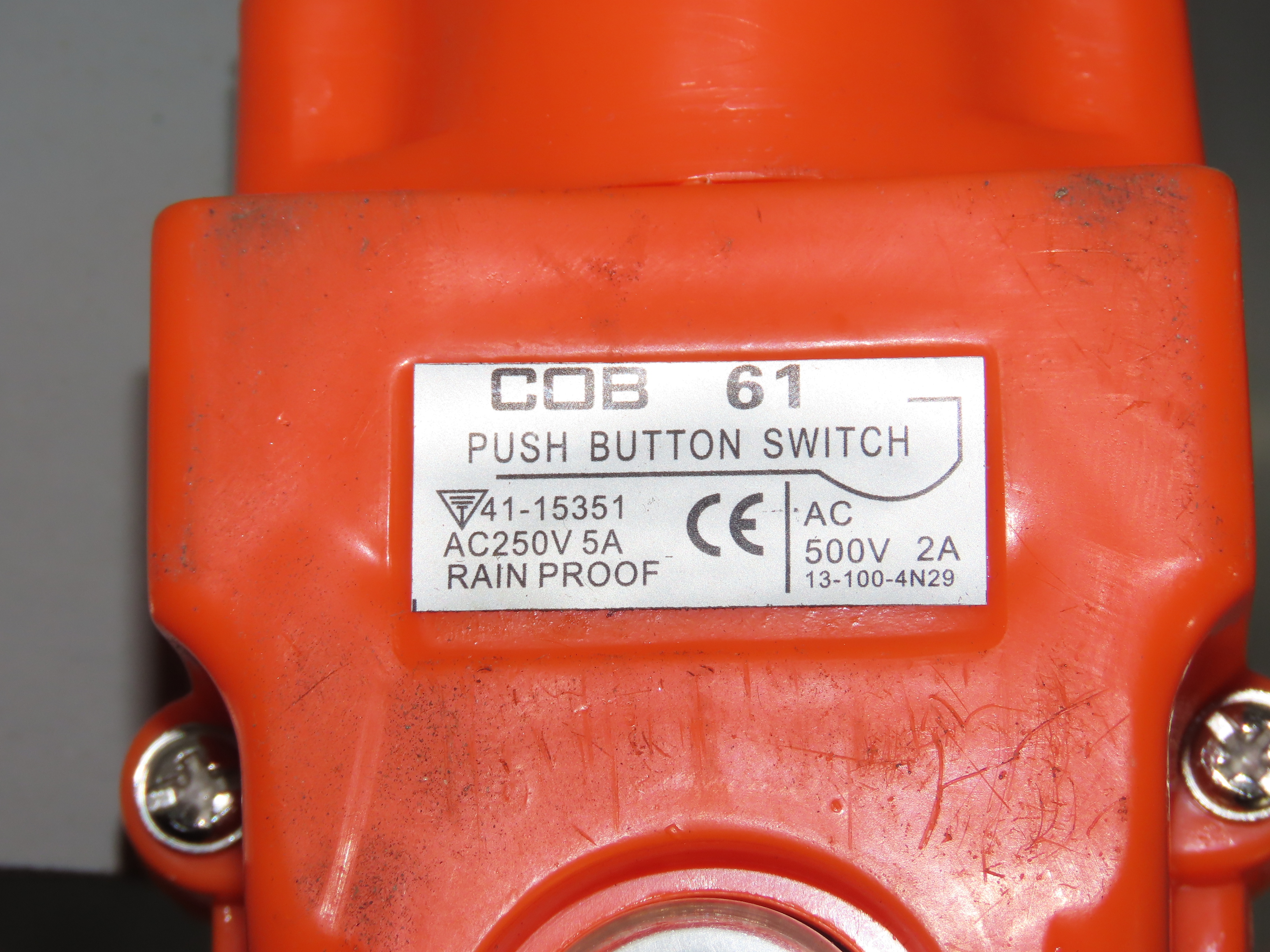

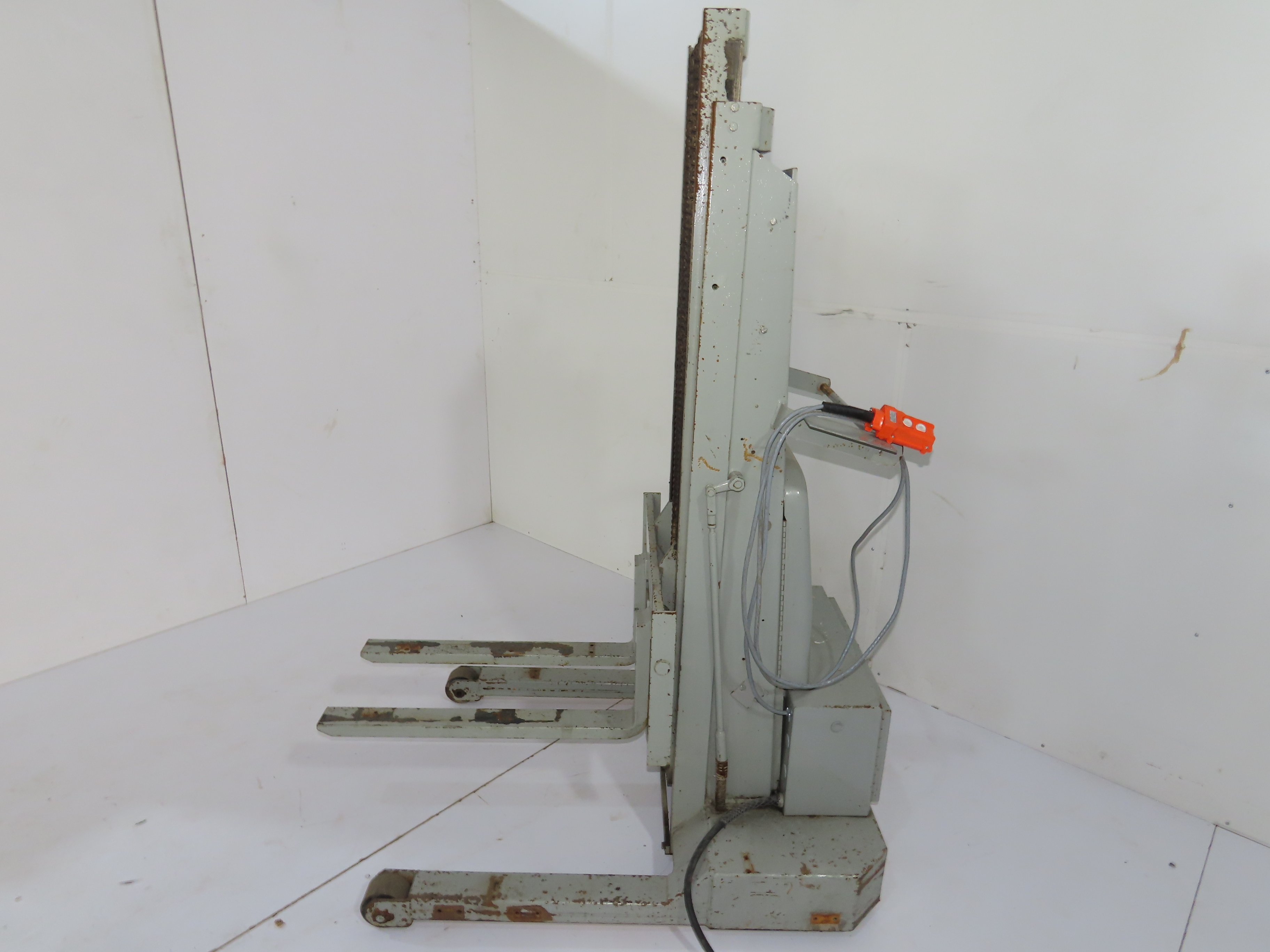

Lift and Lower Controls are on a hand pendant that is on a 13 foot cord for operator flexibility.
