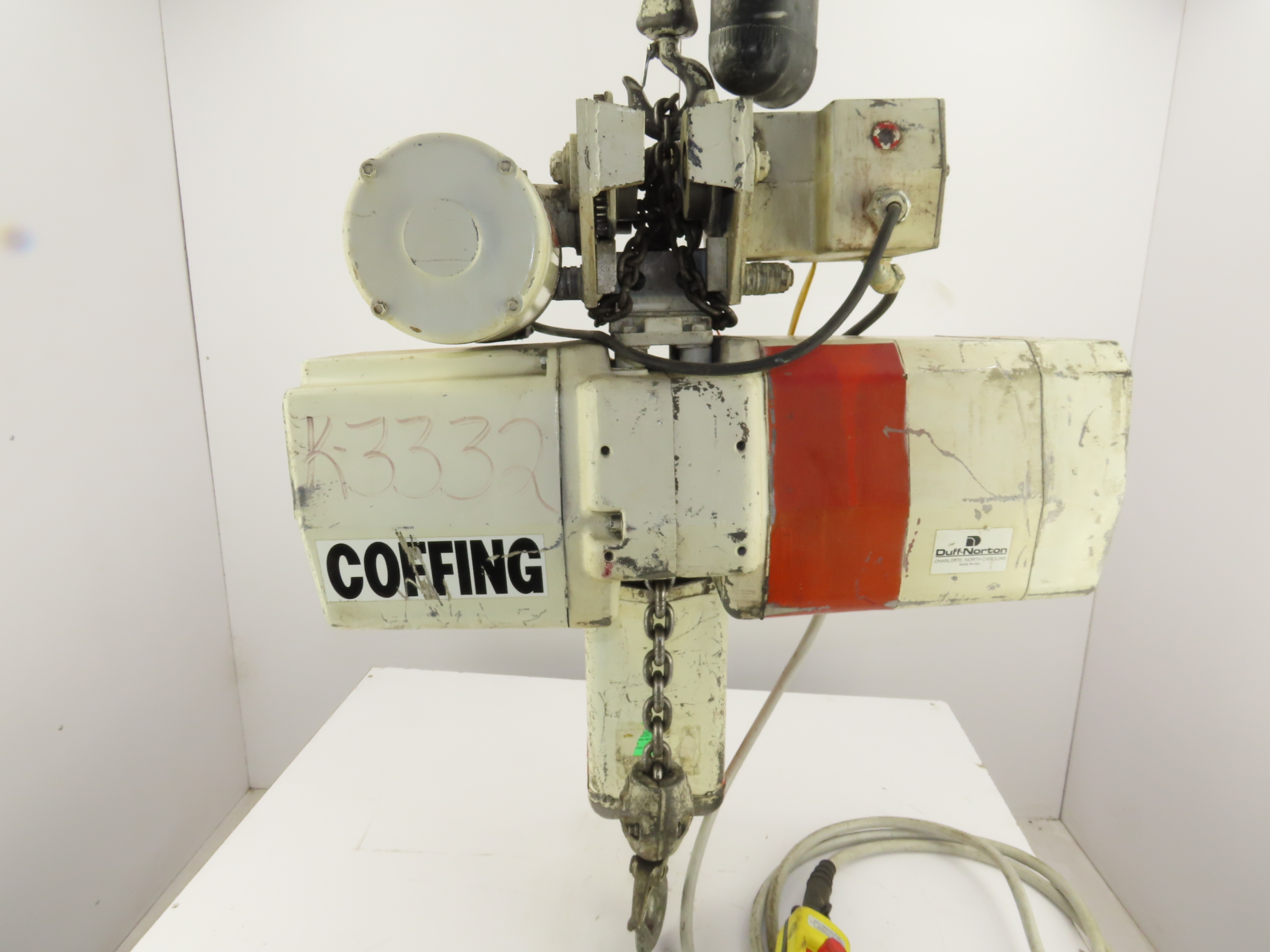

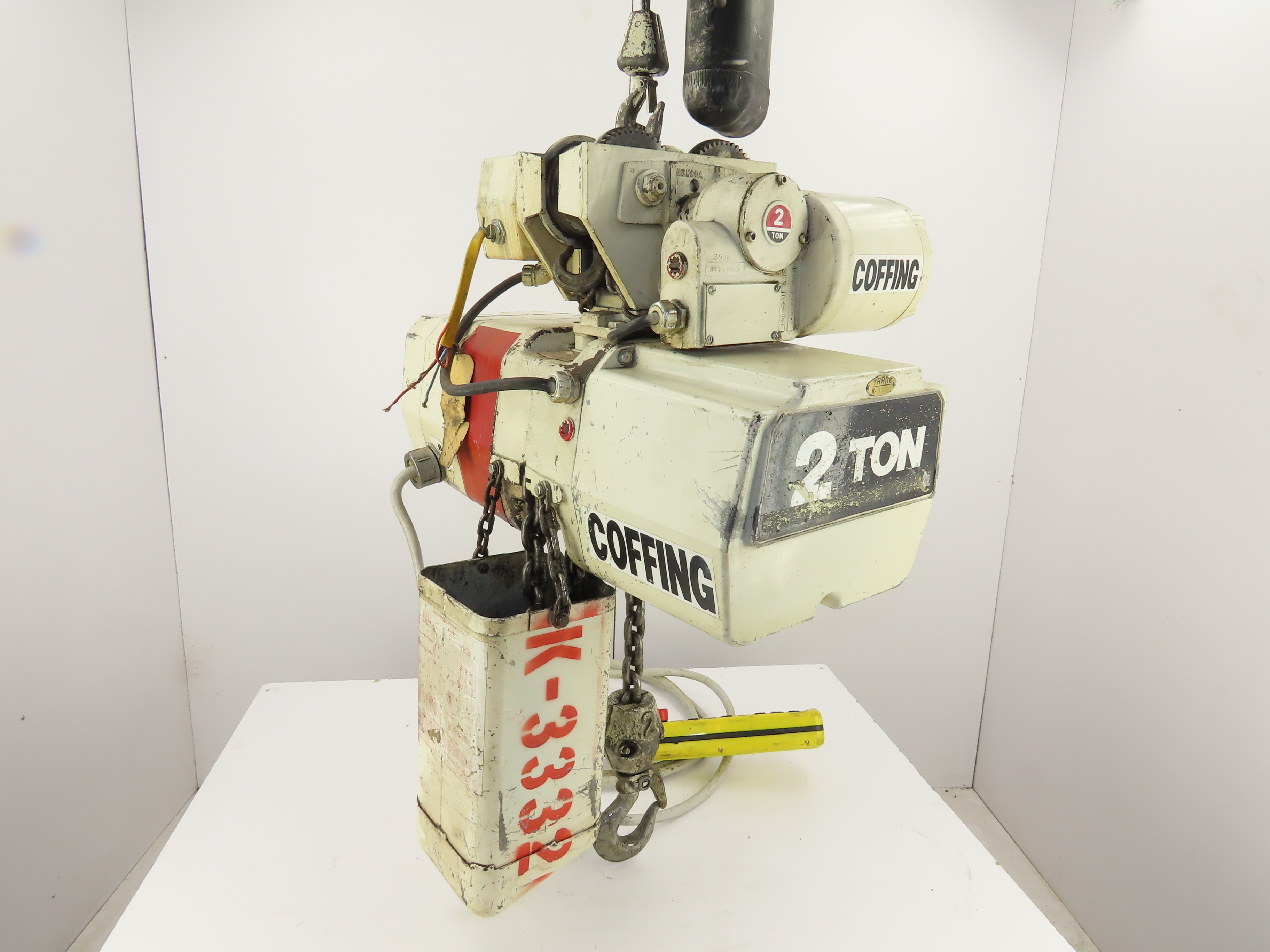

This is a used Coffing 2-speed 2 Ton Chain Hoist with power trolley.
The hoist is a 2 speed (5-16FPM).
The trolley is a single speed.
Trolley will adjust to fit beams with flange widths of 3-1/4" to 6-3/4".
We tested this hoist under load, to capacity and it works like it should.
COFFING EC Models - High performance hoists engineered for heavy duty industrial service. Designed for safety, the EC incorporates mechanical load brake, motor brake, and overload clutch as standard.
Model: EC4016-3
Serial number is EC3D.100.PED
Capacity: 2-Ton,
Lift: 18 Feet Single Reeved,
Hoist Speed: 5-16 FPM
Suspension: Hook,
Pendant Drop: 16 Feet,
Lift HP: 2,
Headroom: 20 from bottom of beam to hook bearing surface.
Voltage: 460-3-60, The hoist is reconnectable to 230V but the trolley is a 2 speed single voltage motor (460v only)
