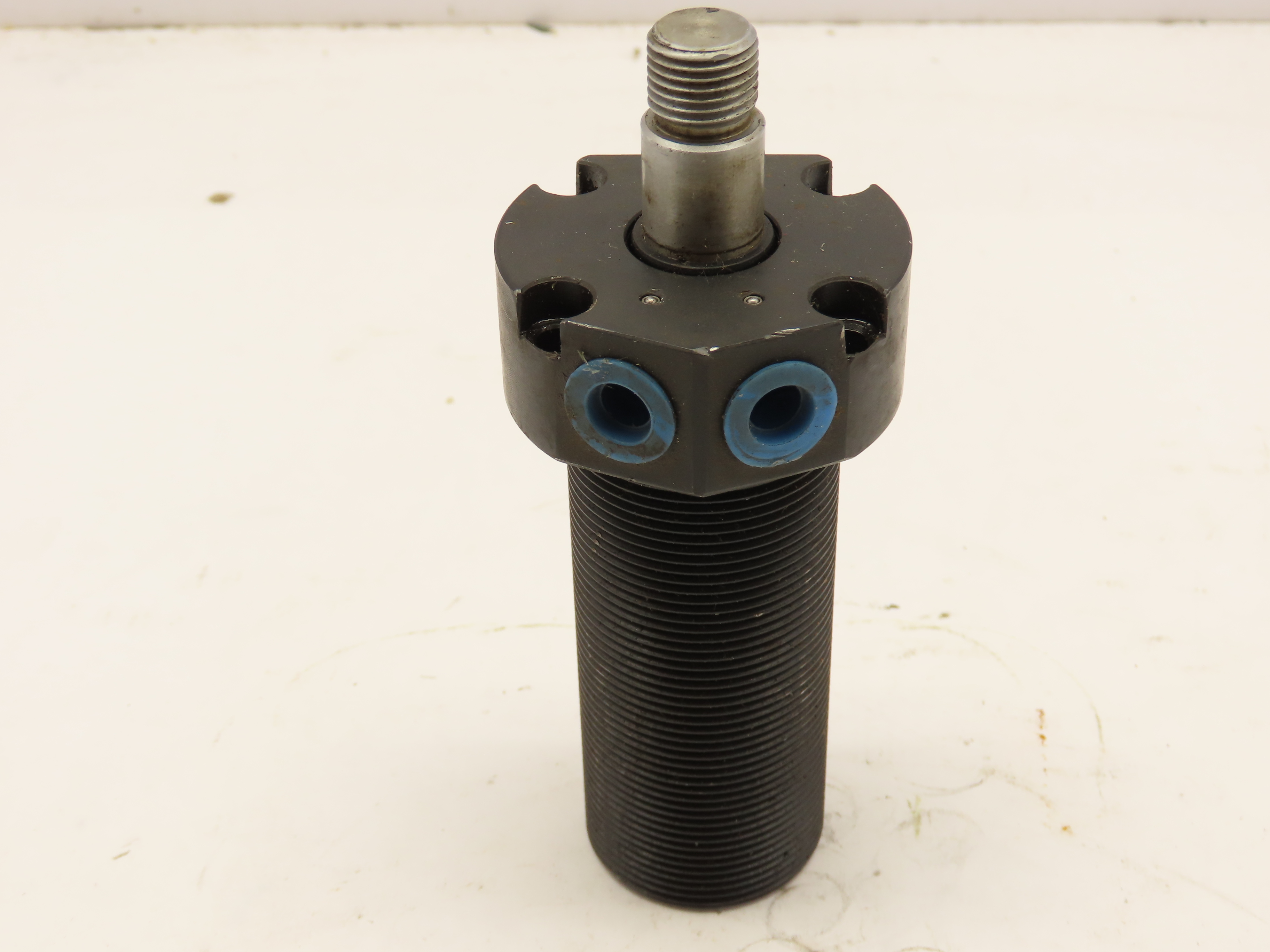

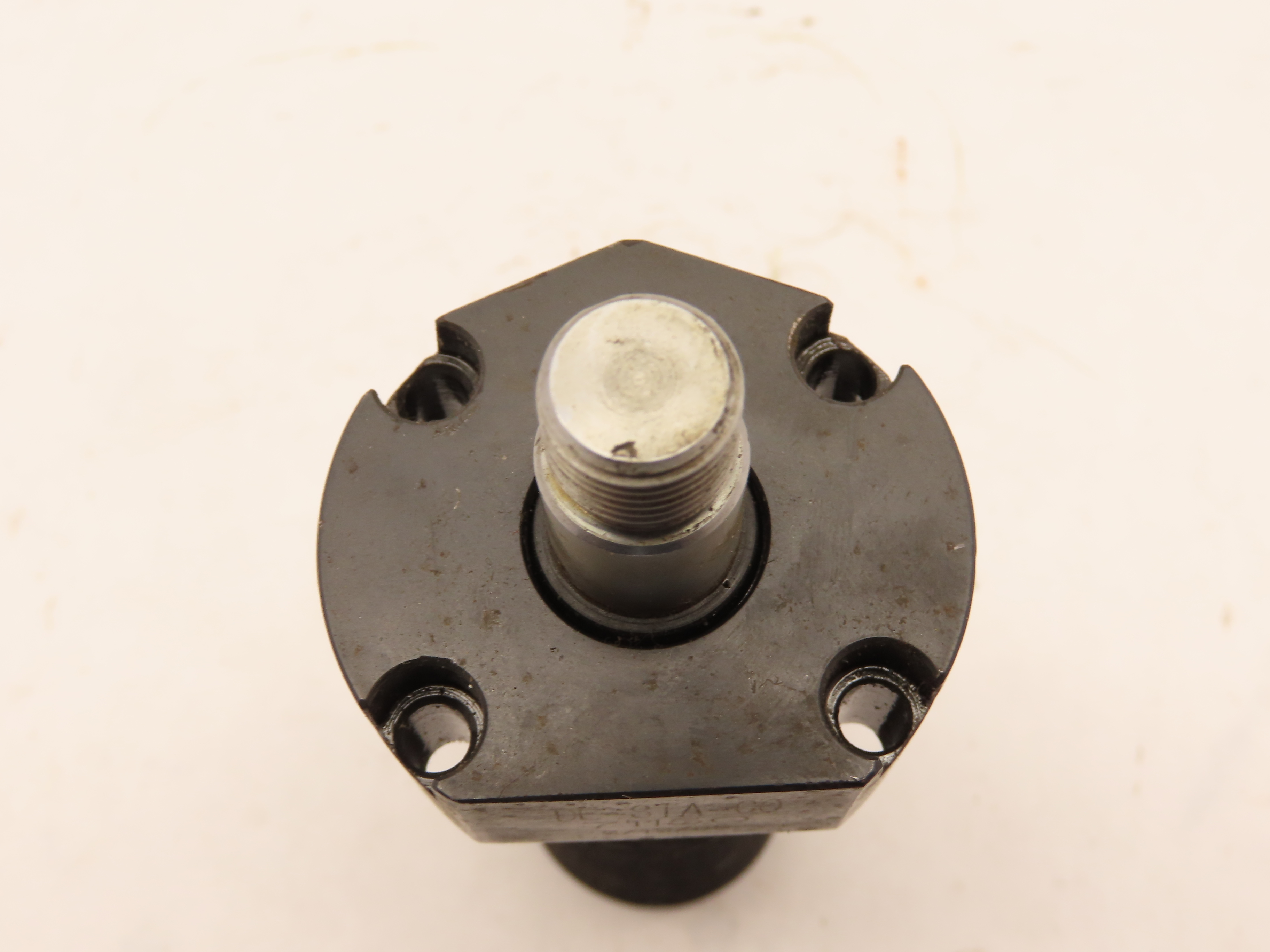

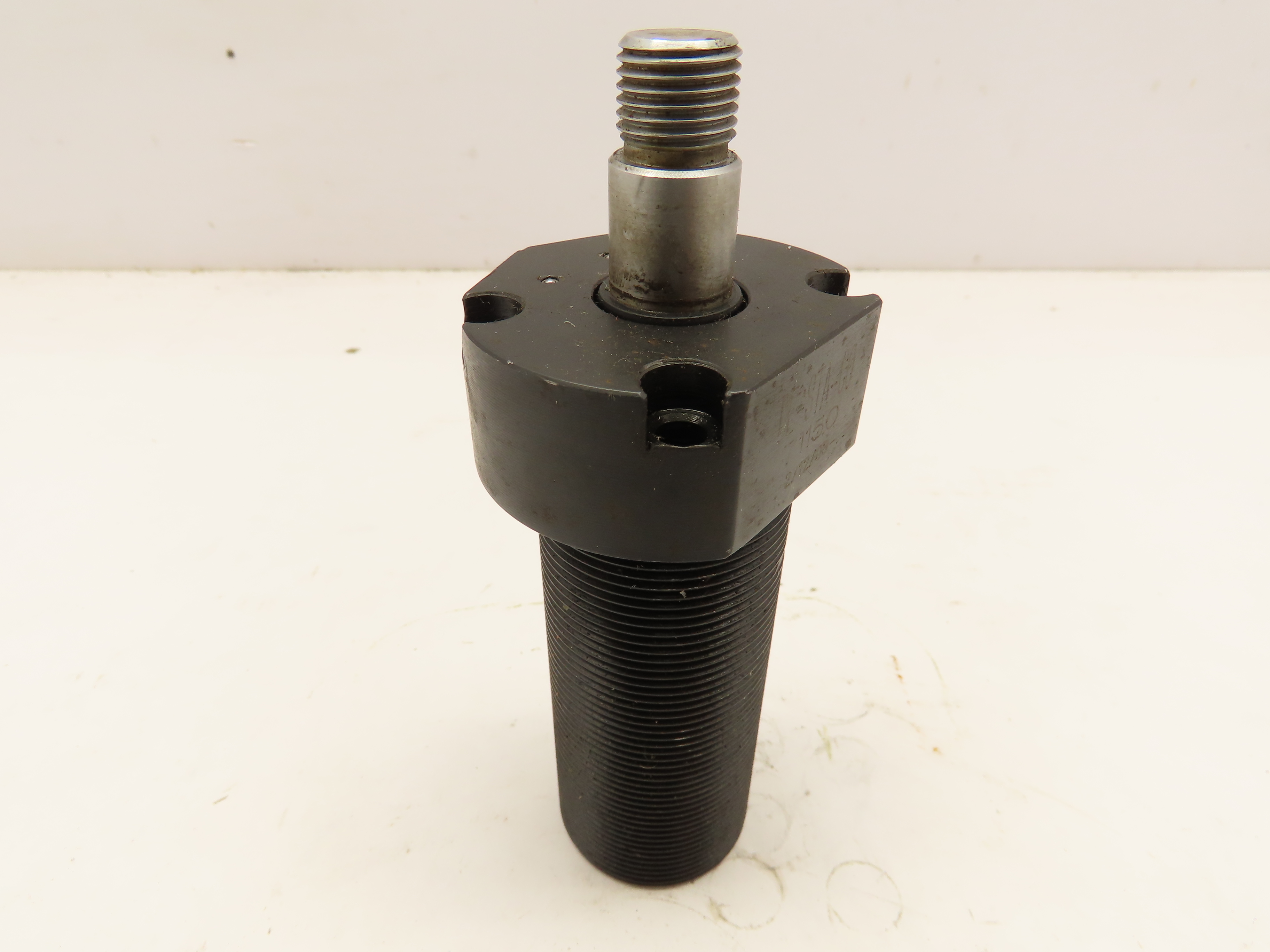

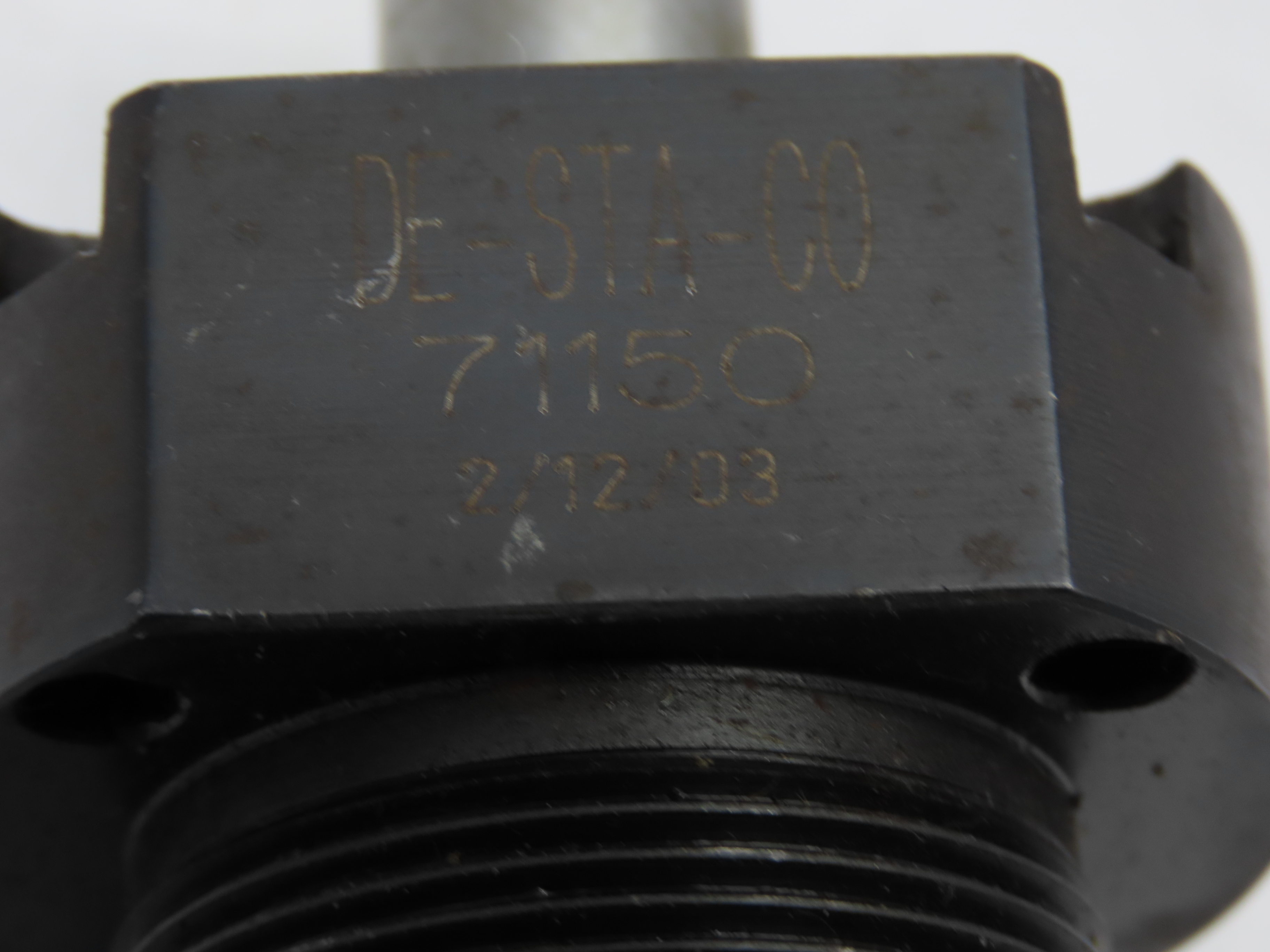

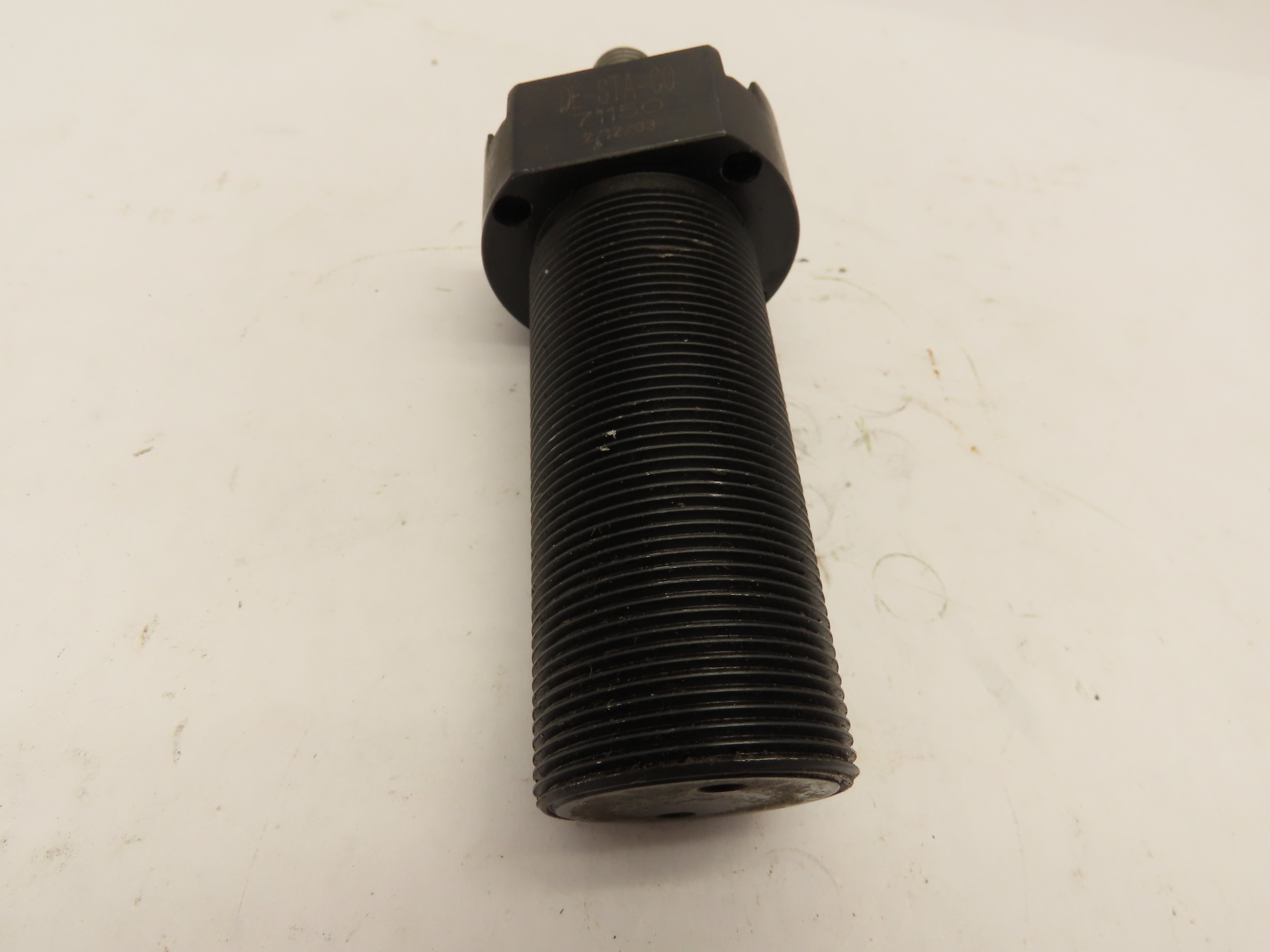

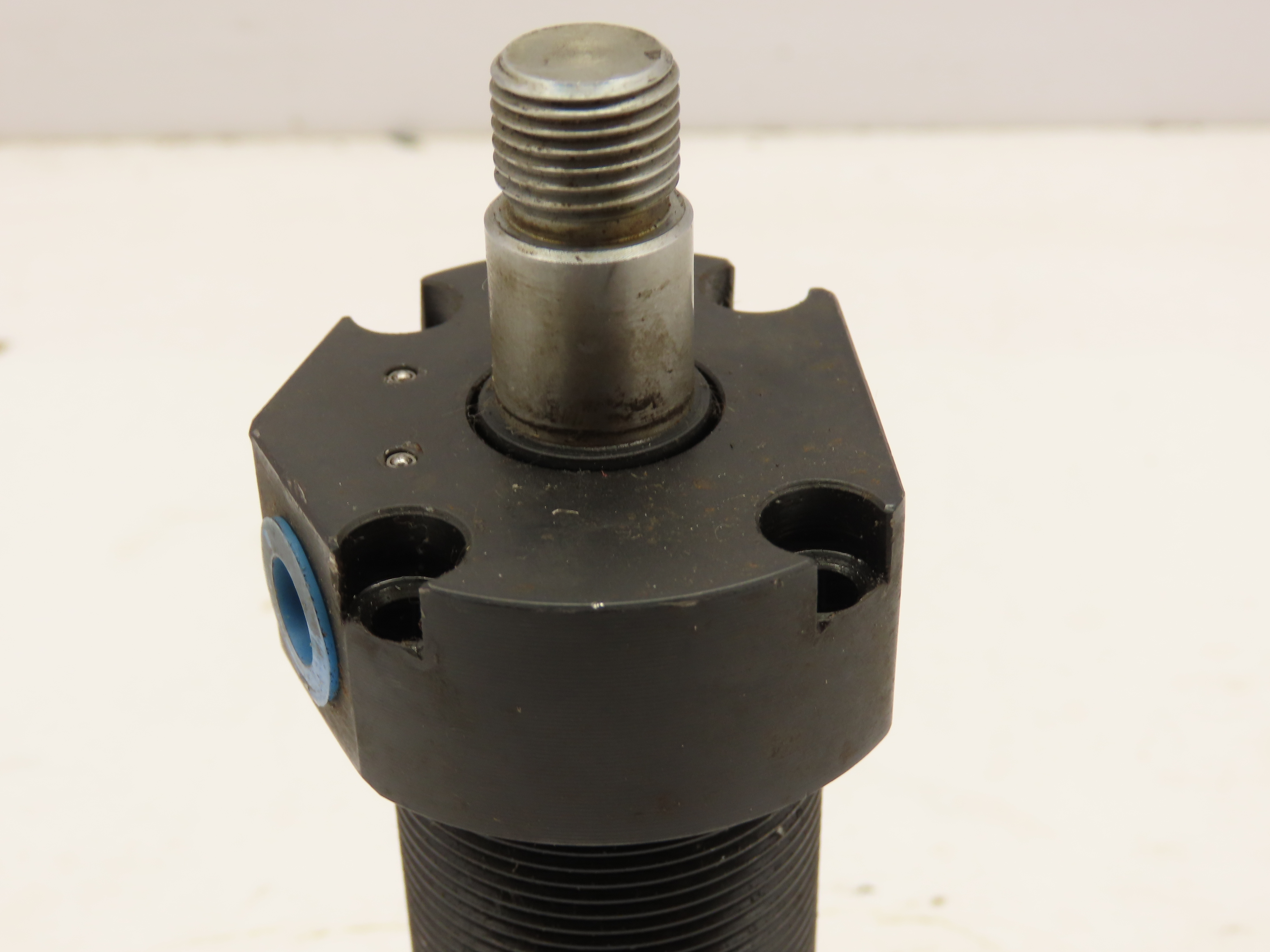

Destaco 71150 1/2 Ton Hydraulic Swing Cylinder Clamp Body
Destaco 71150 1/2 Ton Hydraulic Swing Cylinder Clamp BodyDestaco 71150 1/2 Ton Hydraulic Swing Cylinder Clamp BodyDestaco 71150 1/2 Ton Hydraulic Swing Cylinder Clamp BodyDestaco 71150 1/2 Ton Hydraulic Swing Cylinder Clamp BodyDestaco 71150 1/2 Ton Hydraulic Swing Cylinder Clamp BodyDestaco 71150 1/2 Ton Hydraulic Swing Cylinder Clamp BodyDestaco 71150 1/2 Ton Hydraulic Swing Cylinder Clamp Body

Destaco 71150 1/2 Ton Hydraulic Swing Cylinder Clamp Body

Current Price: $94.99

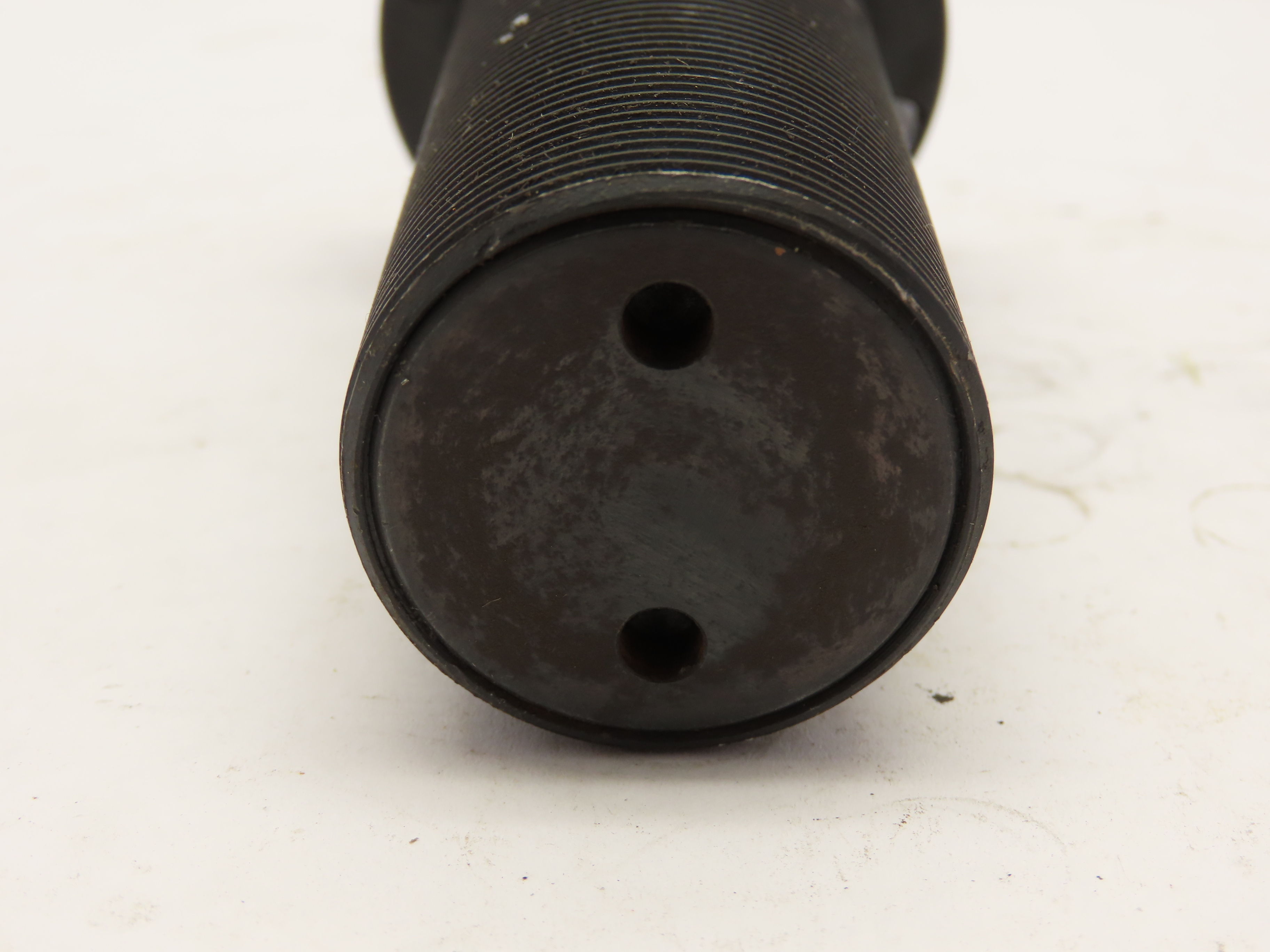

  •  This is a new clamp that has some surface rust on the butt end, but is new and will perform like new.
  • Specifications 1/2 Ton cylinders:
  • Total Stroke - .91 in.
  • Clamping Stroke - .33 in.
  • Minimum Operating Pressure - 500 psig
  • Port Size - 1/8 NPT
  • Swing Tolerance - 90° +/- 5°
  • Displacement Clamp Stroke - .58 in. cubed
  • Displacement Return Stroke - .81 in. cubed
  • Maximum Operating Pressure - 3000 psig
Details
  • Brand: Destaco
  • Condition: New Other
  • SKU: 215302
  • Consigner: J
  • Warehouse Storage Location: BE-04-04-S4
  • Shipping Weight (lbs, oz): 1,9
  • Lister: sh
  • Country of Manufacture: N/A
  • Items in Lot: 1
