Current Price: $1,139.99

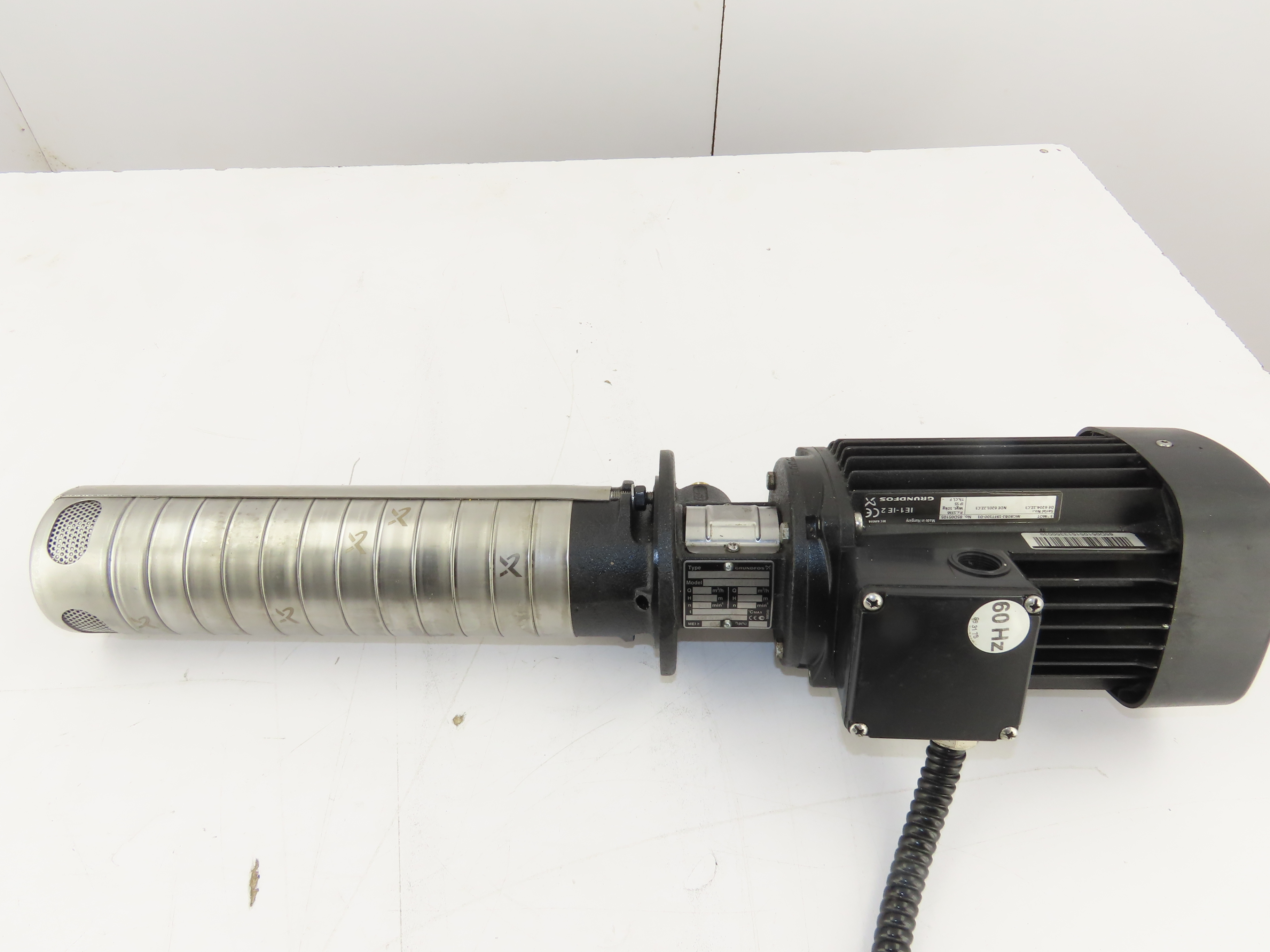

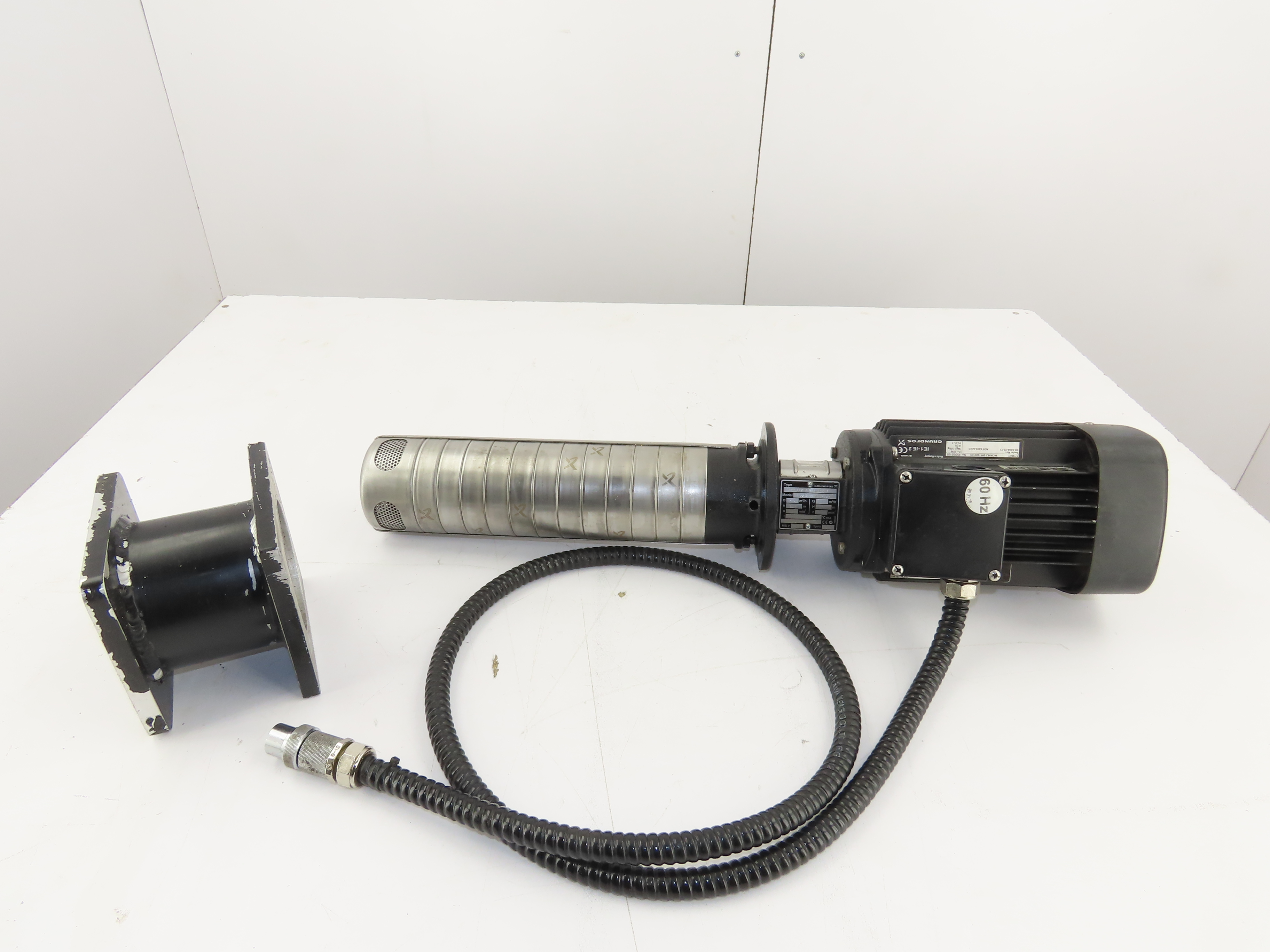

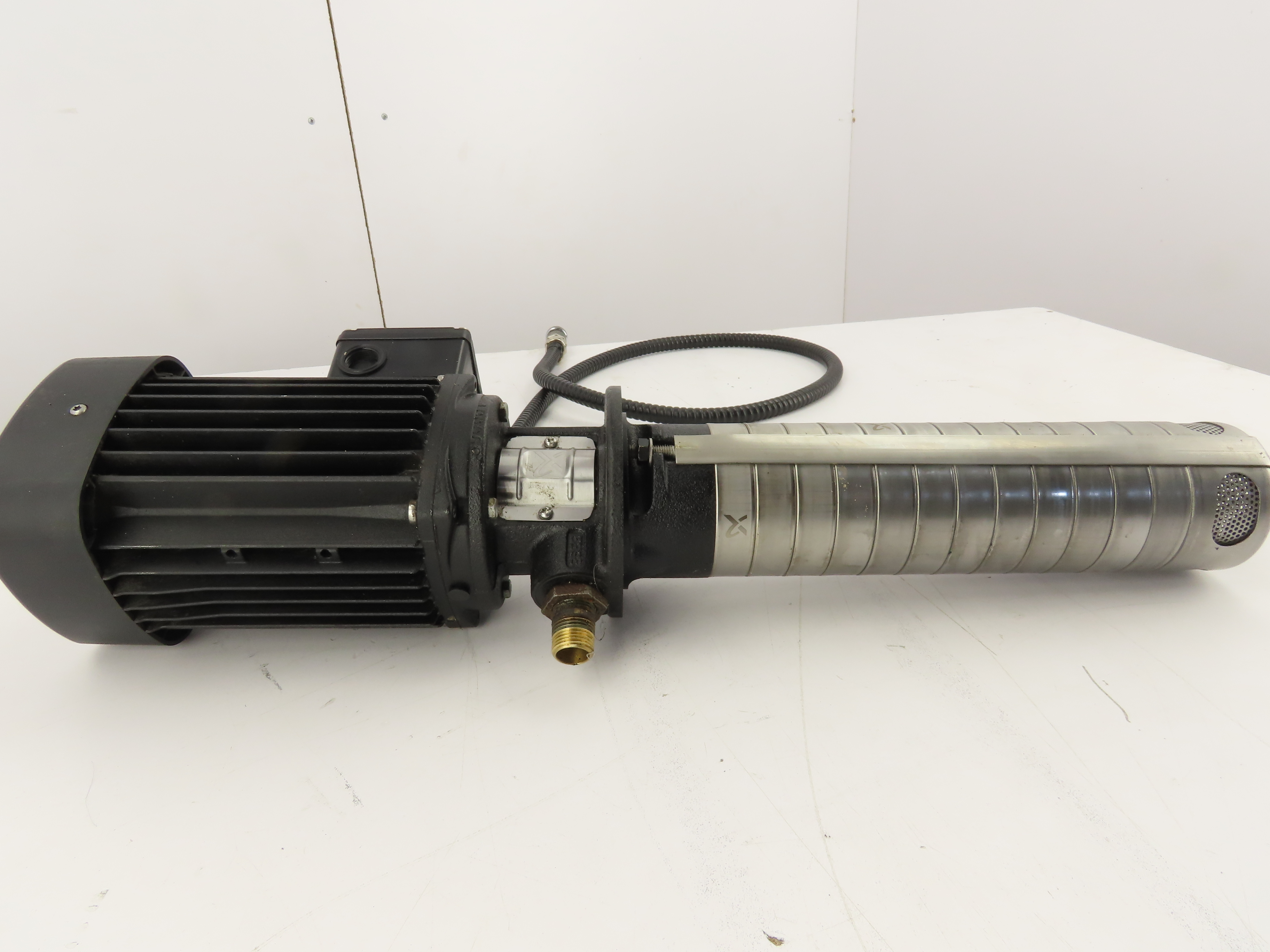

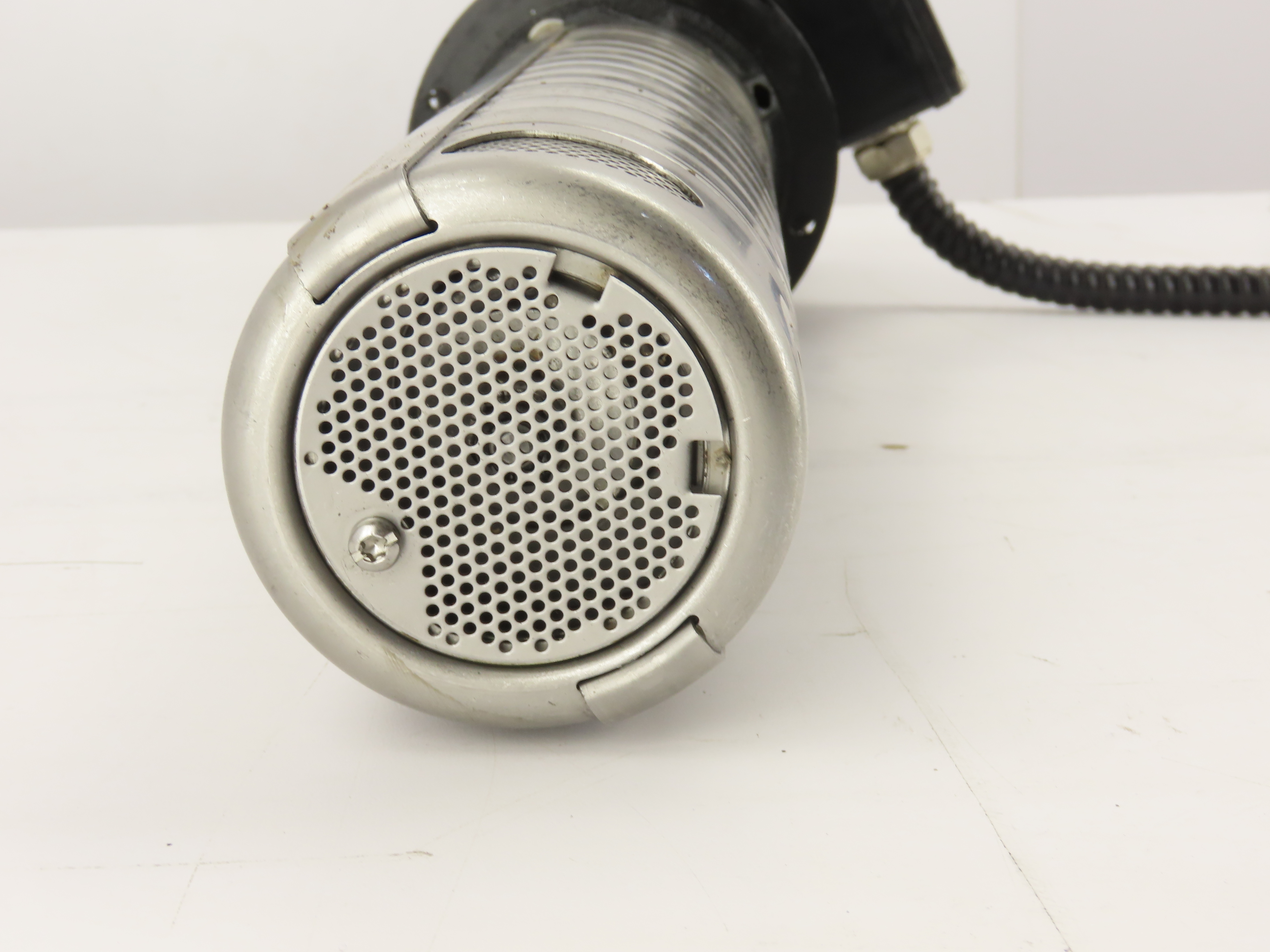

- Used Grundfos SPK4-11/8A-W-A-AUUV Vertical Multistage centrifugal pump designed for tank top mounting and for pumping of cooling lubricants and cutting oils for machine tools, condensate transfer and similar applications.
- This pump is in good working condition.

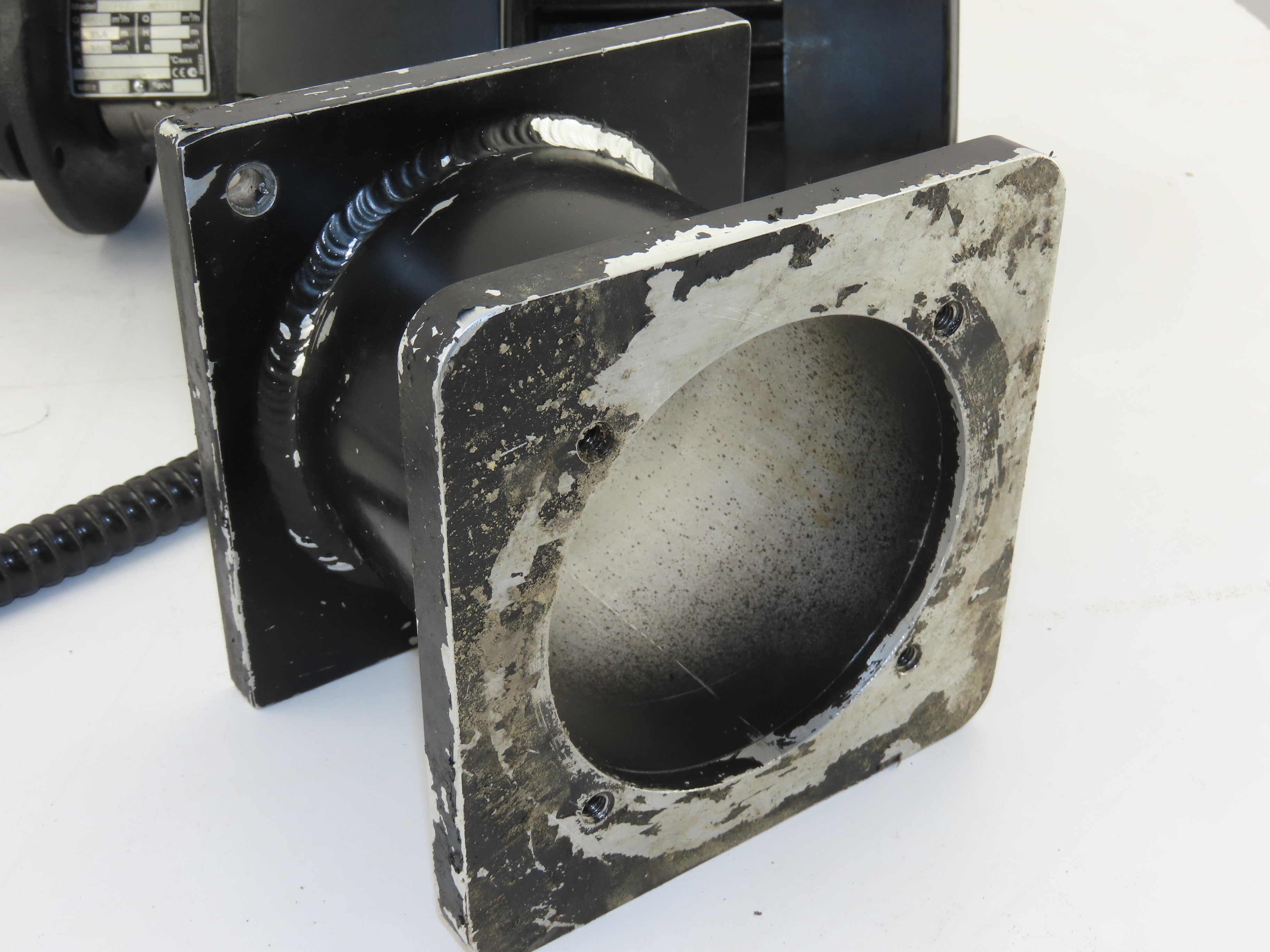

- 14" depth below mounting flange, This pump will come with a 4-3/8" spacer that can be installed on tanks that are shallow.

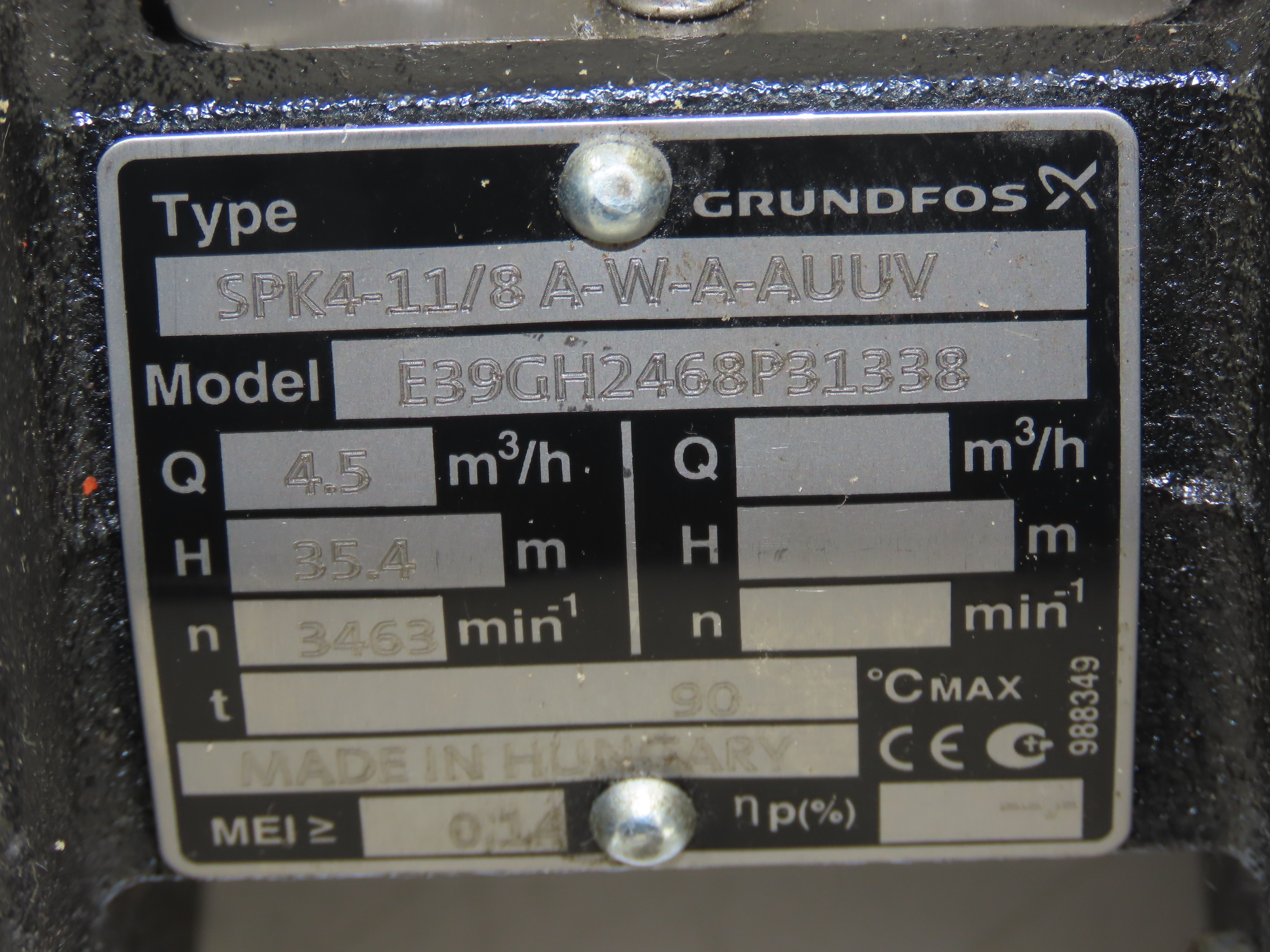

- Model E39GH2468P31338
- SPK4-11/8A-W-A-AUUV

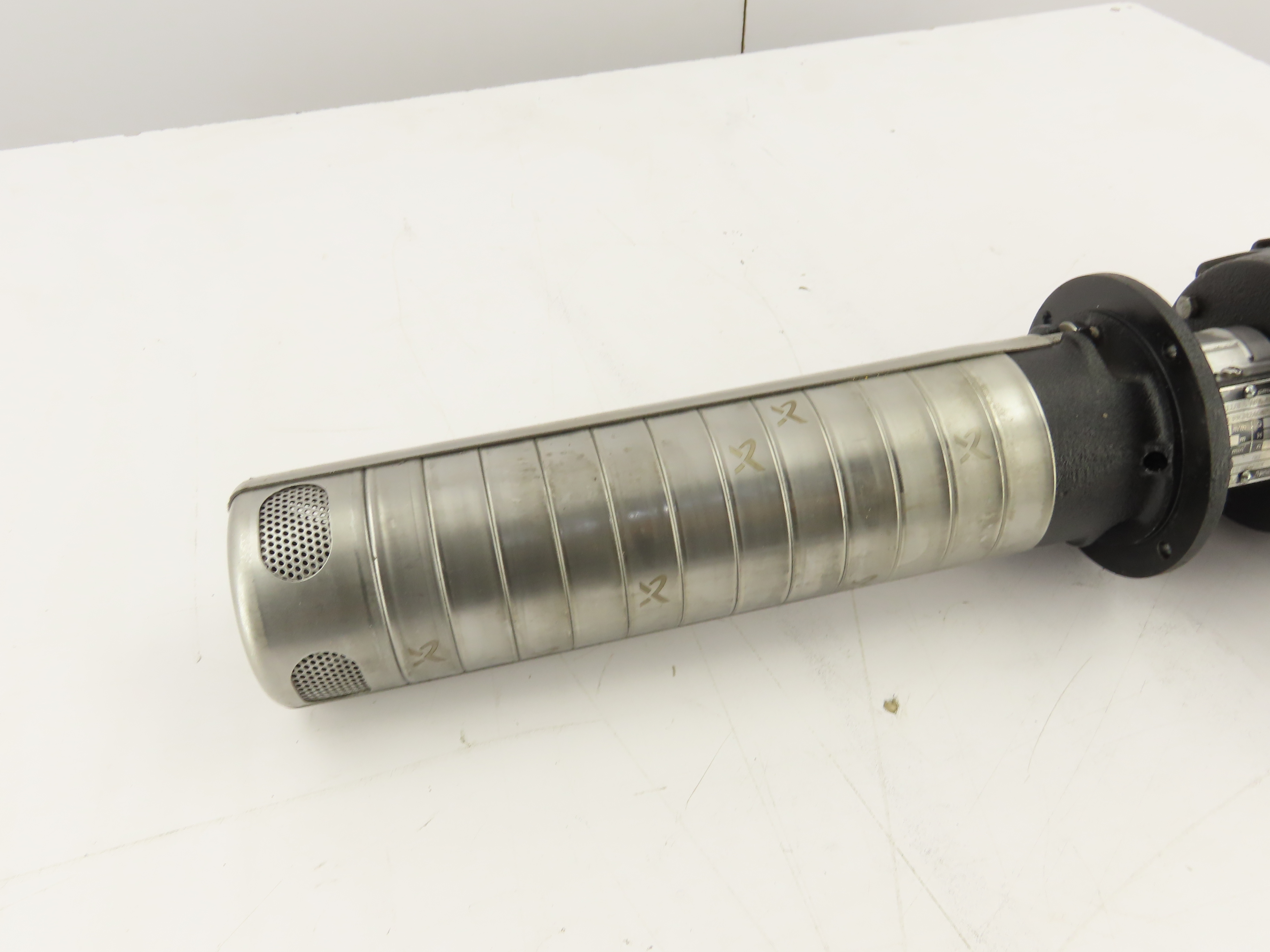

- Multistage, immersible, self-priming, centrifugal pump for vertical installation in tanks etc.
- The pump has the following characteristics:
- Product name SPK 4-11/8 A-W-A-AUUV
- Product No 98243844
- EAN number 5711491979502
- Technical
- Pump speed on which pump data are based 3420 rpm
- Rated flow 66.7 l/min
- Rated head 36 m
- Stages 11
- Impellers 8
- Primary shaft seal AUUV
- Pump version A
- Model E

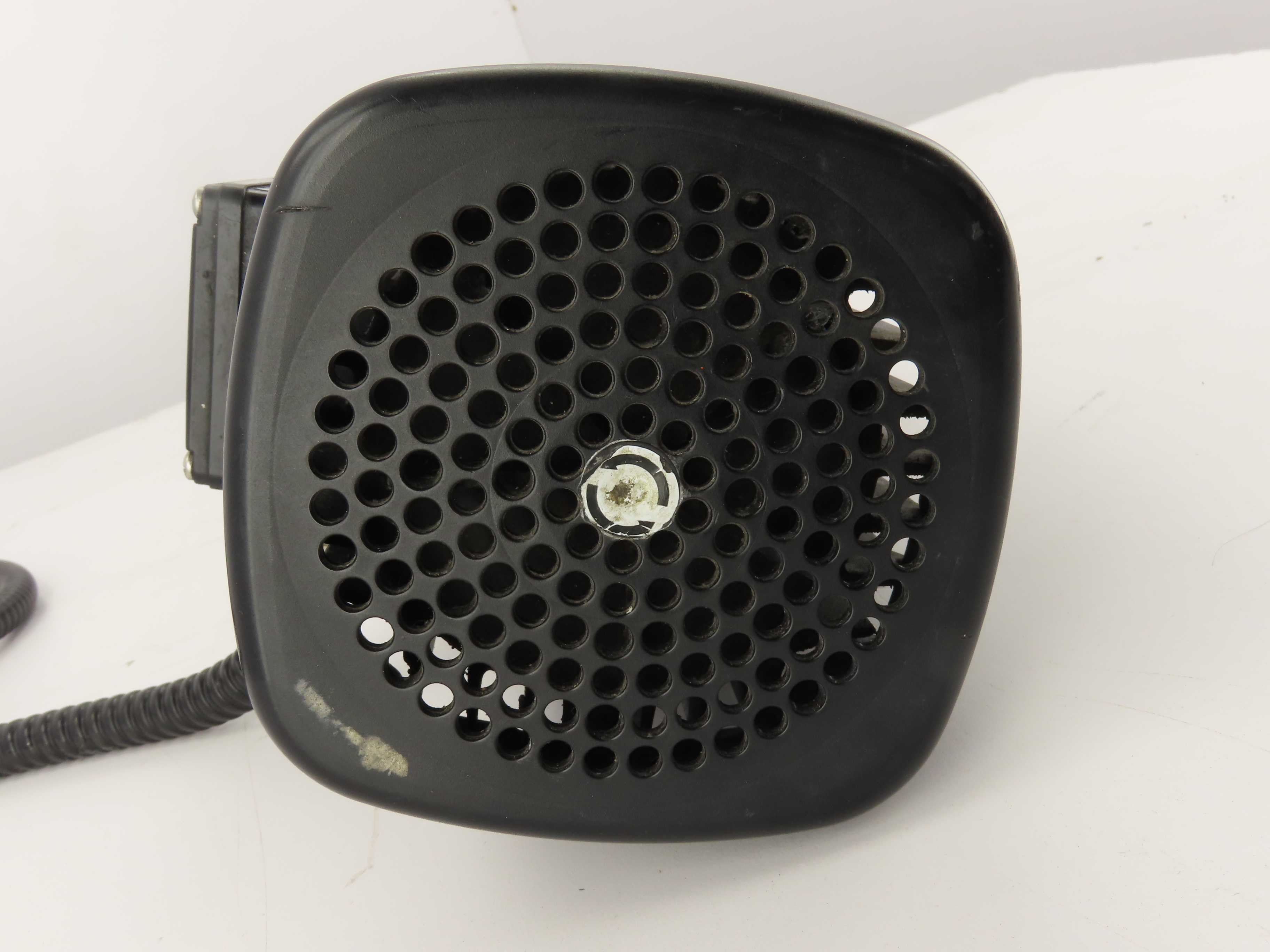

- Cooling TEFC
- Drain holes Open drain hole
- Materials
- Pump housing Cast iron
- EN 1561 EN-GJL-200
- ASTM A48-25B
- Impeller Stainless steel
- DIN W.-Nr. 1.4301
- AISI 304

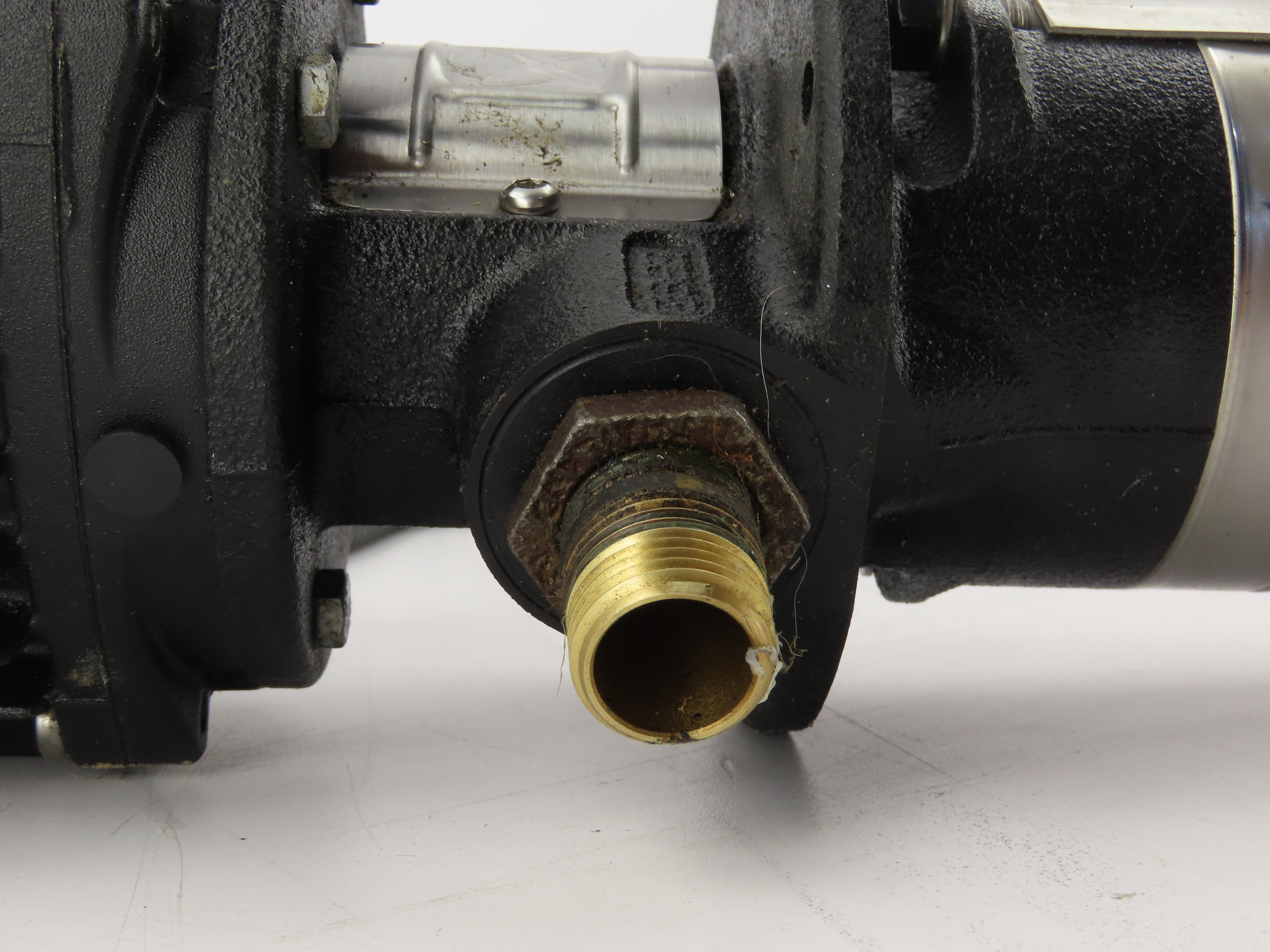

- Pipe connection G 3/4
- Flange size for motor FT100
- Connect code W
- Liquid
- Pumped liquid Emulsion
- Liquid temperature range -10 .. 90 °C
- Selected liquid temperature 20 °C
- Density 998.2 kg/m³

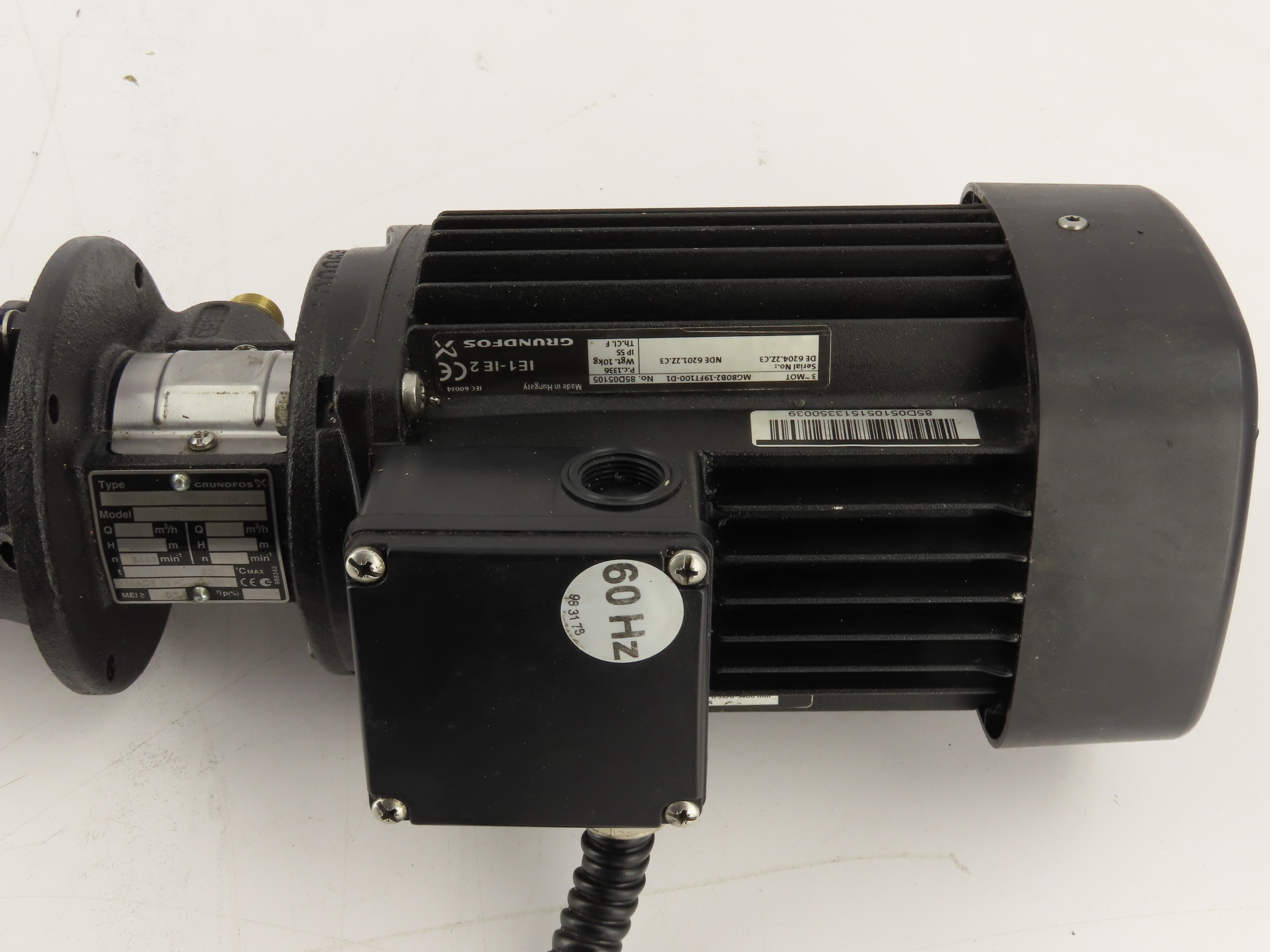

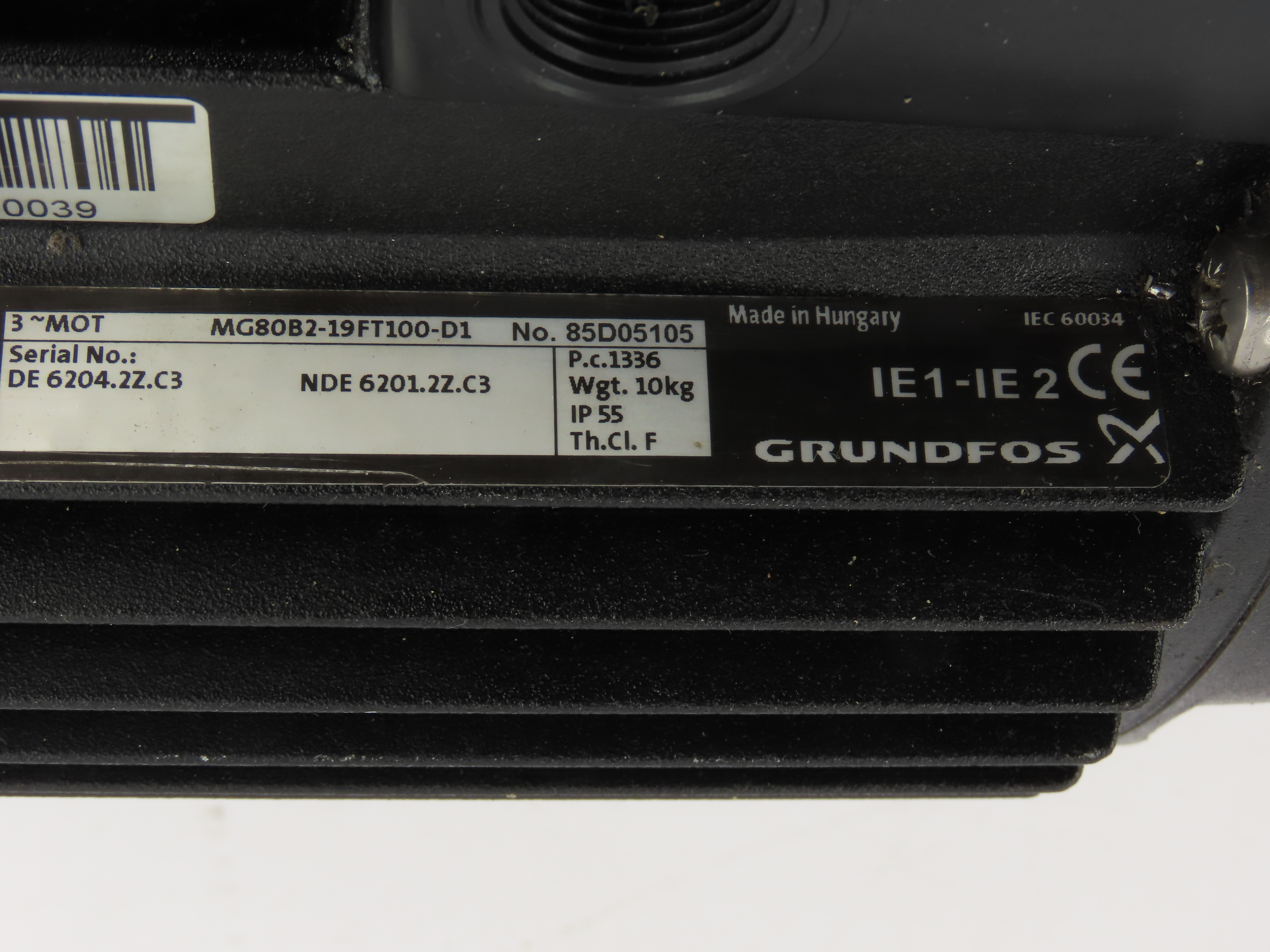

- Electrical data
- Motor type 80CA
- Rated power - P2 1.1 kW
- KVA code M
- Mains frequency 60 Hz
- Rated voltage 3 x 220-255D/380-440Y V
- Rated current 4,15-4,00/2,40-2,30 A
- Rated speed 3420-3470 rpm
- Motor efficiency at full load
- 82.5-84.0 %
- Motor efficiency at 3/4 load
- 86.0-86.5 %
- Motor efficiency at 1/2 load
- 86.4-85.5 %
- Number of poles 2
- Enclosure class (IEC 34-5)
- 55 Dust/Jetting
- Insulation class (IEC 85) F
- Built-in motor protection NONE
- Thermal protec external
- Motor No 85U05115
Details
- Brand: Grundfos
- Condition: Used
- SKU: 214203
- Consigner: J
- Warehouse Storage Location: BD-07-08-S2
- Shipping Weight (lbs, oz): 34,
- Lister: jw
- Country of Manufacture: Hungary
- Items in Lot: 1
