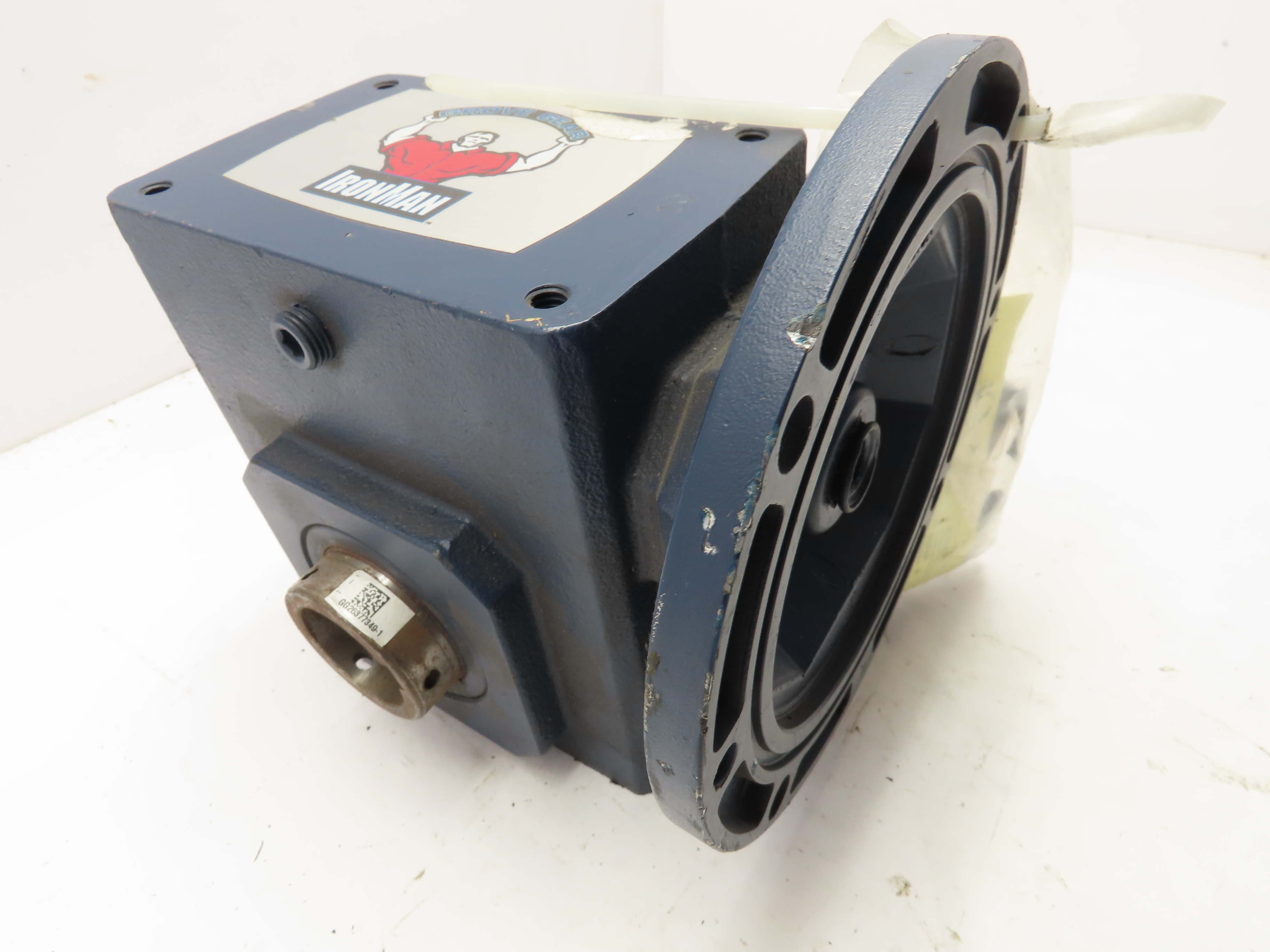

Ironman Right Angle Gear Reducer Hollow Shaft 56C 2.46HP 10:1 ratio
Ironman Right Angle Gear Reducer Hollow Shaft 56C 2.46HP 10:1 ratioIronman Right Angle Gear Reducer Hollow Shaft 56C 2.46HP 10:1 ratioIronman Right Angle Gear Reducer Hollow Shaft 56C 2.46HP 10:1 ratioIronman Right Angle Gear Reducer Hollow Shaft 56C 2.46HP 10:1 ratioIronman Right Angle Gear Reducer Hollow Shaft 56C 2.46HP 10:1 ratioIronman Right Angle Gear Reducer Hollow Shaft 56C 2.46HP 10:1 ratioIronman Right Angle Gear Reducer Hollow Shaft 56C 2.46HP 10:1 ratio

Ironman Right Angle Gear Reducer Hollow Shaft 56C 2.46HP 10:1 ratio

Current Price: $356.24

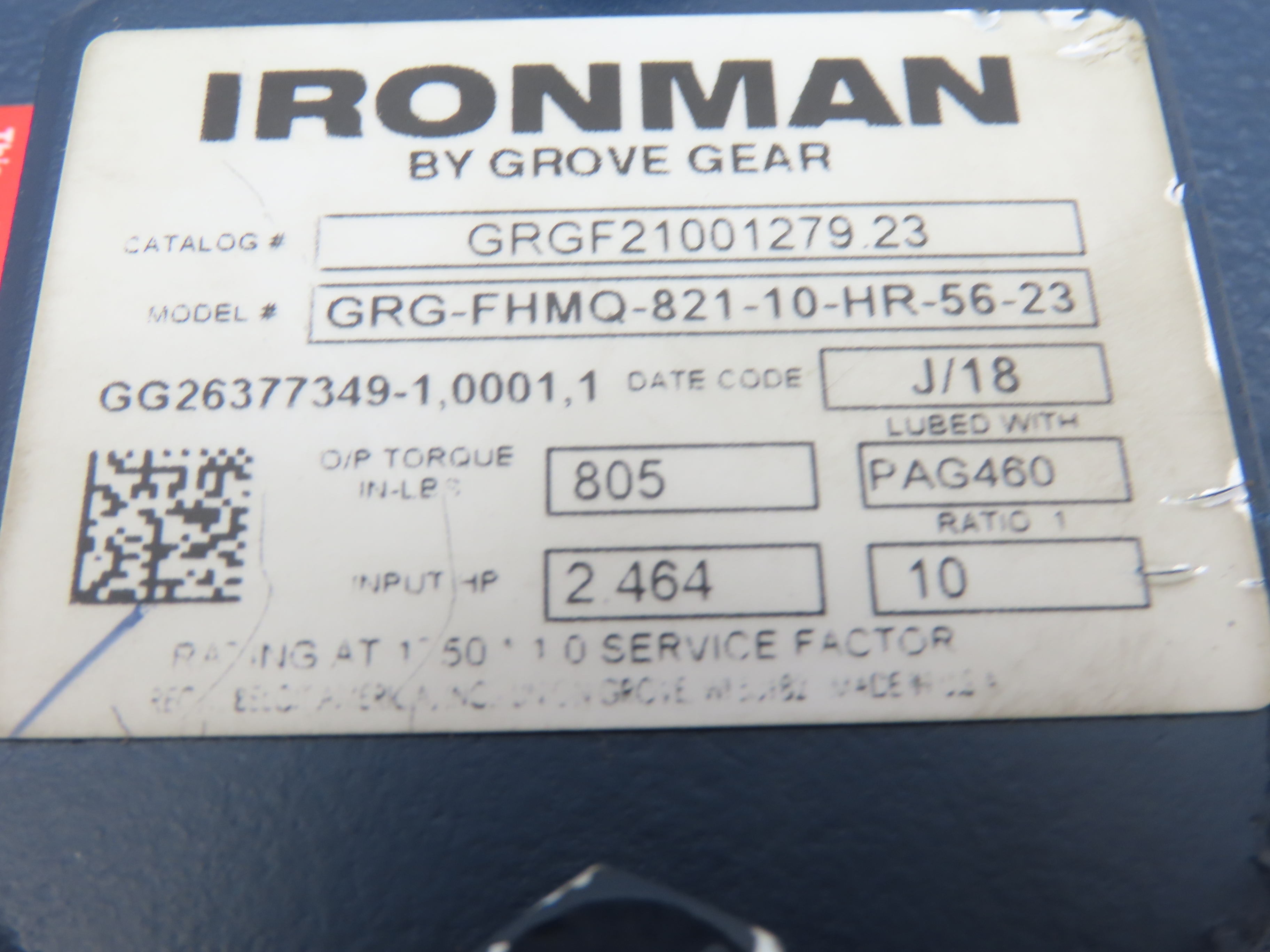

  • This is a new GRG-FHMQ821-10-HR-56-23 GROVE 10:1 FLANGED RIGHT ANGLE GEAR REDUCER GRGF21001279.23.
  • Max Input HP @1750:2.464
  • Output RPM @1750:175
  • Reduction Ratio:10:1
  • Torque (lb-in)@1750rpm:805
  • Overhung Load (lbs.):1000
  • Shaft Center Distance:2.06
  • Shaft Center Height:2.28
  • Mount Footprint:3.00” x 4.75”

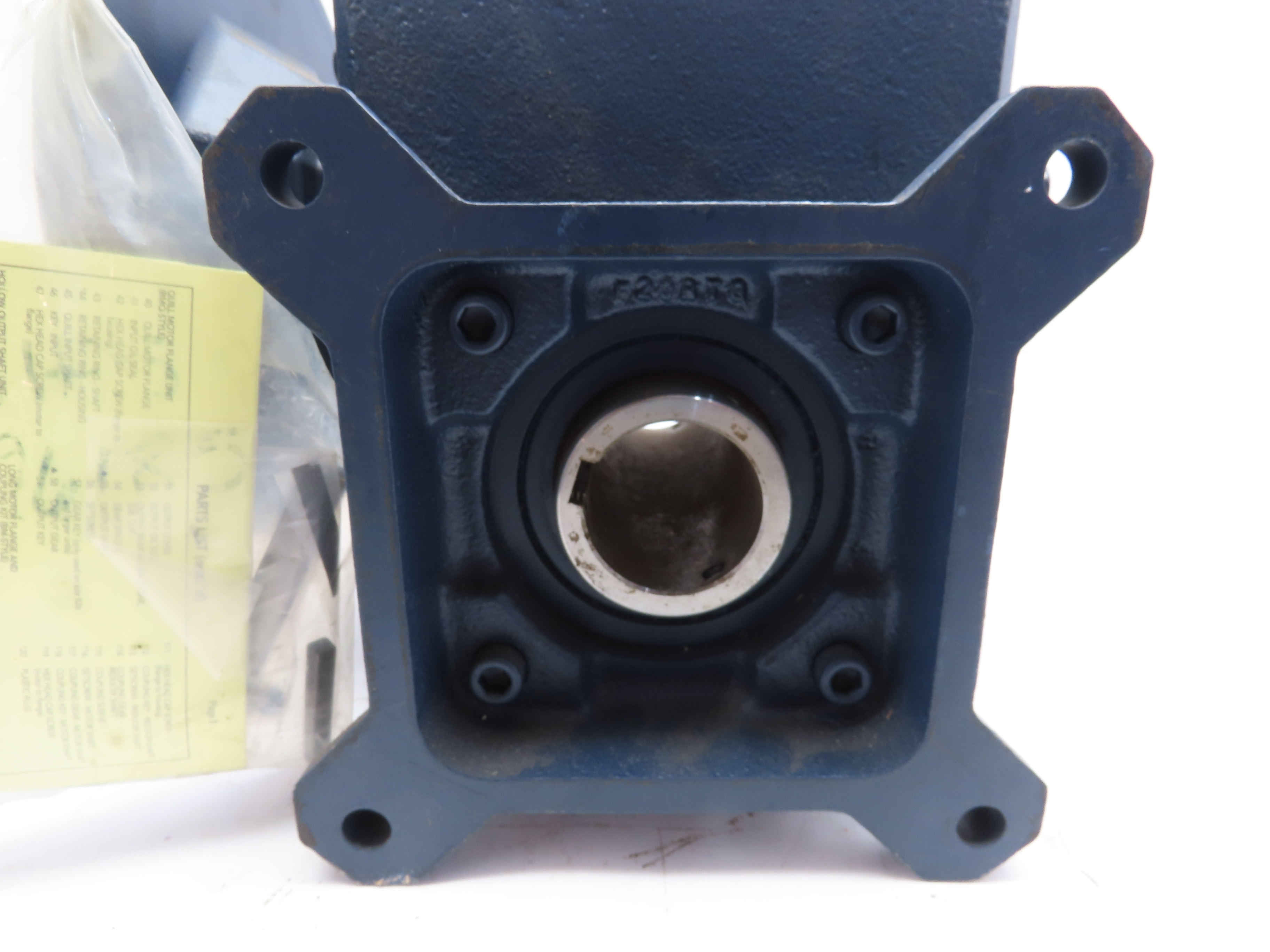

  • NEMA Input Mounting:56C
  • Mount Style:FHMQ
  • Series Size:821
  • Series:GRG
  • Output Config:Flanged Right

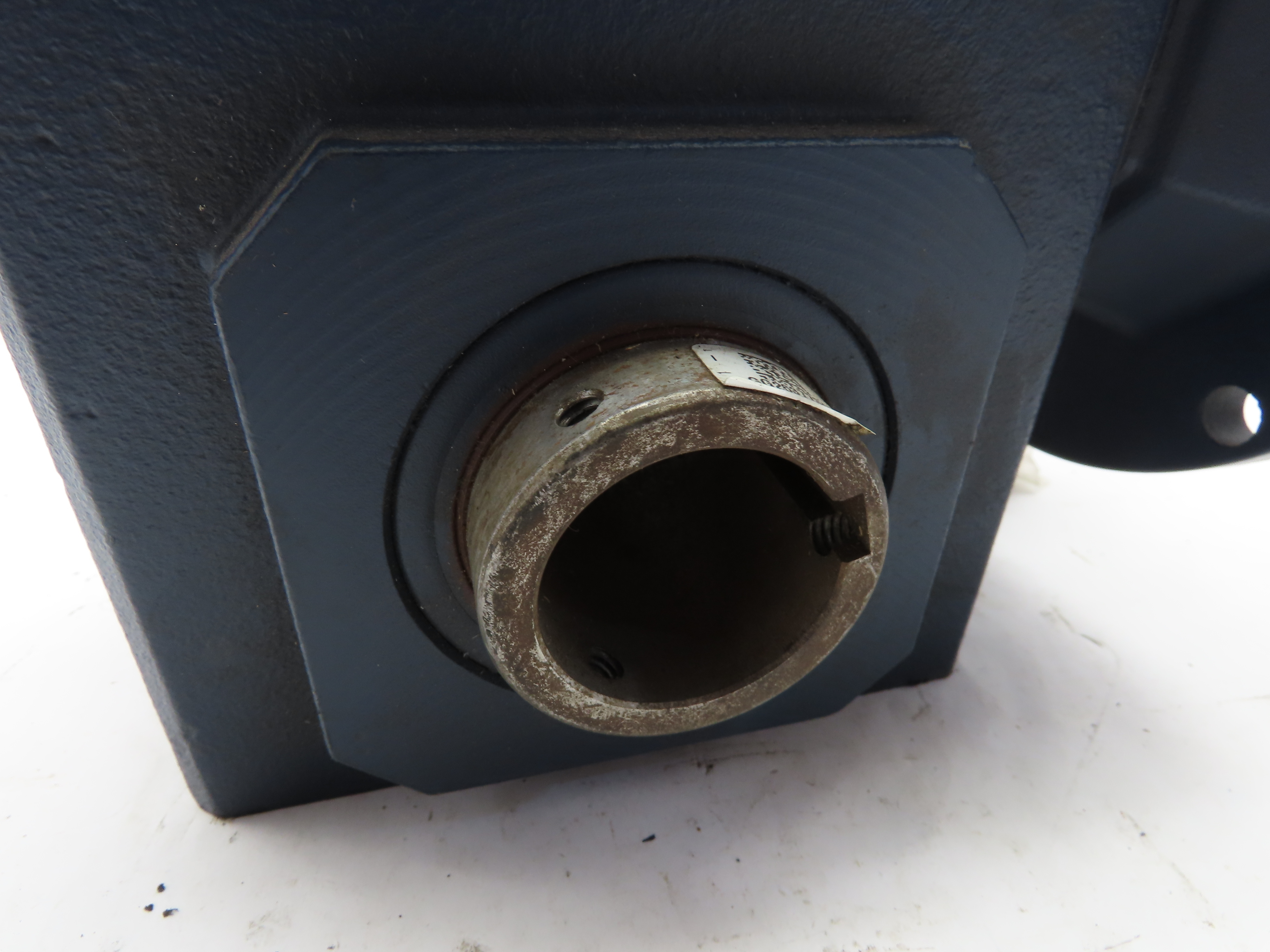

  • Hollow Bore Dim":1-7/16"= 1.438"
  • Application:General Purpose
  • Housing:Cast Iron
Details
  • Brand: Grove Gear Ironman
  • Condition: New Other
  • SKU: 215182
  • Consigner: J
  • Warehouse Storage Location: BD-06-02-S3
  • Shipping Weight (lbs, oz): 26,5
  • Lister: sh
  • Country of Manufacture: United States
  • Items in Lot: 1
  • This is a new GRG-FHMQ821-10-HR-56-23 GROVE 10:1 FLANGED RIGHT ANGLE GEAR REDUCER GRGF21001279.23.
  • Max Input HP @1750:2.464
  • Output RPM @1750:175
  • Reduction Ratio:10:1
  • Torque (lb-in)@1750rpm:805
  • Overhung Load (lbs.):1000
  • Shaft Center Distance:2.06
  • Shaft Center Height:2.28
  • Mount Footprint:3.00” x 4.75”
  • NEMA Input Mounting:56C
  • Mount Style:FHMQ
  • Series Size:821
  • Series:GRG
  • Output Config:Flanged Right
  • Hollow Bore Dim":1-7/16"= 1.438"
  • Application:General Purpose
  • Housing:Cast Iron
