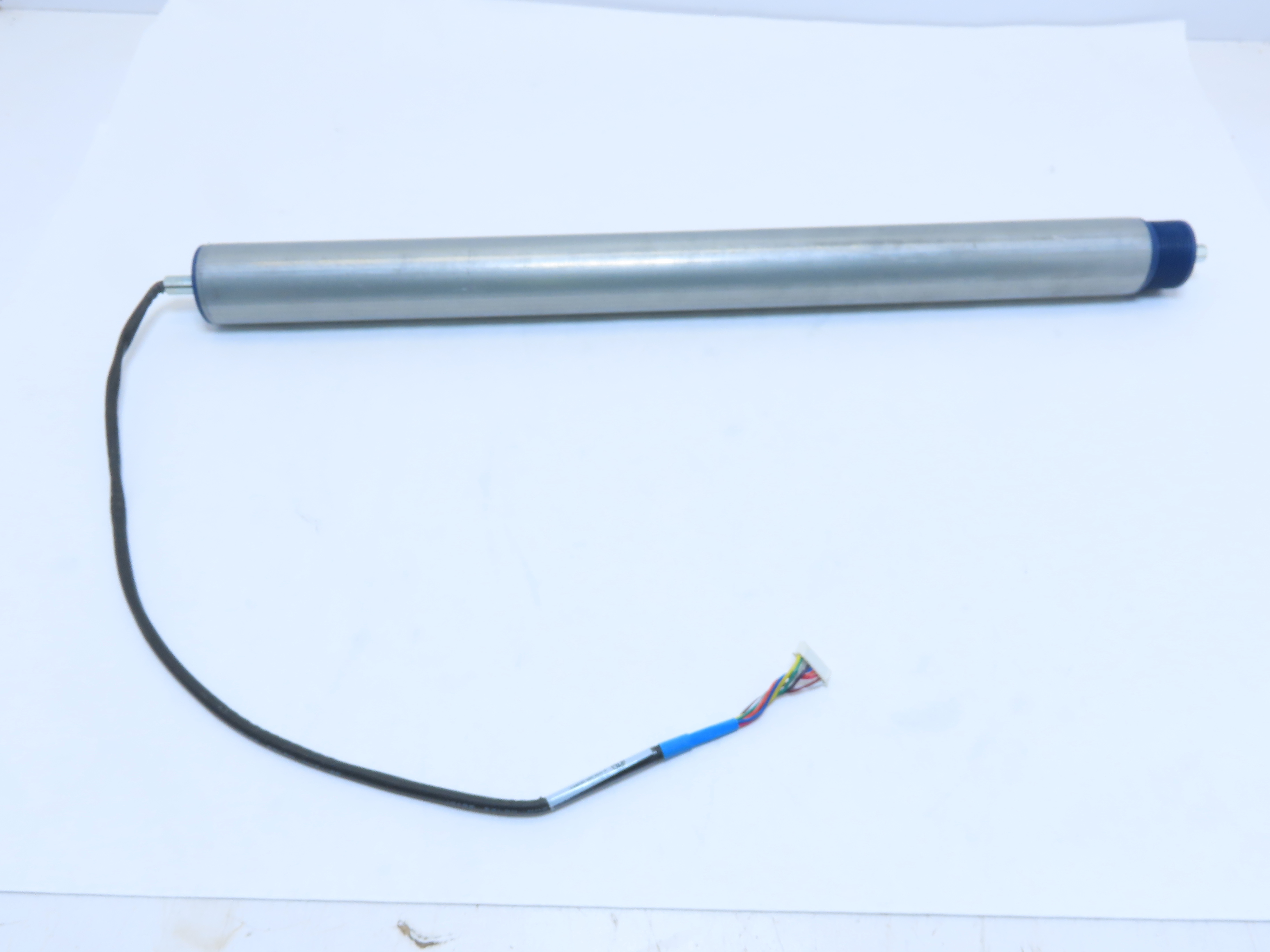

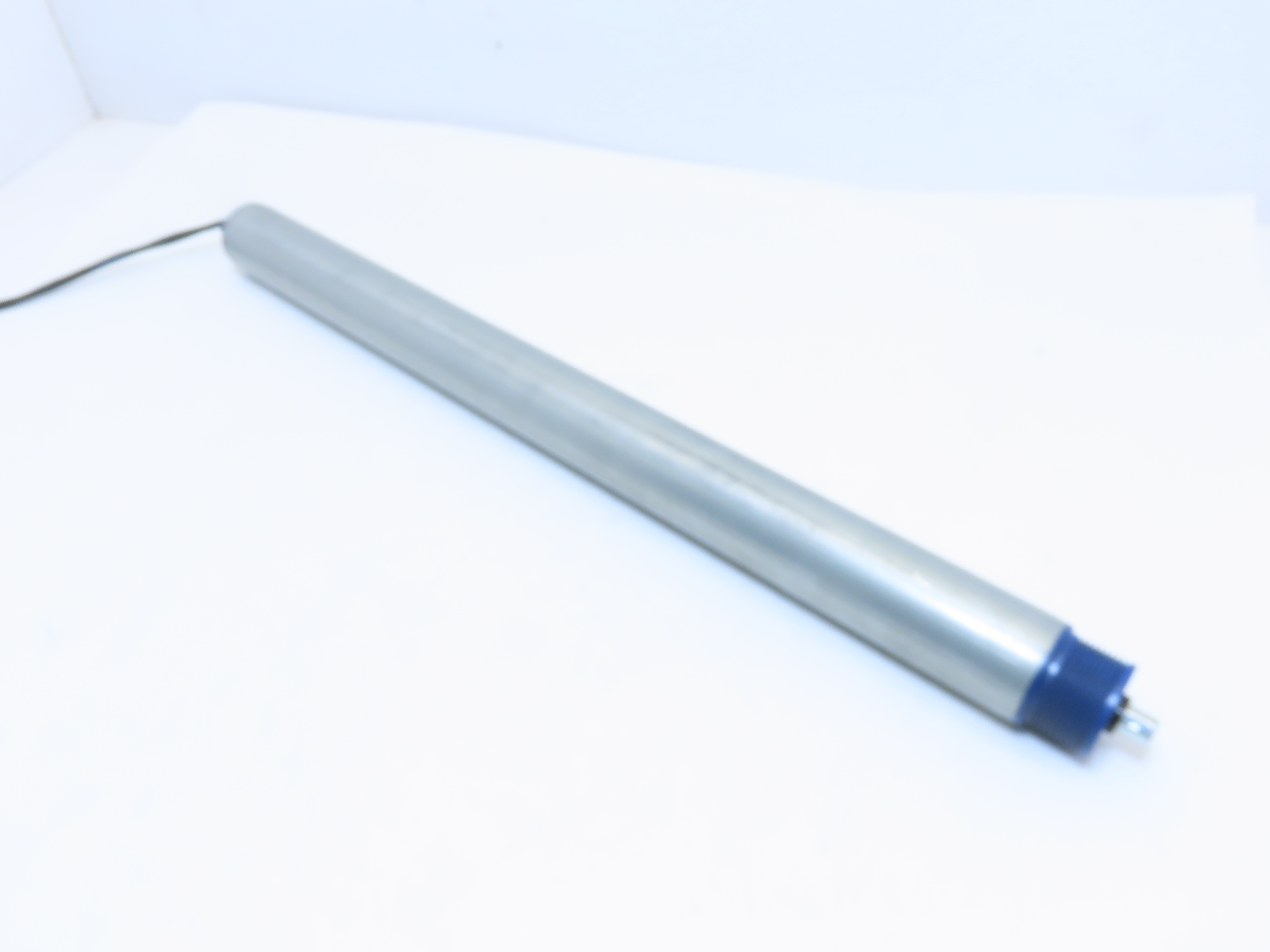

KYOWA PR-BD-48-575-60ZS HQ Motorized Roller 60 FPM 24VDC 24.25" BF
KYOWA PR-BD-48-575-60ZS HQ Motorized Roller 60 FPM 24VDC 24.25" BFKYOWA PR-BD-48-575-60ZS HQ Motorized Roller 60 FPM 24VDC 24.25" BFKYOWA PR-BD-48-575-60ZS HQ Motorized Roller 60 FPM 24VDC 24.25" BFKYOWA PR-BD-48-575-60ZS HQ Motorized Roller 60 FPM 24VDC 24.25" BFKYOWA PR-BD-48-575-60ZS HQ Motorized Roller 60 FPM 24VDC 24.25" BFKYOWA PR-BD-48-575-60ZS HQ Motorized Roller 60 FPM 24VDC 24.25" BFKYOWA PR-BD-48-575-60ZS HQ Motorized Roller 60 FPM 24VDC 24.25" BF

KYOWA PR-BD-48-575-60ZS HQ Motorized Roller 60 FPM 24VDC 24.25" BF

Current Price: $94.99

  •  This is a new power roller

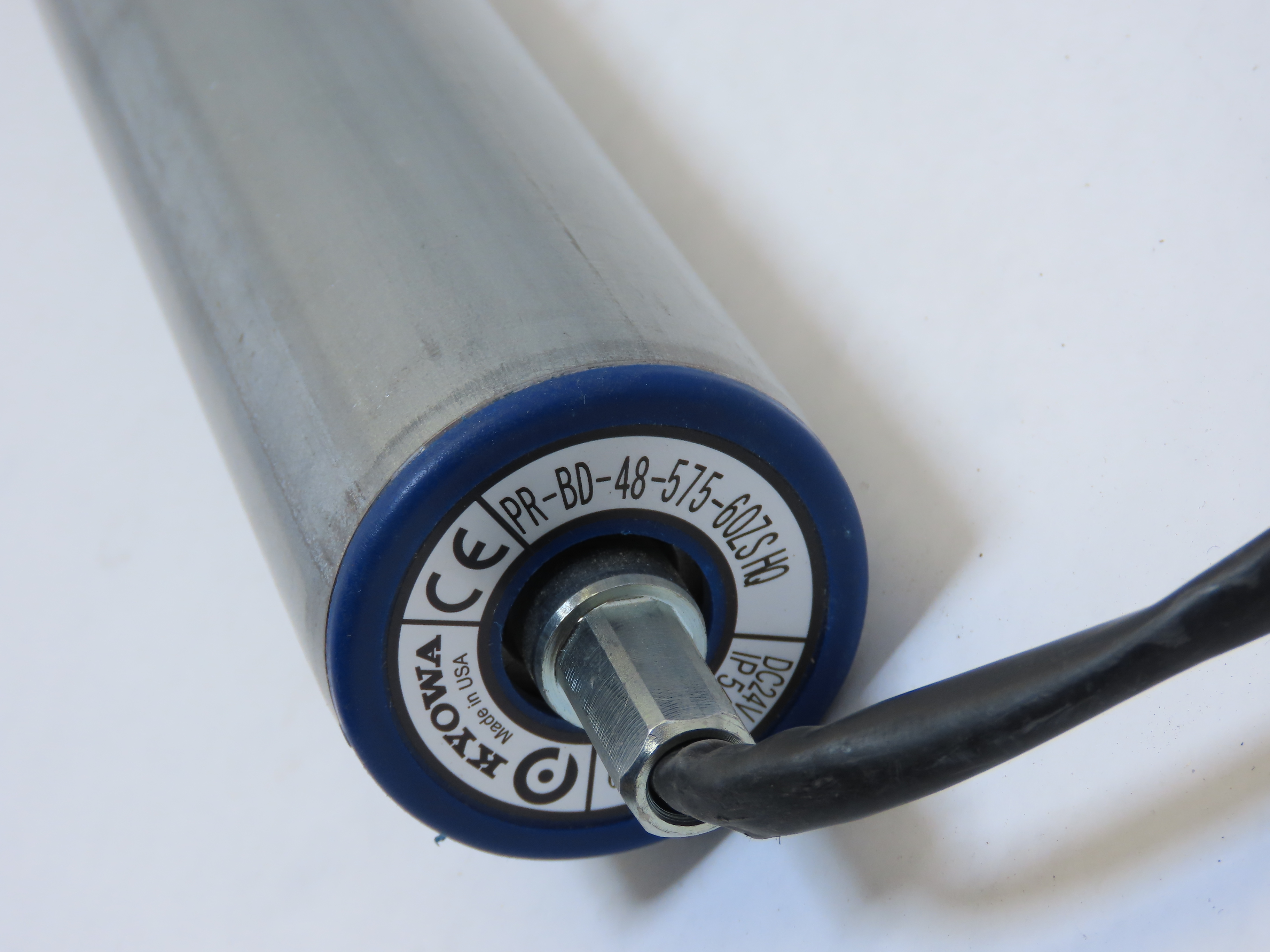

  •   KYOWA PR-BD-48-575-60ZSHQ
  • Tube Diameter 48.6 mm (1.9”)
  • Axle Shaft Size: 7/16" Hex

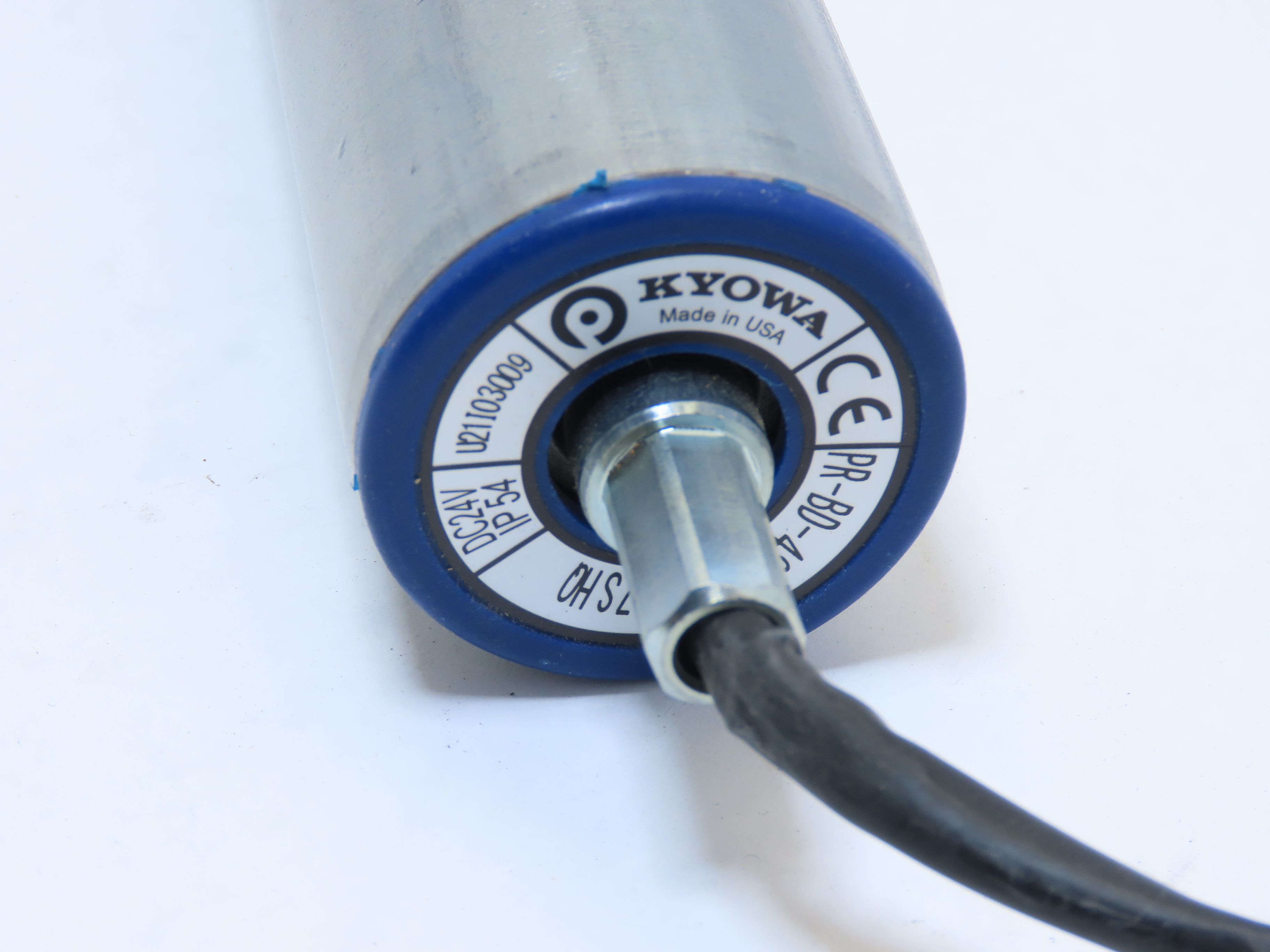

  • MOTOR END NON THREADED 7/16" HEX SHAFT

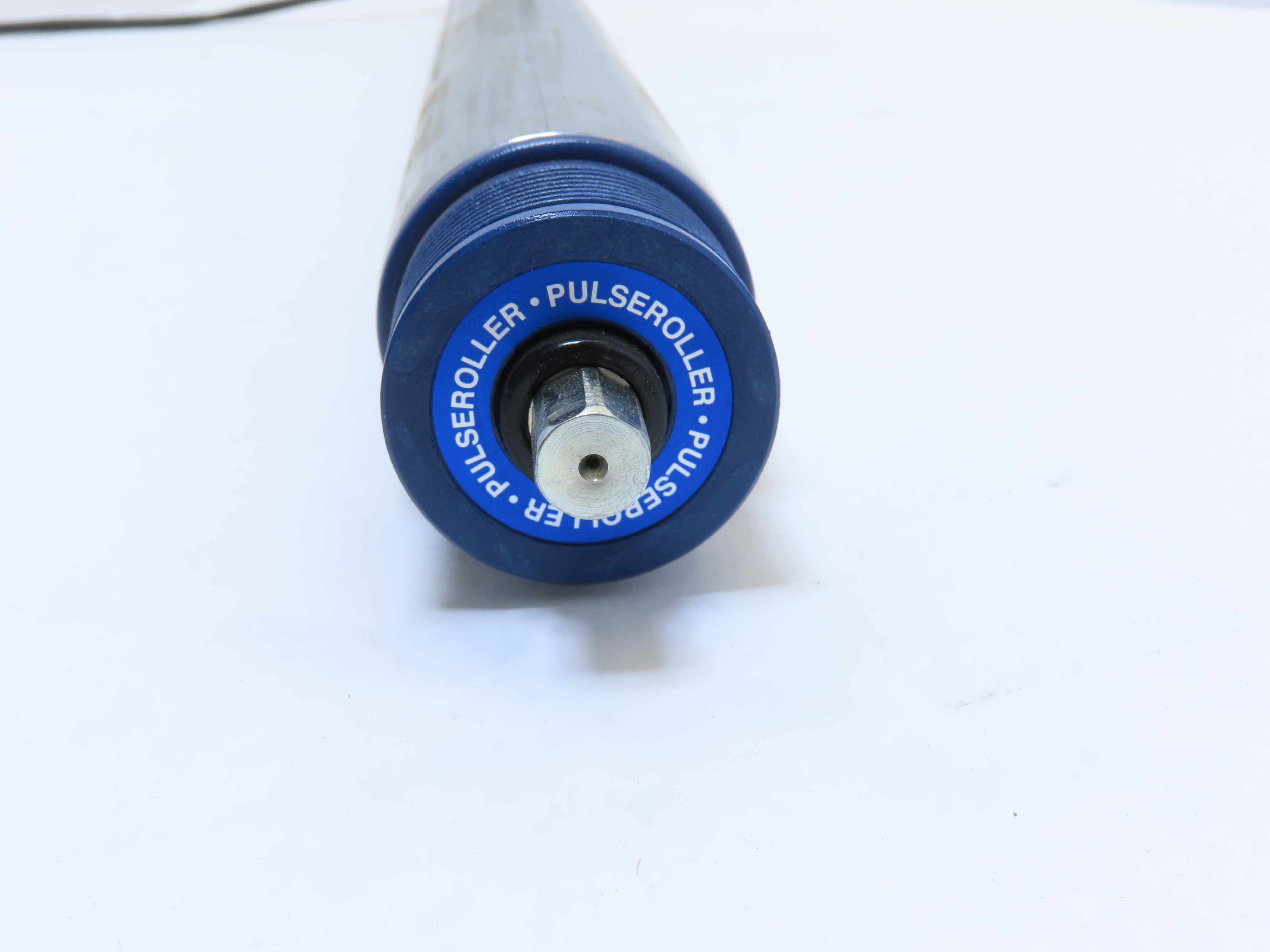

  • IDLER END SPRING LOADED 7/16" HEX

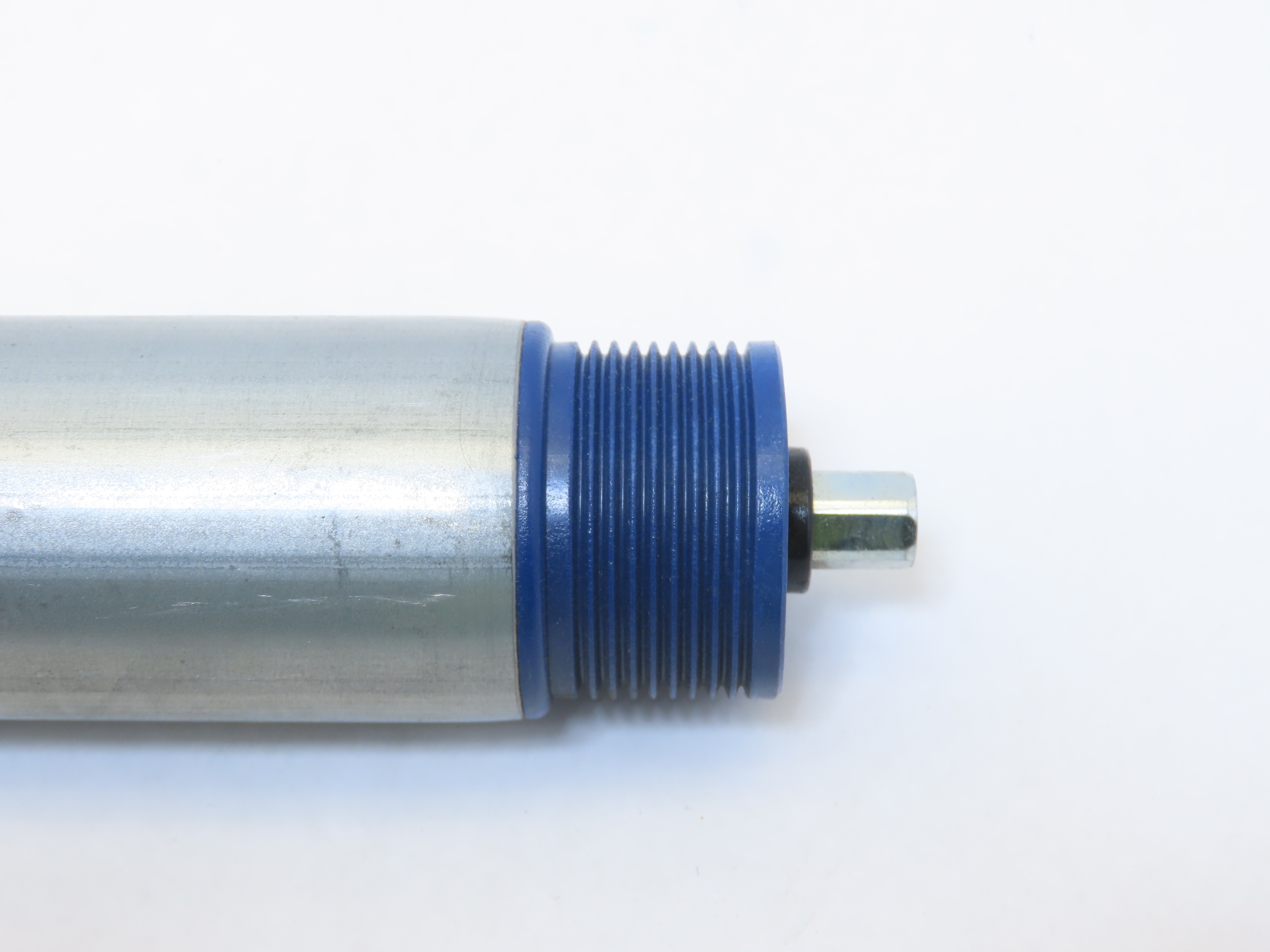

  • INTERLOCK: Micro-V Plastic Designed for Micro-V or Poly-V belting
  • Motor Cable Length: 600 mm (24”)

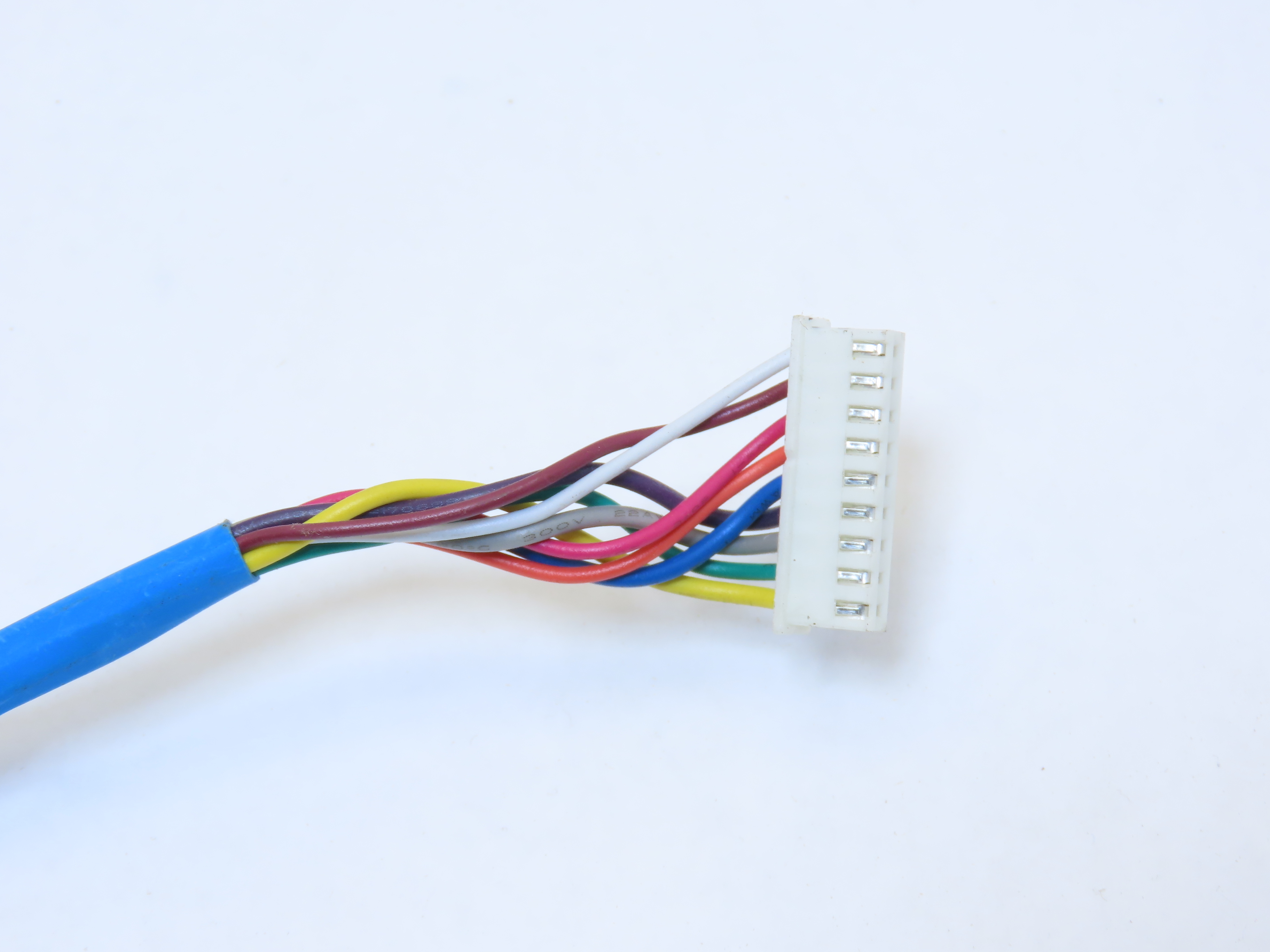

  • Motor Controller Connection: 9 Pin JST
  • Speed Code : 60
  • Input Voltage: 24 VDC
  • Nominal Power Output 40W (50W in BOOST Mode)
  • Rated Current 2.5A (3.5A in BOOST Mode)
  • Starting Current 5A BOOST Mode / 8A BOOST-8 Mode
  • Maximum Motor RPM : 5800 ECO / 4200 BOOST & BOOST-8
  • Minimum Motor RPM : 580
  • Minimum Duty Cycle0.5 sec ON / 0.5 sec OFF (1.5 sec OFF when in BOOST-8 Mode)
  • Continuous Operation : At rated load/current in ECO Mode
  • Compatible Controls: ConveyLinx,ConveyLinx-HTF,ConveyLinxE,ConveyLinxE-HTF,E-QUBE,EZ-QUBE,EZ-QUBE-W, EZ-QUBE-HTBF

Details
  • Brand: KYOWA PULSE ROLLER
  • Condition: New
  • SKU: 214292
  • Consigner: J
  • Warehouse Storage Location: BA-04-01-S2
  • Shipping Weight (lbs, oz): 6,
  • Lister: jw
  • Country of Manufacture: United States
  • Items in Lot: 1

  •  This is a new power roller
  •   KYOWA PR-BD-48-575-60ZSHQ
  • Tube Diameter 48.6 mm (1.9”)
  • Axle Shaft Size: 7/16" Hex
  • MOTOR END NON THREADED 7/16" HEX SHAFT
  • IDLER END SPRING LOADED 7/16" HEX
  • INTERLOCK: Micro-V Plastic Designed for Micro-V or Poly-V belting
  • Motor Cable Length: 600 mm (24”)
  • Motor Controller Connection: 9 Pin JST
  • Speed Code : 60
  • Input Voltage: 24 VDC
  • Nominal Power Output 40W (50W in BOOST Mode)
  • Rated Current 2.5A (3.5A in BOOST Mode)
  • Starting Current 5A BOOST Mode / 8A BOOST-8 Mode
  • Maximum Motor RPM : 5800 ECO / 4200 BOOST & BOOST-8
  • Minimum Motor RPM : 580
  • Minimum Duty Cycle0.5 sec ON / 0.5 sec OFF (1.5 sec OFF when in BOOST-8 Mode)
  • Continuous Operation : At rated load/current in ECO Mode
  • Compatible Controls: ConveyLinx,ConveyLinx-HTF,ConveyLinxE,ConveyLinxE-HTF,E-QUBE,EZ-QUBE,EZ-QUBE-W, EZ-QUBE-HTBF
