Current Price: $759.99

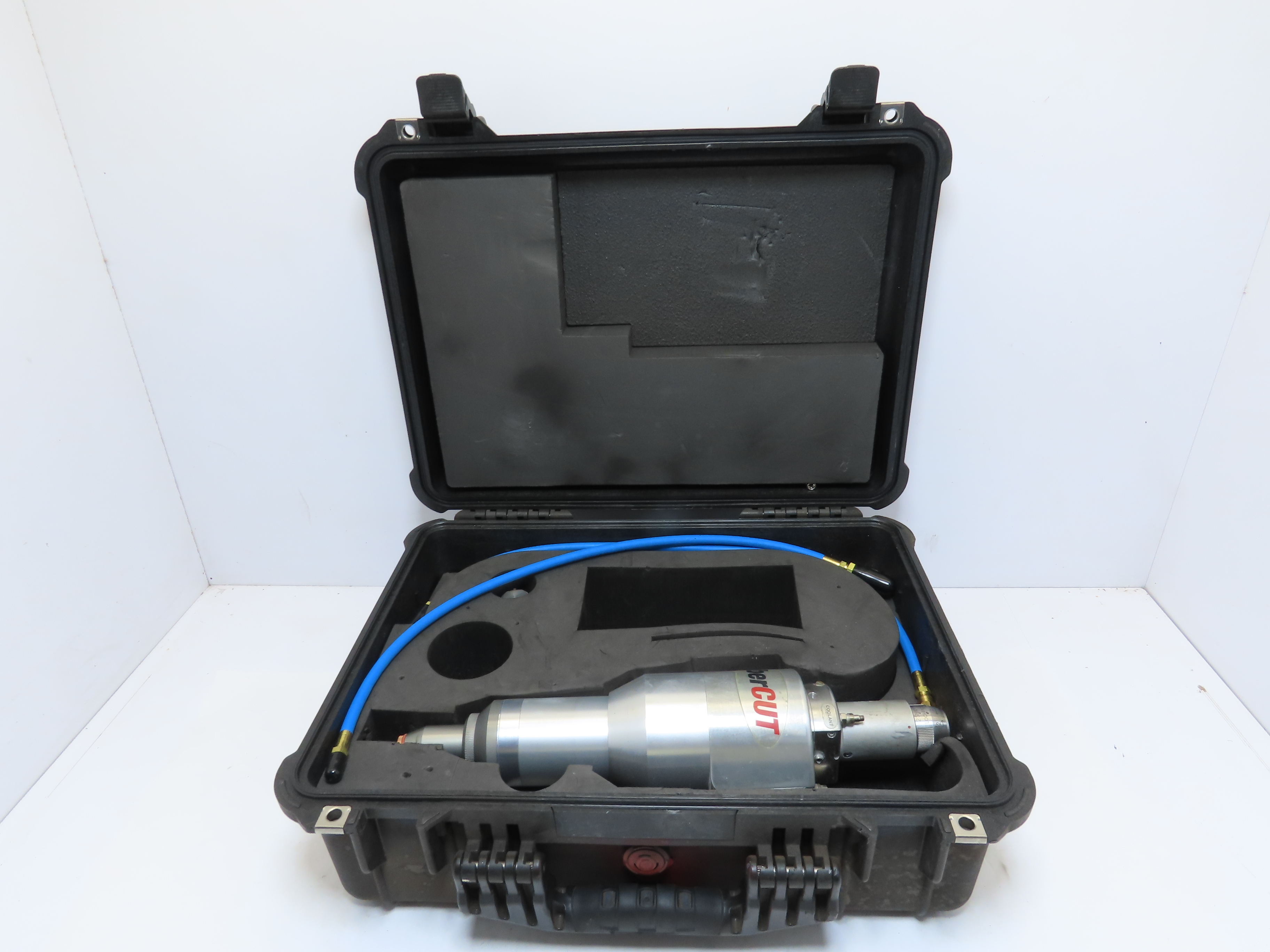

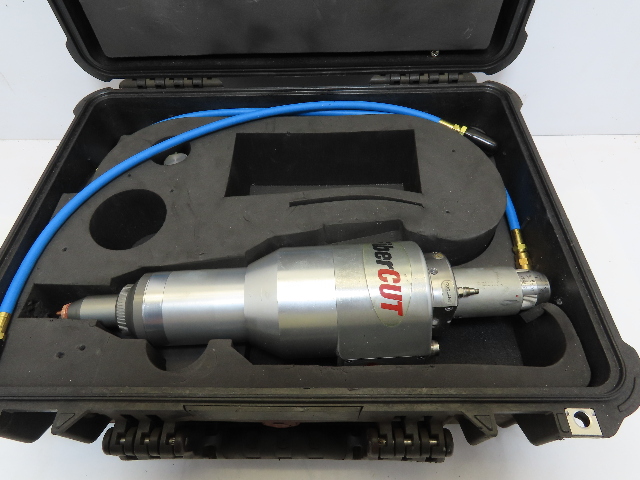

- This is a used head that comes in a Pelican 1520 case.
- This unit is guaranteed to not be DOA.
- FiberCUT® ST

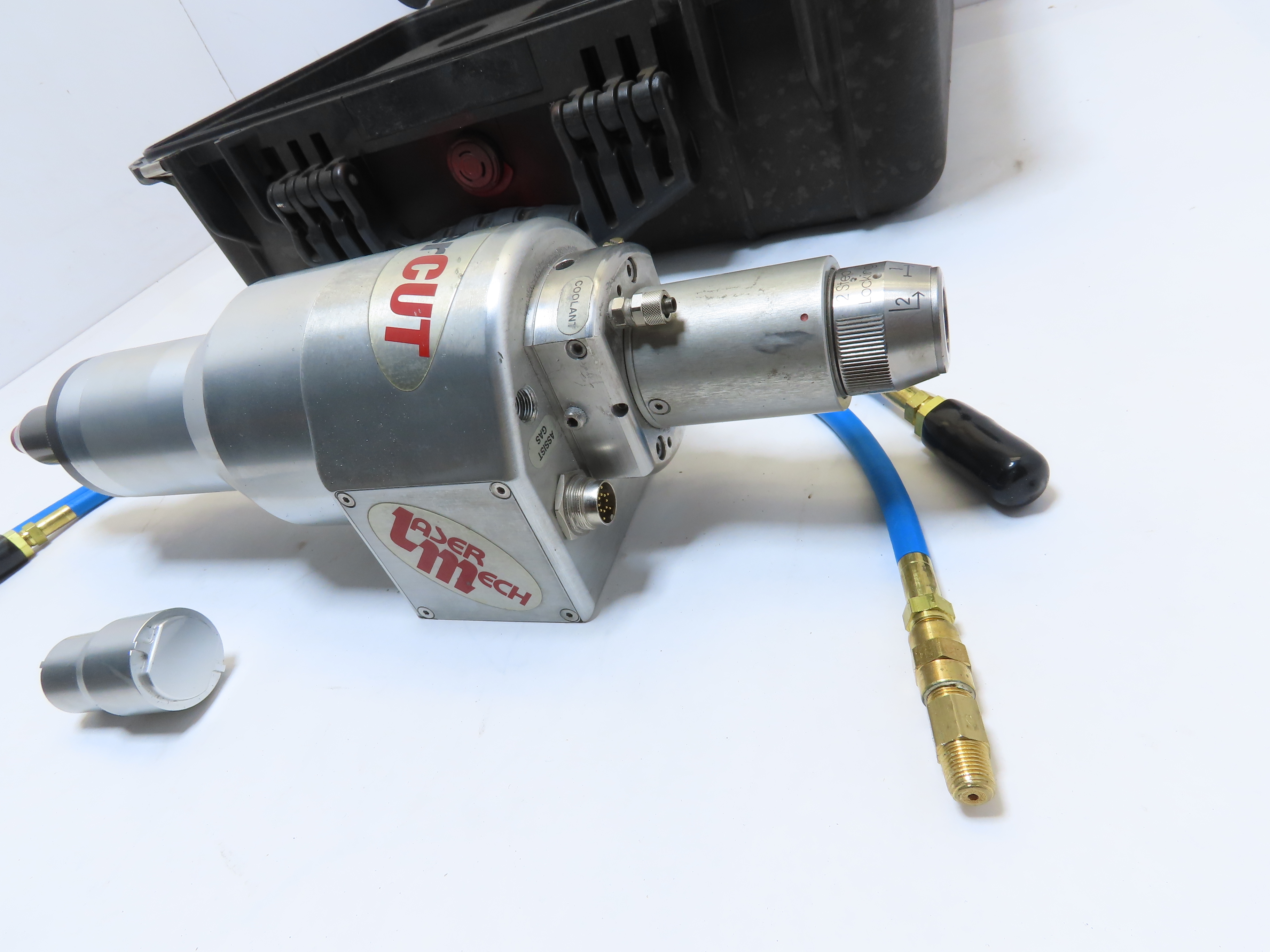

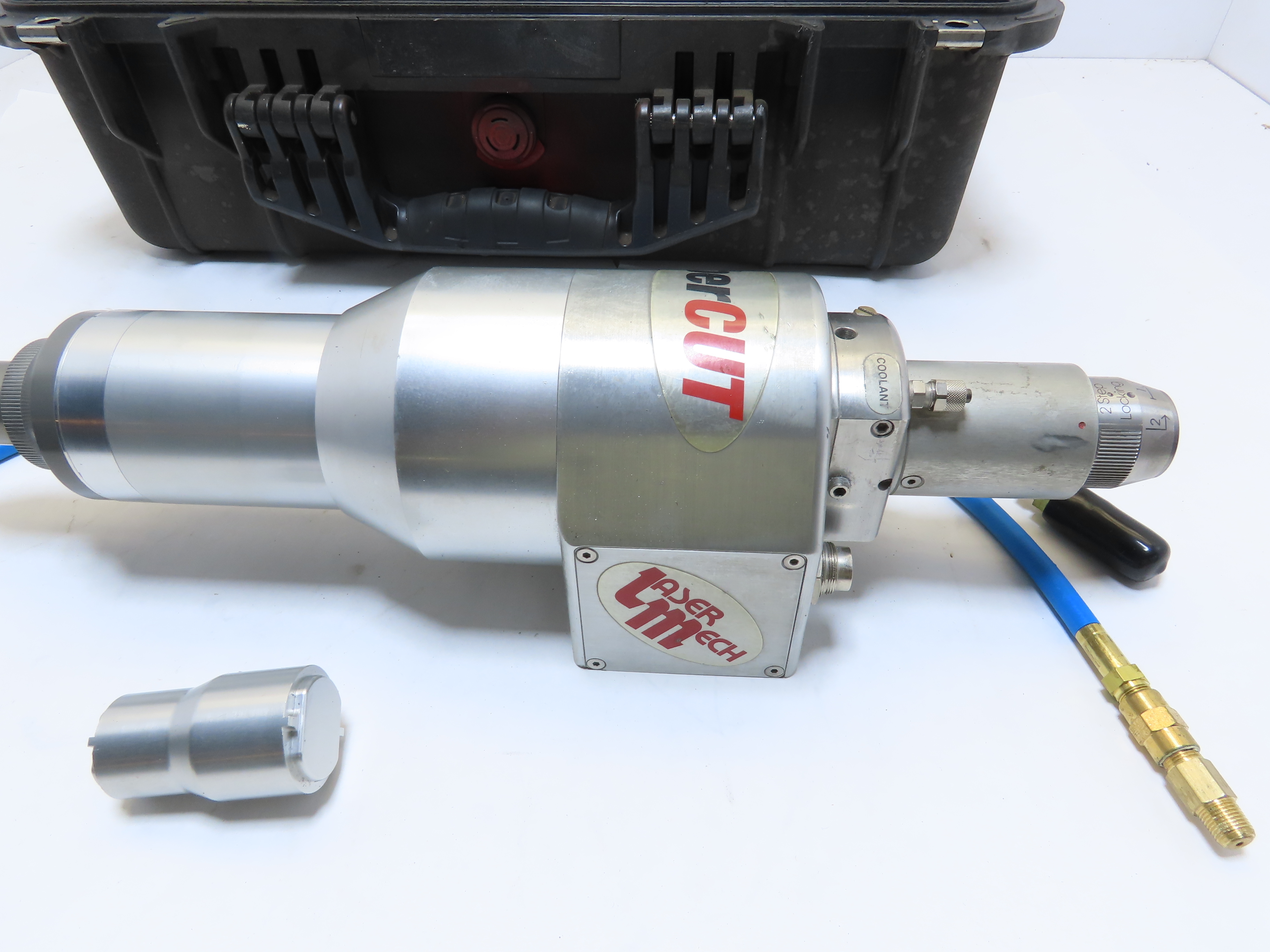

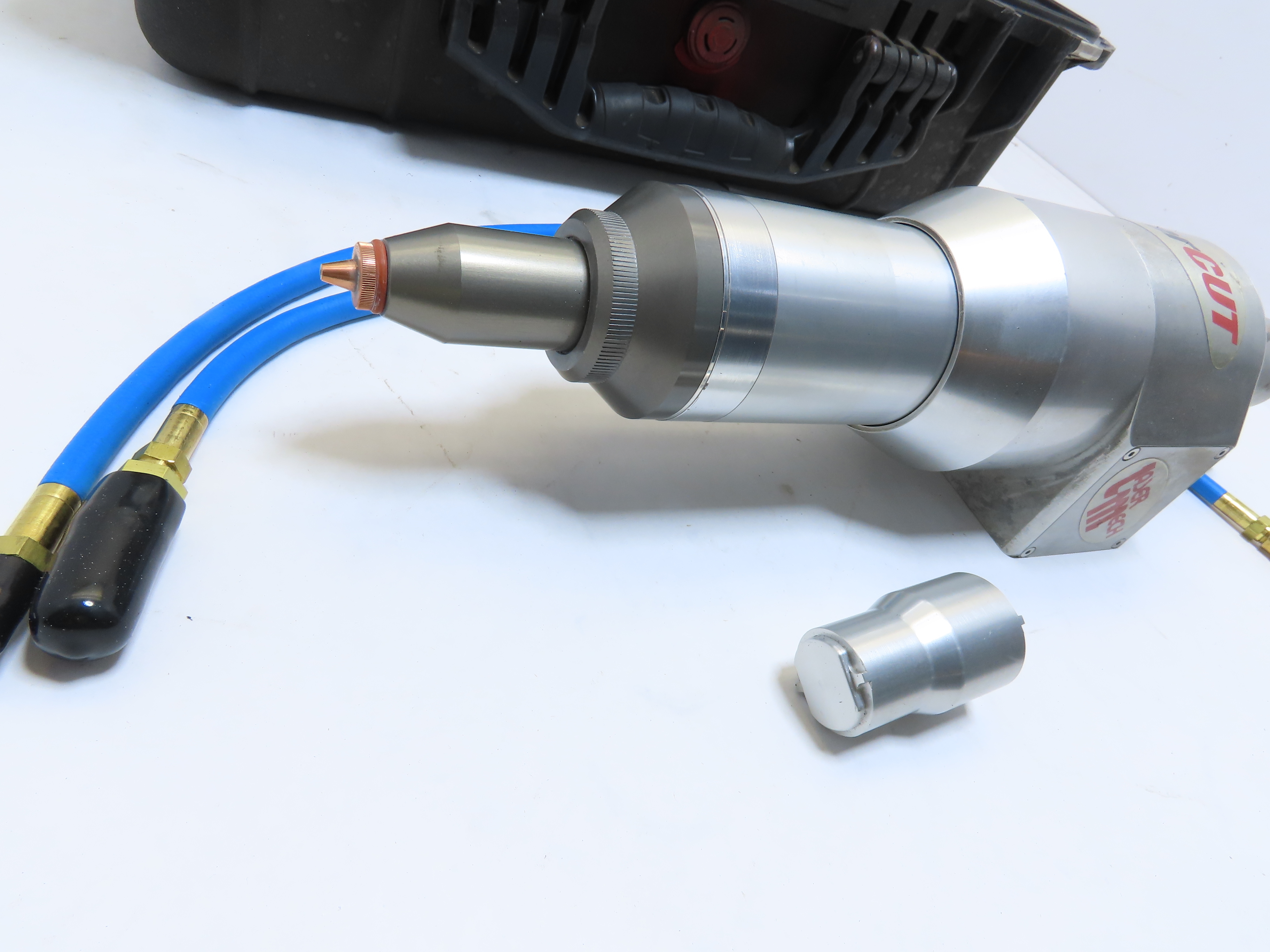

- Laser Mechanisms FiberCUT® Straight (ST) laser processing head collimates and focuses a fiber-delivered laser beam and directs it along with cutting gas through its nozzle for optimal metal cutting. FiberCUT® STs nozzle also senses the required tip standoff from the workpiece and automatically maintains that distance through its internal z-axis drive system. The heads cover glass protects the cutting lens from process debris.
- 3-dimensional cutting with fiber-coupled laser for 16 kg robots
- Low moving mass minimizes inertia transfer to robot support arm
- Internal, low-noise height sensing system is insensitive to cutting plasma or piercing debris
- CUTTING HEAD
- Power Rating: 6 kW
- Focusing Lens (Focal Length): 75 mm, 100 mm, 125 mm, 150 mm
- Focusing Lens (Diameter): 28 mm
- Clear Aperture: 25 mm
- Nozzle Tip (Various Shapes): 1.0 mm to 2.5 mm
- Assist Gas Pressure: up to 20 BAR
- Weight: 3.5 kg
- Height (Center Of Travel): 182 mm
- Slide Travel: ±15 mm
- Max. Travel Speed: 175 mm/sec.
- Standoff Distance Range (1 mm Recommended): 0.5 mm to 2.0 mm
- COLLIMATOR
- Focal Lengths (Doublet, Fused Silica): 75 mm, 100 mm
- Recollimating Lens (Diameter) : 28 mm
- Clear Aperture: 25 mm
- Fiber Socket (Others Available On Request): QD (LLK-D, LCA), QBH (HLC-8), Q5 (LLK-B)
- CONTROL BOX
- Sealed Enclosure: 380 mm L x 300 mm W x 160 mm H
- Single Interconnect Cable: up to 15 m long
- Number of Standoff Settings: 7
- Electrical Supply: 85-264 VAC, 1-Phase,47-63 Hz
- Interface Inputs: 5-24 VDC, 2.2 kO impedance, optically isolated
- Interface Outputs: 12-24 VDC, 150 mA max., sink/source, optically isolated
Details
- Brand: Laser Mechanisms, Inc.
- Condition: Used
- SKU: 214224
- Consigner: J
- Warehouse Storage Location: BA-02-04-S1
- Shipping Weight (lbs, oz): 16,
- Lister: jw
- Country of Manufacture: United States
- Items in Lot: 1
- This is a used head that comes in a Pelican 1520 case.
- This unit is guaranteed to not be DOA.
- FiberCUT® ST
- Laser Mechanisms FiberCUT® Straight (ST) laser processing head collimates and focuses a fiber-delivered laser beam and directs it along with cutting gas through its nozzle for optimal metal cutting. FiberCUT® STs nozzle also senses the required tip standoff from the workpiece and automatically maintains that distance through its internal z-axis drive system. The heads cover glass protects the cutting lens from process debris.
- 3-dimensional cutting with fiber-coupled laser for 16 kg robots
- Low moving mass minimizes inertia transfer to robot support arm
- Internal, low-noise height sensing system is insensitive to cutting plasma or piercing debris
- CUTTING HEAD
- Power Rating: 6 kW
- Focusing Lens (Focal Length): 75 mm, 100 mm, 125 mm, 150 mm
- Focusing Lens (Diameter): 28 mm
- Clear Aperture: 25 mm
- Nozzle Tip (Various Shapes): 1.0 mm to 2.5 mm
- Assist Gas Pressure: up to 20 BAR
- Weight: 3.5 kg
- Height (Center Of Travel): 182 mm
- Slide Travel: ±15 mm
- Max. Travel Speed: 175 mm/sec.
- Standoff Distance Range (1 mm Recommended): 0.5 mm to 2.0 mm
- COLLIMATOR
- Focal Lengths (Doublet, Fused Silica): 75 mm, 100 mm
- Recollimating Lens (Diameter) : 28 mm
- Clear Aperture: 25 mm
- Fiber Socket (Others Available On Request): QD (LLK-D, LCA), QBH (HLC-8), Q5 (LLK-B)
- CONTROL BOX
- Sealed Enclosure: 380 mm L x 300 mm W x 160 mm H
- Single Interconnect Cable: up to 15 m long
- Number of Standoff Settings: 7
- Electrical Supply: 85-264 VAC, 1-Phase,47-63 Hz
- Interface Inputs: 5-24 VDC, 2.2 kO impedance, optically isolated
- Interface Outputs: 12-24 VDC, 150 mA max., sink/source, optically isolated
- Brand: Laser Mechanisms, Inc.
- Condition: Used
- SKU: 214224
- Consigner: J
- Warehouse Storage Location: BA-02-04-S1
- Shipping Weight (lbs, oz): 16,
- Lister: jw
- Country of Manufacture: United States
- Items in Lot: 1
