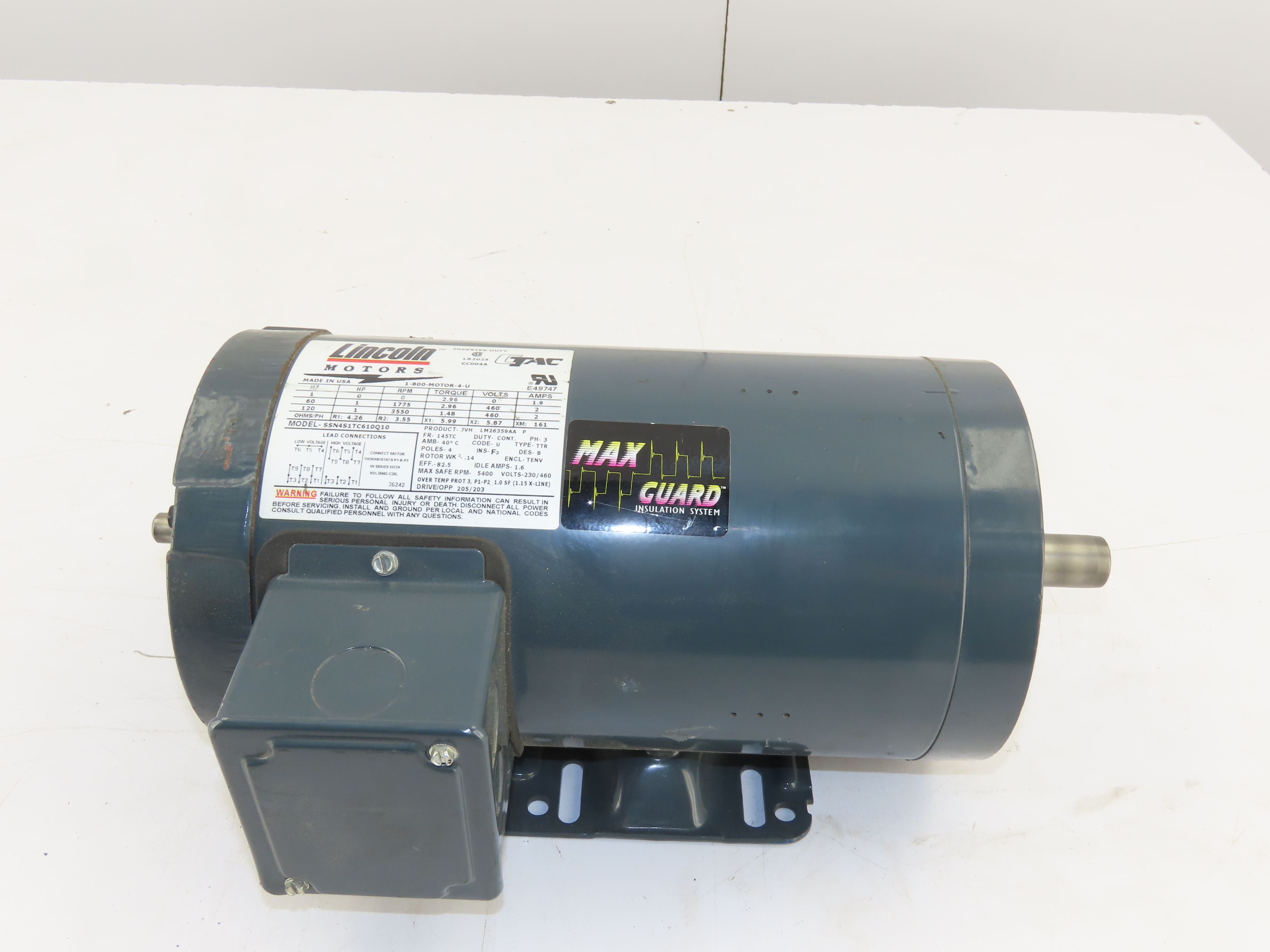

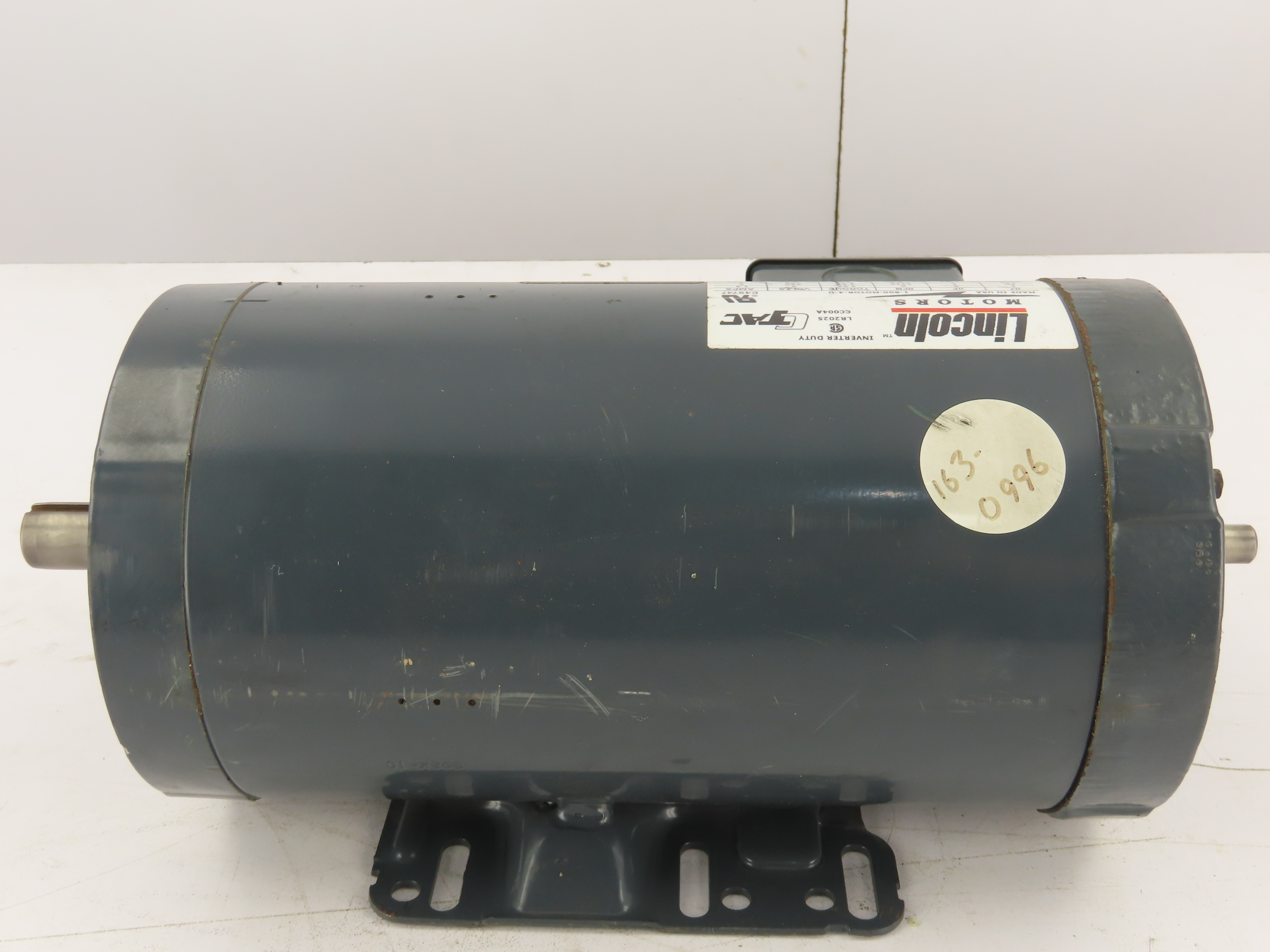

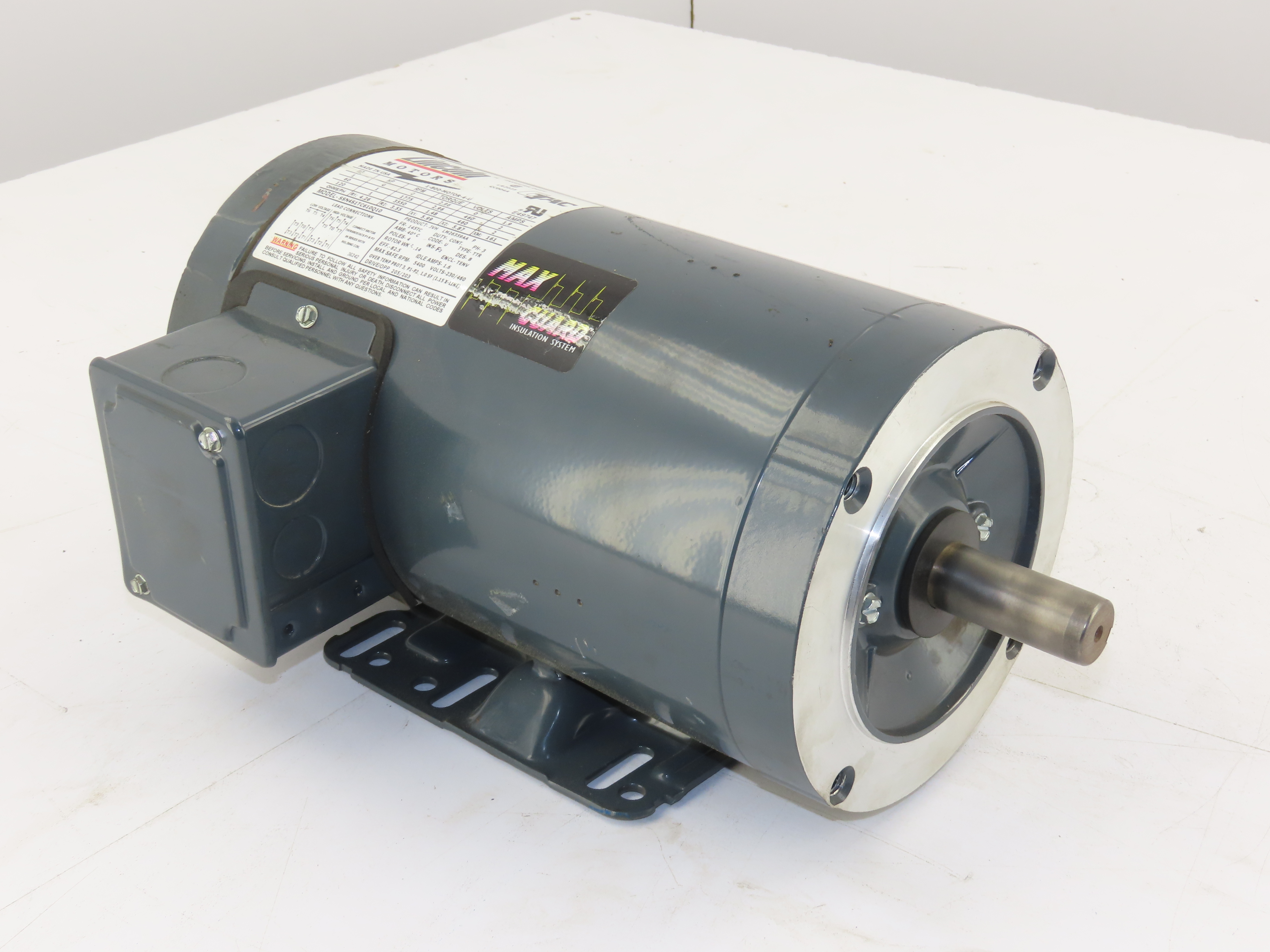

Lincoln 1HP 0-1800-3550RPM 145TC 230/460V 3PH TENV Invertor Duty Motor
Lincoln 1HP 0-1800-3550RPM 145TC 230/460V 3PH TENV Invertor Duty MotorLincoln 1HP 0-1800-3550RPM 145TC 230/460V 3PH TENV Invertor Duty MotorLincoln 1HP 0-1800-3550RPM 145TC 230/460V 3PH TENV Invertor Duty MotorLincoln 1HP 0-1800-3550RPM 145TC 230/460V 3PH TENV Invertor Duty MotorLincoln 1HP 0-1800-3550RPM 145TC 230/460V 3PH TENV Invertor Duty MotorLincoln 1HP 0-1800-3550RPM 145TC 230/460V 3PH TENV Invertor Duty MotorLincoln 1HP 0-1800-3550RPM 145TC 230/460V 3PH TENV Invertor Duty MotorLincoln 1HP 0-1800-3550RPM 145TC 230/460V 3PH TENV Invertor Duty MotorLincoln 1HP 0-1800-3550RPM 145TC 230/460V 3PH TENV Invertor Duty Motor

Lincoln 1HP 0-1800-3550RPM 145TC 230/460V 3PH TENV Invertor Duty Motor

Current Price: $408.49

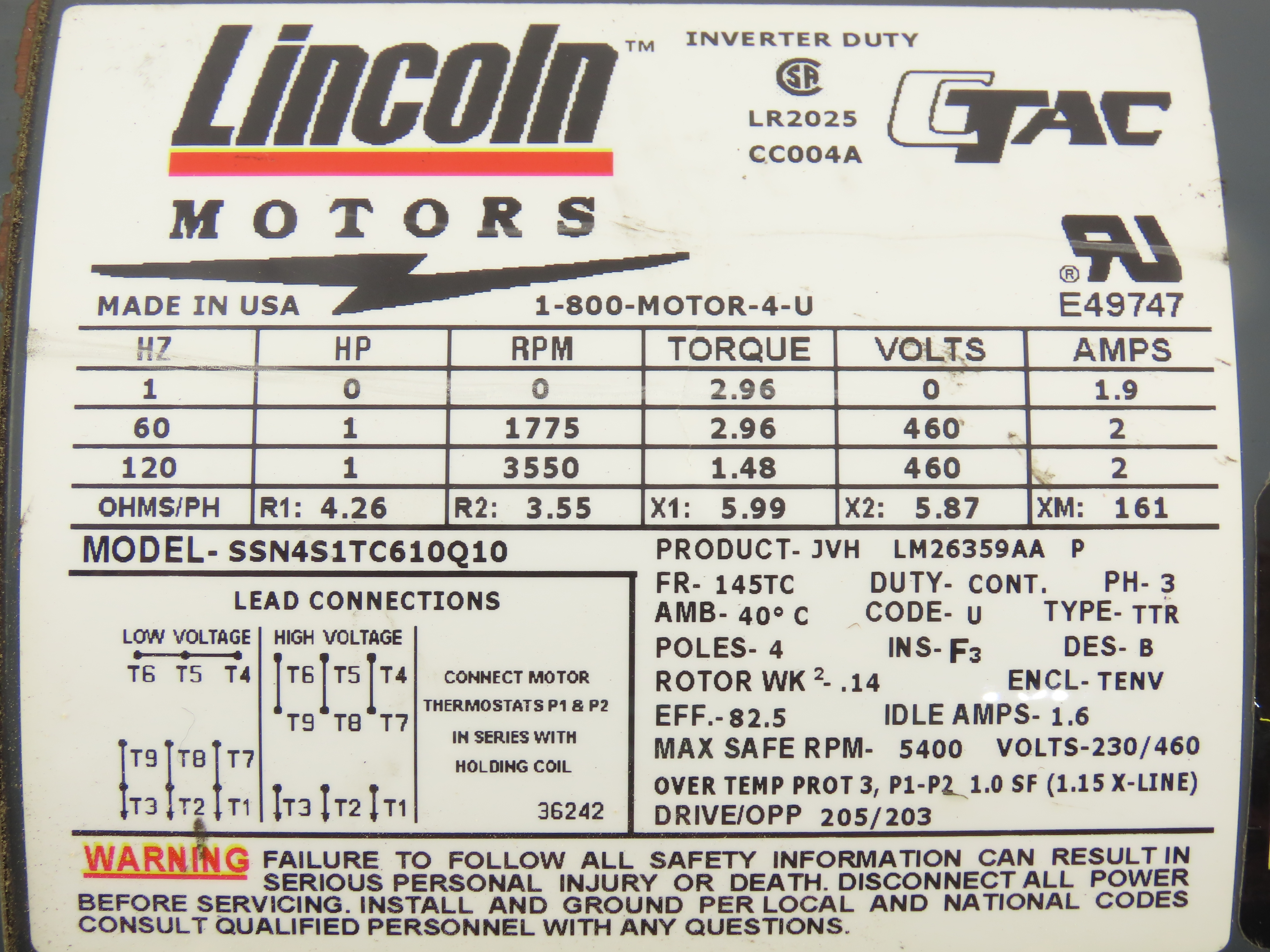

  • Horse Power: 1
  • RPM: 0 to A MAX SAFE RPM OF 5400
  • Phase: 3
  • Voltage: 230/460
  • Amps: 2
  • Hertz: 1 to120

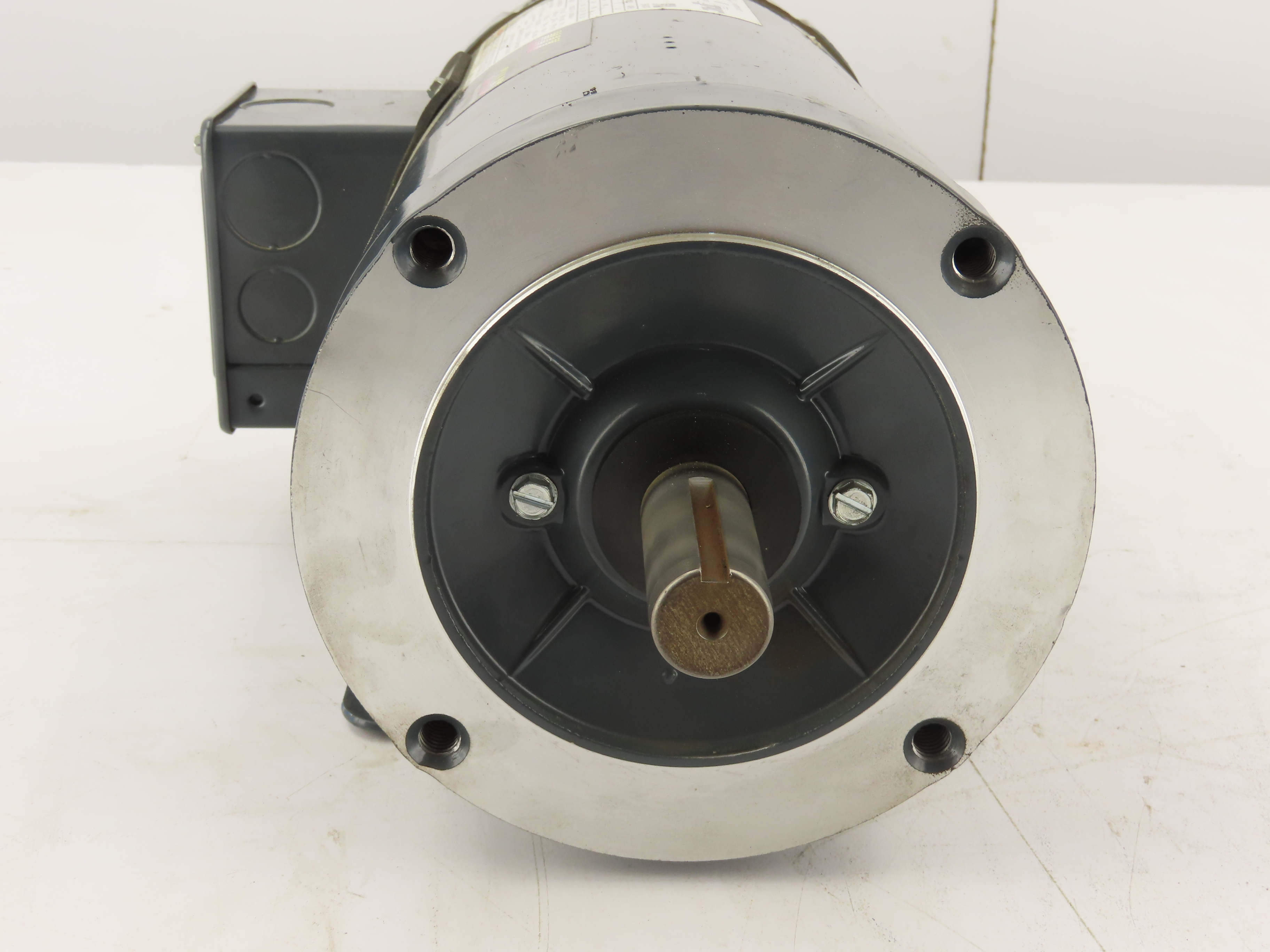

  • Nema Frame: 145TC

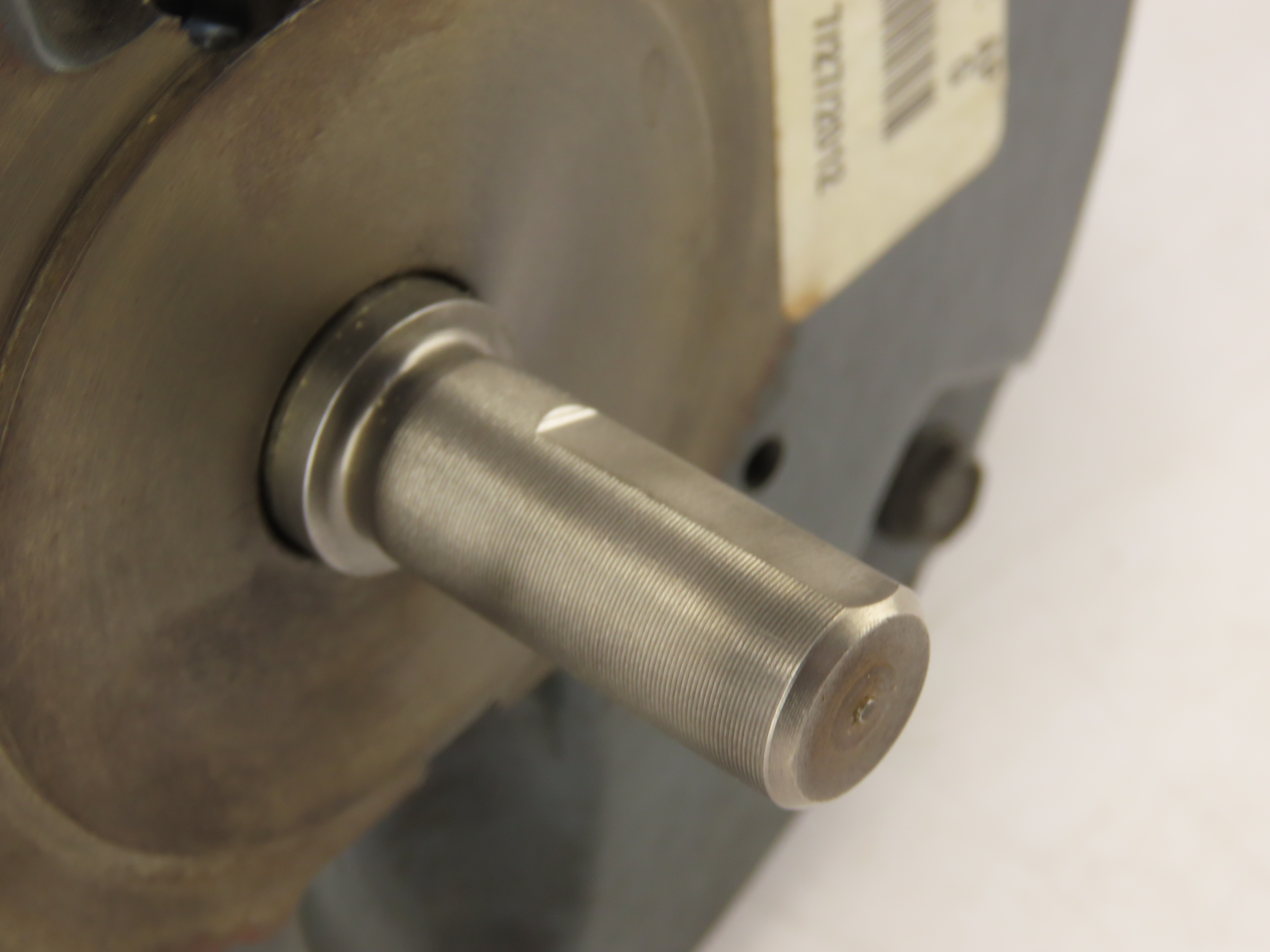

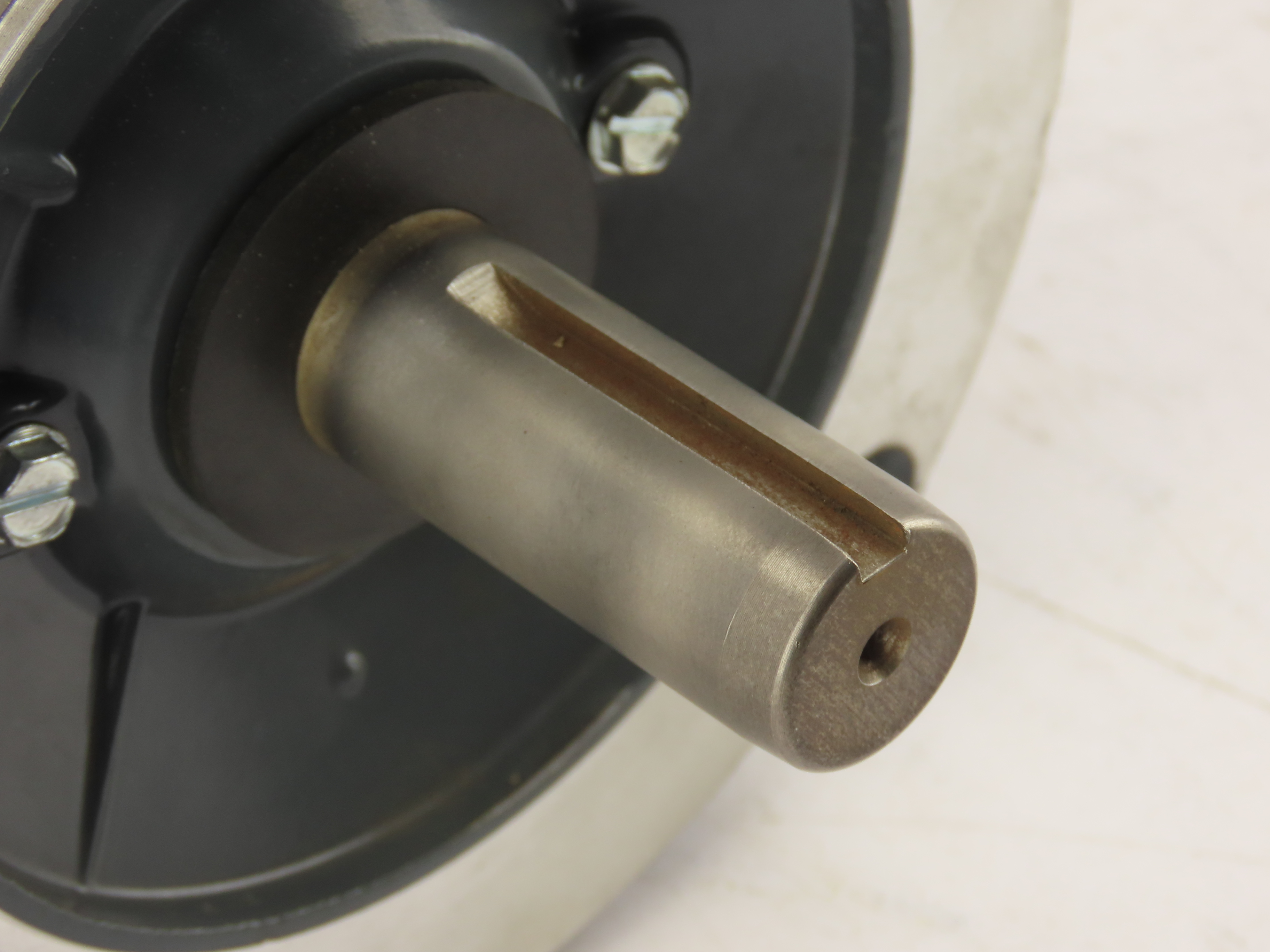

  • Output Shaft Size: 7/8"
  • Enclosure: TENV
  • Service Factor: 1.00
  • Rating: Cont
  • Insulation Class: F3
  • Amb. Temp(Degree C): 40
    • This is a NEW motor that has some scratches from handling.
    • Product Description
    • LM26359 LINCOLN 1HP Electric Motors for use in extruders, conveyors, machine tools and other process industries with constant torque, variable speed loads.
    • Manufacturer-Lincoln
    • Weight-52 lbs.
    • HS Code-8501.52.4000
    • UPC Number-691720044872
    • Brand-Lincoln
    • Output HP-1
    • Output KW-0.75
    • Output RPM-1750
    • Frame Size NEMA-145TC
    • Mount NEMA-C Face With Base
    • Voltage-230/460
    • Frequency (Hz)-60
    • Inverter Rating-Inverter Ready
    • CT Speed Range-2000:1
    • Service Factor-1.0
    • Manufactured Origin-Made In USA
    •
Details
  • Brand: Lincoln Motors
  • Condition: New Other
  • SKU: 214178
  • Consigner: J
  • Warehouse Storage Location: BD-07-08-S1
  • Shipping Weight (lbs, oz): 52,
  • Lister: jw
  • Country of Manufacture: United States
  • Items in Lot: 1
  • Horse Power: 1
  • RPM: 0 to A MAX SAFE RPM OF 5400
  • Phase: 3
  • Voltage: 230/460
  • Amps: 2
  • Hertz: 1 to120
  • Nema Frame: 145TC
  • Output Shaft Size: 7/8"
  • Enclosure: TENV
  • Service Factor: 1.00
  • Rating: Cont
  • Insulation Class: F3
  • Amb. Temp(Degree C): 40
    • This is a NEW motor that has some scratches from handling.
    • Product Description
    • LM26359 LINCOLN 1HP Electric Motors for use in extruders, conveyors, machine tools and other process industries with constant torque, variable speed loads.
    • Manufacturer-Lincoln
    • Weight-52 lbs.
    • HS Code-8501.52.4000
    • UPC Number-691720044872
    • Brand-Lincoln
    • Output HP-1
    • Output KW-0.75
    • Output RPM-1750
    • Frame Size NEMA-145TC
    • Mount NEMA-C Face With Base
    • Voltage-230/460
    • Frequency (Hz)-60
    • Inverter Rating-Inverter Ready
    • CT Speed Range-2000:1
    • Service Factor-1.0
    • Manufactured Origin-Made In USA
    •
