- Gear Ratio: 87.56.1
- Output Speed: 20
- Shaft Diameter: 3-15/16"
- Output Torque (lbs-in): 15762
- Shaft Output (Left, Right or Inline): Right Angle

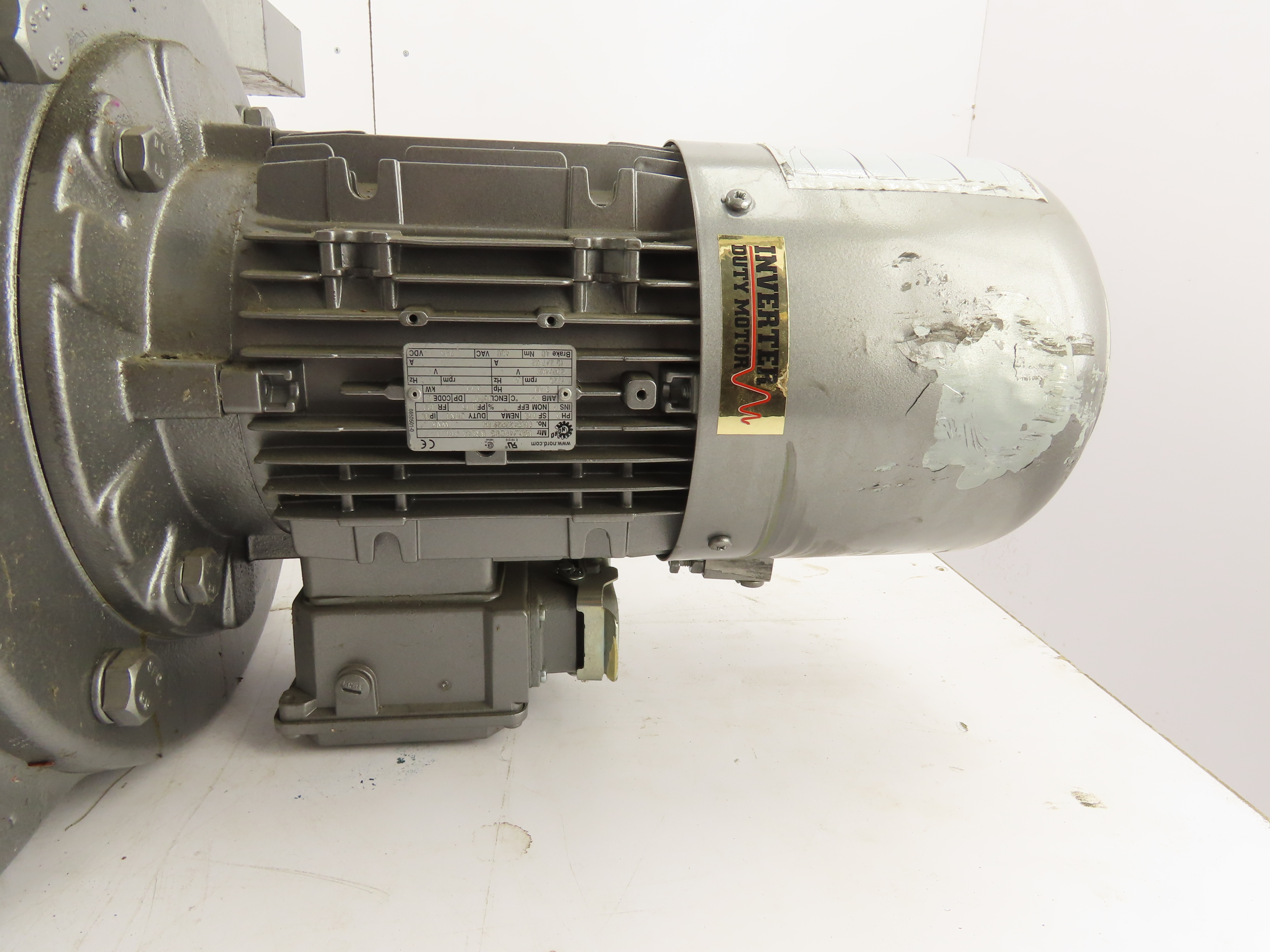

- Motor Brand: NORD
- Motor Catalog Number (Model): 100L/40CUS
- Motor HP: 5
- Motor Phase: 3
- Motor Voltage: 230/460
- Motor Frequency: 60
- Motor Amps: 15.2/7.62
- Insulation Class: F

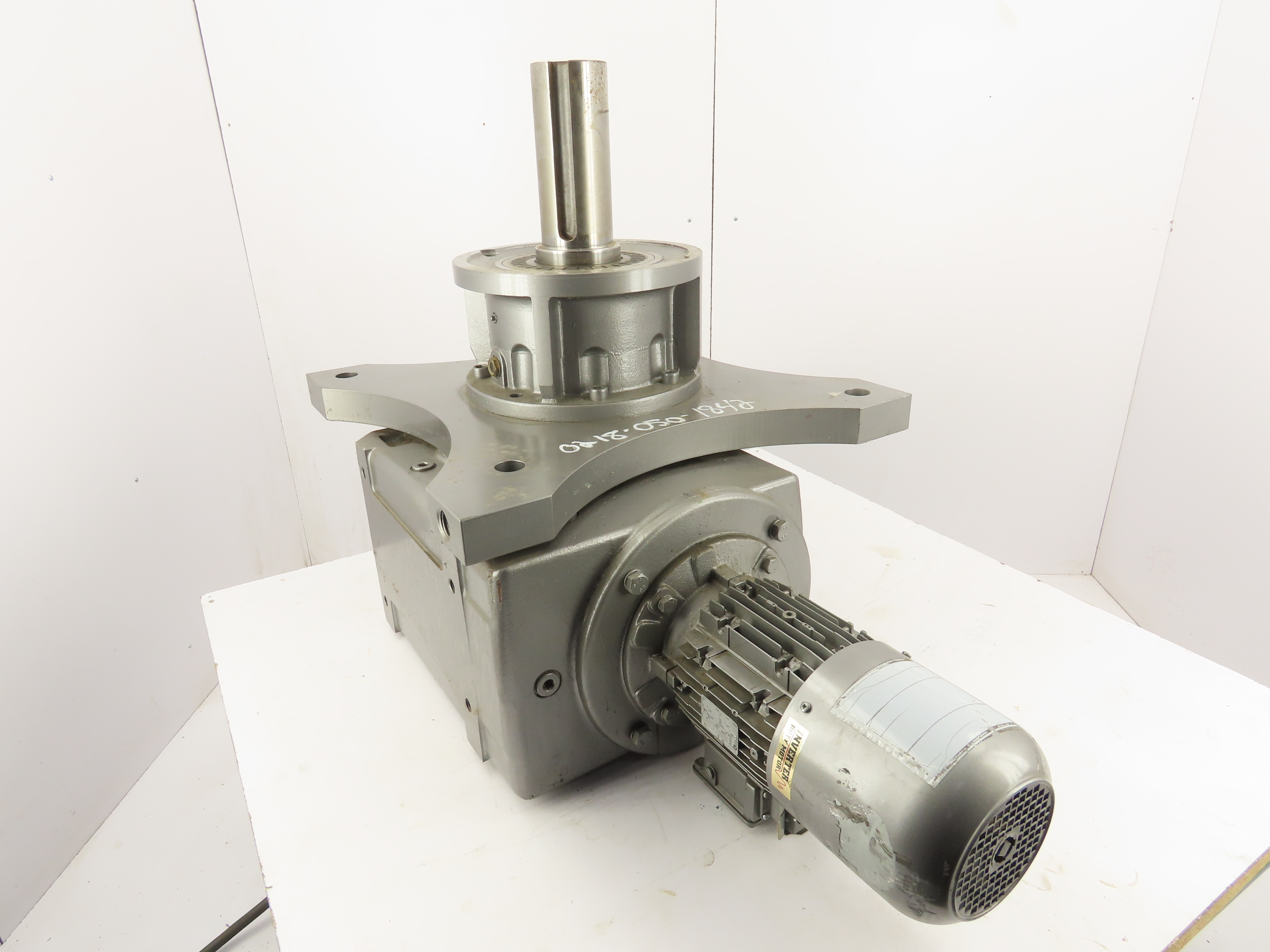

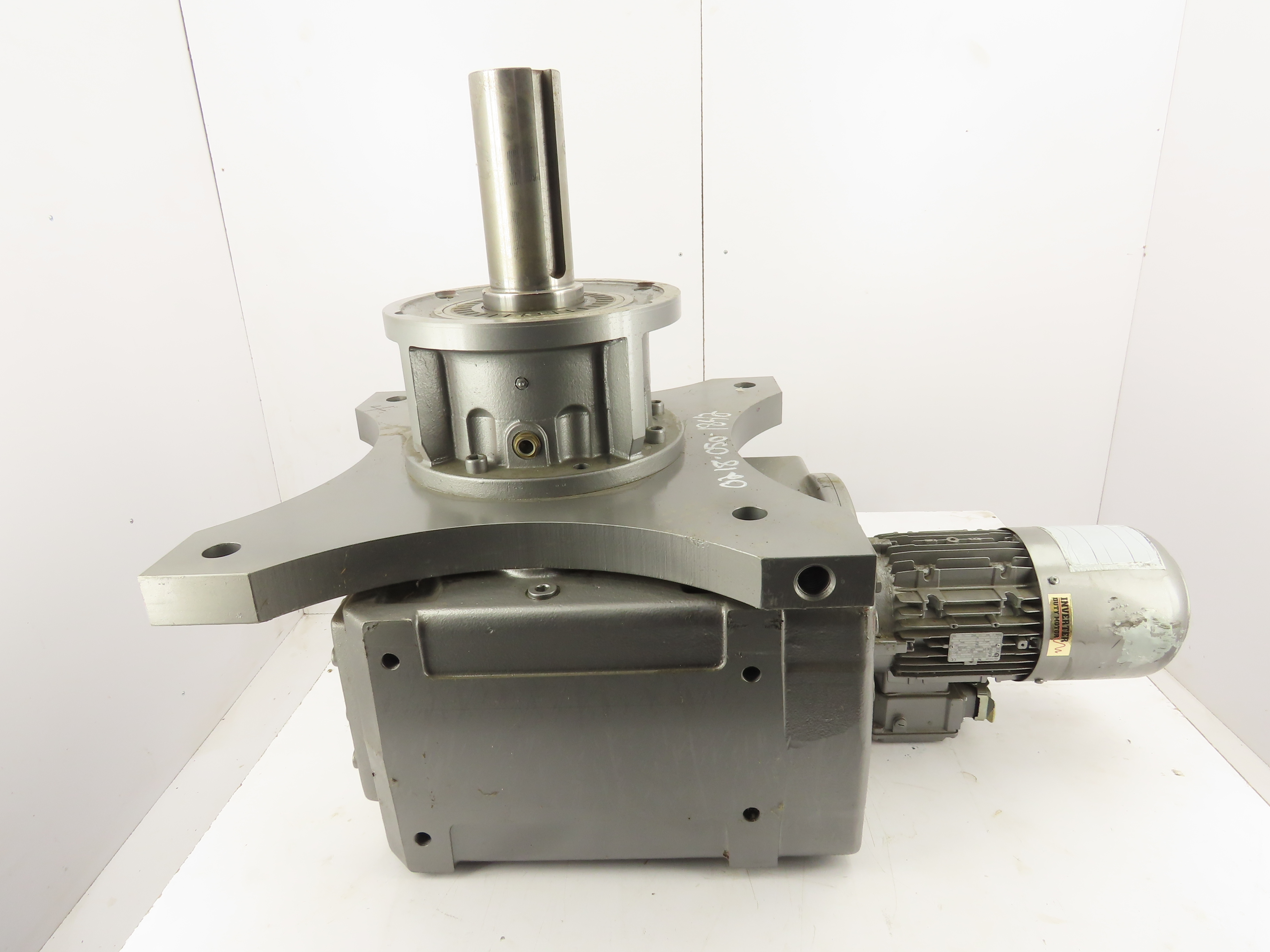

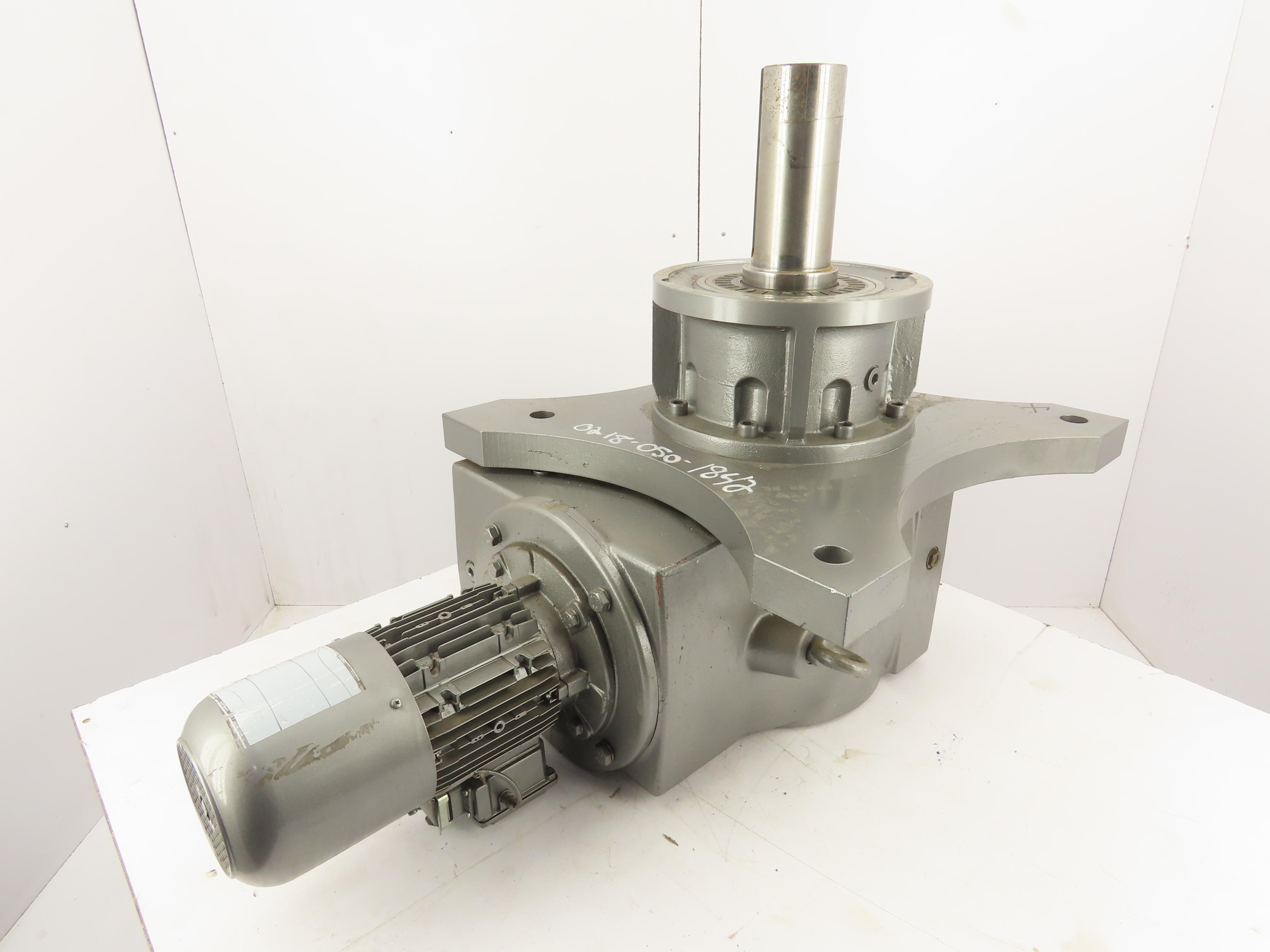

• This is a new reducer
This unit weighs 1290 lb

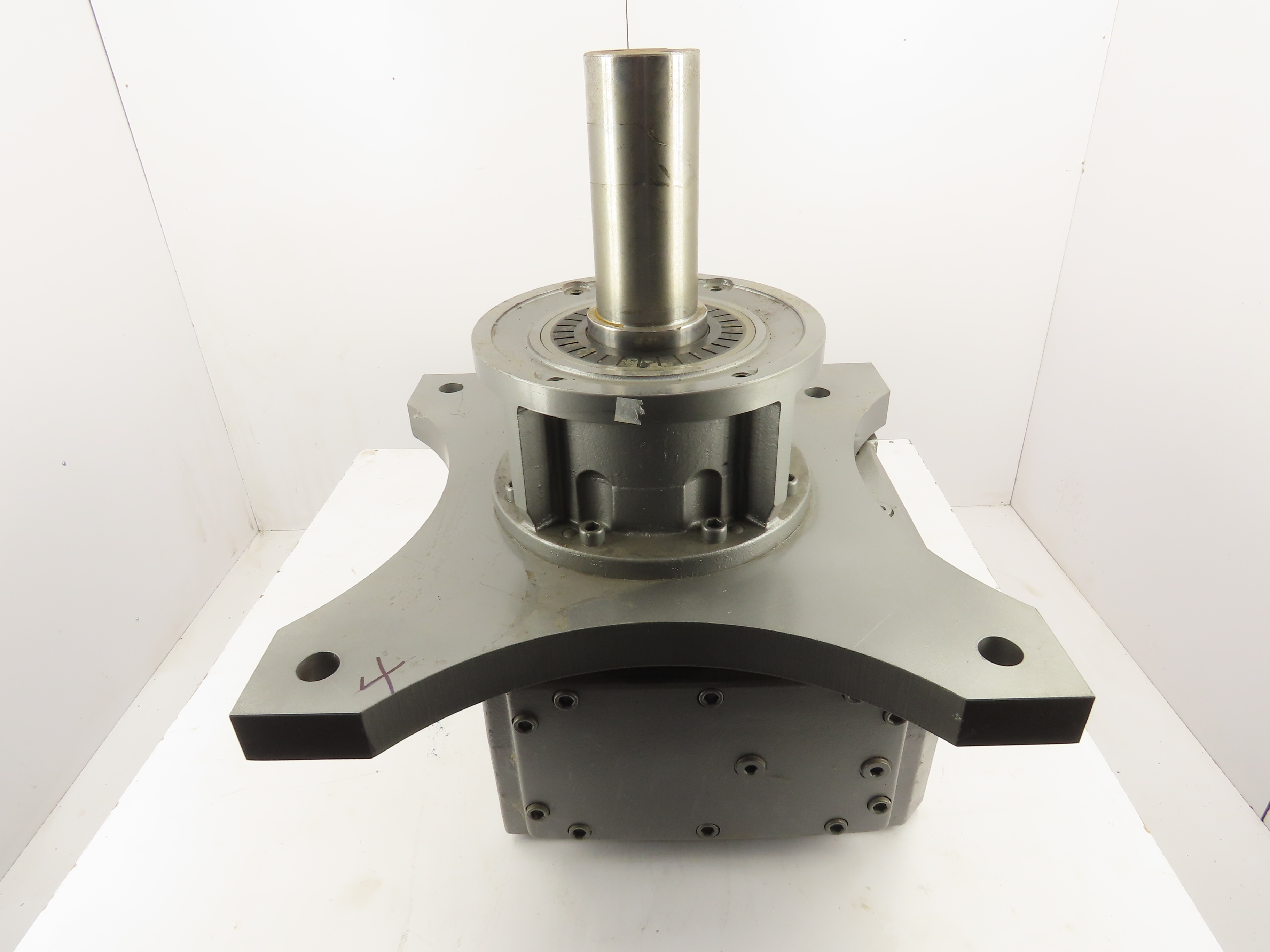

Mounting plate is 26" x 26" and 2" thick with 1-3/8" holes
Length including motor is 43"
Height including shaft is 33"
Width is 26"

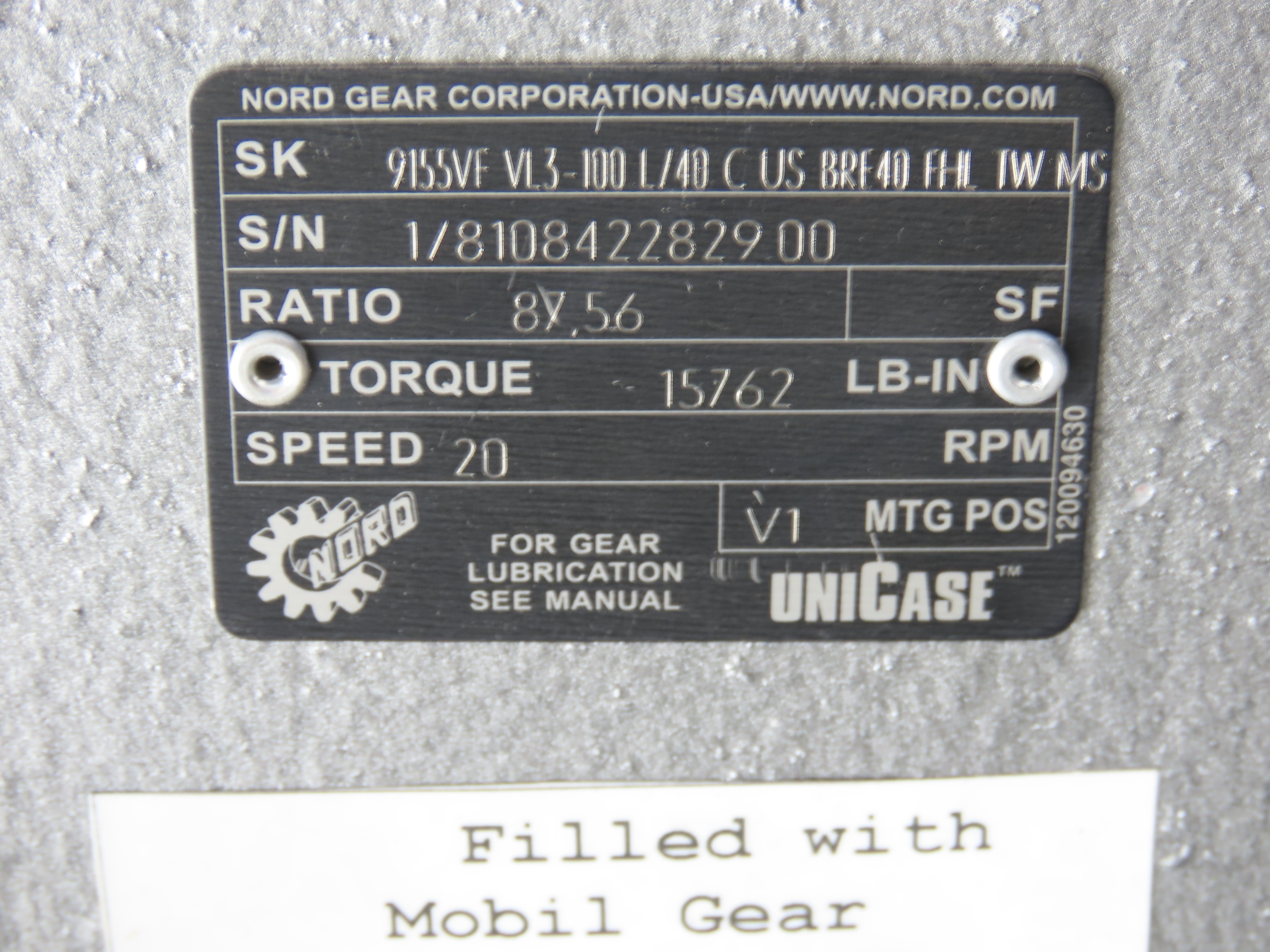

•complete part # SK9155VF VL3-100 L/40 CUS BRE40 FHL TW MS

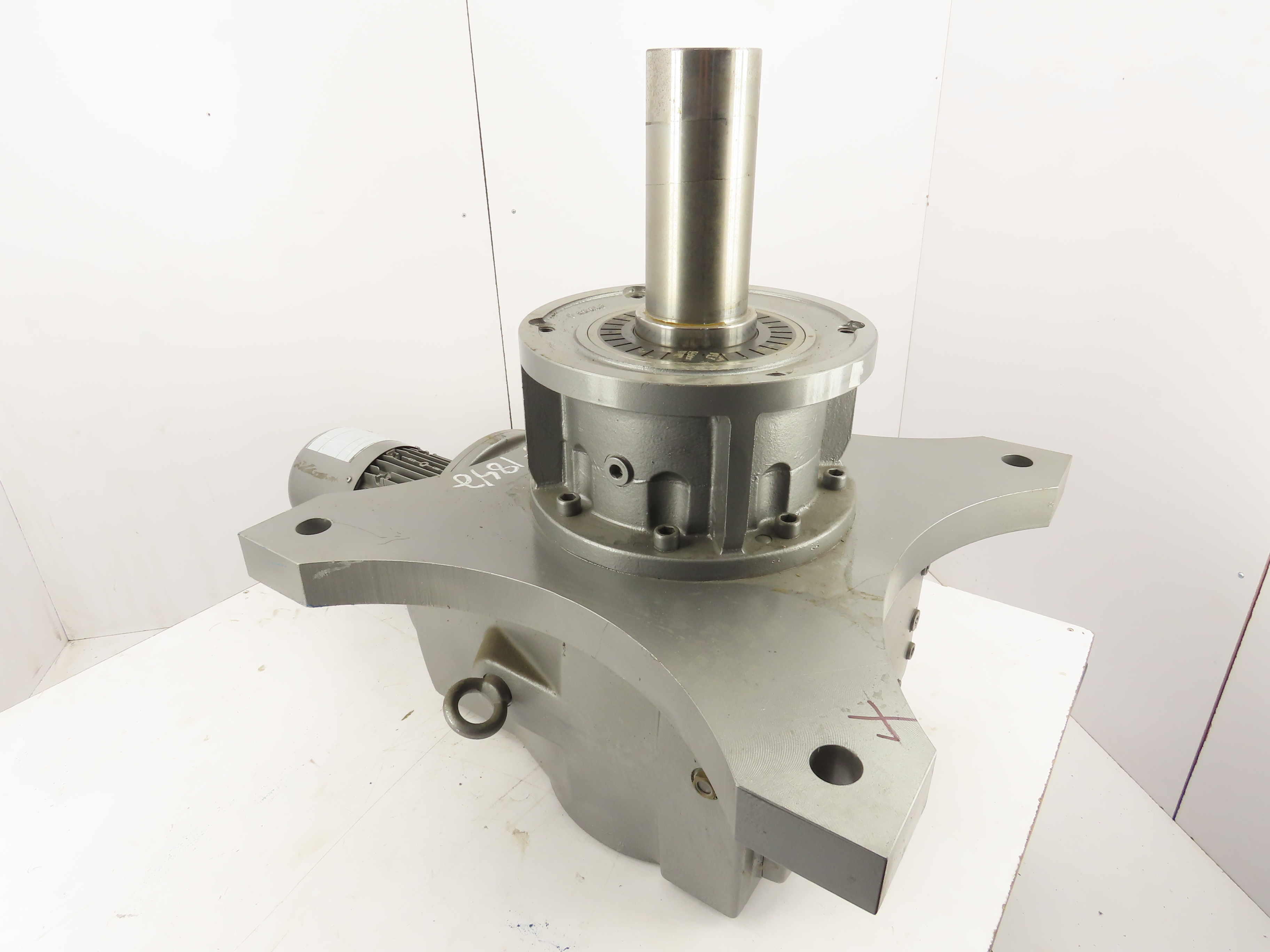

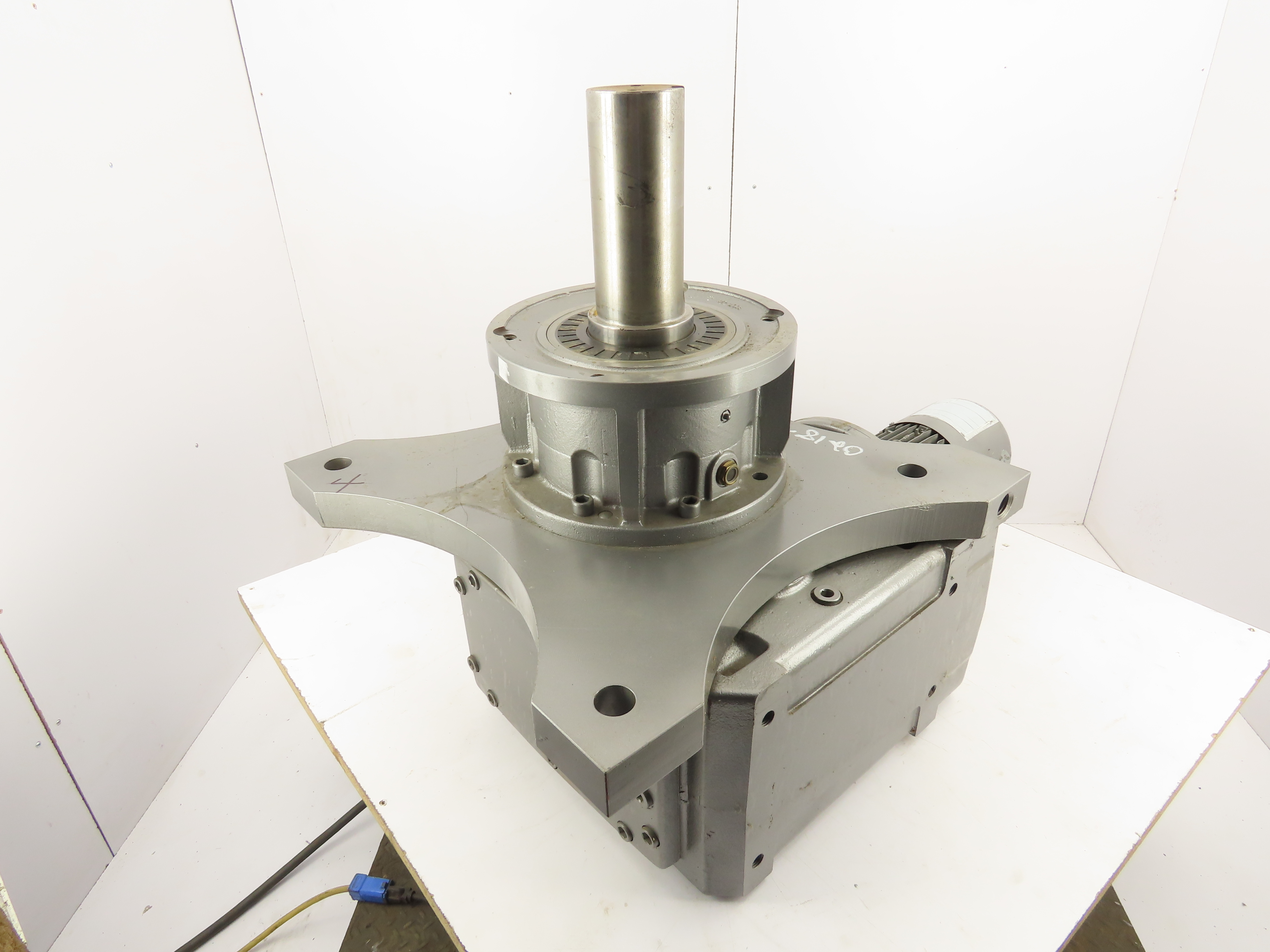

•Solid Output Shaft 3-15/16" Dia x 9" Long

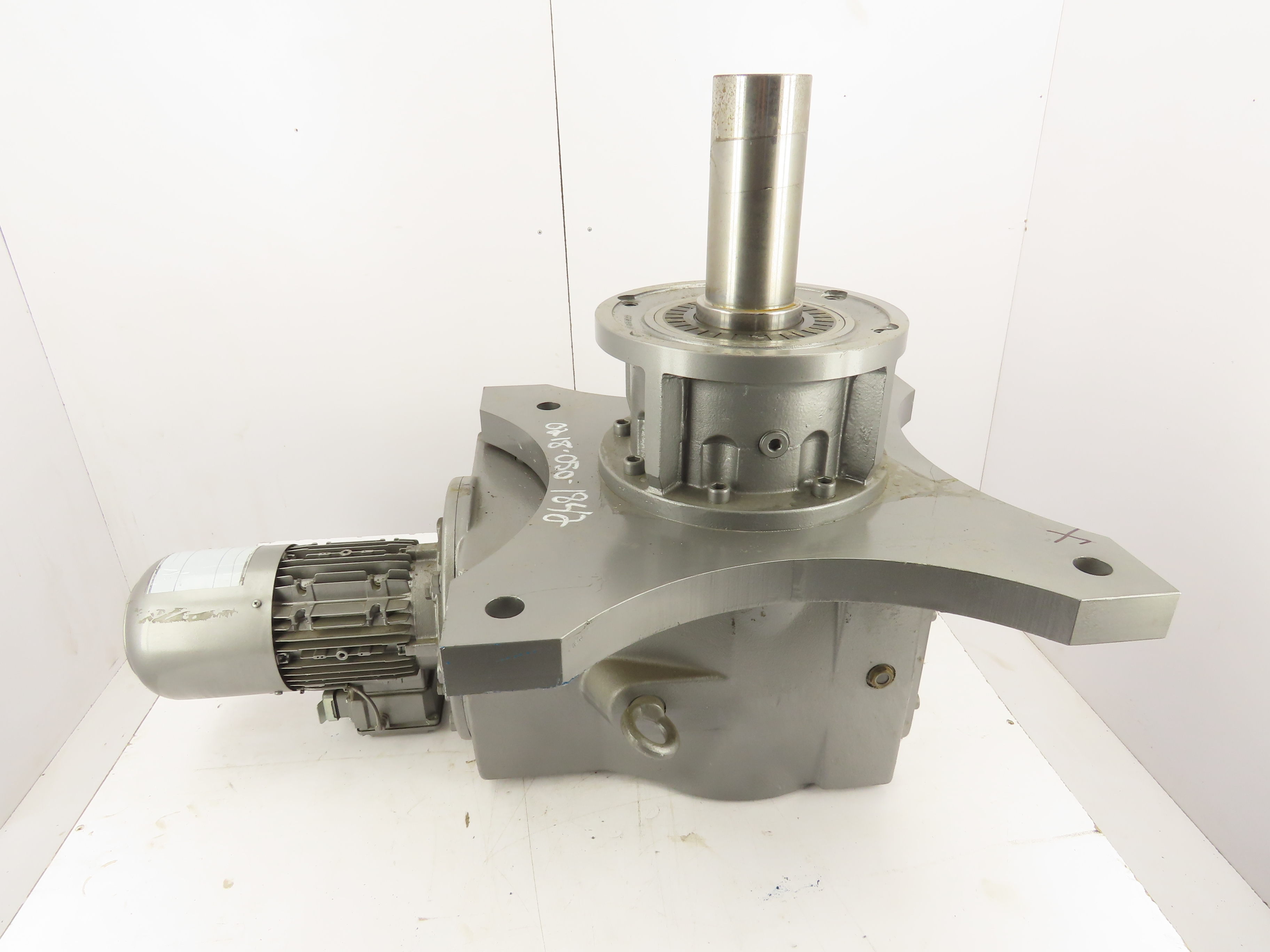

•SK9155VF: The 2-stage helical-bevel gear unit (SK9155) designed with an overhead conveyor footplate and drop-in mounting.

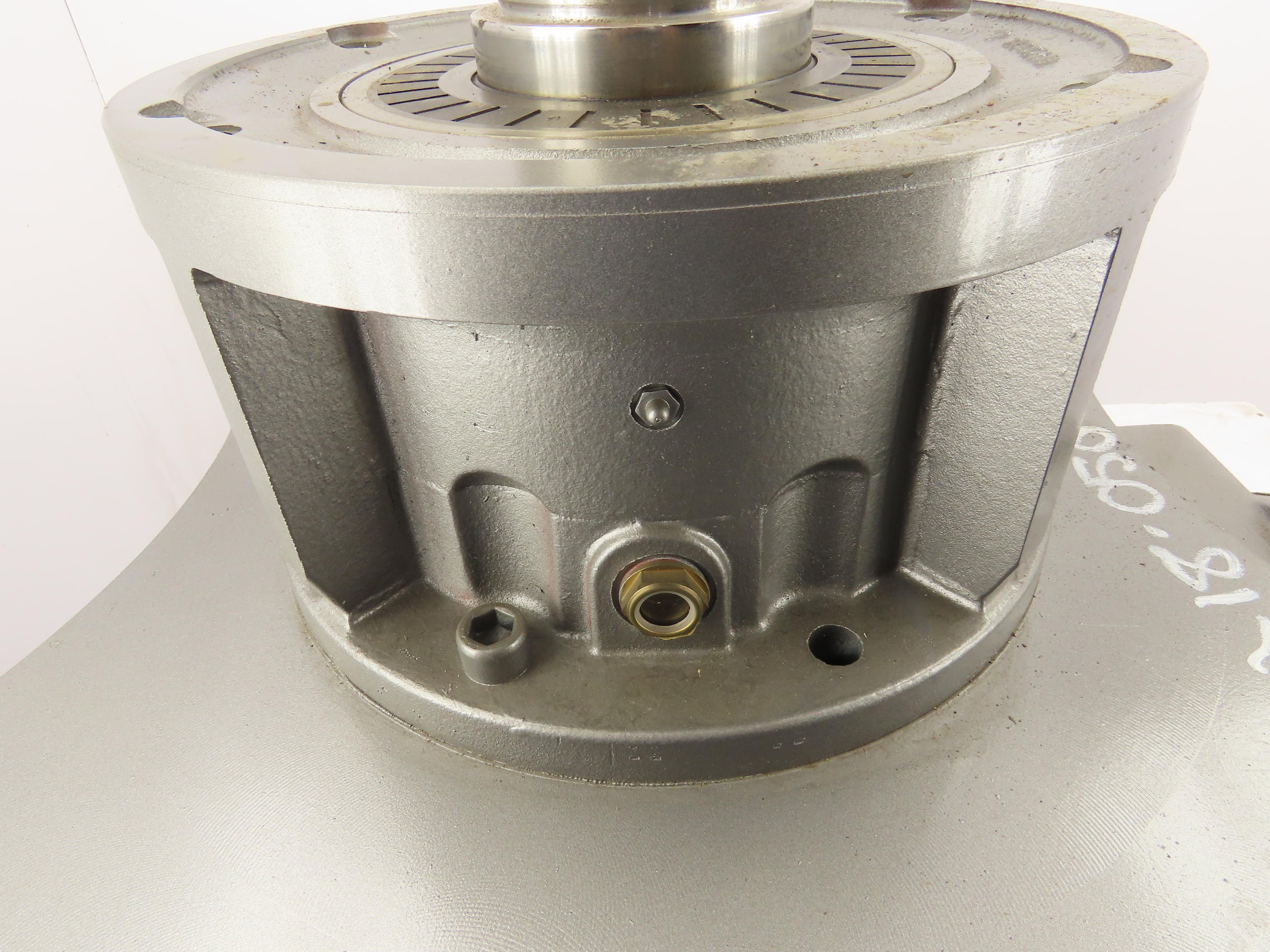

•VL3: The spread bearing / dry cavity design that handles high overhung and radial loads, commonly used in heavy-duty or agitator applications.

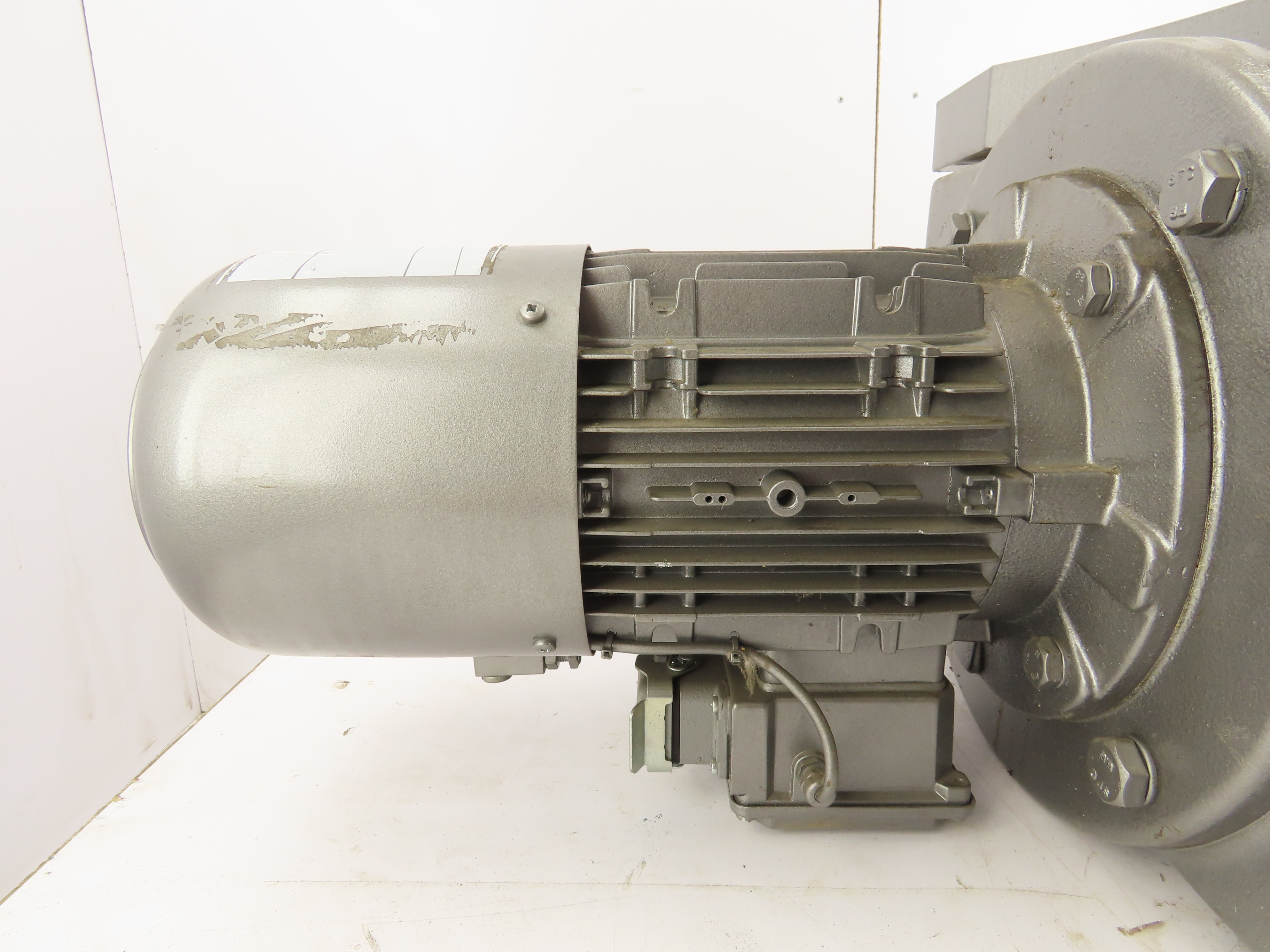

•100 L/4: The attached electric motor frame size and pole count (Frame 100L, 4-pole motor).
•CUS: Compliance with UL/CSA standards for use in the US and Canada.
•BRE40: An integrated spring-set holding/stopping brake with a 40 Nm braking torque.
•L: The brake includes a manual hand release lever to manually disengage the brake.
•TW: The motor has an internal thermostat for thermal overload protection.
•MS: A metric cable gland/conduit entry.
