Product Details

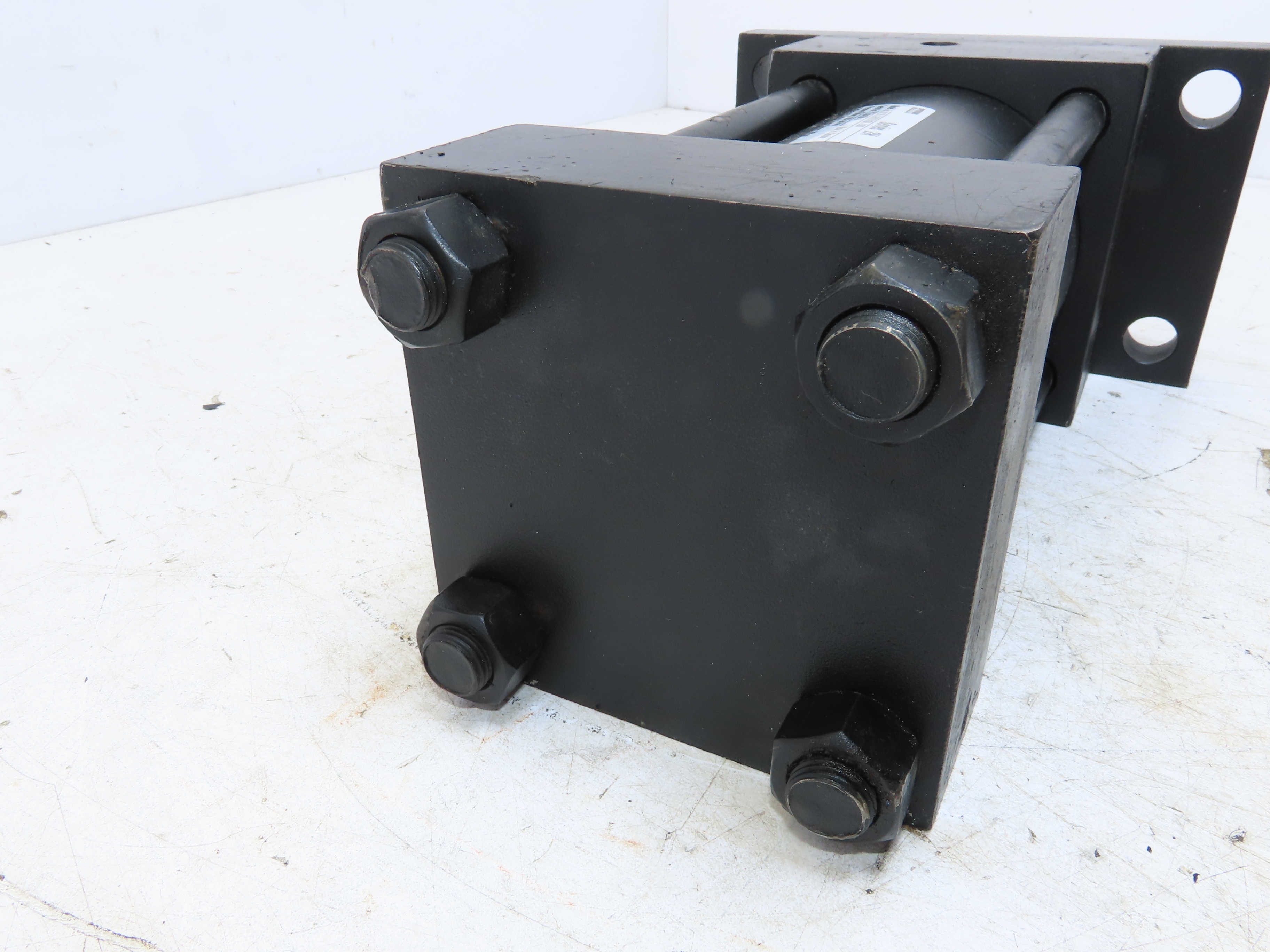

HYDRAULIC CYLINDER, TIE ROD STYLE
PARKER 03.25 CJ2HKTS155A 4.000
BORE, 3-1/4"
STROKE, 4"
MOUNTING, FRONT BLOCK

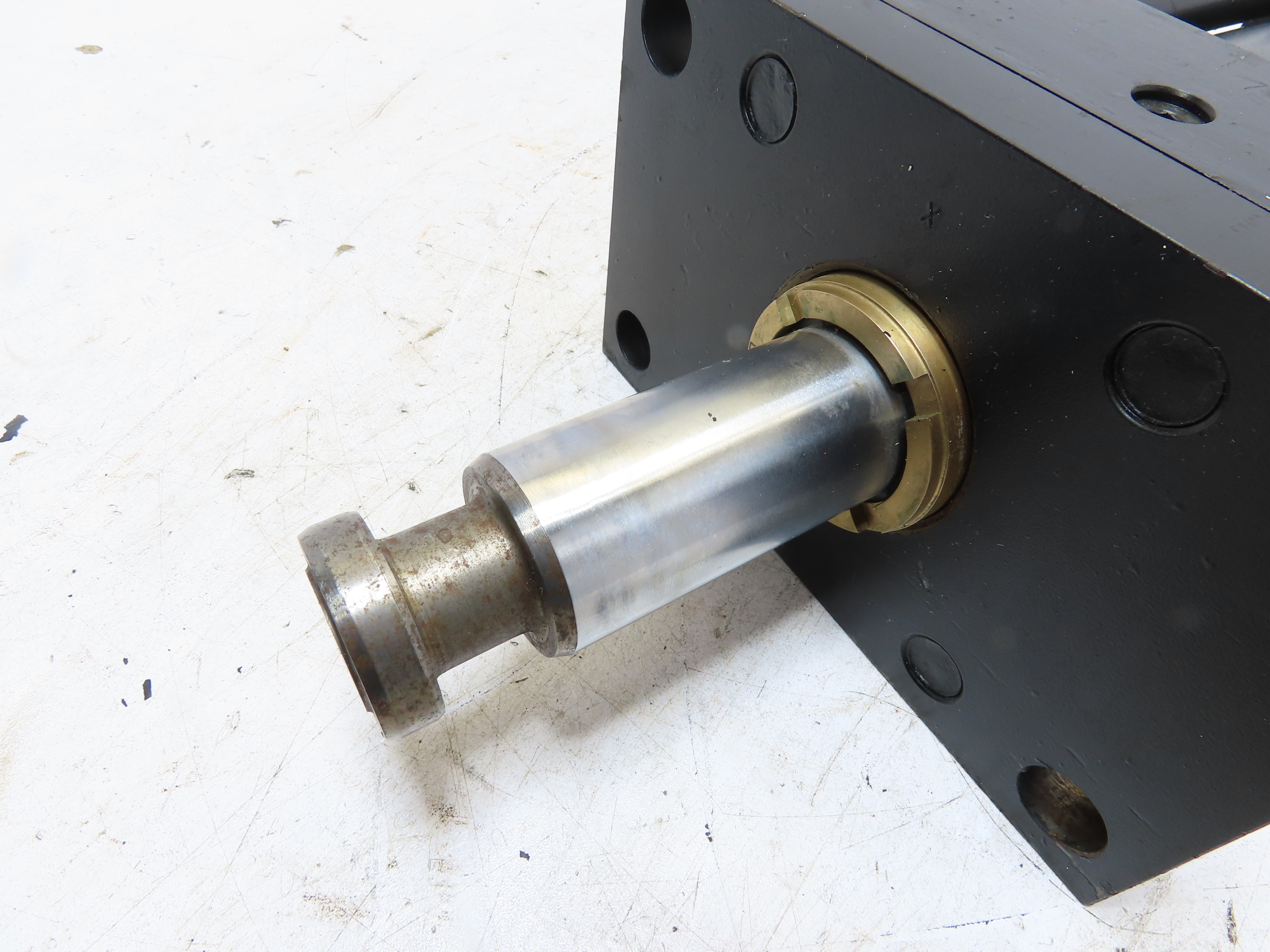

ROD DIAMETER, 1-3/8" diameter with special end, the rod protrudes past the end plate 4" with cylinder fully retracted, then starting 3/8" (the first 3/8 of the rod is 1.318" O.D.)from the end there is a 11/16" wide slot where the rod is reduced to 7/8" diameter.
PORTS, AN-12 ( 1-1/16"-12 SAE )
DOUBLE ACTING
CUSHION ON HEAD END ONLY
MAX. HYDRAULIC PSI, 1800 PSI
CONSTRUCTION IS STEEL
THIS CYLINDER IS NEW OLD STOCK.
