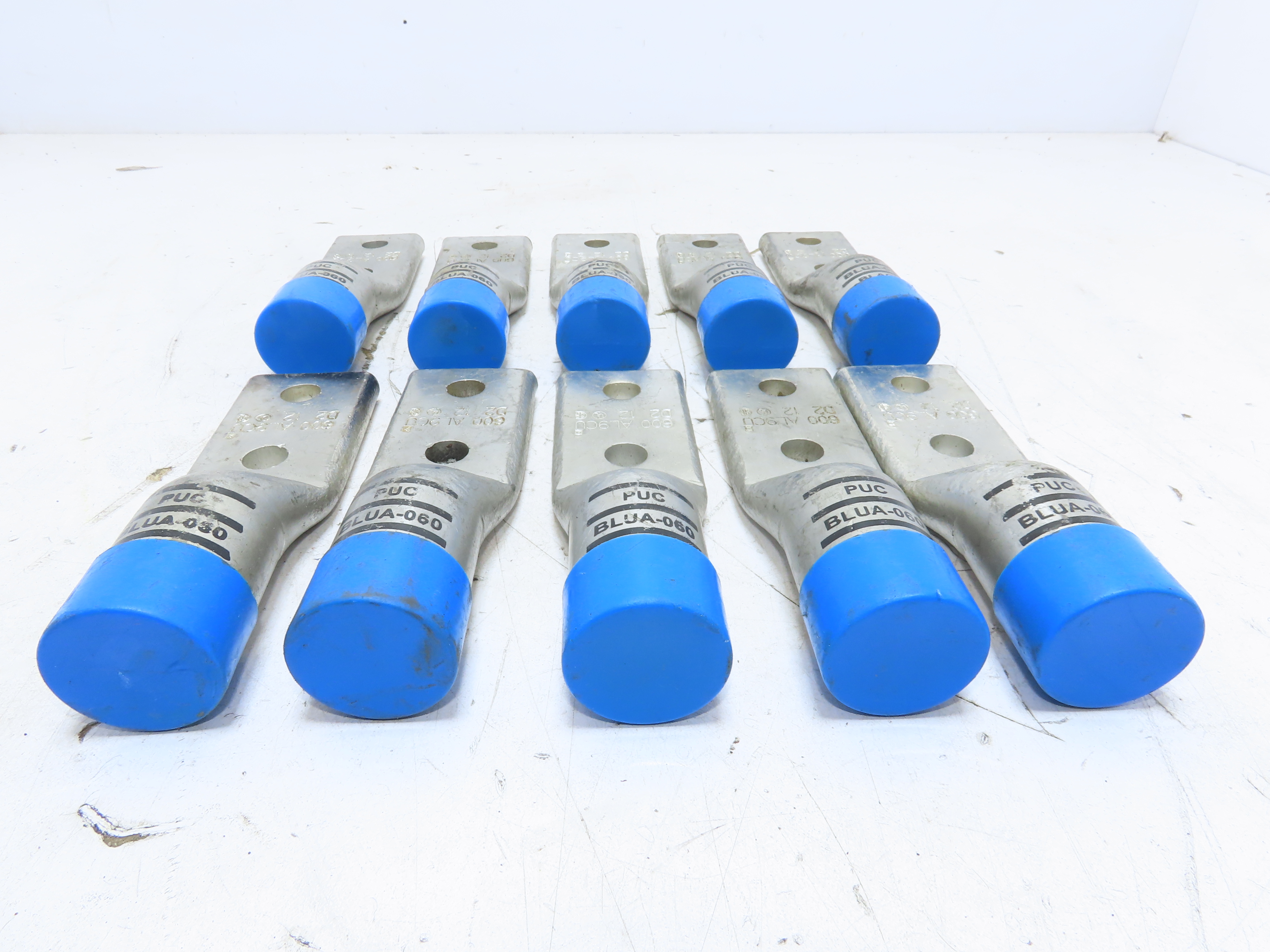

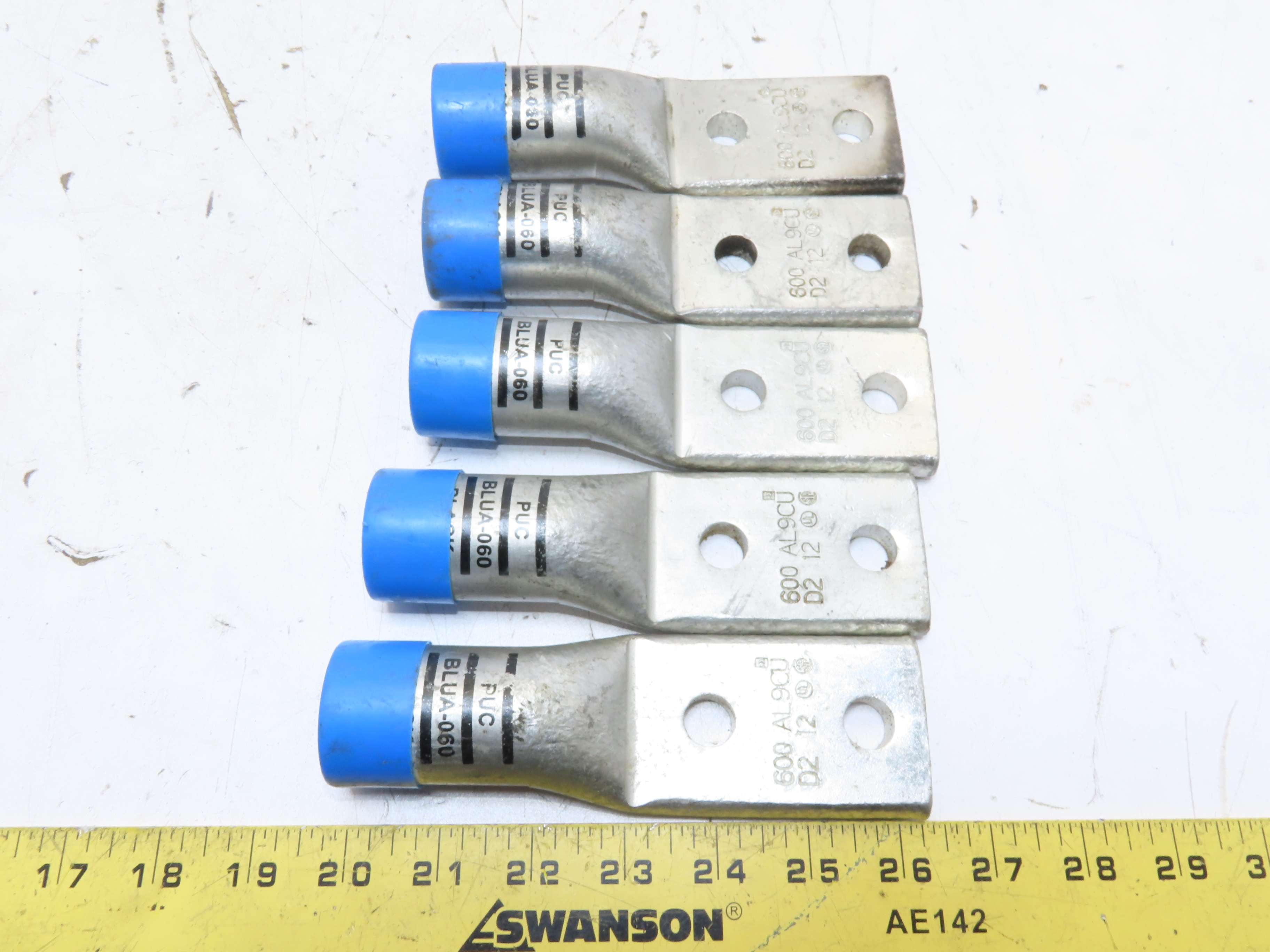

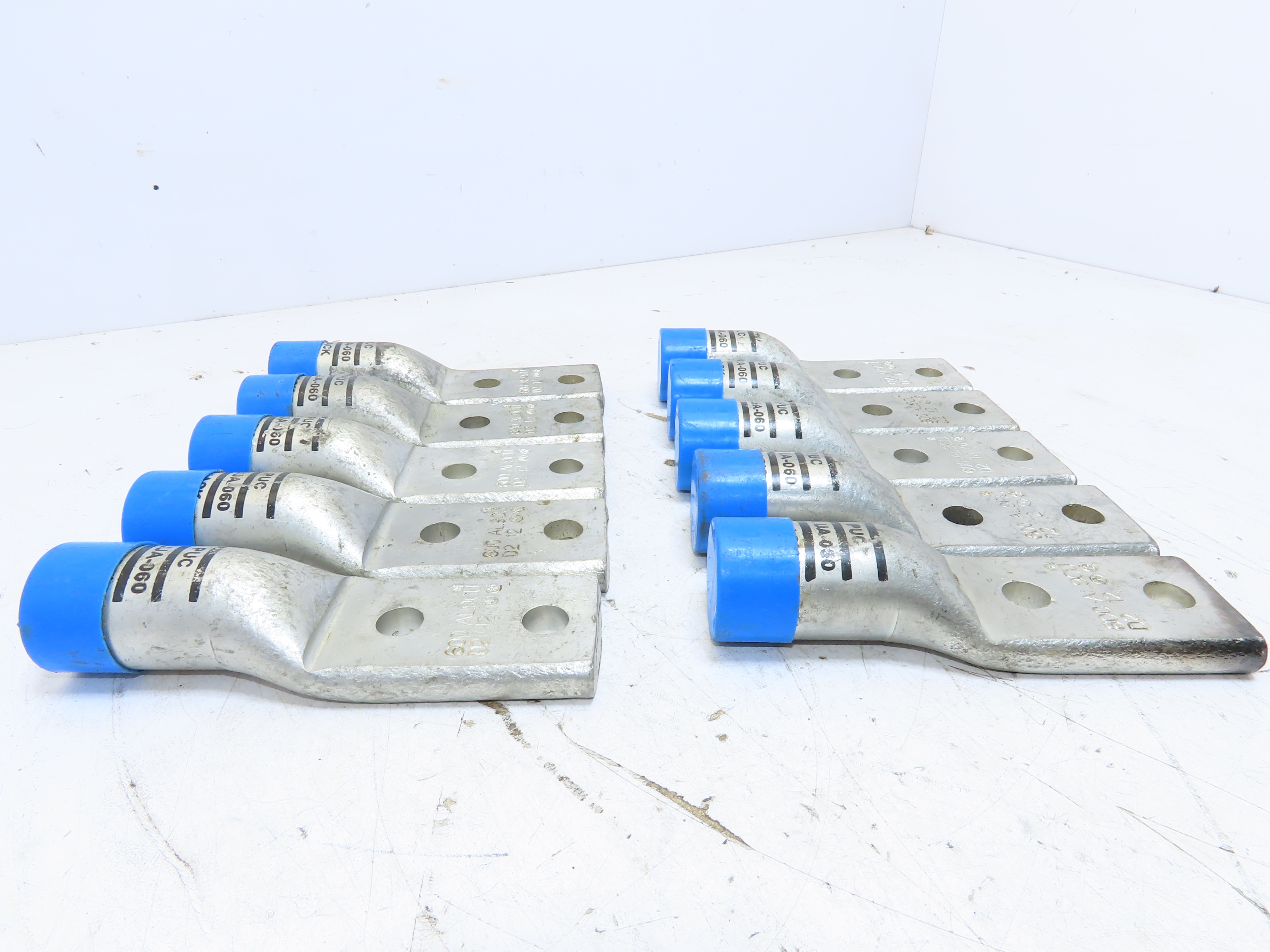

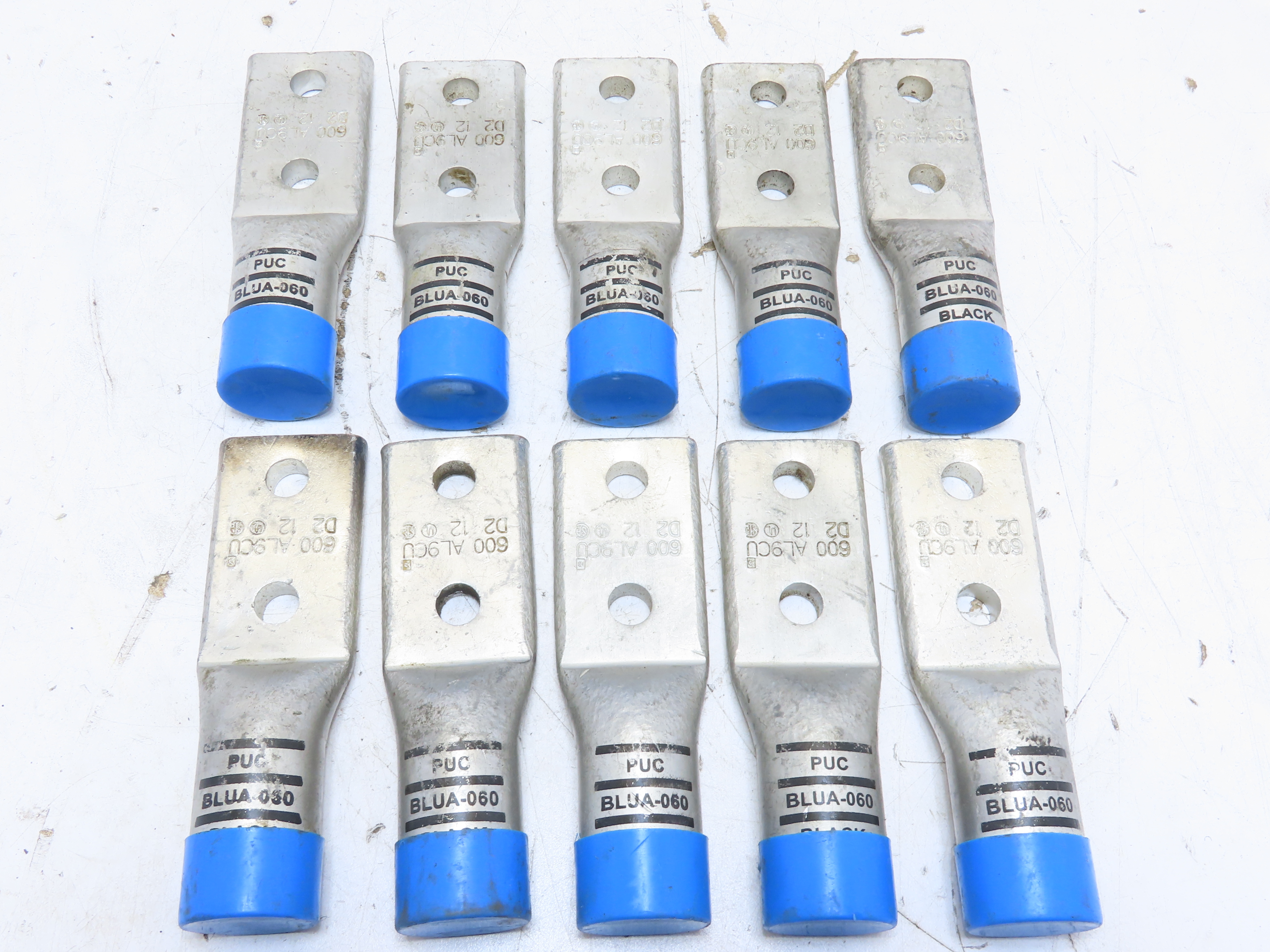

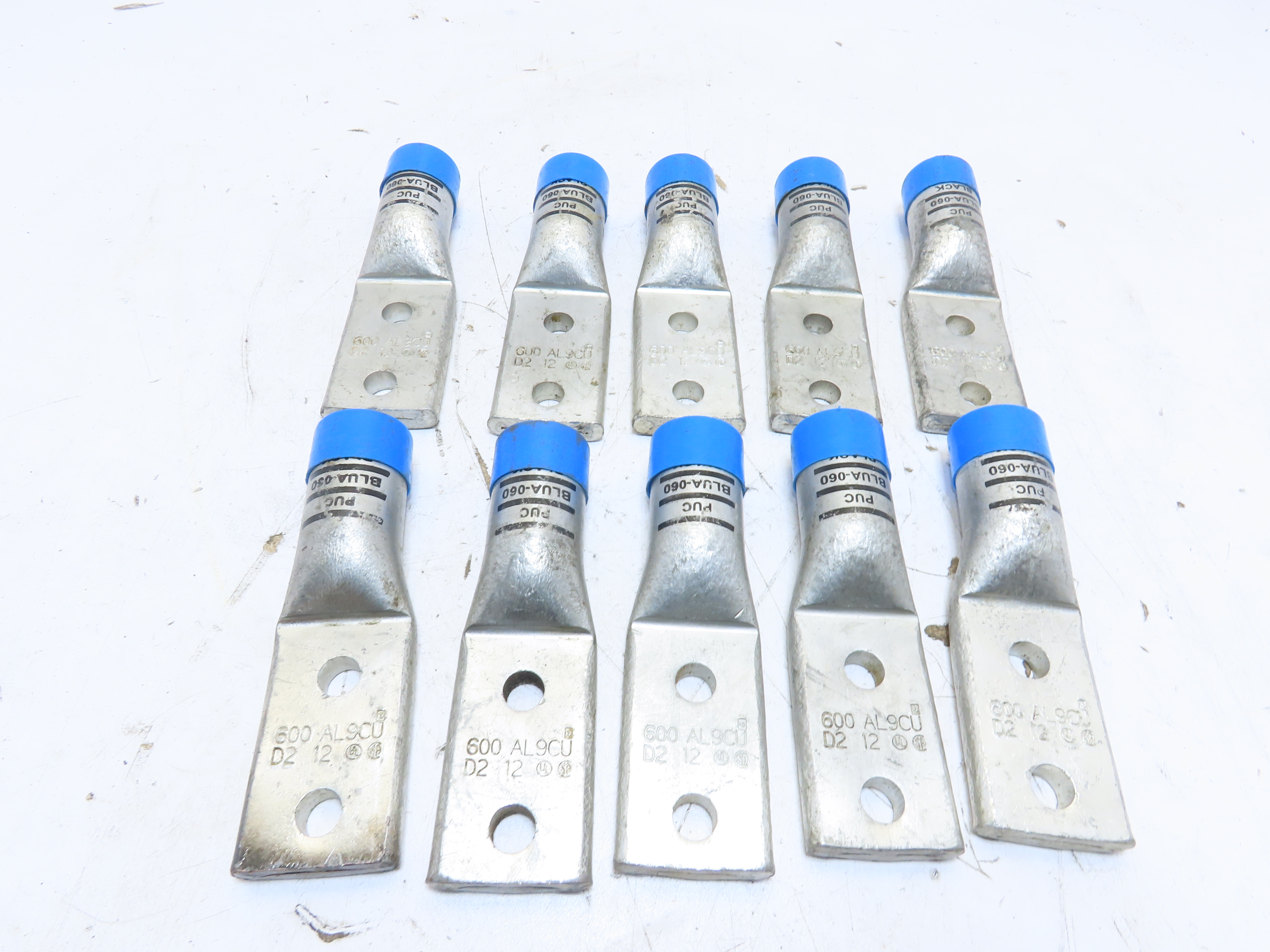

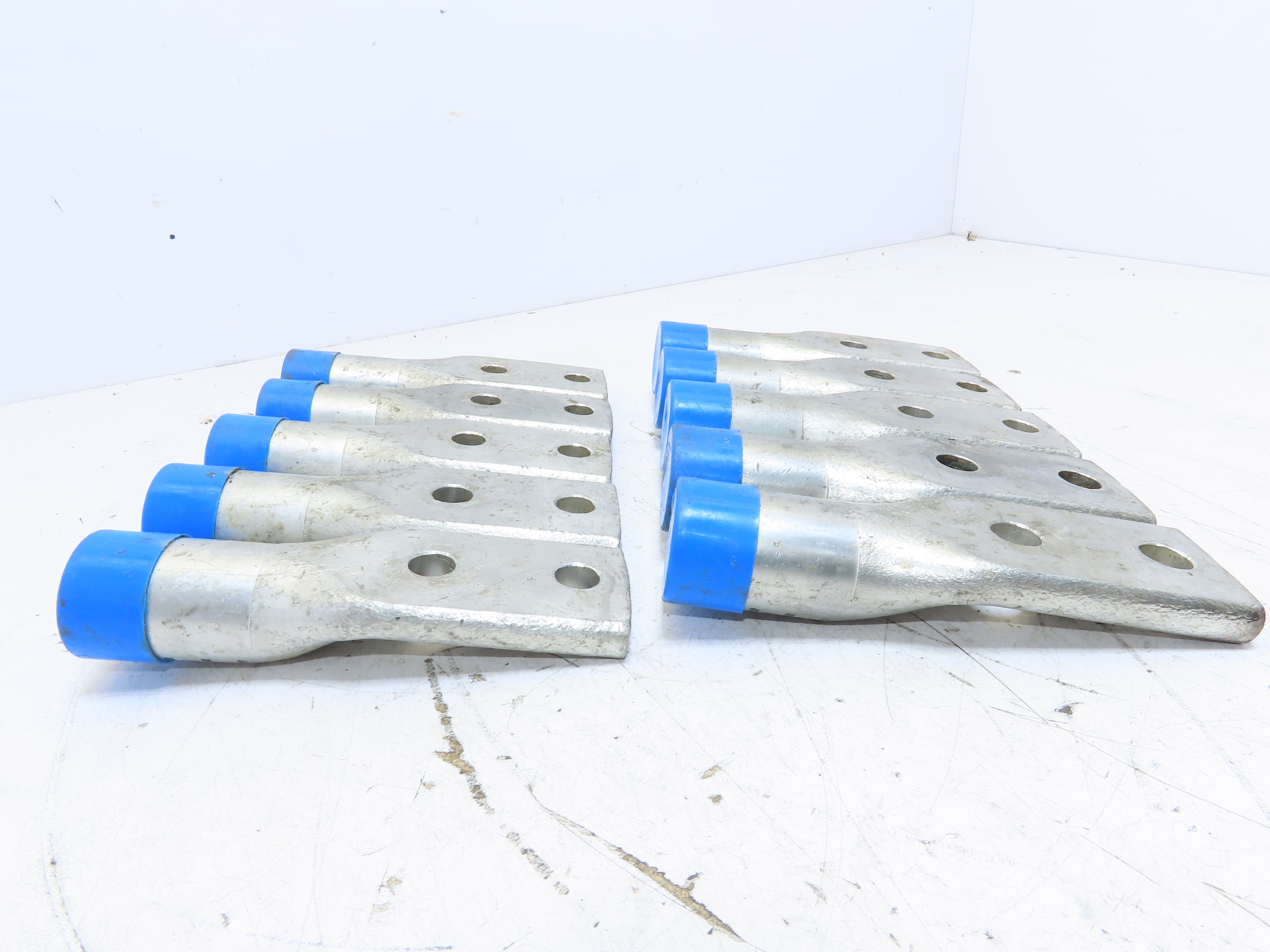

(QTY 10) ILSCO BLUA-060D2-NT 600KCMIL MCM 2-Hole1/2"Stud Crimp Compression Lug

• This is a new LOT OF 10 BLUA-060D2 Aluminum Penn-Crimps Terminal Lugs 2-Hole 1/2"Stud Crimp Compression Lugs.

Description

• Terminals, BLUA-D Series
•
• Item # BLUA-060D2
•
•  Aluminum Penn-Crimps Terminal Lug
•
• BLUA-D Series Information
• Manufactured from seamless aluminum tubing
• Tin-plated and factory prefilled with oxide inhibitor compound
• Beveled entry for easy cable insertion
• Color coding conforms to industry standards ensuring proper die selection and providing for a faster installation

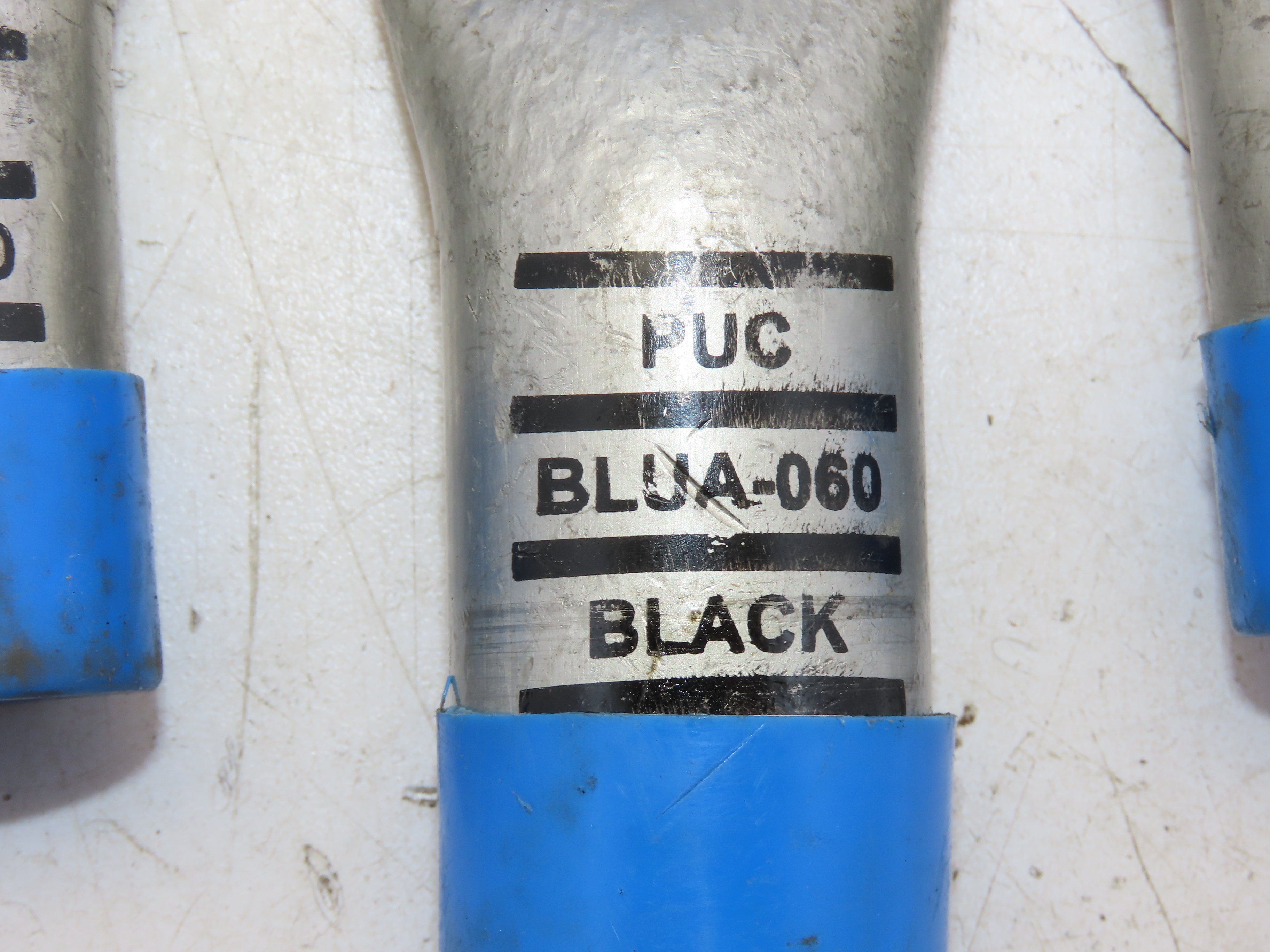

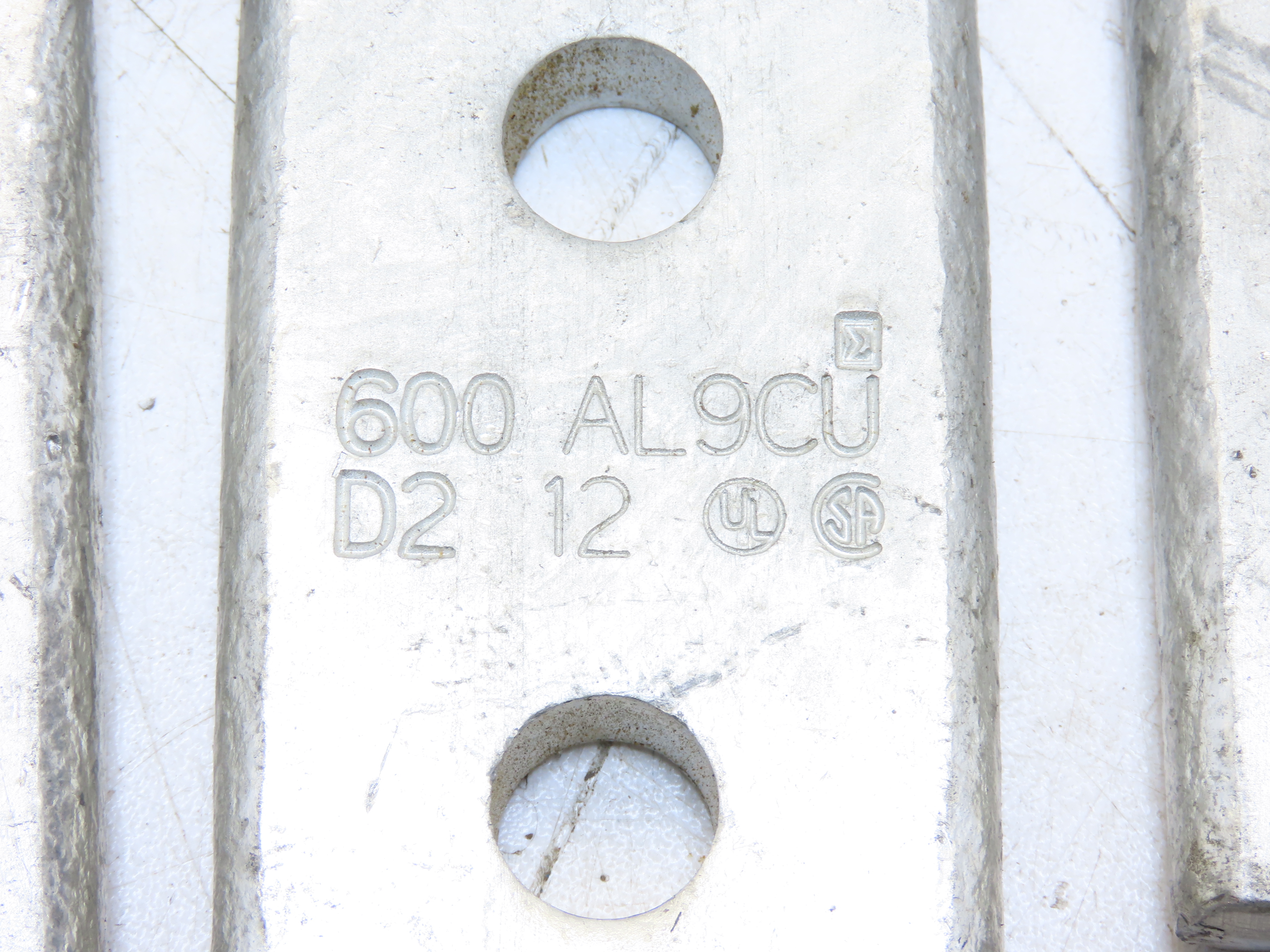

• Connectors are marked with catalog number, wire size, die index and crimp locations
• Connectors are suitable for voltages up to 35 KV
• End caps provided to prevent foreign materials from entering and contaminating the connector prior to usage

 Specifications

• Specifications In Stock Yes
• Ships Factory Direct No
• Manufacturer Part Number BLUA060D2
• Manufacturer Penn Union
• Product Series BLUA-D
• Family Series Penn Union Terminals, BLUA-D Series
• Description Aluminum Penn-Crimps Terminal Lug
• Wire Size Range 600 kcmil
• Stud Size1/2
• "Number of Conductors 1
• Material Aluminum
• Color Code Black
• Approvals CSA, ULNet
• Weight 0.589 lbs
• Gross Weight 0.589 lbs
•
•
