Current Price: $949.99
- Gear Ratio: 21.81
- Output Speed: 12-77.95
- Shaft Diameter: 35mm straight bore with keyway slot
- Output Torque (lbs-in): 814
- Shaft Output (Left, Right or Inline): right/left Shaft mount
- Motor Brand: SEW-EURODRIVE

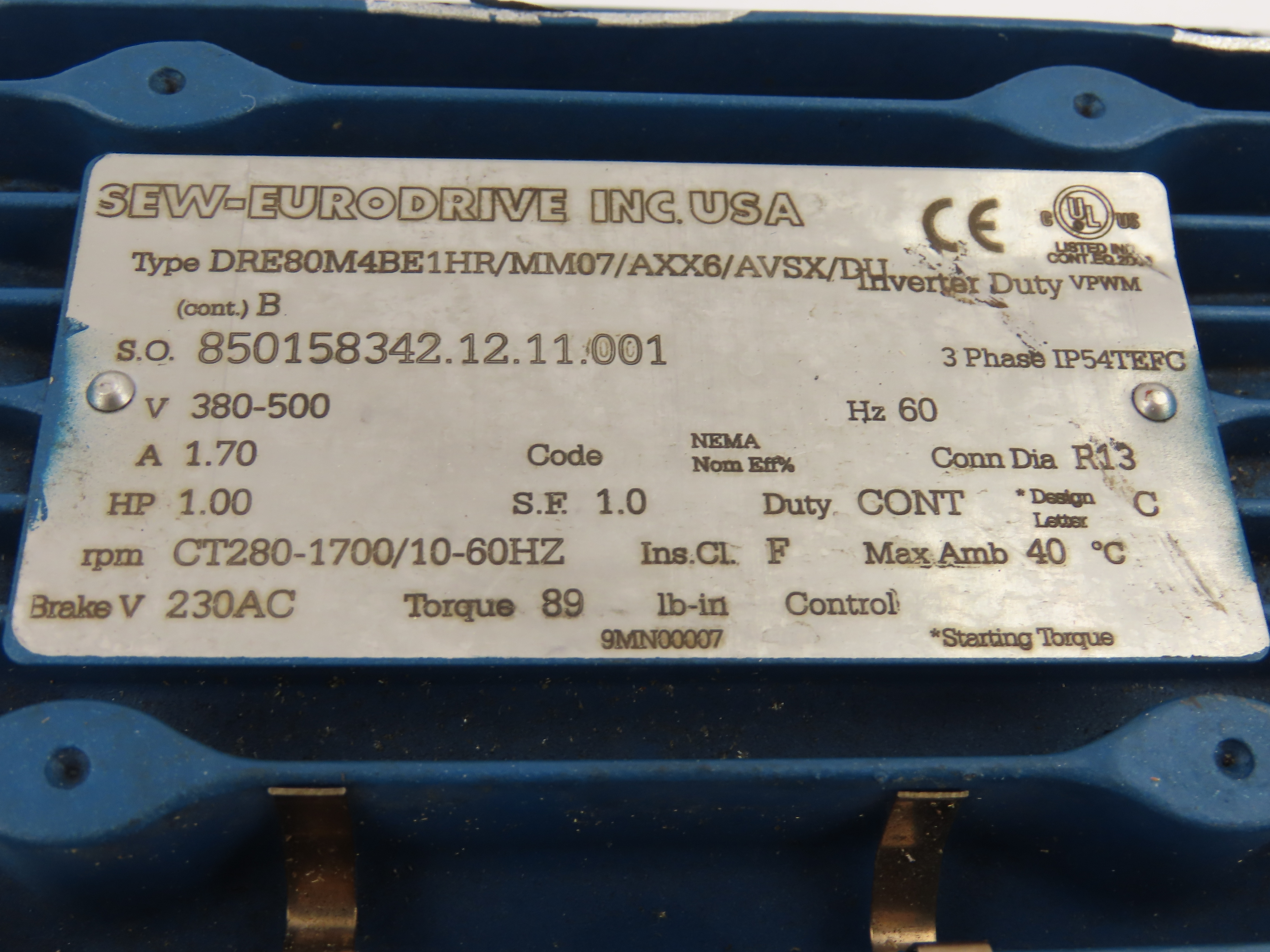

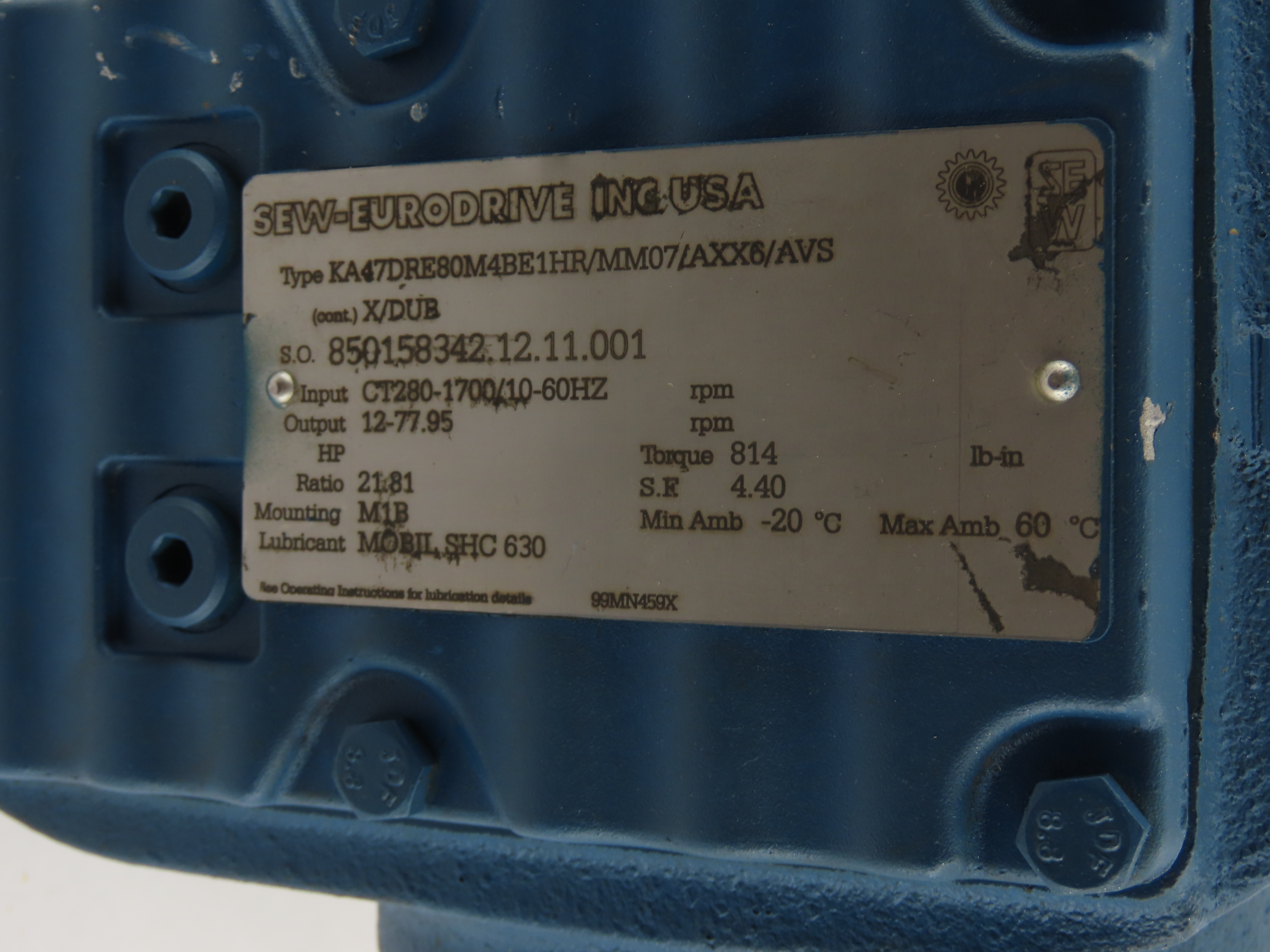

- Motor Catalog Number (Model): DRE80M4BE1HR/MM07/AXX6/AVSX/DU
- Motor HP: 1
- Motor Phase: 3
- Motor Voltage: 380-500 v
- Motor Frequency: 60
- Motor Amps: 1.70
- Insulation Class: F
- Brake Voltage: 230AC
- Brake Torque (in/lbs): 89
- This is a new gearmotor. S.O.850158342.12.11.001

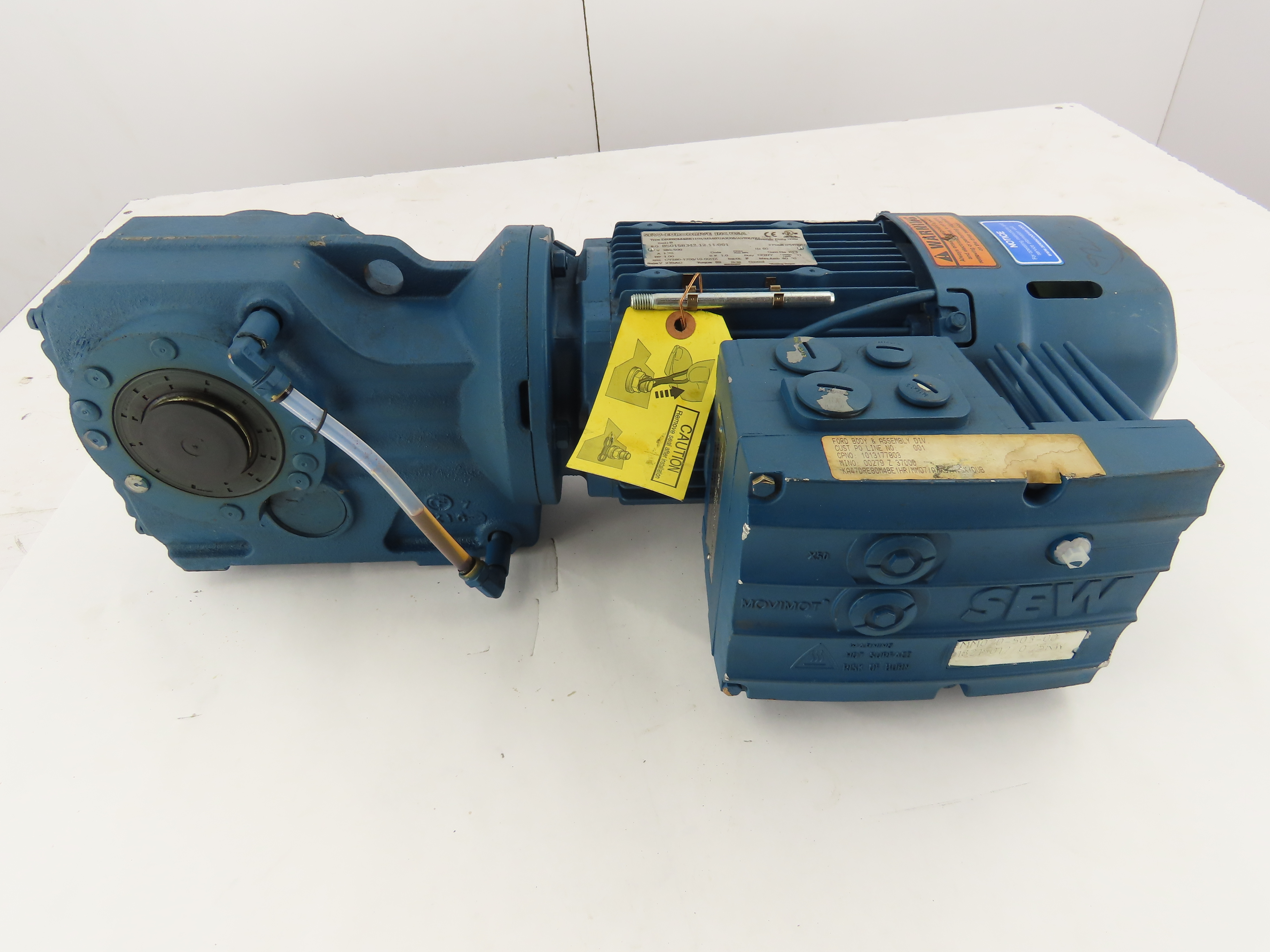

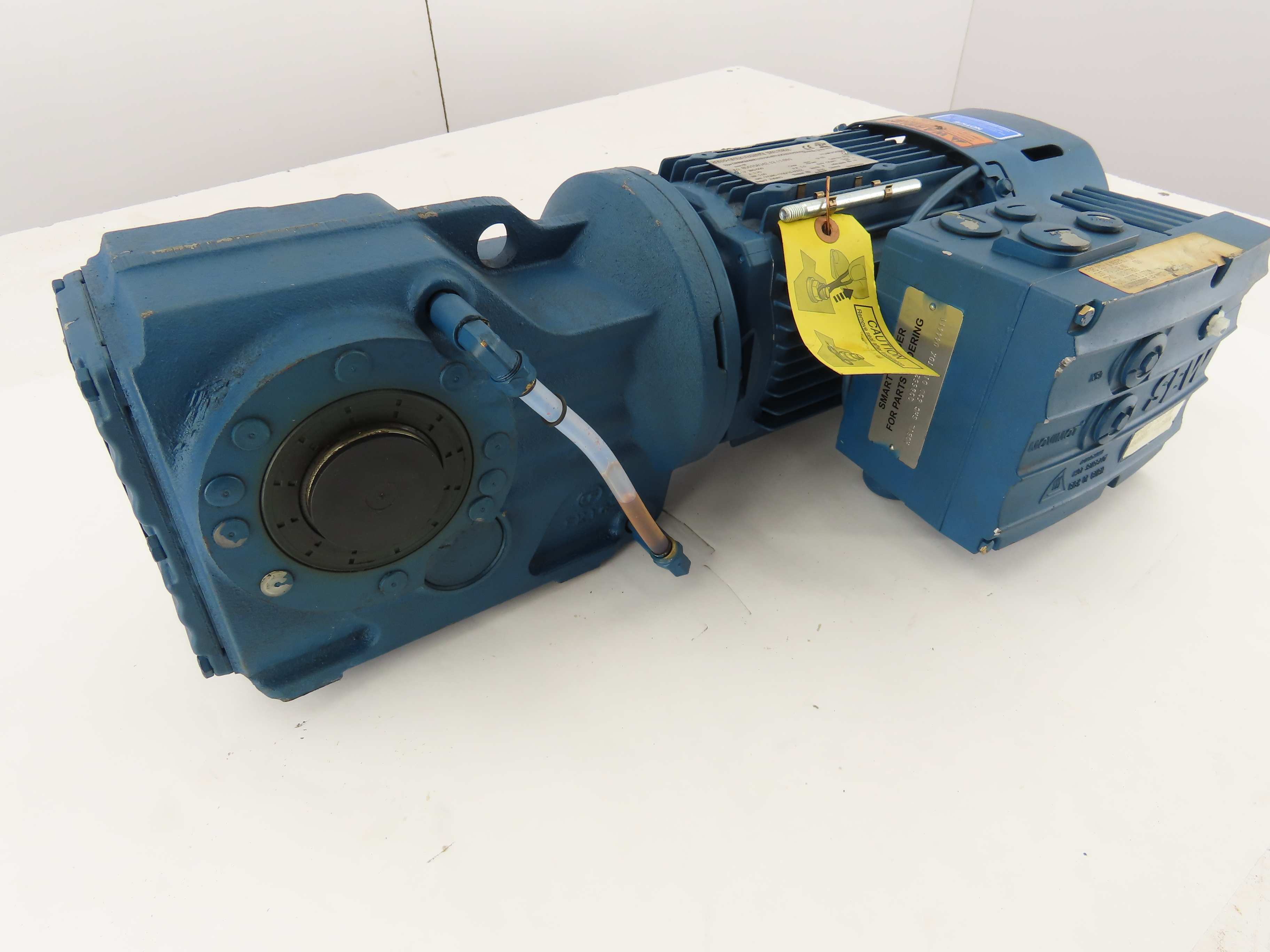

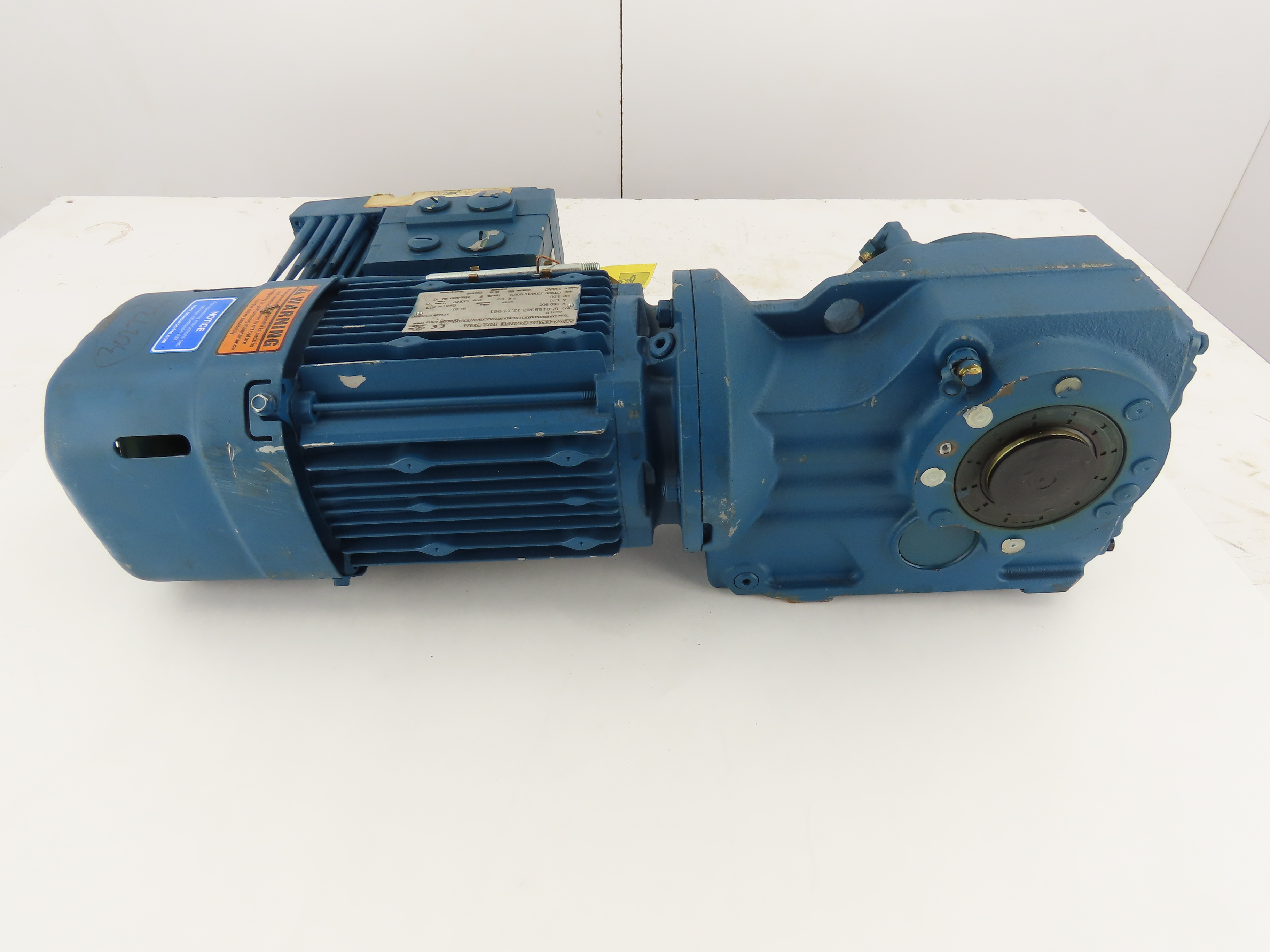

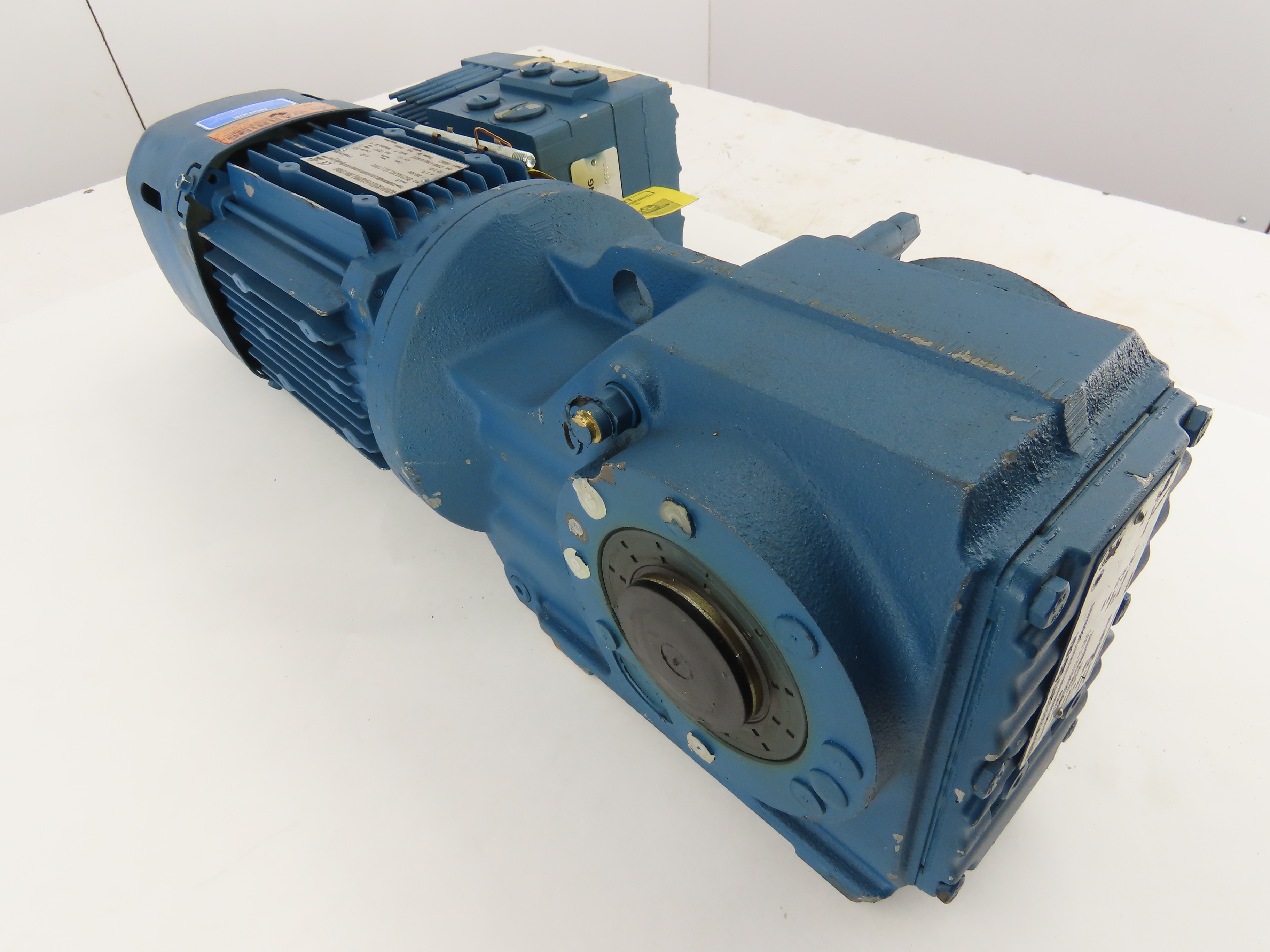

- This is a shaft mount gearmotor typically used in industrial applications.
- DRE80M4: A standard energy-efficient AC motor (IE2/IE3) with an 80-frame size, 4 poles (roughly 1740 RPM at 60Hz), and a nominal rating of 1 HP (0.75 kW).
- BE1HR: An integrated mechanical spring-applied brake (BE series) with a 10 Nm braking torque, featuring a manual release lever with a hand-wheel mechanism (HR) .
- This unit comes with an attached invertor Part # MM07D-503-00 18215017/0.75KW.
- /MM07: An attached decentralized MOVIMOT frequency inverter/controller module. The "07" denotes a 0.75 kW (1 HP) drive capacity with an input voltage range typically between 380V and 500V.
- AXX6 / AVSX: Specific options codes denoting exact connector layouts, terminal box positioning, and environmental sealing options for the integrated drive.
- DU: Stands for Diagnostic Unit, allowing for easy operational status monitoring and parameterization of the frequency inverter.
Details
- Brand: SEW-EURODRIVE
- Condition: New Other
- SKU: 214703
- Consigner: J
- Warehouse Storage Location: BC-03-05-S2
- Shipping Weight (lbs, oz): 80,
- Lister: jw
- Country of Manufacture: United States
- Items in Lot: 1
