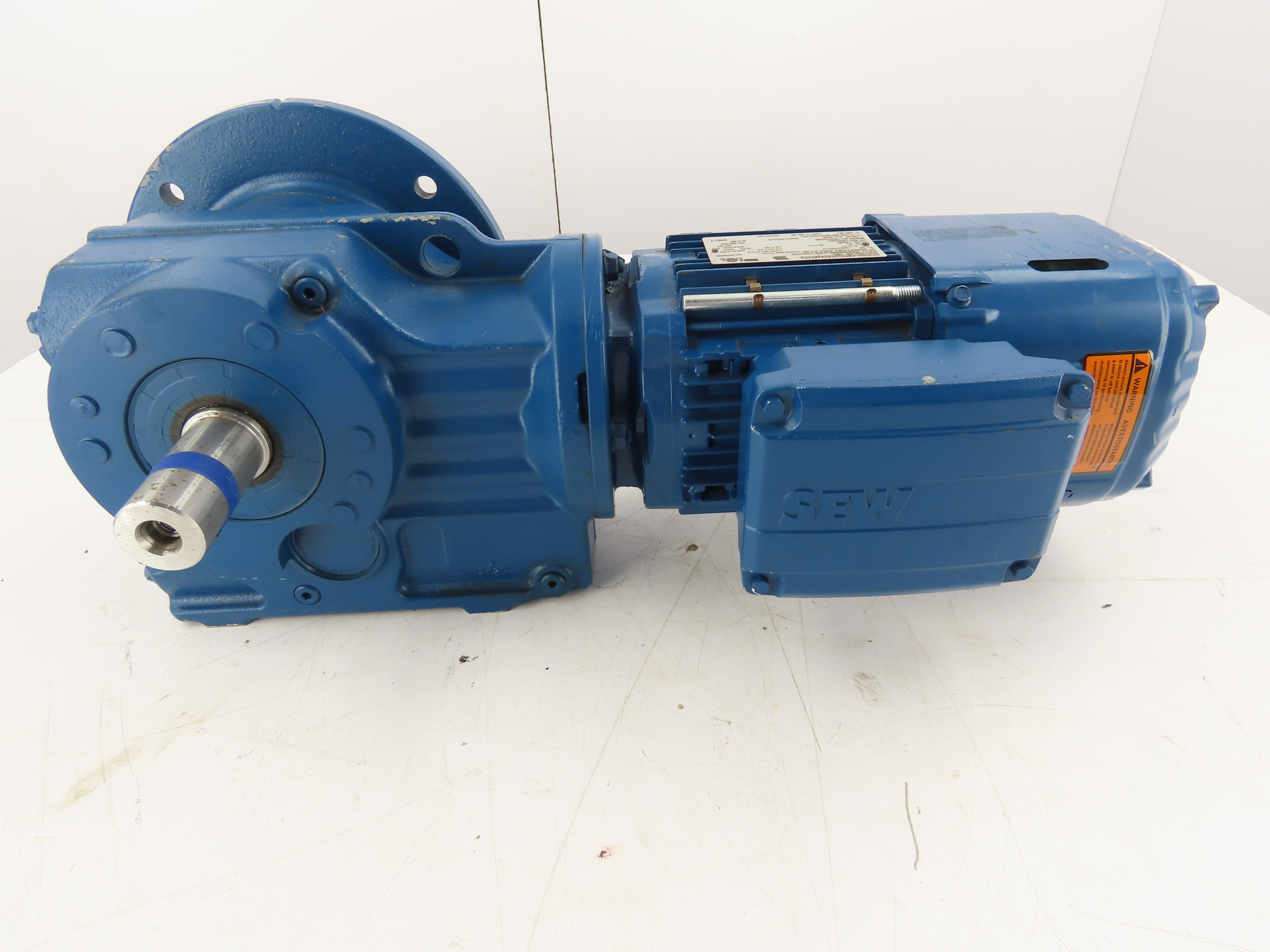

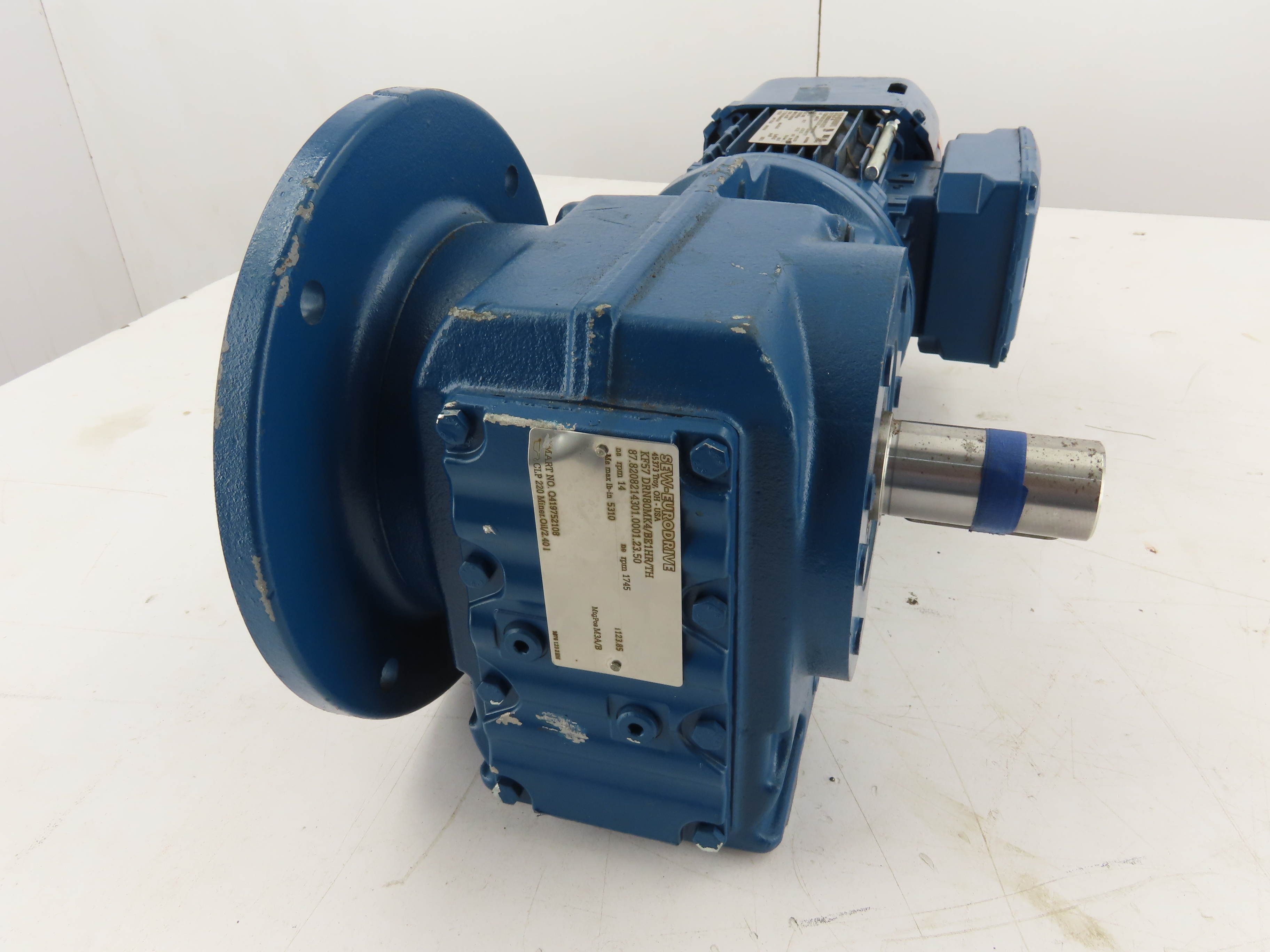

SEW-EURODRIVE 3/4 HP 2.4-14RPM Right Angle Gear Motor Invertor Duty VPWM W/Brake

Current Price: $854.99
  • Gear Ratio: 123.85
  • Output Speed: 2.4 to14 With invertor
  • Shaft Diameter: 35mm
  • Flange Diameter: 250mm O.D. (pilot flange 180mm O.D.)
  • Output Torque (lbs-in): 3320
  • Shaft Output (Left, Right or Inline): Left
  • Motor Brand: SEW-EURODRIVE

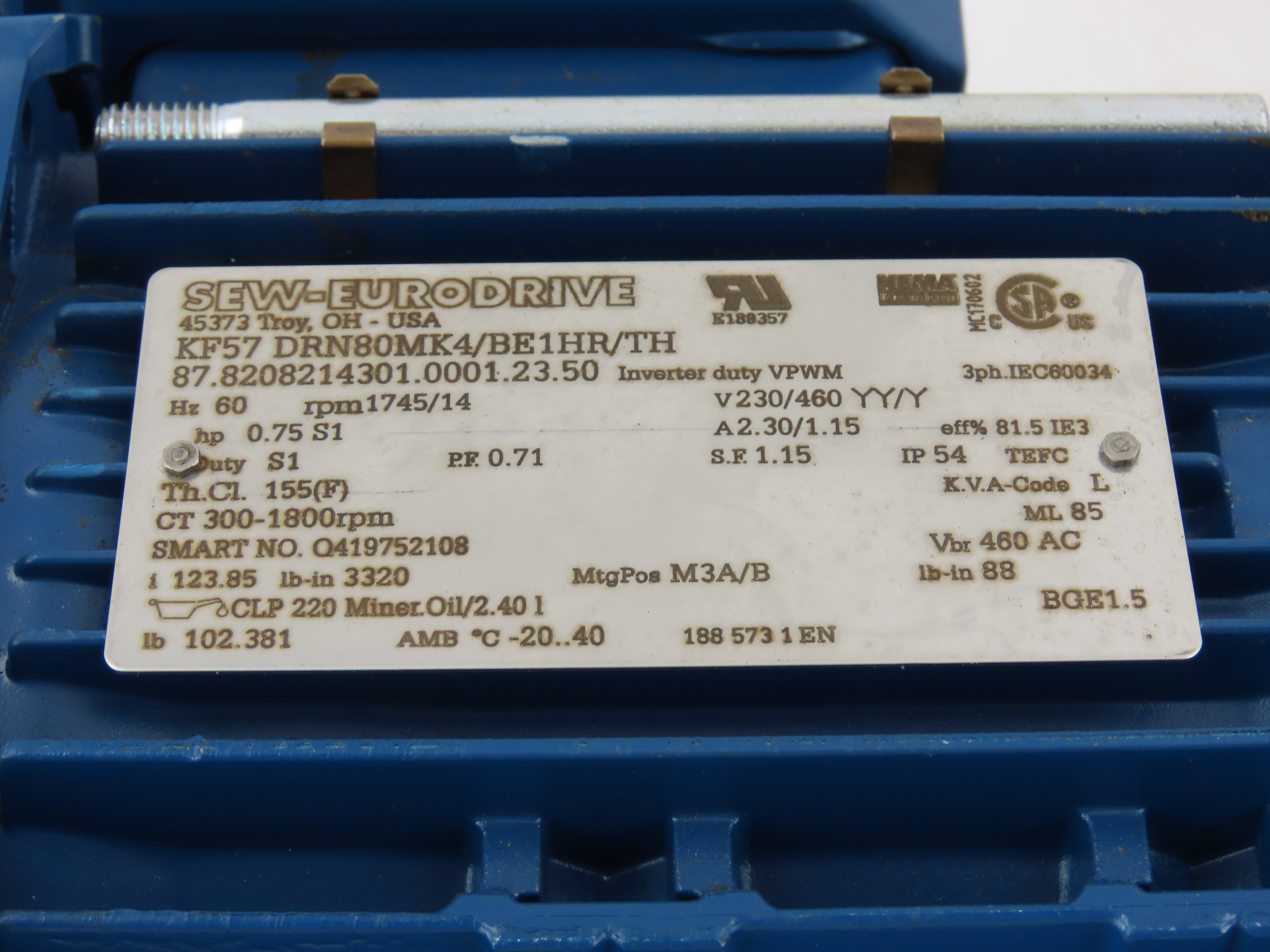

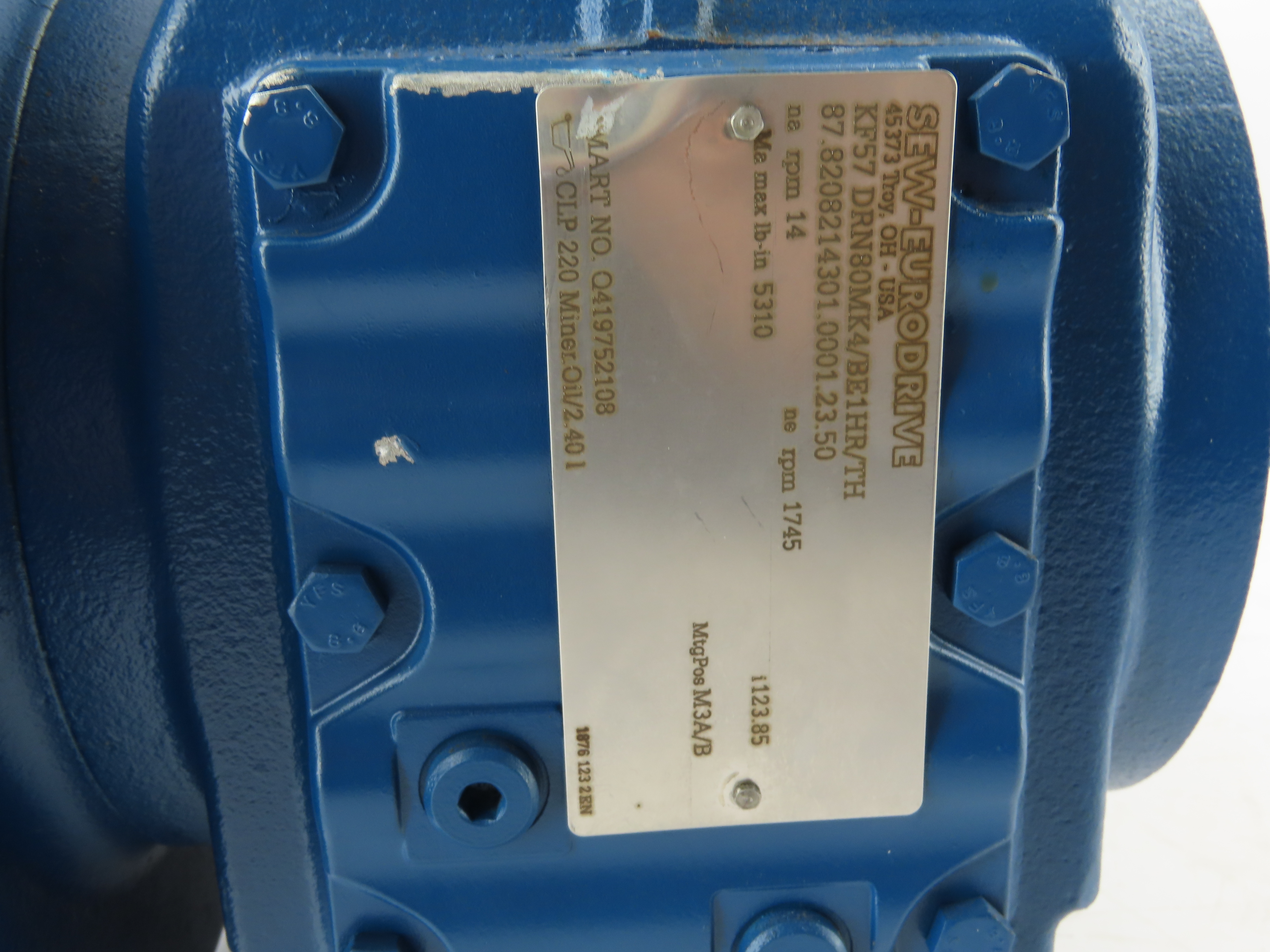

  • Motor Catalog Number (Model): -KF57-DRN80MK4/BE1HR/TH
  • Motor HP: 3/4
  • Motor Phase: 3
  • Motor Voltage: 230/460
  • Motor Frequency: 60
  • Motor Amps: 2.30/1.15
  • Insulation Class: F
  • Brake Voltage: 460AC
  • Brake Torque (in/lbs): 88
  • This is a new gearmotor.
  • Motor is invertor duty VPWM

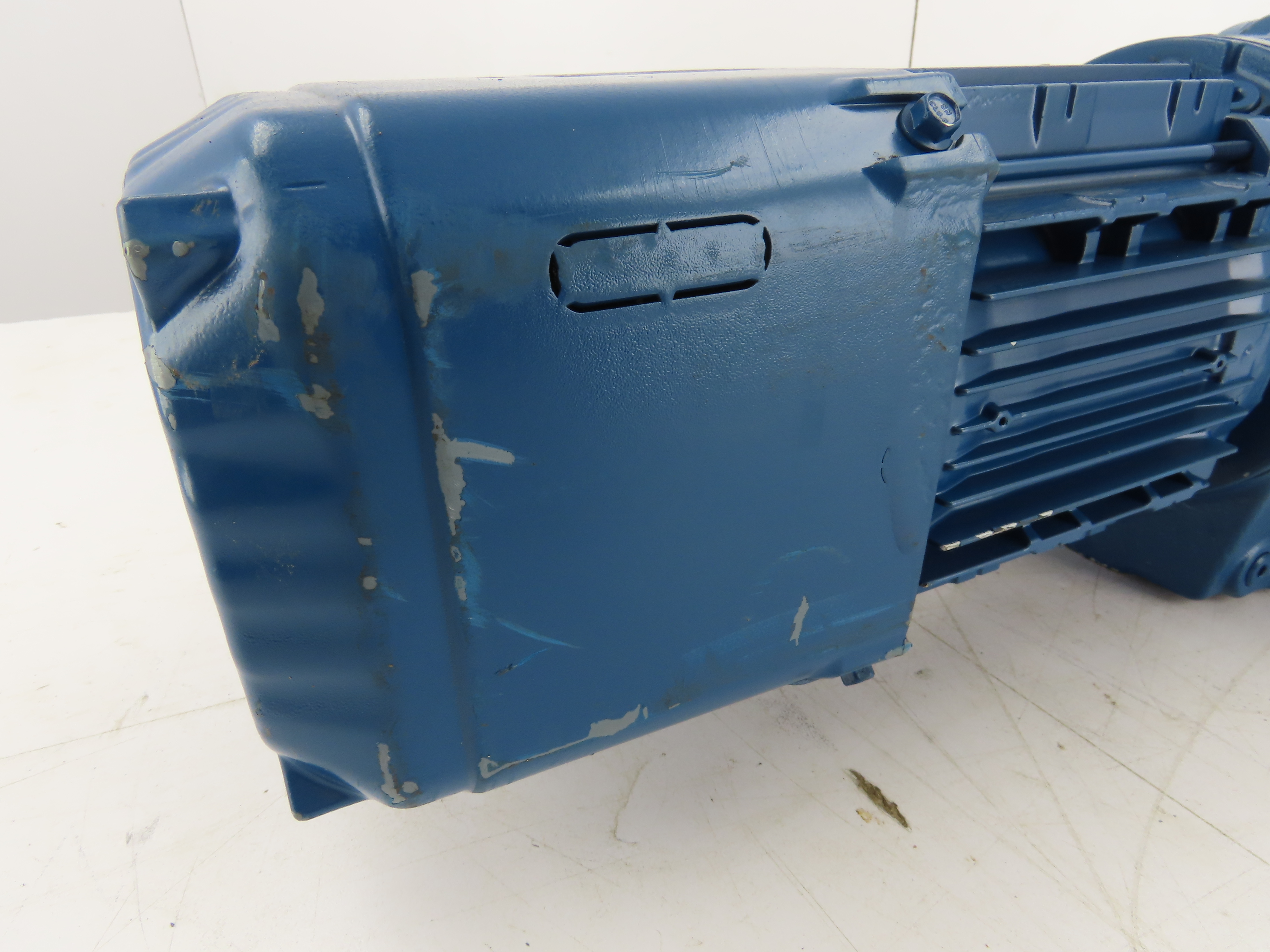

  • This has some dings and scratches from improper handling, All cosmetic.
  • KF57: Flange-mounted, right-angle helical-bevel gearbox (Size 57).
  • DRN80MK4: High-efficiency (IE3) 4-pole AC motor (Frame size 80, 0.55 kW or 0.75 HP output).

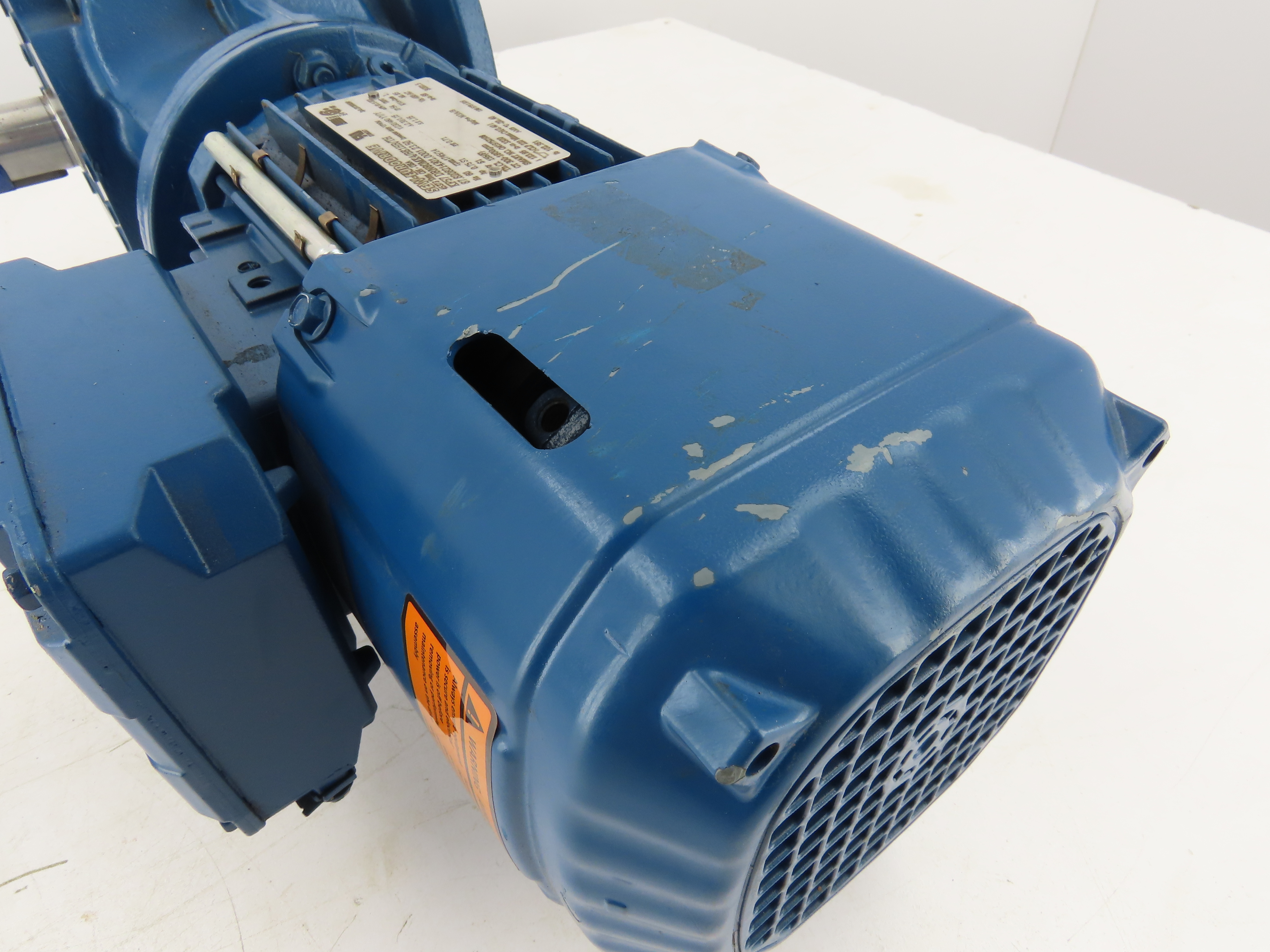

  • BE1HR: Spring-applied, DC-released holding brake equipped with a manual release hand lever (HR).
  • TH: Integrated thermostat (bimetallic switch) for thermal motor protection

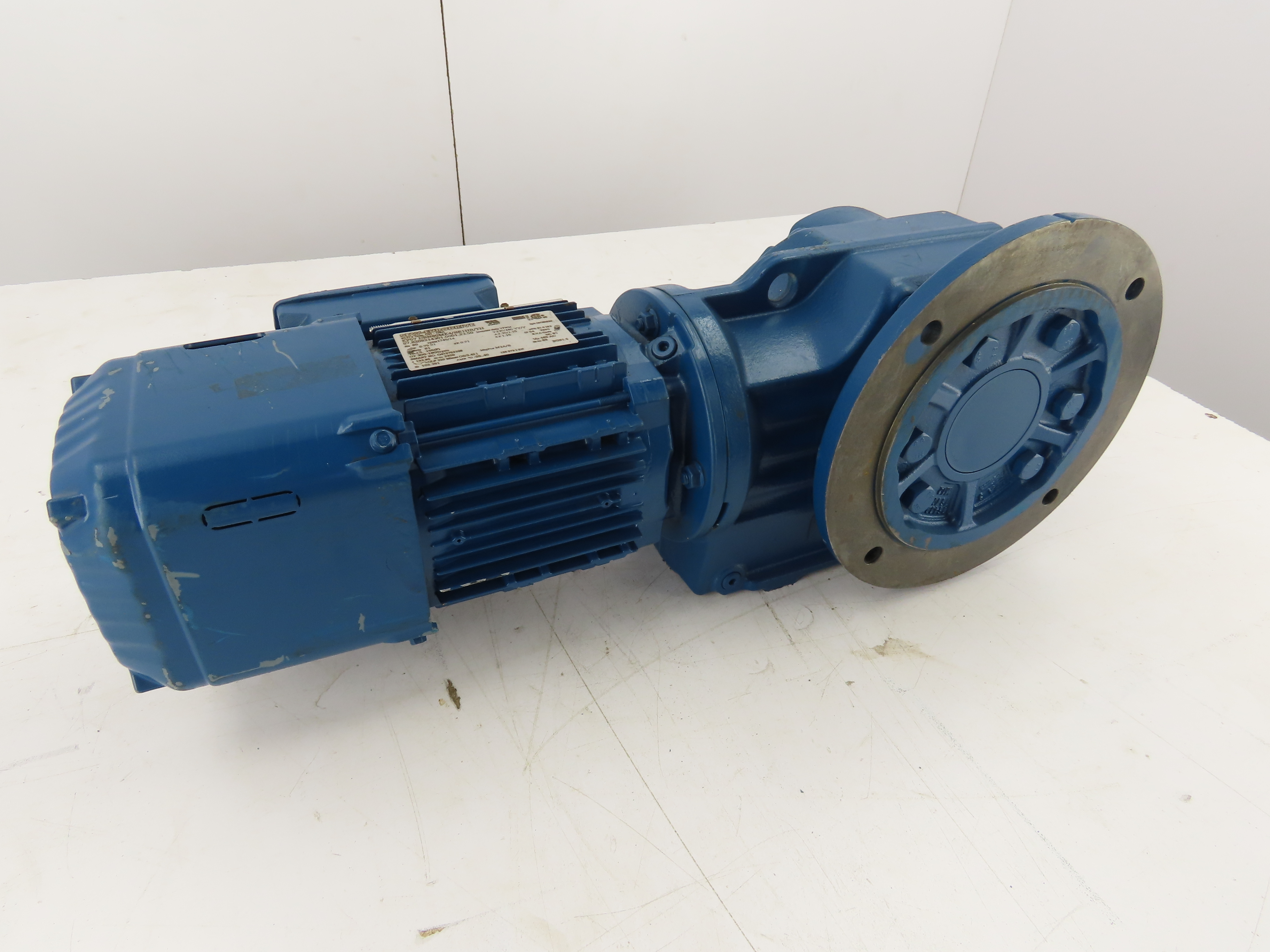

  • Piloted Flange Mount Gear Reducer
  • Piloted flange gear units are mounted /designed with an integrated pilot register that ensures precise centering and alignment during installation. The pilot fits into a corresponding bore or mounting surface, reducing misalignment and improving overall system stability. These units provide reliable shaft support and are commonly used in conveyors, industrial machinery, and heavy-duty mechanical systems where accurate positioning is essential. Available in multiple bore sizes, piloted flange gear reducer units offer dependable performance in demanding applications.

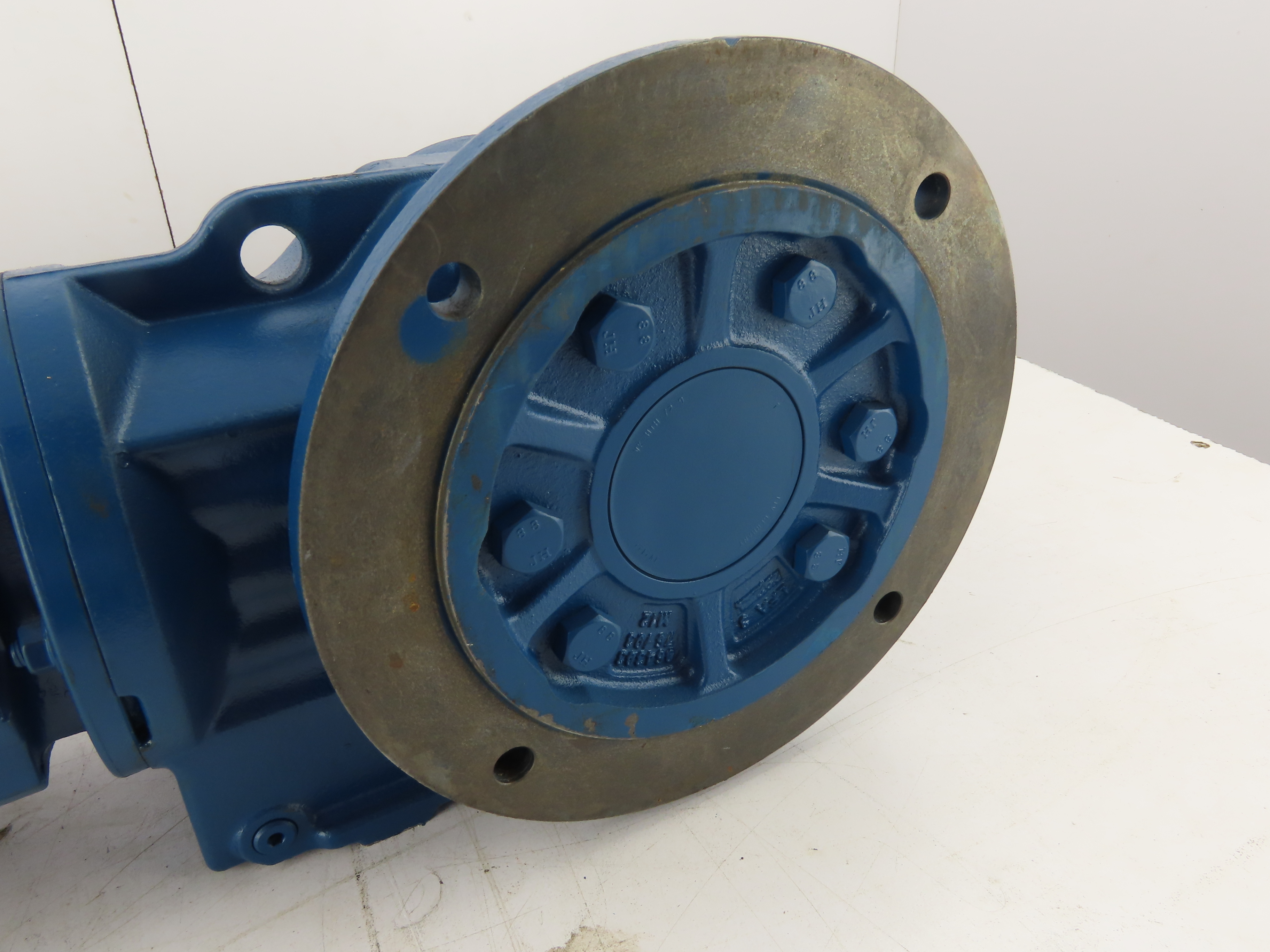

  • Raised Pilot on flange is 180 mm O.D, (4) holes at 215mm B.C.

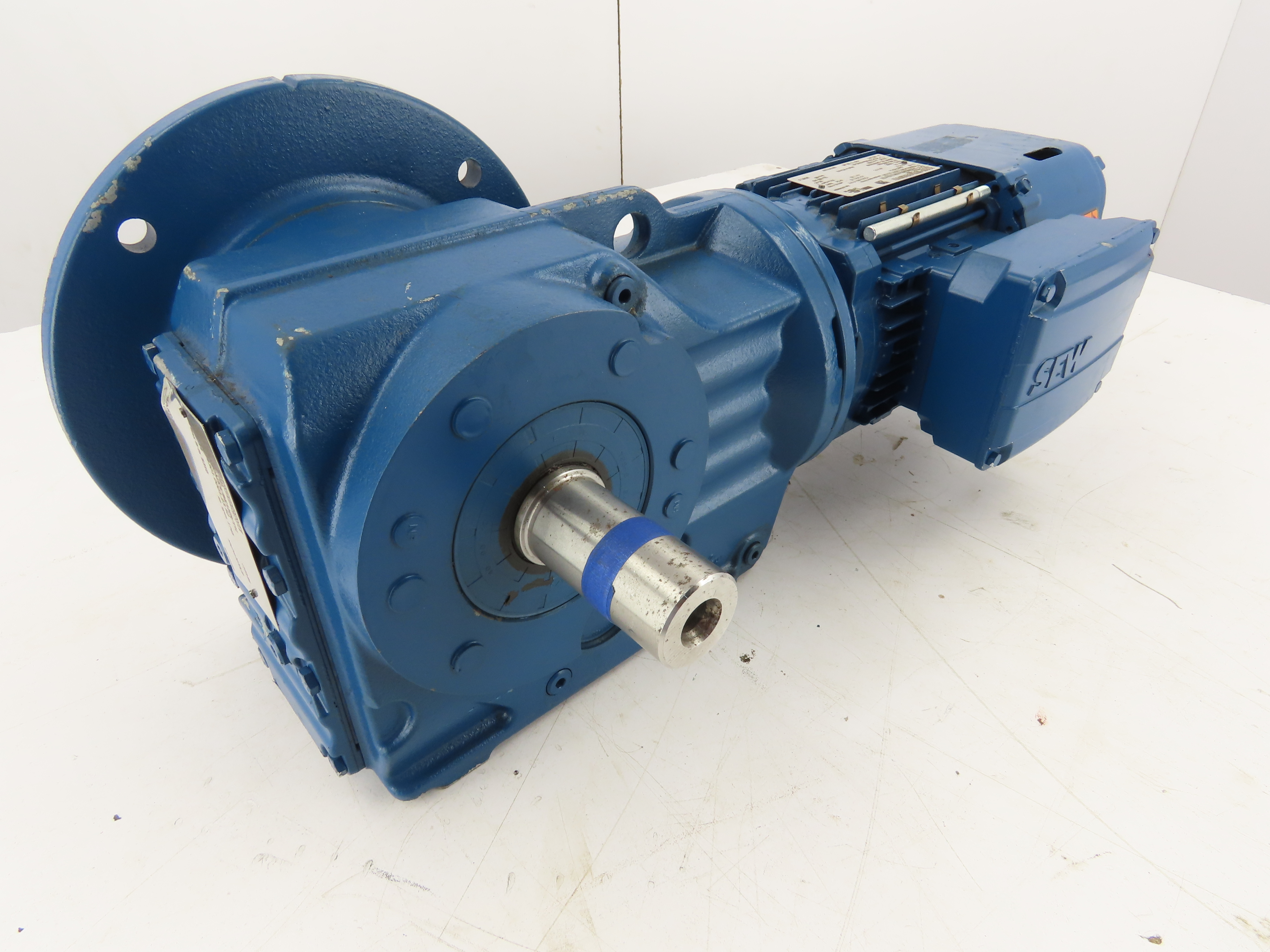

  • This gearmotor is left hand output (opposite side of mounting flange) It does not appear as if this could be changed.
