- Gear Ratio: 5.57:1
- Output Speed: 46 to 269 with invertor

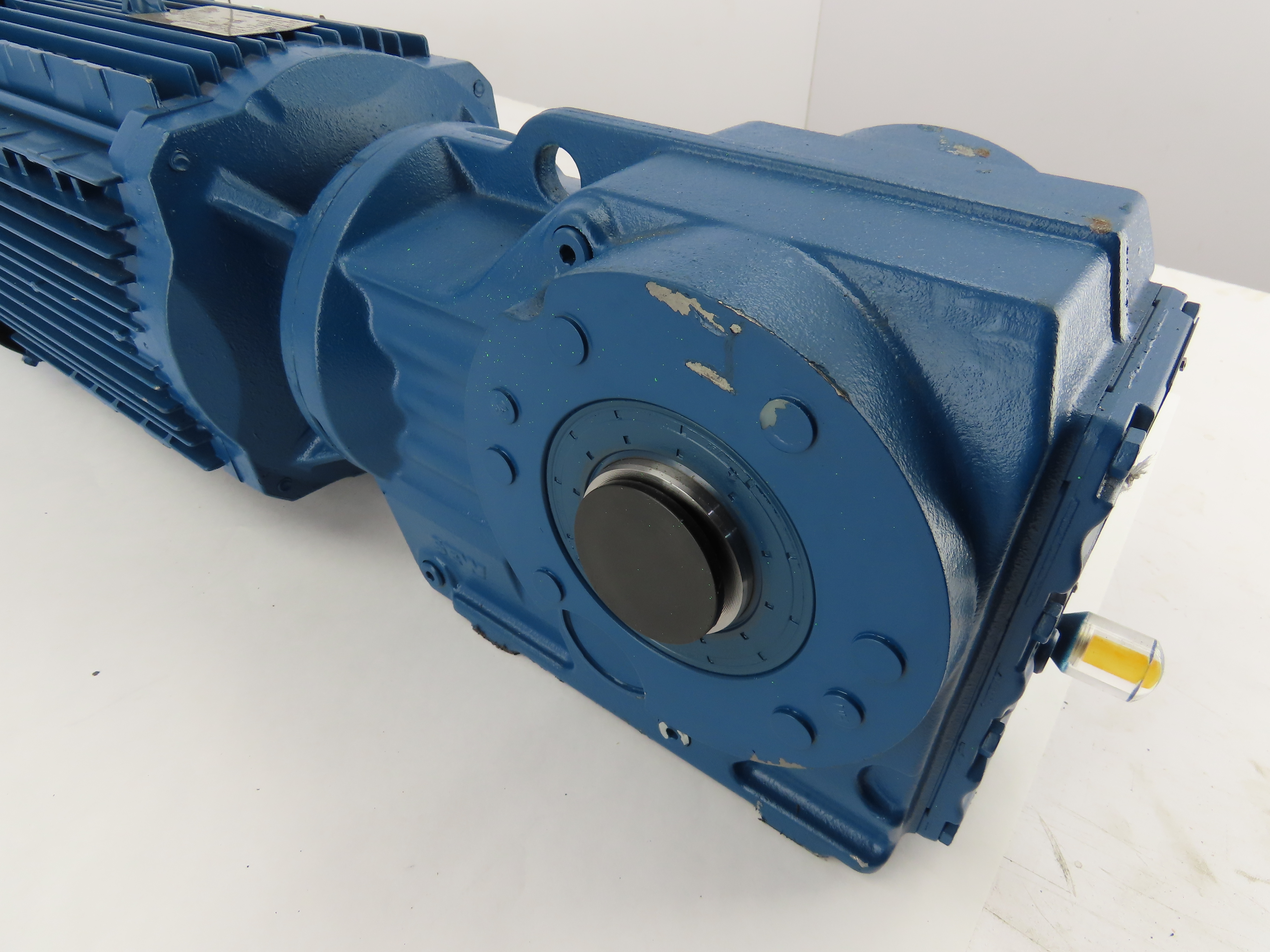

- Shaft Diameter: Straight Bore 35mm w/ keyway
- Output Torque (lbs-in): 1260
- Shaft Output (Left, Right or Inline): right/left

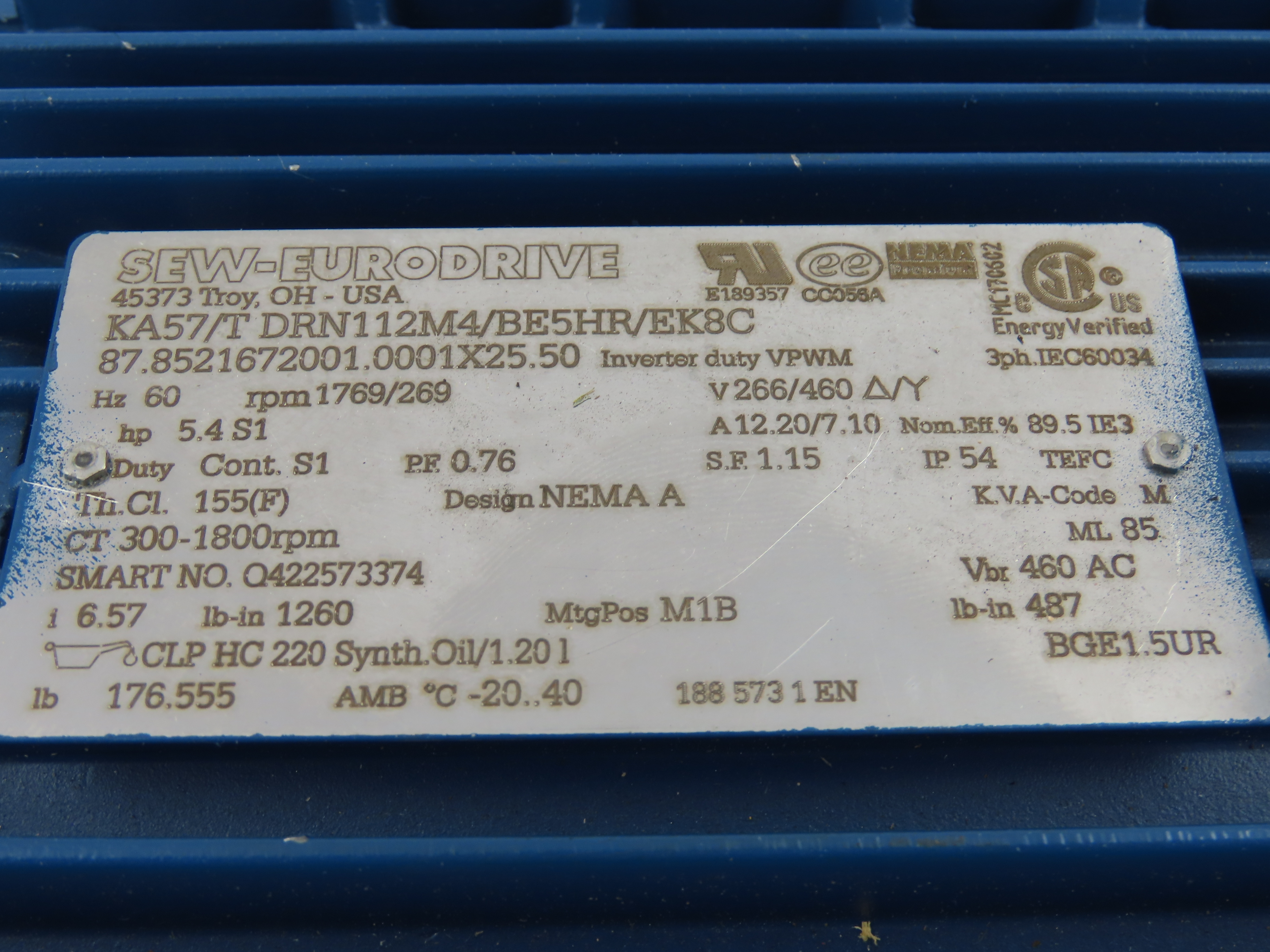

- Motor Brand: SEW-EURODRIVE
- Motor HP: 5.4
- Motor Phase: 3
- Motor Voltage: 266/460 V
- Motor Frequency: 60
- Motor Amps: 12.20/7.10
- Insulation Class: F
- Brake Voltage: 460AC
- Brake Torque (in/lbs): 487

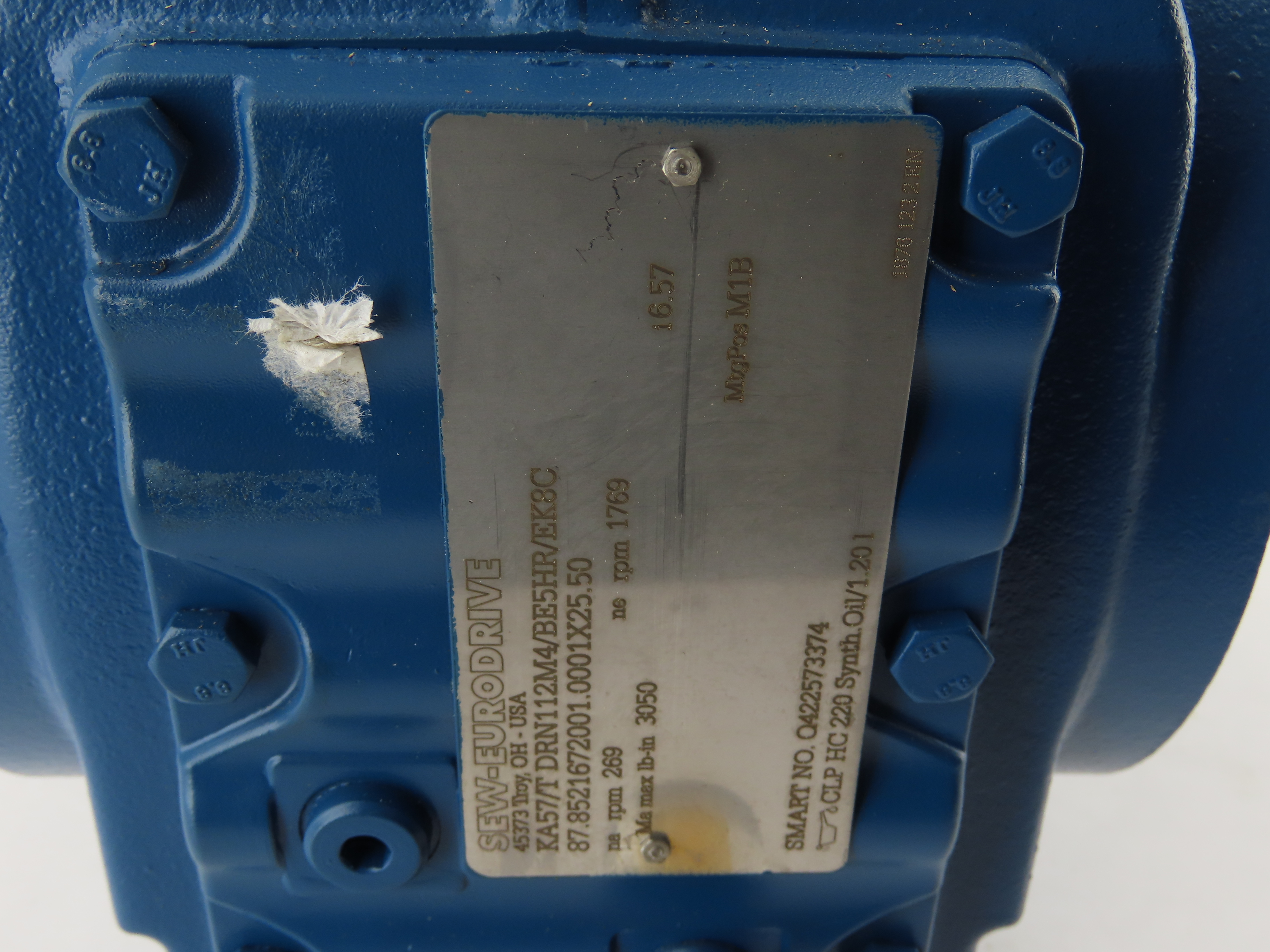

- This is a new gearmotor. S.O.87.8521672001.0001X25.50

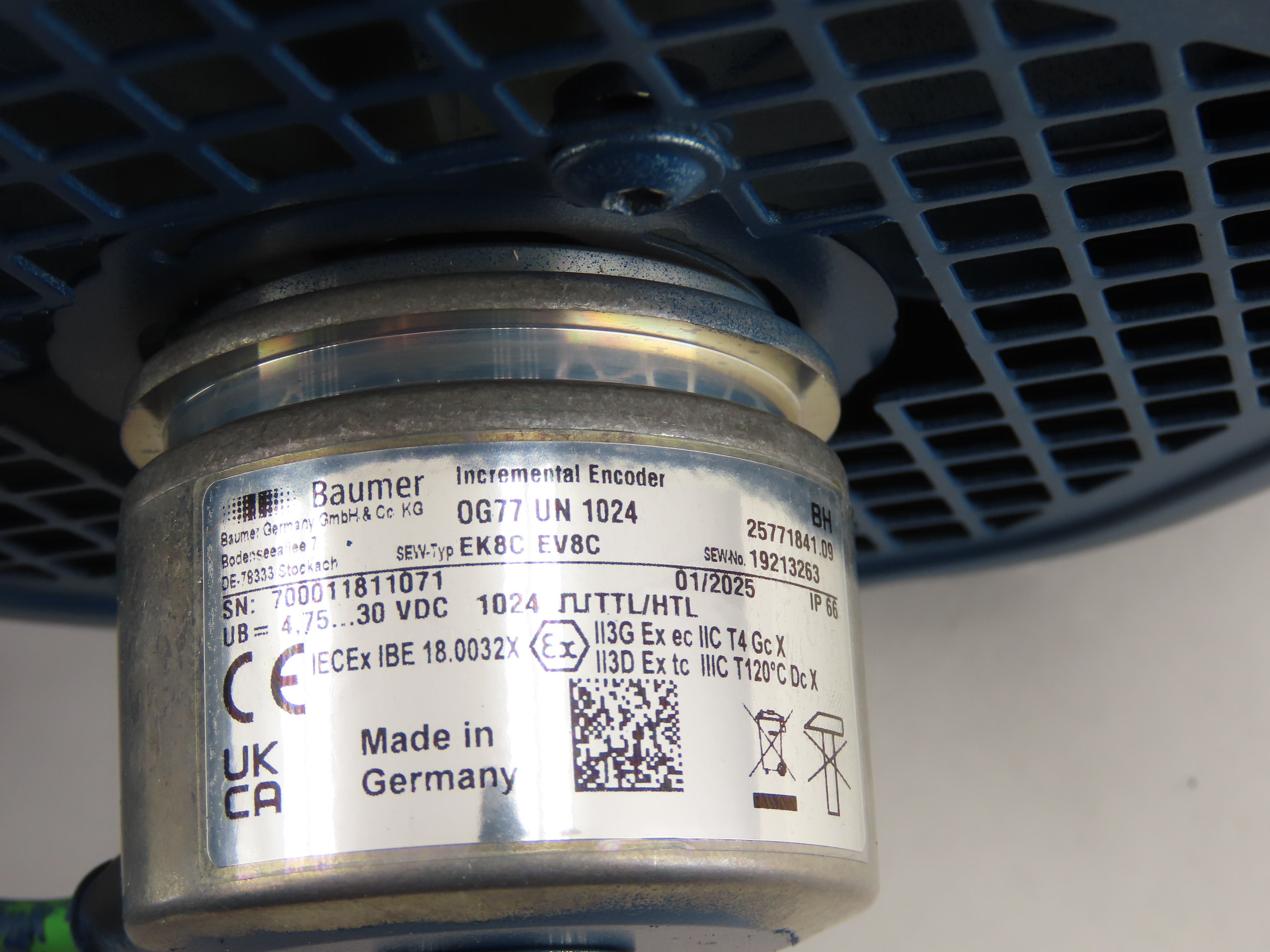

- Encoder # 0G77 UN 1024
- -Straight Bore 35mm w/ keyway
- Overall length is 35 inches

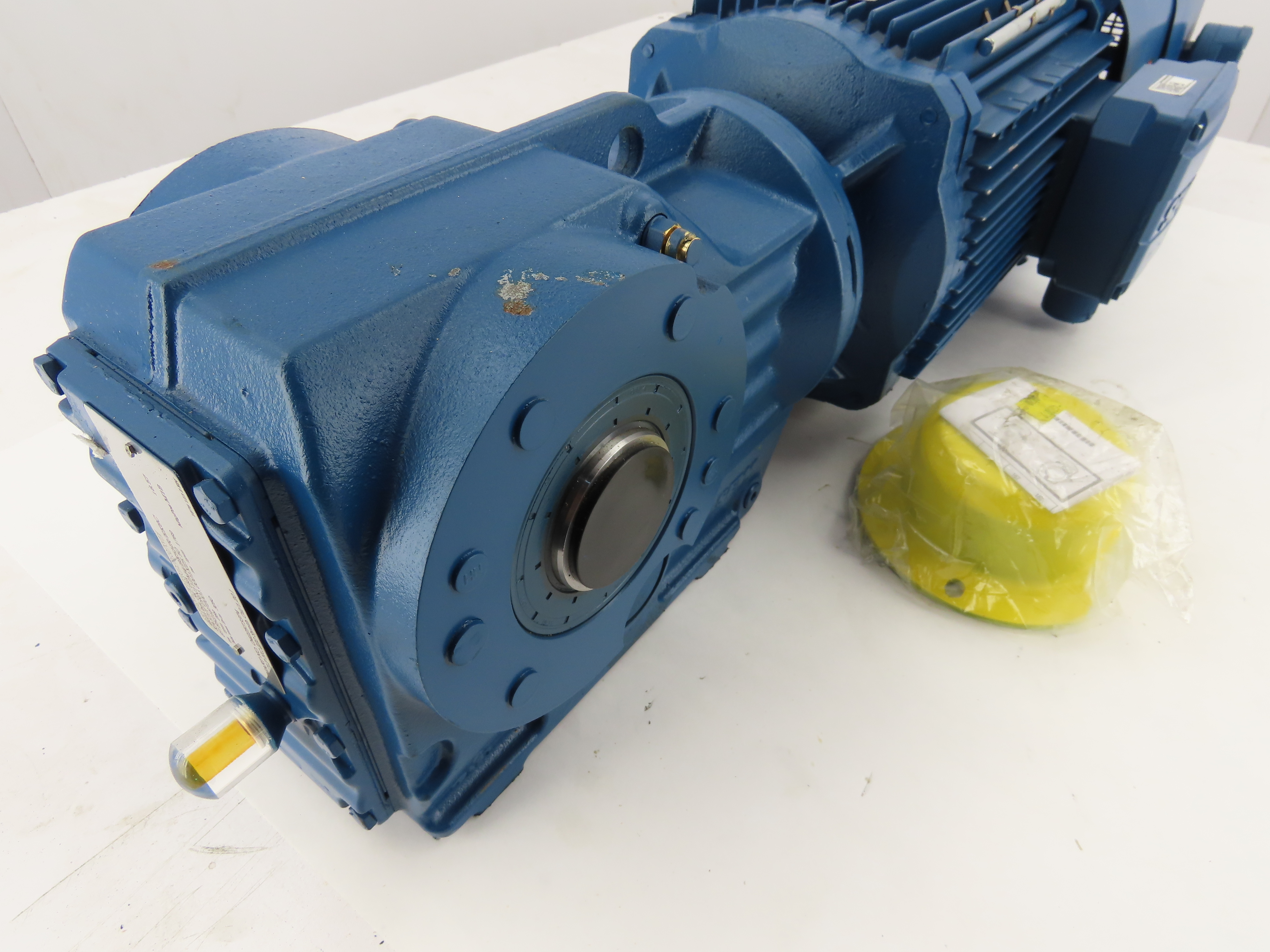

1. Gearbox Specifications (KA57/T)K: Helical-bevel gear unit (provides right-angle power transmission with high efficiency) .A: Hollow shaft design (keyway connection for mounting directly onto a machine shaft).
57: Gearbox size (indicates the physical dimensions and torque capacity)./T: Torque arm (mounting arm used to prevent the gearbox from rotating while in operation).
- 2. Motor Specifications (DRN112M4)DRN: The motor family, representing high-efficiency IE3 AC motors.112M: Motor frame size (medium length 112) .4: Number of poles (typically operates at roughly 1700-1800 RPM on standard 60 Hz power) .
- 3. Brake Specifications (BE5HR)BE5: A disc brake, specifically the BE5 size.HR: Manual brake release with a hand lever, allowing you to manually disengage the brake if power is lost or during maintenance.

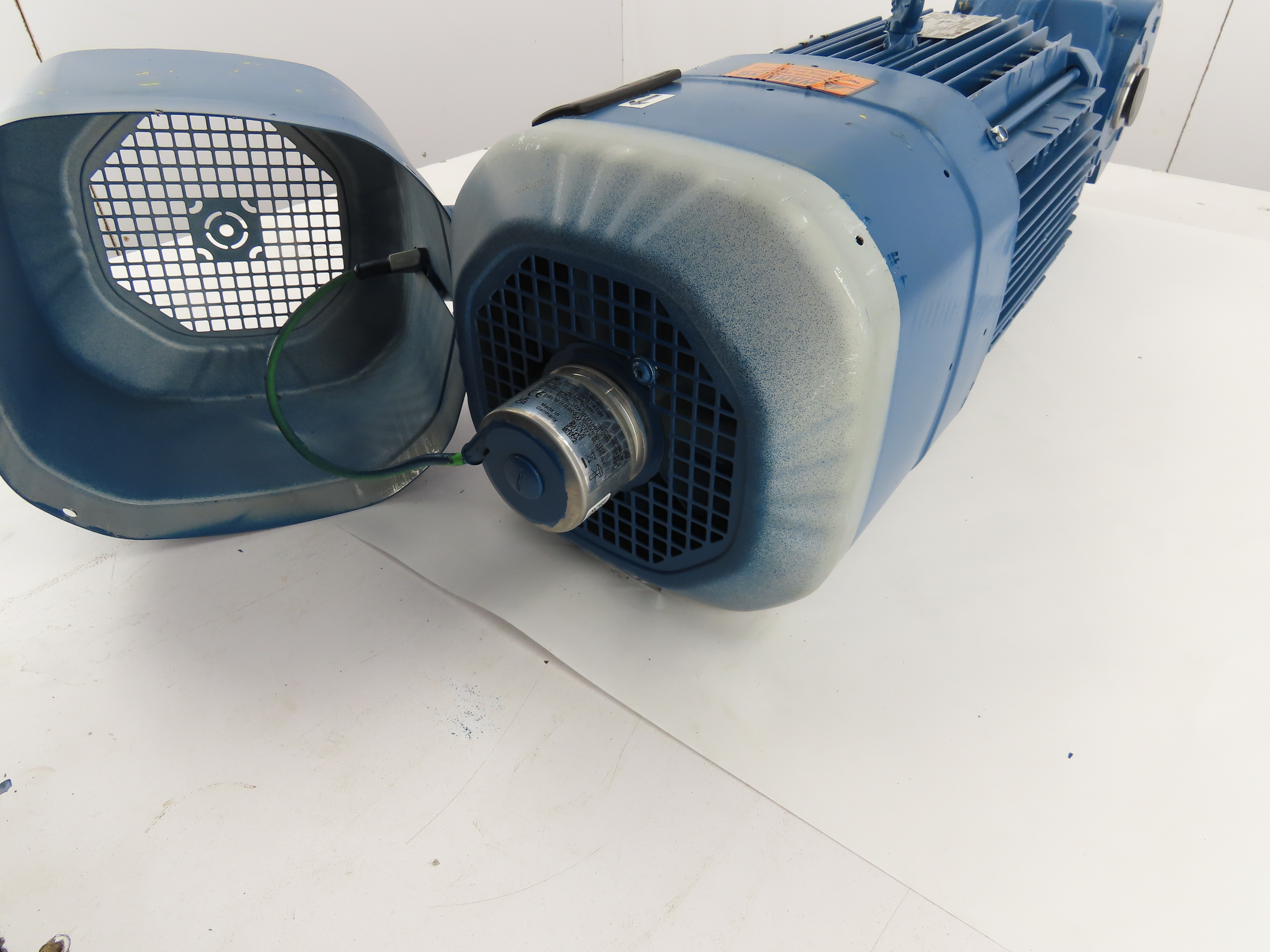

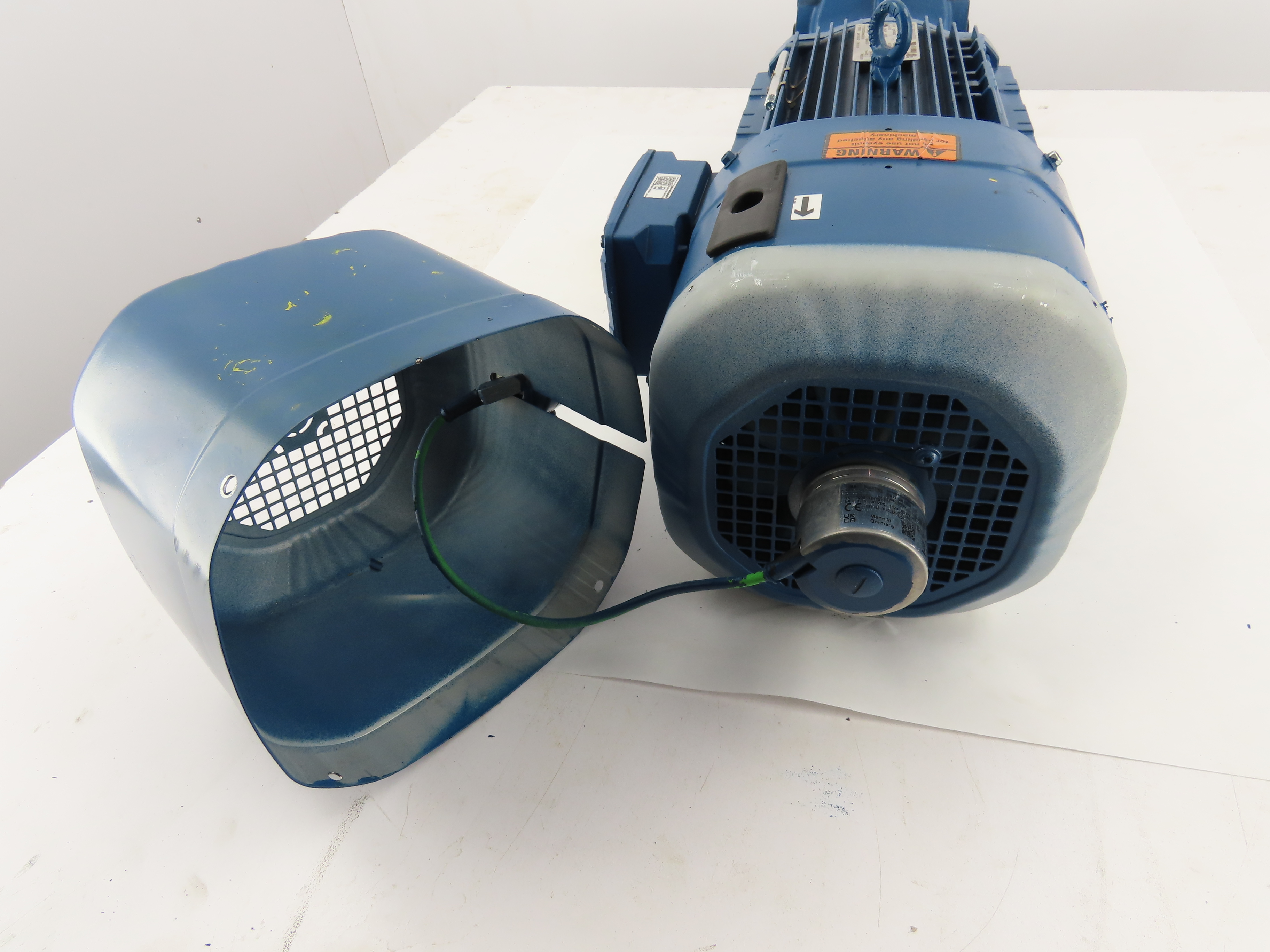

- 4. Encoder / Feedback (EK8C)EK8C: An integrated add-on incremental encoder (with an HTL interface) used for precise speed feedback and positioning in automated systems.
