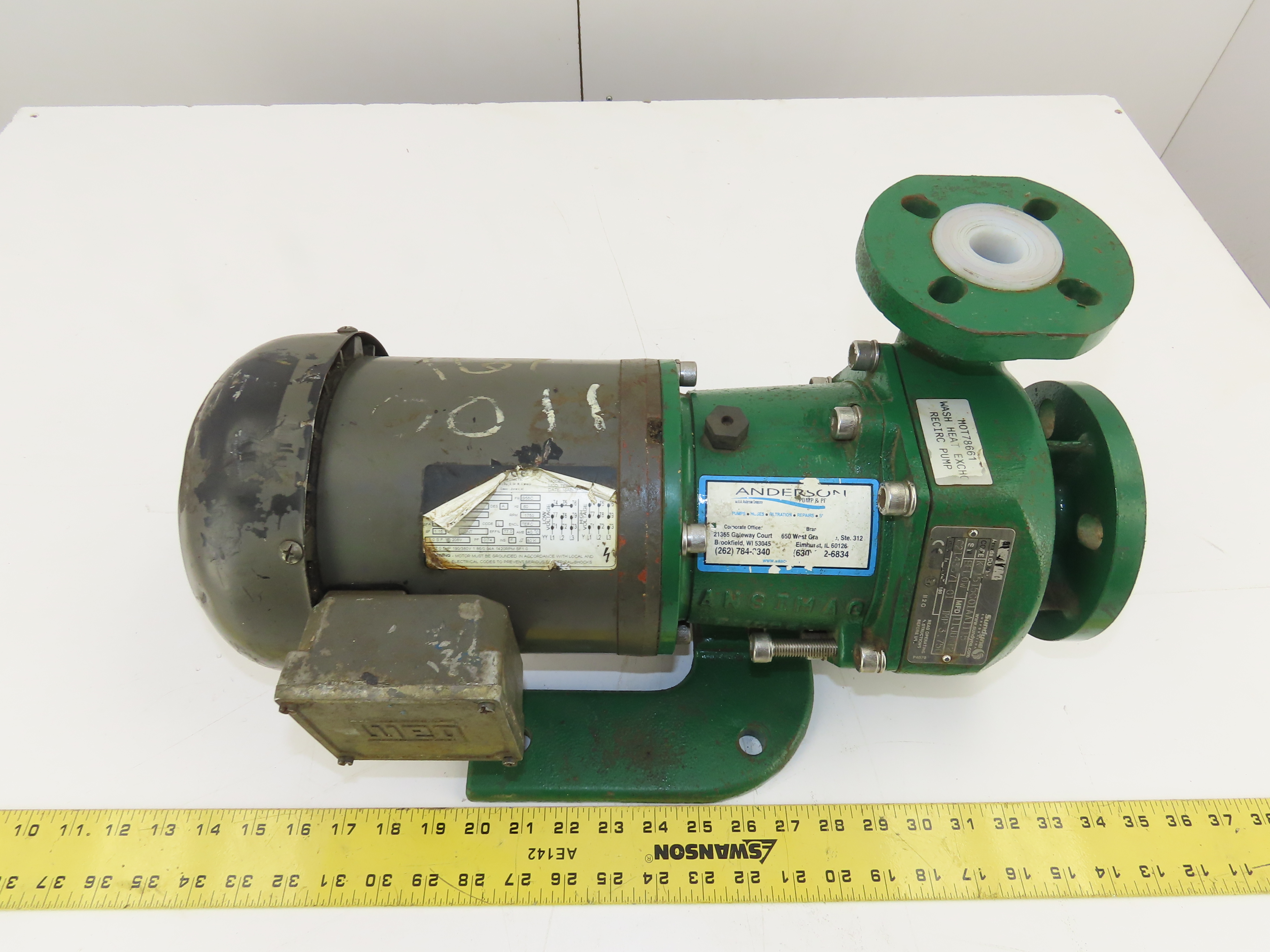

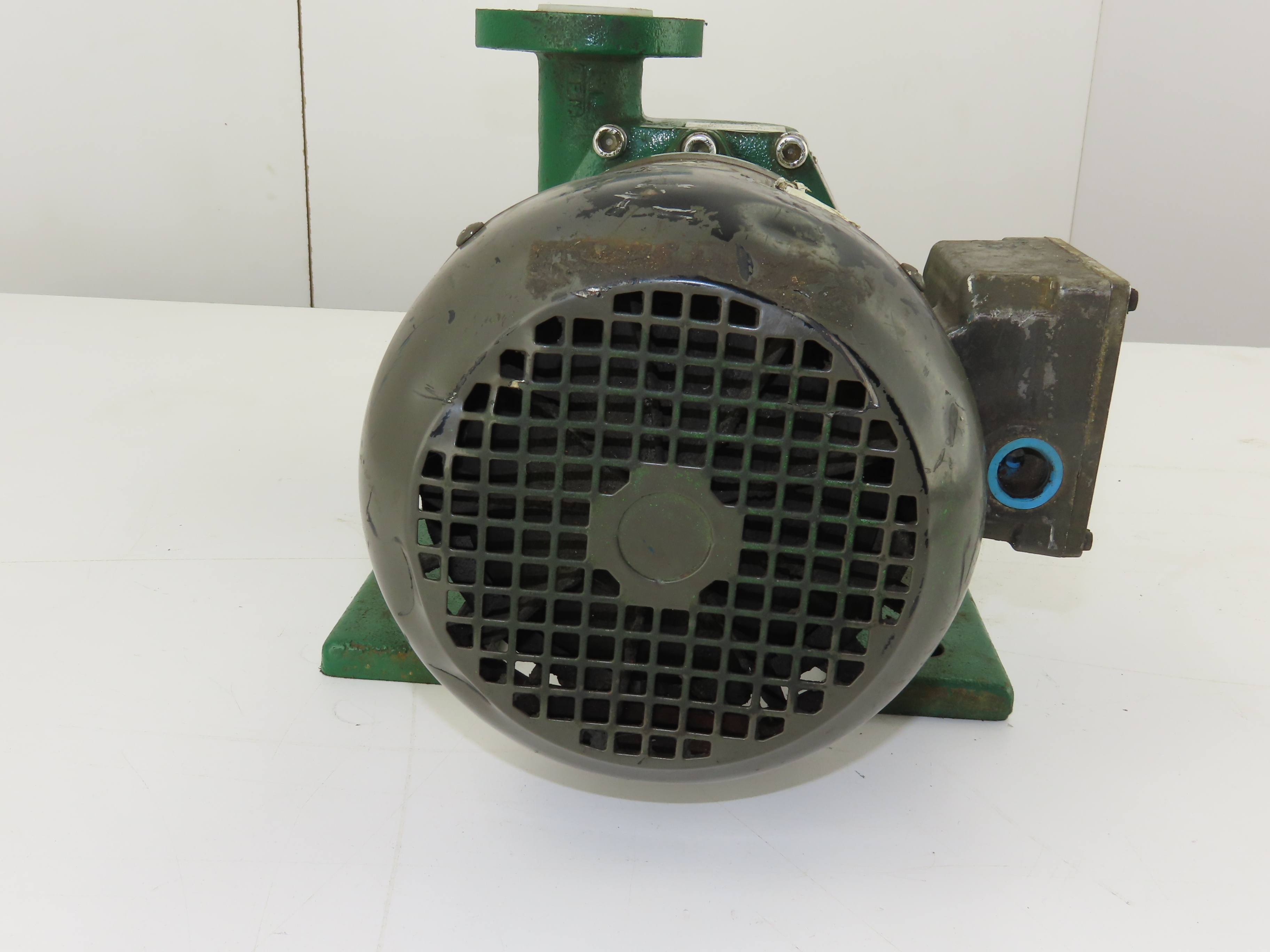

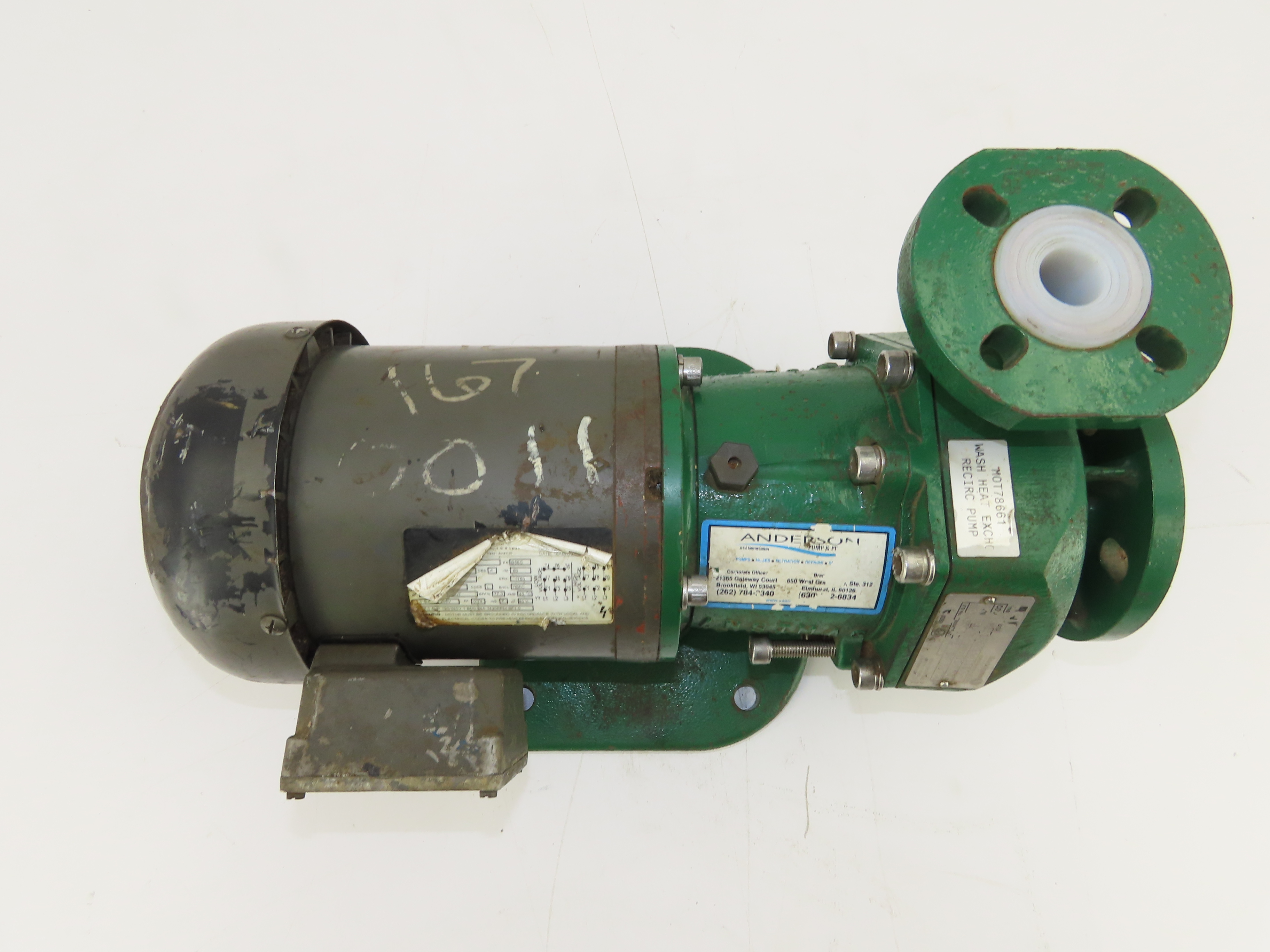

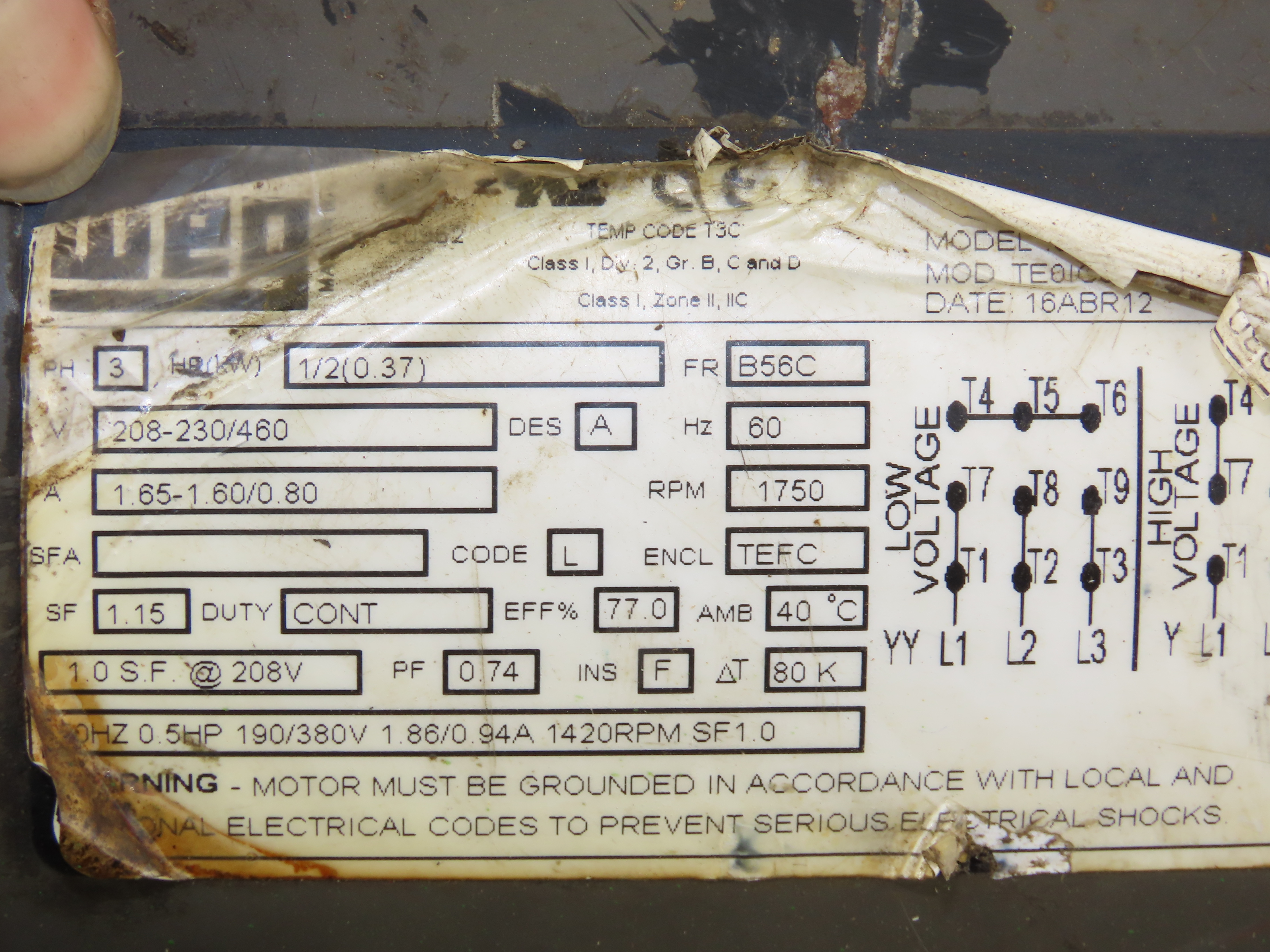

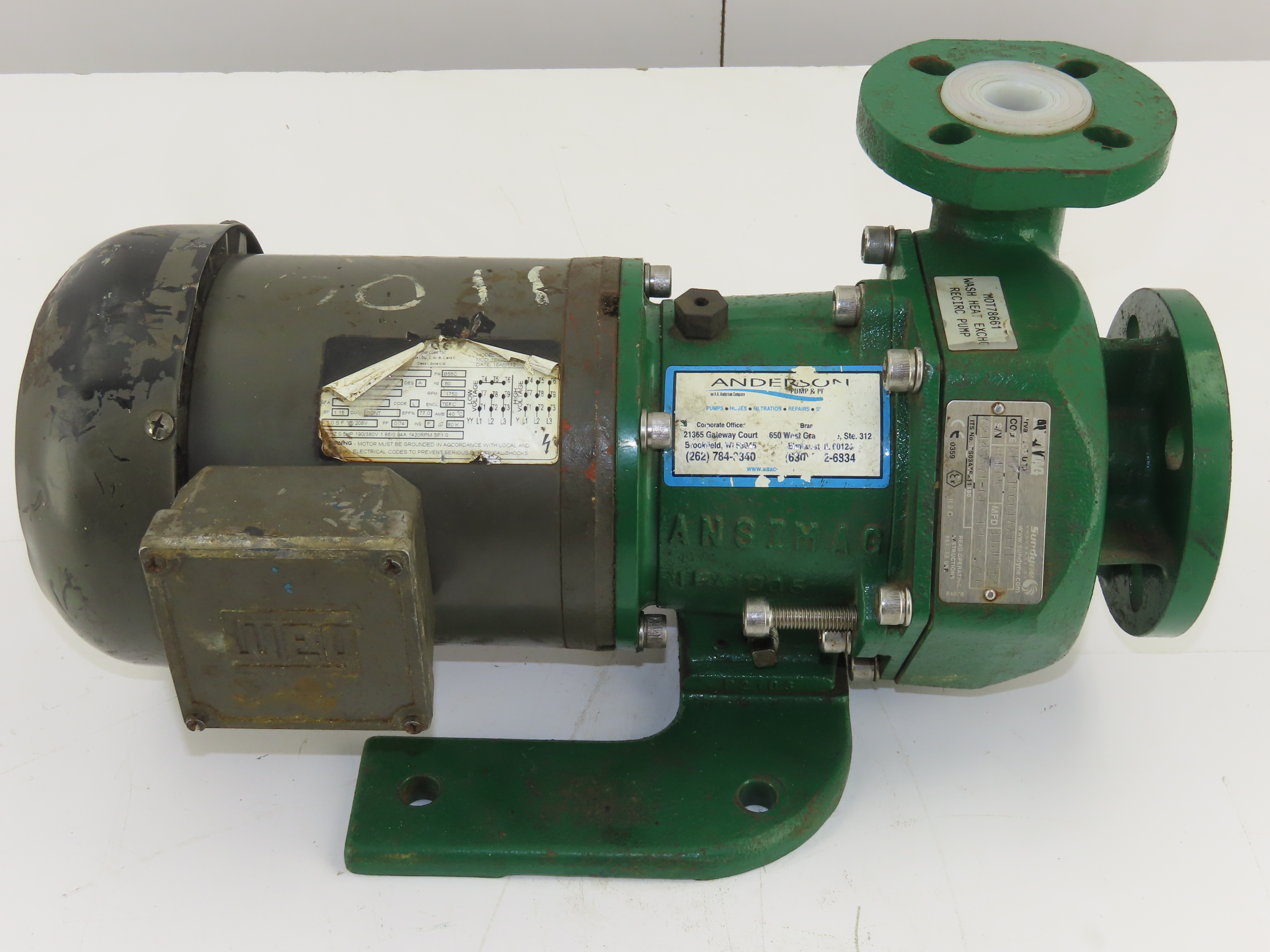

Motor is a WEG 1/2 HP 1750 RPM 208-230/460V 3-Phase Motor.
Proven to be reliable, safe, compact and efficient, ANSIMAG sealless magnetic drive ETFE lined pumps provide a number of operational benefits:
Magnetic Drive: this patented technology hermetically seals the inner magnets, isolating them from process fluid, which maintains magnet integrity for the life of the unit.
Close Coupled Design: leverages off-the-shelf NEMA C Face or IEC-B5 Flange motors, and still provides a small footprint, quiet operation and low maintenance.
Corrosion Protection: Powder Coat exterior is more durable and chemically resistant than Epoxy based paints.
Easy Service: ANSIMAG Back Pull Out design enables the Drive End to be serviced without breaking into the Wet End.
Radial Thrust: All ANSIMAG pumps feature a fully-supported shaft to eliminate radial shaft deflection at low flow operating conditions.
Zero Leakage: A single, fully-contained O-ring eliminates possible leakage.

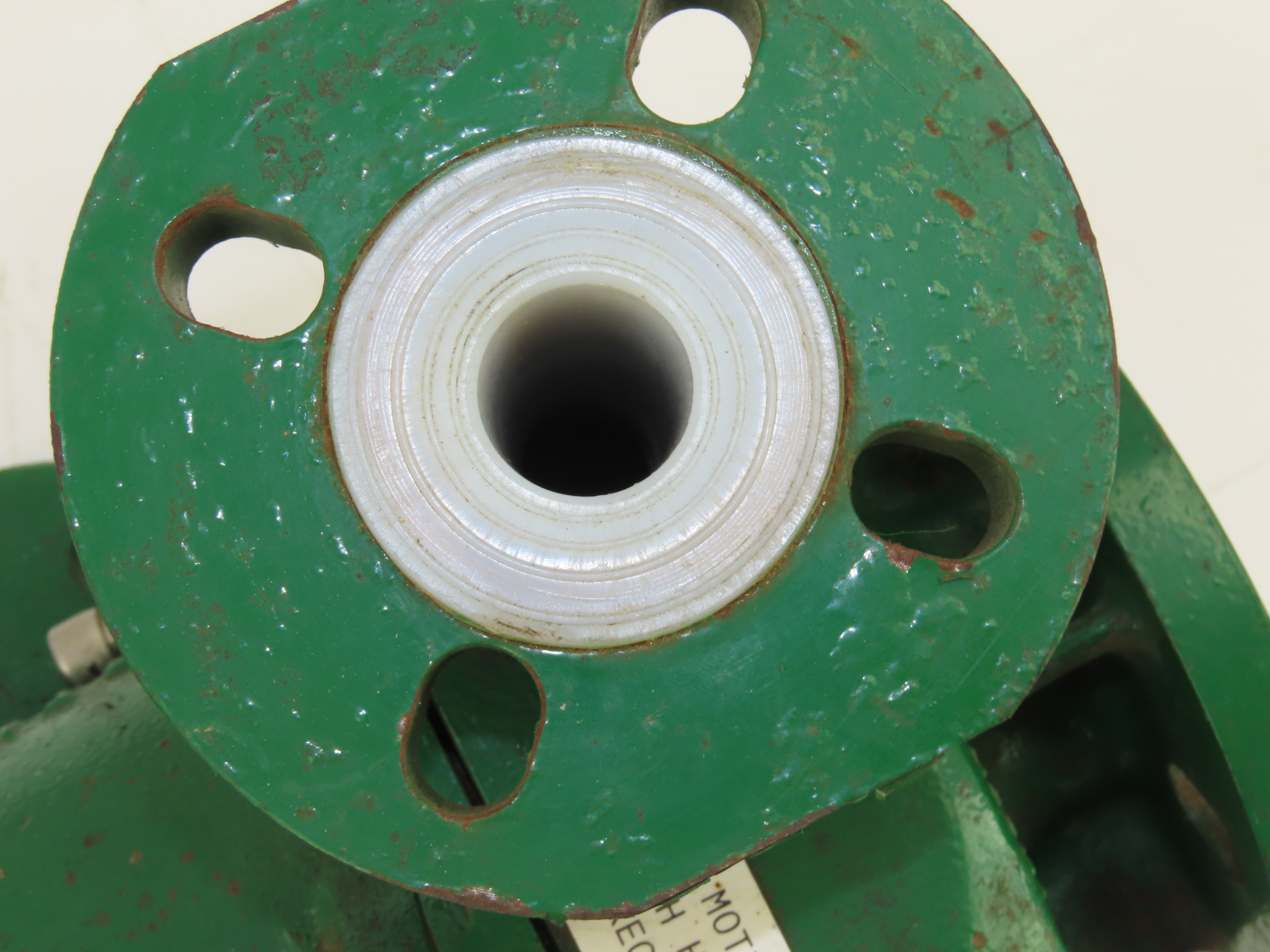

Chemically Resistant Lining: Carbon Fiber reinforced ETFE is resistant to most chemicals.
Durable Construction: Ductile iron exterior is designed for heavy-duty chemical applications.
Axial Thrust Washers: increase the allowable operating range over thrust balanced methods. This increases the pumps reliability through a positive thrust surface that is unaffected by cavitation, solids or transient suction conditions.
Simple Sealless Design: Consisting of only 9 wetted parts, ANSIMAG pumps can be quickly and easily repaired in the field. Routine maintenance or repairs can be performed without the need for special tools or training.
Replaceable Impeller: a single-piece replaceable impeller is attached to the inner magnet drive via ANSIMAGs patented tongue & groove system. The separation provides a cost effective approach to warehouse spare parts management and re-rating operations.
Run-for-Life Bushing: Silicon Carbide bushings provide near maintenance-free operation for the life of the pump.
Fully-Encapsulated Inner Drive: provides unsurpassed resistance to chemical attack.
