US Motors FR58 3HP 3500RPM 184.JPZ Frame 1PH Single Phase 115/230V Pump Motor
US Motors FR58 3HP 3500RPM 184.JPZ Frame 1PH Single Phase 115/230V Pump MotorUS Motors FR58 3HP 3500RPM 184.JPZ Frame 1PH Single Phase 115/230V Pump MotorUS Motors FR58 3HP 3500RPM 184.JPZ Frame 1PH Single Phase 115/230V Pump MotorUS Motors FR58 3HP 3500RPM 184.JPZ Frame 1PH Single Phase 115/230V Pump MotorUS Motors FR58 3HP 3500RPM 184.JPZ Frame 1PH Single Phase 115/230V Pump MotorUS Motors FR58 3HP 3500RPM 184.JPZ Frame 1PH Single Phase 115/230V Pump MotorUS Motors FR58 3HP 3500RPM 184.JPZ Frame 1PH Single Phase 115/230V Pump MotorUS Motors FR58 3HP 3500RPM 184.JPZ Frame 1PH Single Phase 115/230V Pump MotorUS Motors FR58 3HP 3500RPM 184.JPZ Frame 1PH Single Phase 115/230V Pump MotorUS Motors FR58 3HP 3500RPM 184.JPZ Frame 1PH Single Phase 115/230V Pump MotorUS Motors FR58 3HP 3500RPM 184.JPZ Frame 1PH Single Phase 115/230V Pump MotorUS Motors FR58 3HP 3500RPM 184.JPZ Frame 1PH Single Phase 115/230V Pump Motor

US Motors FR58 3HP 3500RPM 184.JPZ Frame 1PH Single Phase 115/230V Pump Motor

Current Price: $218.49
    • This is a new motor that was made for use on a pump but could be used in other applications.
    • This motor has some minor scuffs and scratches from handling.
    • Horse Power: 3
    • RPM: 3500
    • Phase: 1
    • Voltage: 115/230
    • Amps: 32/16
    • Hertz: 60
    • Nema Frame: 184JPZ
    • Enclosure: TEFC
    • Weight 90LB
    • Service Factor: 1.15
    • Rating: CONT
    • Insulation Class: F
    • Amb. Temp(Degree C): 40

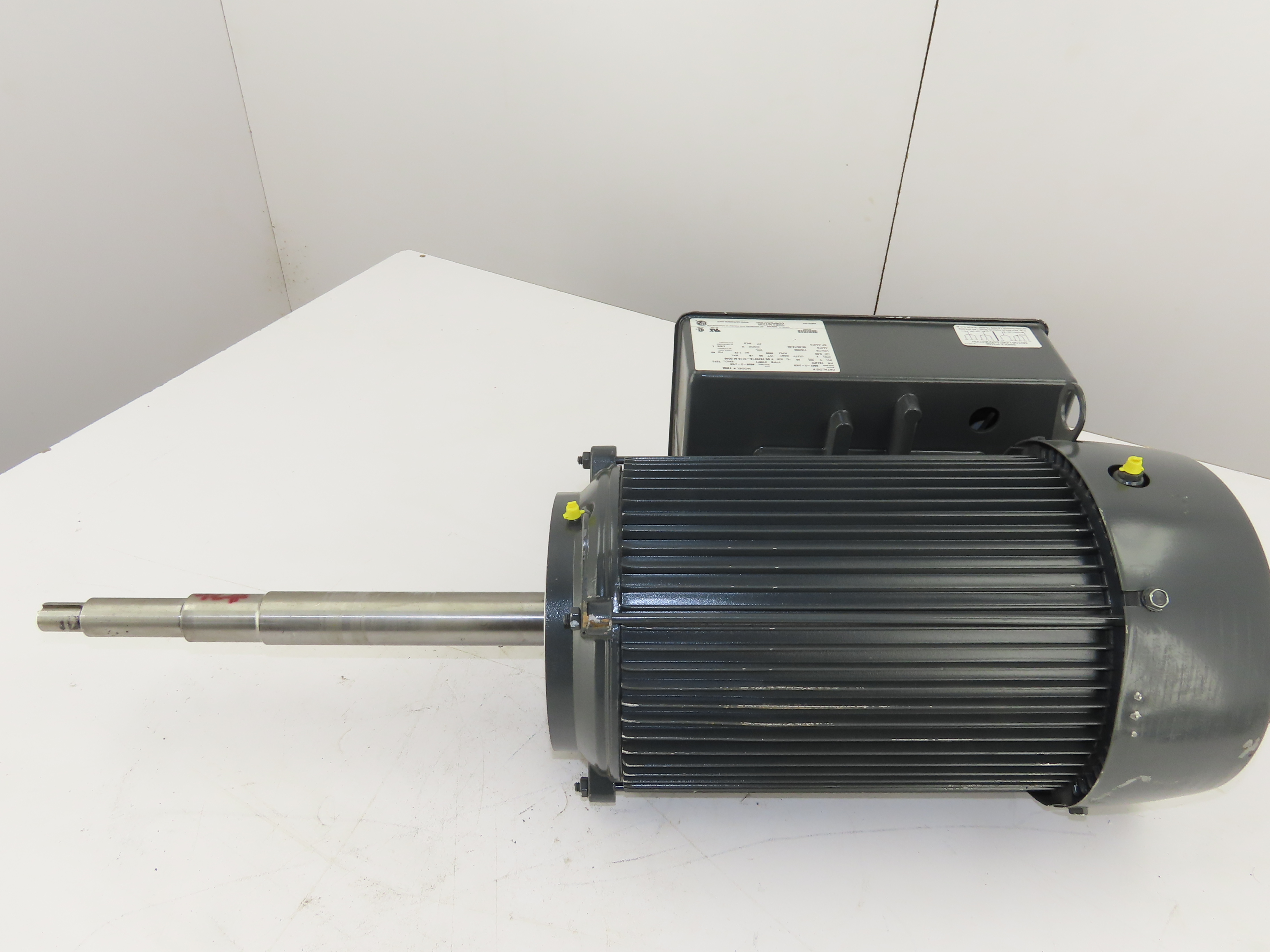

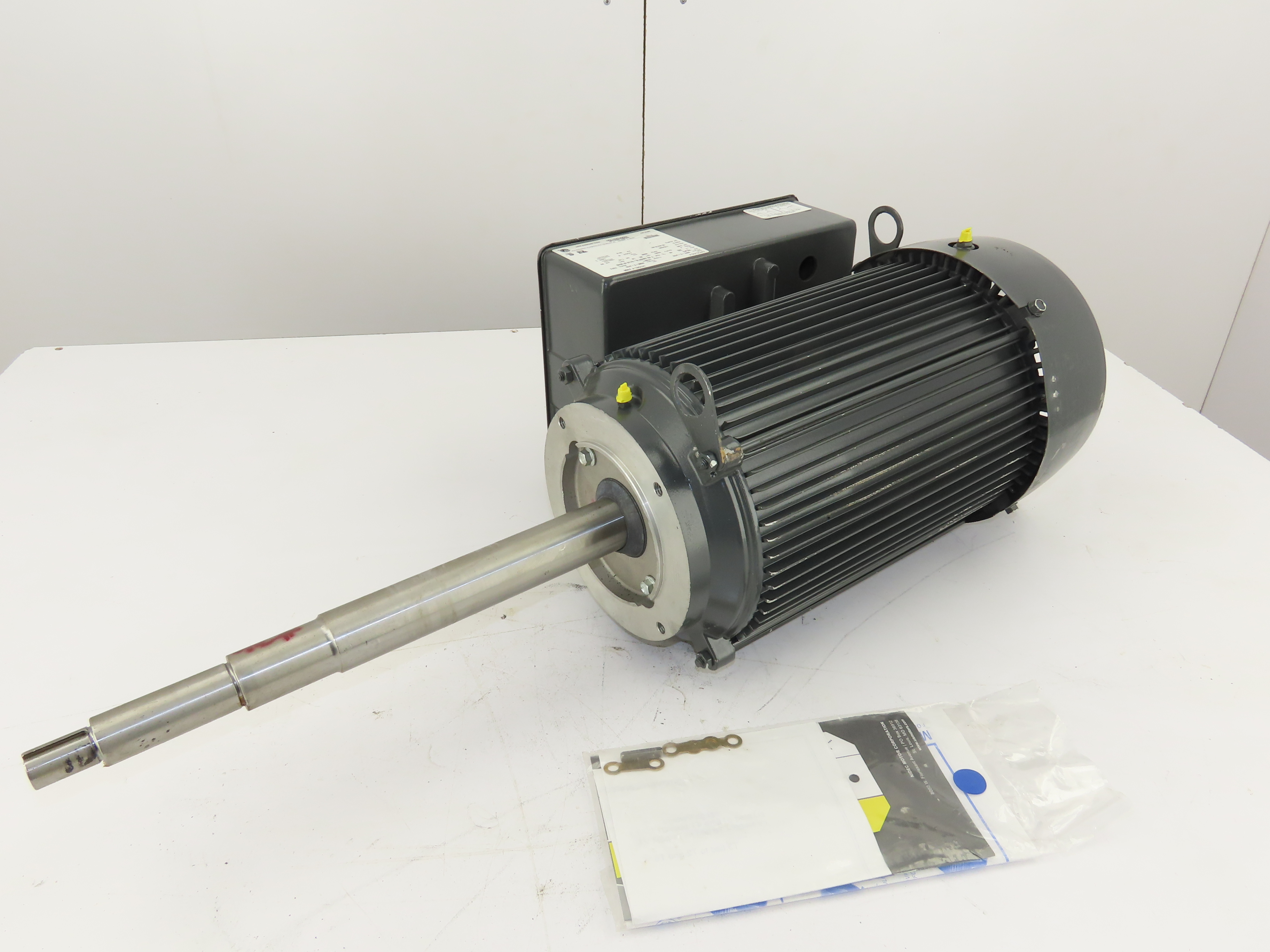

    • This is a new motor with a special shaft that I believe to have been made for a pump.
    • The shaft is 1-3/8" diameter for the first 7-3/8" measuring from the flat part of the C-Face, (not the raised flange). Then it steps down to 1.240" for the next 2". Then it steps down to 1.0035" for the next 2-5/8". The final 1-3/16" long section of the shaft is 0.750" diameter with a 3/16" wide key slot
    • The shaft is 13-3/16" long measured from the flat part of the C-Face (not the raised flange).
  •
Details
  • Brand: Nidec
  • Condition: New Other
  • SKU: 213686
  • Consigner: J
  • Warehouse Storage Location: AE-07-02
  • Shipping Weight (lbs, oz): 90,
  • Lister: jw
  • Country of Manufacture: Mexico
  • Items in Lot: 1
    • This is a new motor that was made for use on a pump but could be used in other applications.
    • This motor has some minor scuffs and scratches from handling.
    • Horse Power: 3
    • RPM: 3500
    • Phase: 1
    • Voltage: 115/230
    • Amps: 32/16
    • Hertz: 60
    • Nema Frame: 184JPZ
    • Enclosure: TEFC
    • Weight 90LB
    • Service Factor: 1.15
    • Rating: CONT
    • Insulation Class: F
    • Amb. Temp(Degree C): 40

    • This is a new motor with a special shaft that I believe to have been made for a pump.
    • The shaft is 1-3/8" diameter for the first 7-3/8" measuring from the flat part of the C-Face, (not the raised flange). Then it steps down to 1.240" for the next 2". Then it steps down to 1.0035" for the next 2-5/8". The final 1-3/16" long section of the shaft is 0.750" diameter with a 3/16" wide key slot
    • The shaft is 13-3/16" long measured from the flat part of the C-Face (not the raised flange).
  •
