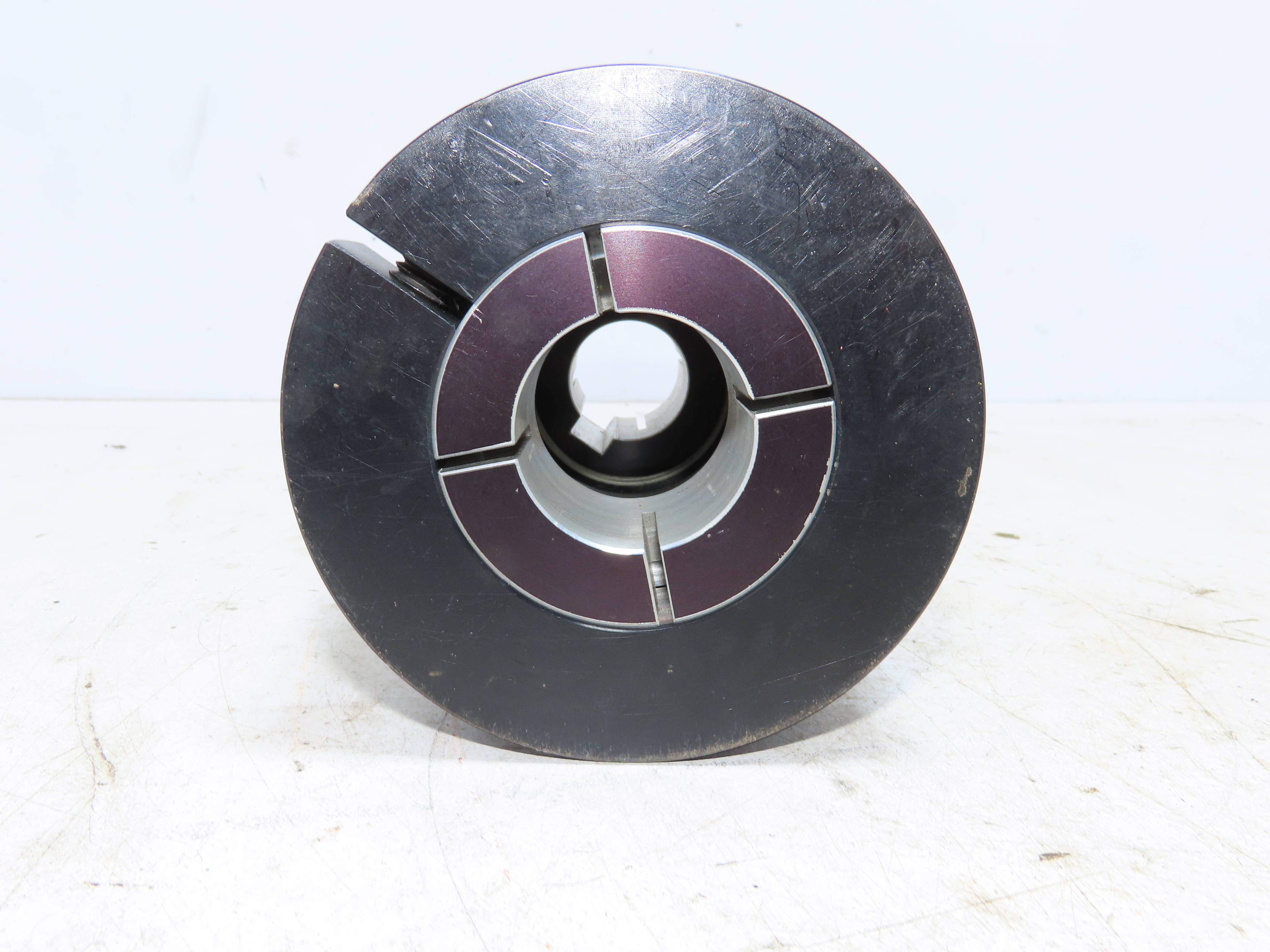

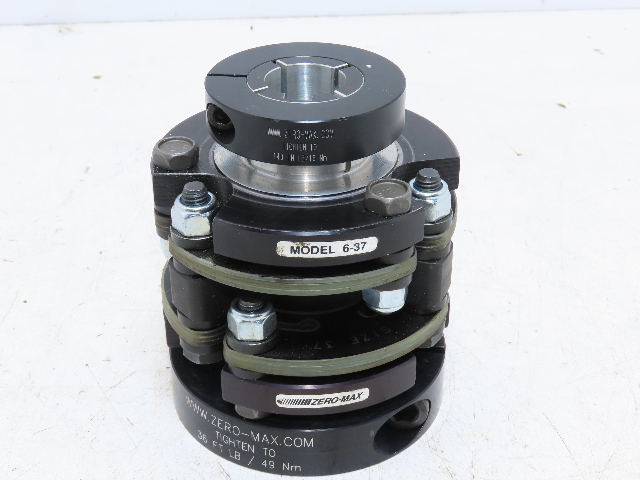

Zero-Max Backlash 6P37-AC CD Shaft Couplings Double Flex Aluminum 24MM x 32MM
Zero-Max Backlash 6P37-AC CD Shaft Couplings Double Flex Aluminum 24MM x 32MMZero-Max Backlash 6P37-AC CD Shaft Couplings Double Flex Aluminum 24MM x 32MMZero-Max Backlash 6P37-AC CD Shaft Couplings Double Flex Aluminum 24MM x 32MMZero-Max Backlash 6P37-AC CD Shaft Couplings Double Flex Aluminum 24MM x 32MMZero-Max Backlash 6P37-AC CD Shaft Couplings Double Flex Aluminum 24MM x 32MMZero-Max Backlash 6P37-AC CD Shaft Couplings Double Flex Aluminum 24MM x 32MMZero-Max Backlash 6P37-AC CD Shaft Couplings Double Flex Aluminum 24MM x 32MMZero-Max Backlash 6P37-AC CD Shaft Couplings Double Flex Aluminum 24MM x 32MMZero-Max Backlash 6P37-AC CD Shaft Couplings Double Flex Aluminum 24MM x 32MMZero-Max Backlash 6P37-AC CD Shaft Couplings Double Flex Aluminum 24MM x 32MM

Zero-Max Backlash 6P37-AC CD Shaft Couplings Double Flex Aluminum 24MM x 32MM

Current Price: $284.99
  • This is a new coupling made by Zero-Max.
  • Part Number 6P37-AC 24MM KEY x 32MM NKW
  • Continuous Rated Torque : 181 Nm
  • Peak Rated Torque : 362 Nm
  • Maximum Bore (Ea) A Hub : 32 mm
  • Maximum Bore (Eb) B Hub : 46 mm
  • Maximum Speed: 7,400 RPM
  • Torsional Stiffness : 67,167 Nm/rad
  • Parallel Misalignment : 0.30 mm
  • Angular Misalignment: 3 °
  • Axial Misalignment : 1.8 mm
  • Weight at Max Bore (A Hubs) : 1.63 kg
  • Weight at Max Bore (B Hubs) : 1.91 kg
  • Inertia at Max Bore (A Hubs) : 16.4 kg-cm²
  • Inertia at Max Bore (B Hubs) : 23.1 kg-cm²
  • Outside Diameter (A) : 95.3 mm
  • Overall Length (L) : 86.4 mm
  • Hub Length (B) : 36.6 mm
  • Distance Between Shaft Ends (C) : 13.2 mm
  • Inside Diameter of Disc-Pack (H) : 38 mm
  • A Hub Body Diameter (Ga) : 55.6 mm
  • B Hub Body Diameter (Gb) : 79.5 mm
Details
  • Brand: Zero-Max
  • Condition: New Other
  • SKU: 213019
  • Consigner: J
  • Warehouse Storage Location: BD-06-08-S5
  • Shipping Weight (lbs, oz): 3,4
  • Lister: jw
  • Country of Manufacture: United States
  • Items in Lot: 1
  • This is a new coupling made by Zero-Max.
  • Part Number 6P37-AC 24MM KEY x 32MM NKW
  • Continuous Rated Torque : 181 Nm
  • Peak Rated Torque : 362 Nm
  • Maximum Bore (Ea) A Hub : 32 mm
  • Maximum Bore (Eb) B Hub : 46 mm
  • Maximum Speed: 7,400 RPM
  • Torsional Stiffness : 67,167 Nm/rad
  • Parallel Misalignment : 0.30 mm
  • Angular Misalignment: 3 °
  • Axial Misalignment : 1.8 mm
  • Weight at Max Bore (A Hubs) : 1.63 kg
  • Weight at Max Bore (B Hubs) : 1.91 kg
  • Inertia at Max Bore (A Hubs) : 16.4 kg-cm²
  • Inertia at Max Bore (B Hubs) : 23.1 kg-cm²
  • Outside Diameter (A) : 95.3 mm
  • Overall Length (L) : 86.4 mm
  • Hub Length (B) : 36.6 mm
  • Distance Between Shaft Ends (C) : 13.2 mm
  • Inside Diameter of Disc-Pack (H) : 38 mm
  • A Hub Body Diameter (Ga) : 55.6 mm
  • B Hub Body Diameter (Gb) : 79.5 mm
